Exterior Linear Quad Graze

Outdoor rated QUAD color mixing graze lighting

Larger Images

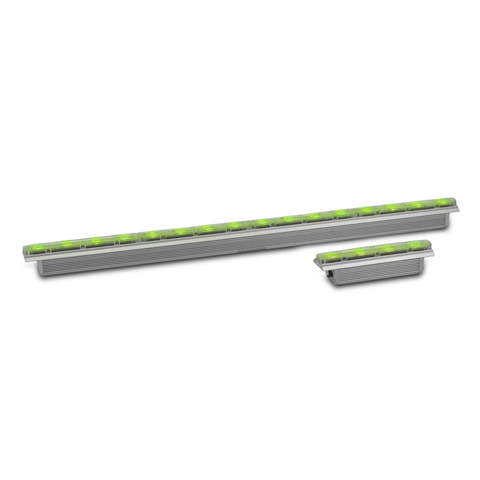

The Exterior™ Linears are a series of LED color changing fixtures in a robust outdoor-rated housing. The Exterior Linear fixtures provide high output and are available in both cove and graze light versions.

The Exterior™  Linear 1210 Graze QUAD and the Exterior™ Linear 310 Graze QUAD use quad-color LEDs for superior color mixing directly at the lens and to avoid multi-colored shadows.

They are designed to illuminate walls or any type of linear structure and feature superb premixed color mixing and uniform light distribution at three different beam angles, ideal for highlighting textured surfaces. The Exterior Linear fixtures are DMX controllable, easy to install due to their integrated universal power supply and connect via daisy chain using a combined power and data connector.

  • Linear LED fixture with uniform color mixing
  • Robust outdoor-rated fixture available in two lengths
  • Easy installation with integrated power supply
  • Superior glare control

    The louvre option for Exterior Linear effectively reduces glare by restricting the view into the luminaire, achieving efficient visual comfort and reduced light pollution

  • Easy infrastructure

    The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

  • Flexible installation

    The hinged mounting bracket allows for flexible installation

  • Sophisticated control

    The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

  • Premixed color

    The QUAD color LED secures superior color mixing within the lens. This also improves the looks and aesthetics when the fixture itself is visible.

Superior glare control

The louvre option for Exterior Linear effectively reduces glare by restricting the view into the luminaire, achieving efficient visual comfort and reduced light pollution

Easy infrastructure

The hybrid connector allows for easy and secture connection either end-to-end or using an extension cable. The in-built power supply allows for of long fixture runs up to 100 ft at 230V

Flexible installation

The hinged mounting bracket allows for flexible installation

Sophisticated control

The smart magnetic tool allows for local status information. The Exterior Linear also features Remote Device Management (RDM) for remote settings and diagnostics.

Premixed color

The QUAD color LED secures superior color mixing within the lens. This also improves the looks and aesthetics when the fixture itself is visible.

Videos

Exterior Linear Product Demonstration



Features

  • Premixed color mixing out of the lens.
  • Very low power consumption (max 20 W/ft).
  • No extra control boxes required – connects directly to line voltage and DMX.
  • Internal power and control (DMX, RDM and magnetic tool).
  • Super rugged IP66 housing.
  • 0–100% intensity control.

Specifications

  • Physical 310 series (1 ft.) fixtures:

    Length: 305 mm (12.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 101 mm (4.0 in.) including bracket
    Weight: 1.5 kg (3.4 lbs.)

    1210 series (4 ft.) fixtures:

    Length: 1219 mm (48.0 in.)
    Width: 72 mm (2.8 in.)
    Height: 101 mm (4.0 in.) including bracket
    Weight: 6.0 kg (13.3 lbs.)

    Dynamic Effects Color mixing: RGBW Intensity: 0 - 100% Control and Programming Control systems: DMX, RDM Control resolution: 8-bit DMX control of each color User interface: Magnetic button to call up fixture status and test fixture DMX channels: 2 - 16 depending on model and mode DMX compliance: USITT DMX512/1990 RDM RDM compliance: ANSI/ESTA E1.20 Optics Light source: Quad-color Osram OSTAR Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Beam angle variants: Narrow: 15° Wide: 62° Asymmetric: 17° x 67° *Figure obtained under test conditions Photometric Data Exterior Linear 310 QUAD Graze:

    Total luminous output: 515 lumens
    Red output: 200 lumens
    Green output: 315 lumens
    Blue output: 76 lumens
    White output: 466 lumens

    Exterior Linear 1210 QUAD Graze: Total luminous output: 2060 lumens Red output: 800 lumens Green output: 1260 lumens Blue output: 304 lumens White output: 1864 lumens Construction Housing: Aluminum Front: Clear polycarbonate with diffuser Protection rating: IP66 IK rating: IK08 Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) RoHS compliant Installation Orientation: Any Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)
  • Connections Power/data in/thru: 8-pin custom connectors Electrical AC power: 100-277 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Maximum total length of fixtures in chain at 120 V: 15.24 meters (50 ft.) Maximum total length of fixtures in chain at 240 V: 30.48 m (100 ft.) Typical half-cycle RMS inrush current: 0.3 A, 1210 QUAD models 0.7 A Surge protection: 4 KV Maximum total length of fixtures at 120V: 15.2 m / 50 ft Maximum total length of fixtures at 240V: 30.5 m / 100 ft Maximum total length of fixtures at 277V: 30.5 m / 100 ft Maximum total cable length at 120V: 70 m / 230 ft Maximum total cable length at 240V: 100 m / 328 ft Typical Power and Current 100-240 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.95 +/- 0.05 277 V, 50/60 Hz: 20 W per foot +/- 1 W, PF 0.90 +/- 0.05 Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor. Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated, +/- 10%): 70 BTU/hr. per foot *Above this temperature, the fixture regulates output to protect from overheating. Approvals EU safety: EN 60598-2-5, EN 60598-2-1, (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032 (EN 55103-1), EN 55103-2, EN 61547, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class B Canadian safety: CSA C22.2 No. 250.0 Australia/NZ: RCM Accessories Magnetic Test Tool, set of 10: P/N 91610139 Cables:

    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), EU: P/N 91611754
    Power + Data Input Cable with 8-pin custom connector, 2 m (6.6 ft.), US: P/N 91611755
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), EU: P/N 91611156
    Power + Data Input Cable with 8-pin custom connector, 10 m (32.8 ft.), US: P/N 91611157
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), EU: P/N 91611758
    Power + Data Extension Cable with 8-pin custom connectors, 0.2 m (0.7 ft.), US: P/N 91611759
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), EU: P/N 91611760
    Power + Data Extension Cable with 8-pin custom connectors, 1 m (3.3 ft.), US: P/N 91611761
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), EU: P/N 91611762
    Power + Data Extension Cable with 8-pin custom connectors, 5 m (16.4 ft.), US: P/N 91611763
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), EU: P/N 91611764
    Power + Data Extension Cable with 8-pin custom connectors, 10 m (32.8 ft.), US: P/N 91611765
    End Termination Cap for power + data link: P/N 91611766

    Optical:

    Exterior Linear 300 Series Glare Shield, set of 4: P/N 91611752
    Exterior Linear 1200 Series Glare Shield, set of 4: P/N 91611753
    Exterior Linear 310/1210 QUAD Graze Louvre, set of 4: P/N 91611850

    Ordering Information Exterior Linear 310 Quad Graze:

    Exterior Linear 310 QUAD Graze, Narrow: P/N 90356990
    Exterior Linear 310 QUAD Graze, Wide: P/N 90356991
    Exterior Linear 310 QUAD Graze, Asymmetric: P/N 90356992

    Exterior Linear 1200 QUAD Graze:

    Exterior Linear 1210 QUAD Graze, Narrow: P/N 90356993
    Exterior Linear 1210 QUAD Graze, Wide: P/N 90356994
    Exterior Linear 1210 QUAD Graze, Asymmetric: P/N 90356995

Downloads

  Version Language Size Uploaded
Specifications
Exterior Linear Quad Spec Sheet-English (EN) en  600 KB Feb 27, 2019
Exterior Linear System Diagrams en  291 KB Jun 18, 2019
Exterior Linear Cables en  899 KB May 23, 2018
Manuals
Exterior Linear Series - User Manual en  2.61 MB May 18, 2018
Photometrics
Exterior Linear 310-1210 QUAD Graze - Photometrics   en  14.7 MB Aug 08, 2018
Illustrations
Exterior Linear 310 Quad Graze - 2D Dimensions (DWG)     1.55 MB Feb 13, 2019
Exterior Linear 310 Quad Graze - 2D Dimensions (PDF)     199 KB Feb 13, 2019
Exterior Linear 1210 Quad Graze - 2D Dimensions (DWG)     2.21 MB Feb 13, 2019
Exterior Linear 1210 Quad Graze - 2D Dimensions (PDF)     279 KB Feb 13, 2019
3D Symbols
Vectorworks Symbols 2.7  en  251 MB Oct 08, 2019
CAD Drawings
Exterior Linear 310 QUAD Graze - 3DS.3ds   en  2.42 MB Jul 05, 2018
Exterior Linear 1210 QUAD Graze - 3DS.3ds   en  2.99 MB Jul 05, 2018
Exterior Linear 1210 QUAD Graze - 3D DWG   en  1.81 MB Jul 05, 2018
Exterior Linear 310 QUAD Graze - 3D DWG   en  1.33 MB Jul 05, 2018
Compliances
Exterior Linear Graze and Cove Series - EU Declaration of Conformity en  556 KB May 11, 2018
Exterior Linear Graze and Cove Series - Déclaration de Conformité Européenne fr  649 KB May 11, 2018
Exterior Linear Quad Graze Series and Cove Series - ETL Listing Verification   289 KB May 18, 2018
Exterior Linear Series - Product Verification and Reliability Report   484 KB May 18, 2018
Software
Exterior Linear Series Firmware       Jan 23, 2019
Service Notes
Exterior products - Performing a vacuum test - Tech note en  1.9 MB May 22, 2018
