Exterior Wash 100
停产

室外级 RGBW 混色洗光灯

Exterior Wash 100
较大的图像

库存有限 — 请联系您的经销商了解详情

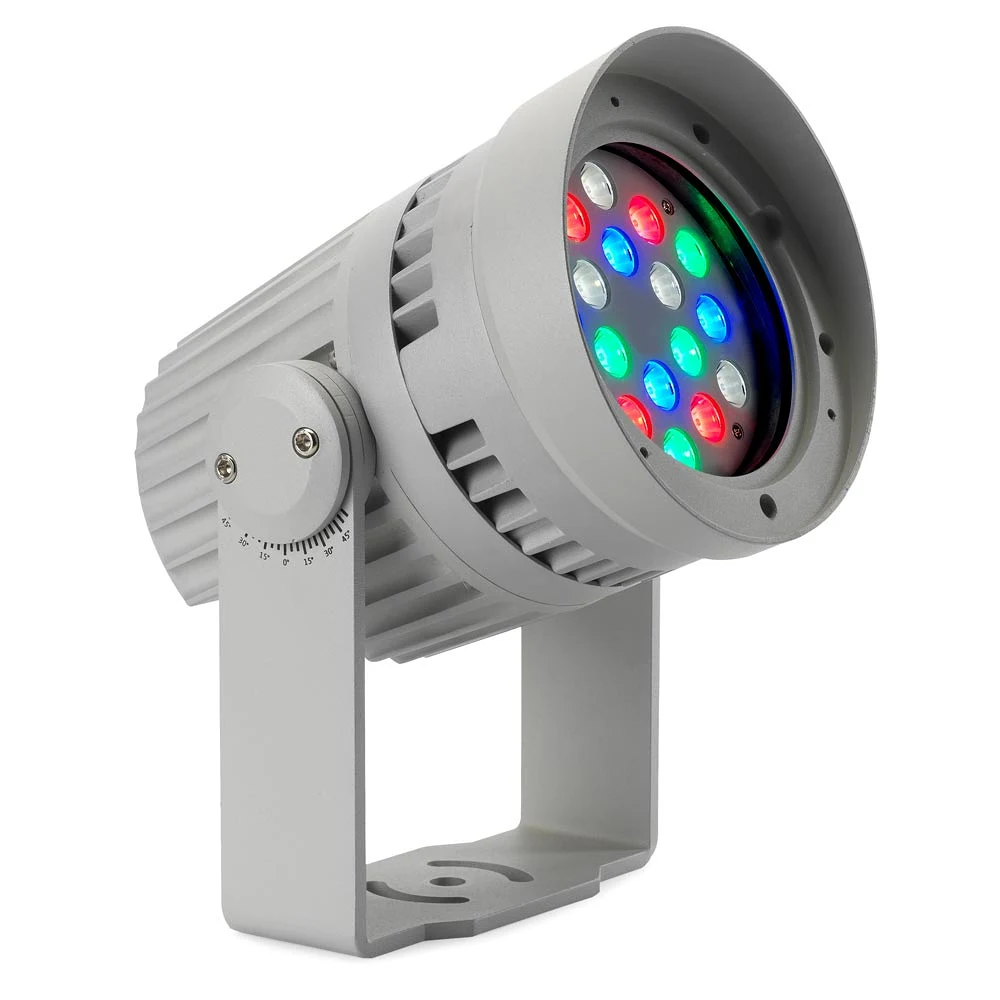

Exterior™ Wash 100 是一款功能强大、结构紧凑且节能高效的 LED 照明灯具，专为照明小型建筑结构、建筑特征及园林景观而打造。可选的隐形遮光罩与灯具的流线型外观完美融合。该灯具配备内置显示屏，操作简便，提供多种光束角度选择，并具有完整 IP 防护等级，适合永久室外使用。

Exterior Wash 100 针对窄光束应用而设计，采用独立的红、绿、蓝及白色 LED。

 了解我们的产品验证和可靠性

  • 窄光束配置，提供 6 种光束角度选项
  • 功能实用且隐蔽的可选遮光罩，与灯具外观设计融为一体
  • 通过 DMX、RDM 和 OLED 显示屏控制

视频





特点

  • 功能强大的单色 R、G、B、W LED
  • 全白色 (RGBW) 时最高达 1800 流明
  • 六种不同的光束角选项
  • 内置电源和控制 (DMX、RDM 和 OLED 显示屏)
  • 坚固的 IP66 外壳
  • 0–100% 亮度控制

性能

  • 物理特性 长度: 240 mm (9.5 in.) 宽: 198 mm (7.8 in.) 高: 257 mm (10.2 in.) 重量: 5.0 kg (11.1 lbs.)
    Dynamic Effects Intensity: 0 - 100% Color mixing: RGBW
    Control and Programming Control systems: DMX, RDM Stand-alone control: Up to 20 scenes with global fade/hold times Setting, addressing, standalone programming: Control panel with OLED display DMX channels: 3-5 depending on DMX mode Receiver: RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Serial upload via DMX link
    Optics Light source: 4 x R, 5 x G, 4 x B, 5 x W single-color LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Cree Beam Angle Options:

    No diffuser: 7.5°
    Narrow diffuser: 11.5°
    Medium diffuser: 22°
    Wide diffuser: 50°
    Very wide diffuser: 60°
    Asymmetric diffuser: 61° x 15°

     Binning: Tight color and flux binning Calibration: Full Gamut Color Calibration *Figure obtained under manufacturer's test conditions
    Photometric Data CRI (Color Rendering Index) : > 70 CCT: 6500 K (White LED) Total luminous output: 1800 lumens*

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Housing: Cast aluminum 颜色: Light grey (white, black or other colors available on request) Ingress protection rating: IP66 Surface treatment: Anodized and electrostatic powder-coated Effective Projected Area (EPA): 0.05 m² including snoot Impact resistance: IK08 (with display panel cover plate installed) Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6)
    0,7g RMS Random (IEC 60068-2-64)     RoHS compliant
    Installation 装配: Adjustable yoke Orientation: Any Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
    Connections Power connection: 1.8 m (5.9 ft.) cable tail without connector Power input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm Power input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mm Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail All cable entries: IP68 cable gland
  • Electrical AC power: 100 - 240 / 277 V nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage

    功耗

    : 5 W (steady state, all LEDs at zero intensity)     Typical half-cycle RMS inrush current: 9.7 A Maximum total power consumption: 50 W Surge protection: 4 KV Max earth leakage: 0.38 mA
    Typical Power and Current 100 V, 60 Hz: 0.45 A, 42 W, PF 0.99 120 V, 60 Hz: 0.35 A, 42 W, PF 0.99 230 V, 50 Hz: 0.2 A, 42 W, PF 0.93 277 V, 60 Hz: 0.2 A, 42 W, PF 0.85 Measurements made with fixture in steady state at nominal voltage, ambient temperature (Ta) 20° C (68° F), all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal 散热: Convection Maximum ambient temperature (Ta max.): 45° C (113° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F)** Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Total heat dissipation (calculated, +/- 10%): 160 BTU/hr

    *Above this temperature, the fixture regulates output to protect from overheating
    **Power must be maintained below -20° C (-4° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 43 lm/W LWR*: 360 lm/kg (162 lm/lb)

    LWR = Lumen-to-Weight Ratio
    Approvals Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1) EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1 EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C.22.2 No. 250 Australia/NZ: RCM India: BIS
    Included Items Cover plate for control panel
    Related Items Martin Companion Cable: P/N 91616091
    Accessories Exterior Wash 100 Series, narrow diffuser kit: P/N 91610145 Exterior Wash 100 Series, medium diffuser kit: P/N 91610146 Exterior Wash 100 Series, wide diffuser kit: P/N 91610147 Exterior Wash 100 Series, very wide diffuser kit: P/N 91610148 Exterior Wash 100 Series, asymmetric diffuser kit: P/N 91610149 Exterior Wash 100 Series, glare shield / snoot: P/N 91611740 Exterior Wash 100 honeycomb louvre: P/N 91611856
    Ordering Information Exterior Wash 100, 7°, EU, aluminum: P/N 90510325 Exterior Wash 100, 7°, US, aluminum: P/N 90510340
