Exterior Wash 100

Outdoor rated RGBW color mixing wash light

Larger Images

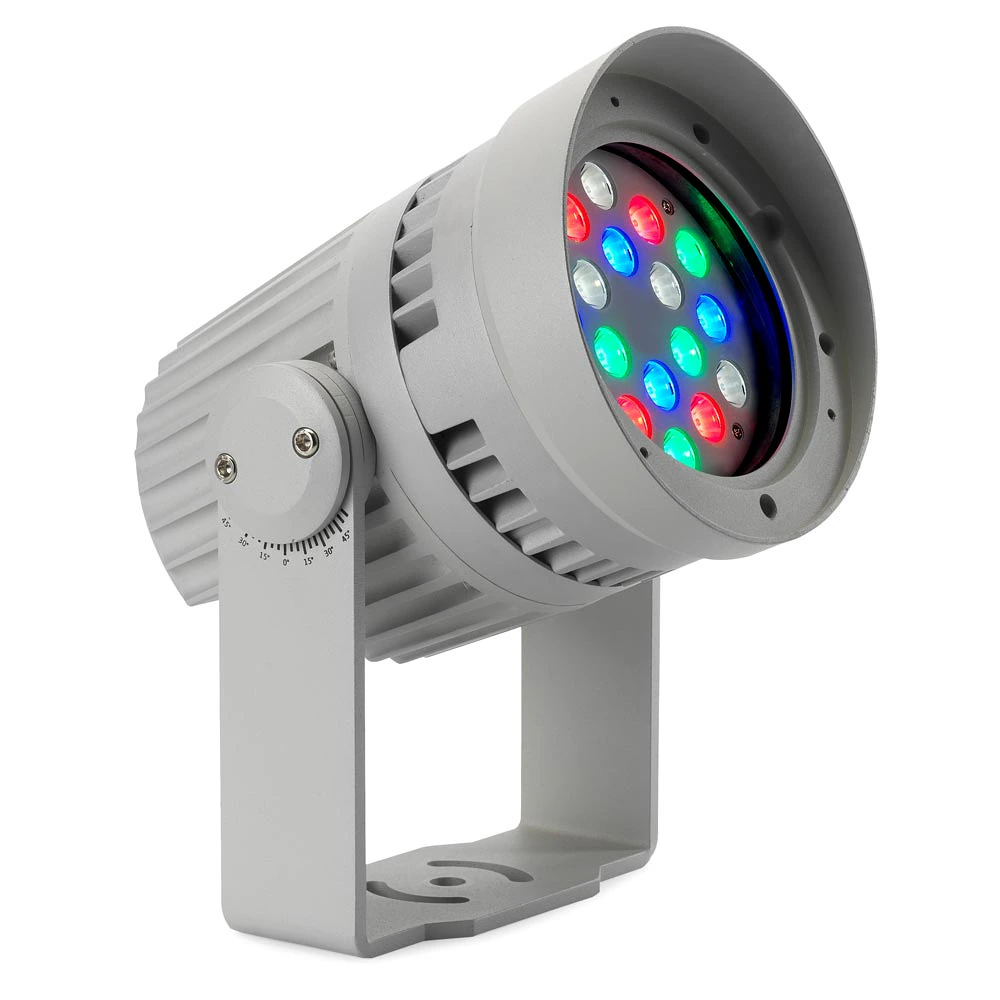

Exterior™ Wash 100 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate smaller structures, features of a building and landscaping. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.

The Exterior Wash 100 is designed for narrow beam applications and is based on separate LEDs for red, green, blue and white

 Learn more about our product verification and reliability

  • Narrow beam configuration with 6 beam angle options
  • Functional and discreet optional snoot which integrates with the design of the fixtures
  • Control via DMX, RDM and OLED display

Videos

Exterior Wash



Features

  • Powerful Single-color R,G,B,W LEDs
  • Up to 1800 lumens at full white (RGBW)
  • Six different beam angle options
  • Internal power and control (DMX, RDM and OLED display)
  • Rugged IP66 housing
  • 0–100% intensity control

Specifications

  • Physical Length: 240 mm (9.5 in.) Width: 198 mm (7.8 in.) Height: 257 mm (10.2 in.) Weight: 5.0 kg (11.1 lbs.)
    Dynamic Effects Color mixing: RGBW Intensity: 0 - 100%
    Control and Programming Control systems: DMX, RDM Setting, addressing, standalone programming: Control panel with OLED display DMX channels: 3-5 depending on DMX mode Receiver: RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Serial upload via DMX link
    Optics Light source: 4 x R, 5 x G, 4 x B, 5 x W single-color LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Cree Beam Angle Options:

    No diffuser: 7.5°
    Narrow diffuser: 11.5°
    Medium diffuser: 22°
    Wide diffuser: 50°
    Very wide diffuser: 60°
    Asymmetric diffuser: 61° x 15°

    *Figure obtained under manufacturer's test conditions
    Construction Housing: Cast aluminum Color: Light grey (white, black or other colors available on request) Ingress protection rating: IP66 Surface treatment: Anodized and electrostatic powder-coated Effective Projected Area (EPA): 0.05 m² including snoot Impact resistance: IK08 (with display panel cover plate installed) Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) RoHS compliant
    Installation Mounting: Adjustable yoke Orientation: Any Minimum distance to illuminated surfaces: 0.2 m (0.6 ft.)
    Connections Power connection: 1.8 m (5.9 ft.) cable tail without connector Power input cable type, EU models: H05RN-F 300/500V, 3 x 0.75 mm2, Ø 7 mm Power input cable type, US models: SJOW 18AWG, 300V, WL F1, Ø 8 mm Data connection: 1.8 m (5.9 ft.) open ended 5-conductor combined input + output cable tail All cable entries: IP68 cable gland
  • Electrical AC power: 100 - 240 / 277 V nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage Power Consumption: 5 W (steady state, all LEDs at zero intensity) Typical half-cycle RMS inrush current: 9.7 A Surge protection: 4 KV Maximum total power consumption: 50 W
    Typical Power and Current 100 V, 60 Hz: 0.45 A, 42 W, PF 0.99 120 V, 60 Hz: 0.35 A, 42 W, PF 0.99 230 V, 50 Hz: 0.2 A, 42 W, PF 0.93 277 V, 60 Hz: 0.2 A, 42 W, PF 0.85 Measurements made with fixture in steady state at nominal voltage, ambient temperature (Ta) 20° C (68° F), all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C (113° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F)** Maximum surface temperature, steady state, at 40° C ambient: 70° C (158° F) Total heat dissipation (calculated, +/- 10%): 160 BTU/hr

    *Above this temperature, the fixture regulates output to protect from overheating
    **Power must be maintained below -20° C (-4° F)

    Approvals EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1 EU EMC: EN55015, EN61547, EN61000-3-2, EN6100-3-3, EN61000-4-2, EN6100-4-4, EN6100-4-5 US safety: ANSI/UL 1598 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C.22.2 No. 250 Australia/NZ: RCM
    Included Items Cover plate for control panel
    Accessories Exterior Wash 100 Series, narrow diffuser kit: P/N 91610145 Exterior Wash 100 Series, medium diffuser kit: P/N 91610146 Exterior Wash 100 Series, wide diffuser kit: P/N 91610147 Exterior Wash 100 Series, very wide diffuser kit: P/N 91610148 Exterior Wash 100 Series, asymmetric diffuser kit: P/N 91610149 Exterior Wash 100 Series, glare shield / snoot: P/N 91611740 Exterior Wash 100 honeycomb louvre: P/N 91611856
    Related Items Martin Companion Cable: P/N 91616091
    Ordering Information Exterior Wash 100, 7°, EU, aluminum: P/N 90510325 Exterior Wash 100, 7°, US, aluminum: P/N 90510340
