MAC 101 CLD
停产

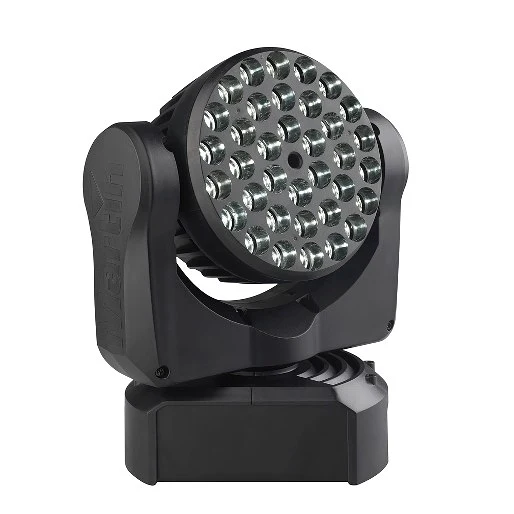

MAC 101 CLD
较大的图像

MAC 101 CLD 采用纯冷色LED，适用于仅需要较高色温的应用场景，并支持强度调控。

超小巧的 MAC 101 LED 移动头洗光灯提供三种白光版本，适用于需要高质量纯白光的各类应用。MAC 101 系列产品采用冷色和/或暖色LED而非RGB，相比之下能提供更好的白光质量和更强的输出功率，非常适合用于突出肤色、织物或布景元素。

  • 高质量冷白色LED光
  • 非常适合突出肤色、织物或布景元素
  • 可变色温

特点

  • 高质量冷白 LED 灯
  • 理想用于突出肤色、纺织品或舞台布景
  • 可变色温
  • 紧凑有力的光束效果、远距投射、现代 ACL 替代方案
  • 可选扩散器提供多种光学角度选项，实现完美洗白效果
  • 运动速度极快且精准
  • 超紧凑、轻量化设计（3.7 kg）
  • 总功率消耗低于 125 瓦

更多详情

Physical Length: 241 mm across yoke Width: 241 mm across yoke Height: 304 mm Weight: 3.7 kg
Dynamic Effects Shutter effect: Electronic, with pulse and random effects Electronic dimming: 0 - 100%, four dimming curve options Pan: 540° Tilt: 240° Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming Control: DMX RDM: Implemented Control resolution: 8-bit, with 16-bit control of pan & tilt DMX channels: 7 Setting and addressing: Control panel with backlit graphic display Protocol: USITT DMX512-A, ANSI/ESTA E1.20 RDM Transceiver: RS-485 Fixture software update: Via DMX with Martin™ USB Duo DMX Interface Box
Optics Light source: Cree XP-E high power emitters Color temperature: 6700 K Minimum LED lifetime: 50 000 hours (to >70% luminous output)* LED refresh rate: 1220 Hz *Figure obtained under manufacturer´s test conditions:
Construction Color: Black or white Housing: High-impact flame-retardant thermoplastic Protection rating: IP20
Installation Mounting points: One M12 threaded hole for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm from head, no minimum distance from base Minimum distance to illuminated surfaces: 200 mm
Connections AC power input: Neutrik PowerCon AC power throughput: Neutrik PowerCon DMX data in/out: 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Maximum total power consumption: 123 W Power supply unit: Auto-ranging electronic switch mode Main fuse: 5 AT (slow blow) Typical power consumption, all effects static, zero light output: <25 W
Typical Power and Current 100 V, 50 Hz: 122 W, 1.3 A, PF 0.991 120 V, 60 Hz: 121 W, 1.1 A, PF 0.987 208 V, 60 Hz: 123 W, 0.7 A, PF 0.938 230 V, 50 Hz: 123 W, 0.6 A, PF 0.915 240 V, 50 Hz: 123 W, 0.6 A, PF 0.900 PF = power factor: Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C Total heat dissipation (calculated, +/- 10%): 420 BTU/hr.
Approvals EU safety: EN 60598-2-17, EN 62471 EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
CE ETL C US Intertek
Included Items M12 bolt suitable for use with Martin rigging clamps: User manual: 35000246
Accessories 3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: TBA Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804 Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: 05342805 Set of eight narrow diffusers for MAC 101: 91616023 Set of eight wide diffusers for MAC 101: 91616018 Set of 4 top hats for MAC 101: 91611358 Set of 5 quick-mount surface mounting brackets for MAC 101: 91606017 G-clamp: 91602003 Quick trigger clamp: 91602007 Safety cable, safe working load 50 kg: 91604003 8-unit flightcase for MAC 101™: 91515010 Half-coupler (tube) clamp: 91602005
Related Items Martin USB Duo™ DMX Interface Box: 90703010 Martin RDM 5.5 Splitter™: 90758150
Ordering Information MAC 101 CLD™ in cardboard box: 90231670 MAC 101 CLD™ in 8-unit flightcase: 90231660

下载

Manuals
  版本 语言 大小 上传日期
file type icon MAC 101 Serie - Bedienungsanleitung
de 版本 G, 更新: 5月 2018
G  de  793.0 KB 5月 2018
file type icon MAC 101 Series - User Manual
en 版本 G, 更新: 5月 2018
G  en  880.2 KB 5月 2018
file type icon Série MAC 101 - Manuel d´utilisation
fr 版本 G, 更新: 5月 2018
G  fr  1023.4 KB 5月 2018
CAD Drawings
  版本 语言 大小 上传日期
file type icon MAC 101 - Head Horizontal (3DS)
en 版本 A, 更新: 5月 2018
A  en  2.2 MB 5月 2018
file type icon MAC 101 - Head Vertical (3DS)
en 版本 A, 更新: 5月 2018
A  en  2.3 MB 5月 2018
Compliances
  版本 语言 大小 上传日期
file type icon MAC 101 / Aura / Aura XB - ETL Authorization to Mark
en 版本 D, 更新: 5月 2018
D  en  621.2 KB 5月 2018
file type icon MAC 101 - EU Declaration of Conformity
en 版本 B, 更新: 5月 2018
B  en  310.6 KB 5月 2018
Software
  版本 大小 上传日期
download icon for MAC101 CLD_Main CPU software MAC101 CLD_Main CPU software
版本 1.0.0, 发布: 5月 2018
1.0.0   87.0 KB 5月 2018
Service Notes
  版本 语言 大小 上传日期
Installing MAC 101 Series diffuser filters
en 版本 A, 更新: 5月 2018
A   en    5月 2018
file type icon MAC 101 / Aura / Aura XB - Mounting Bracket Installation
en 版本 B, 更新: 5月 2018
B  en  440.9 KB 5月 2018
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
版本 4, 更新: 10月 2020
4    743.0 KB 10月 2020
Hints and Tips
  版本 语言 大小 上传日期
Avoiding damage from sunlight and other light sources
en 版本 B, 更新: 5月 2018
B   en    5月 2018
Firmware
  版本 大小 上传日期
download icon for MAC 101 CLD - Firmware MAC 101 CLD - Firmware
版本 1.0.0, 更新: 6月 2026
1.0.0   6月 2026
