• 物理特性 宽: 482 mm (19.0 in.) 高: 88 mm (3.5 in.) rackmount 2U 厚: 335 mm (13.2 in.) 重量: 10 kg (22.1 lbs.)
  Control and Programming Addressing and status: Via P3 System Controller Mapping: Via P3 System Controller Firmware update: Via P3 System Controller
  Control/User Interface Device status: Multicolor status LED Power output status: Four LEDs Data output status: Four LEDs Device test and reset: Pushbutton to call up local test patterns and reset device
  P3 Signal Protocol Signal type: Gigabit Ethernet Protocol : Proprietary Martin P3 Hot pluggable: Yes, electrically isolated at all connections Cable type: Ethernet, CAT 5e or better Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
  Construction Housing: Steel and aluminum 颜色: Matte black Protection rating: IP20
  Installation 装配: 19-inch rackmount, wall mount, flown from rigging clamps

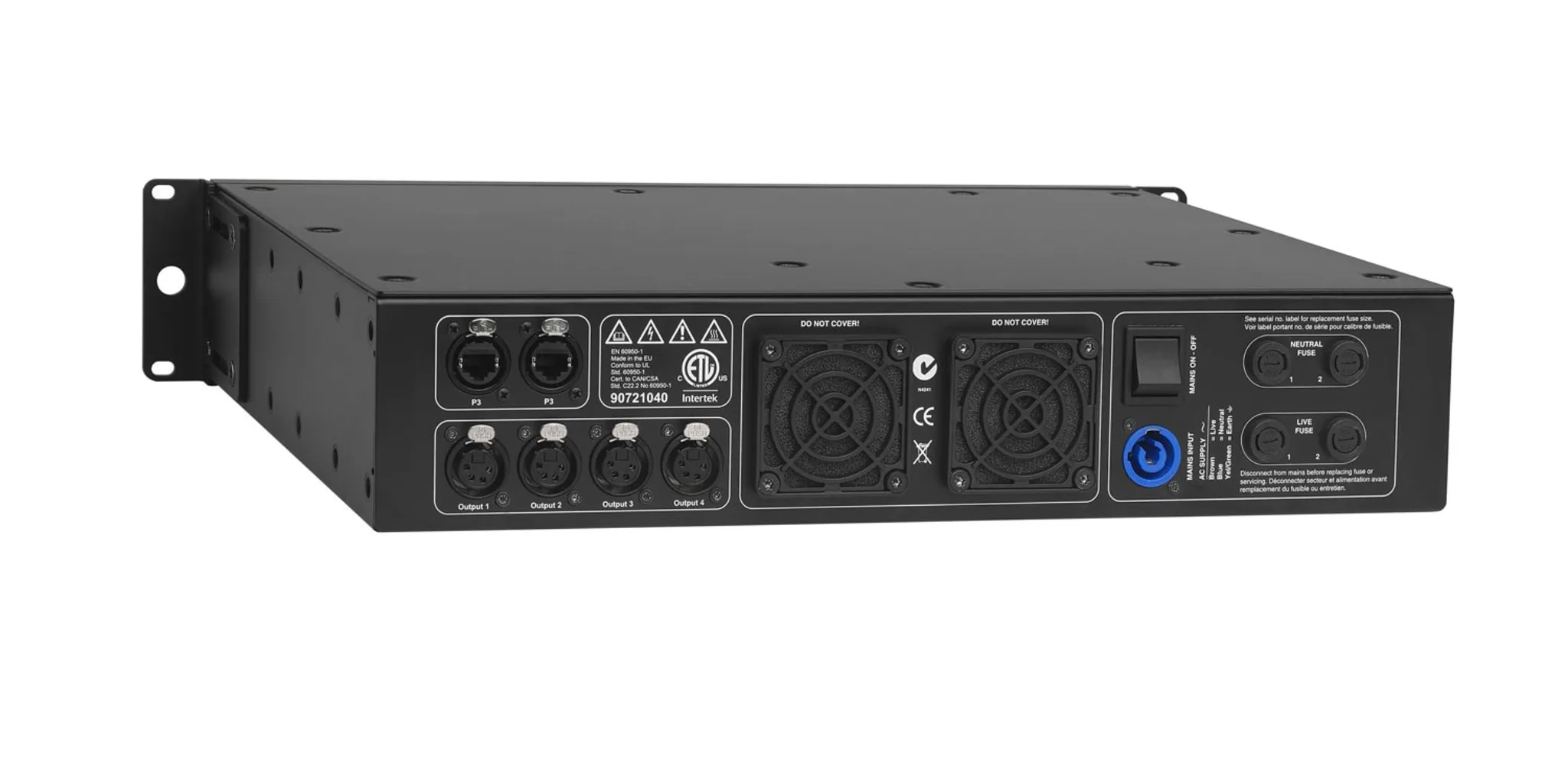

  Connections Power input: Neutrik PowerCon P3 data in/out: Two Neutrik Ethercon RJ-45 sockets Combined power & data out: Four 4-pin female XLR sockets (hybrid power & data cable)
• Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical total power consumption: 1540 W (including full load of connected display devices, all at full intensity) Main fuse: 10 AT (slow blow) x 4
  Thermal 散热: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Total heat dissipation (calculated, +/- 10%):

  530 BTU/hr. (not including display devices but with system at full load)

  Approvals EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1
  Compatible Fixtures

  VDO Sceptron 10
  VDO Sceptron 20
  VDO Sceptron 40
  VDO Fatron 20
  VDO Dotron
  Exterior PixLine 10
  Exterior PixLine 20
  Exterior PixLine 40
  Exterior Dot-HP RGB
  Exterior Dot-HP CW
  VC-Grid 15
  VC-Grid 25
  VC-Grid 30
  VC-Grid 60
  VC-Strip 15
  VC-Strip 25
  VC-Strip 30
  VC-Strip 60
  VC-Dot 1 (via VC-Feeder)
  VC-Dot 4 (via VC-Feeder)
  VC-Dot 9 (via VC-Feeder)

  Included Items

  Mounting brackets incl. screws
  Safety cable attachment eyelet
  Please note that a power input cable is not supplied with the product and must be ordered separately (see Accessories)

  Related Items Martin P3-050™ System Controller: P/N 90721090 Martin P3-100™ System Controller: P/N 90721010 Martin P3-150™ System Controller: P/N 90721015 Martin P3-200™ System Controller: P/N 90721020 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
  Accessories Air Filters 60x60, Set of 10: P/N 50404543


  Power Connector:
  Power Connector PowerCON Female : P/N 91611794

  Power Cables:
  Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
  Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
  Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
  Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
  (H07RN-F are European approved cables, SJOOW are US approved cables)

  Rigging hardware:
  G-clamp: P/N 91602003
  Half-coupler clamp: P/N 91602005
  Quick trigger clamp: P/N 91602007
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

  Ordering Information Martin P3 PowerPort 1500™: P/N 90721040

•
