P3 PowerPort 1500

Larger Images

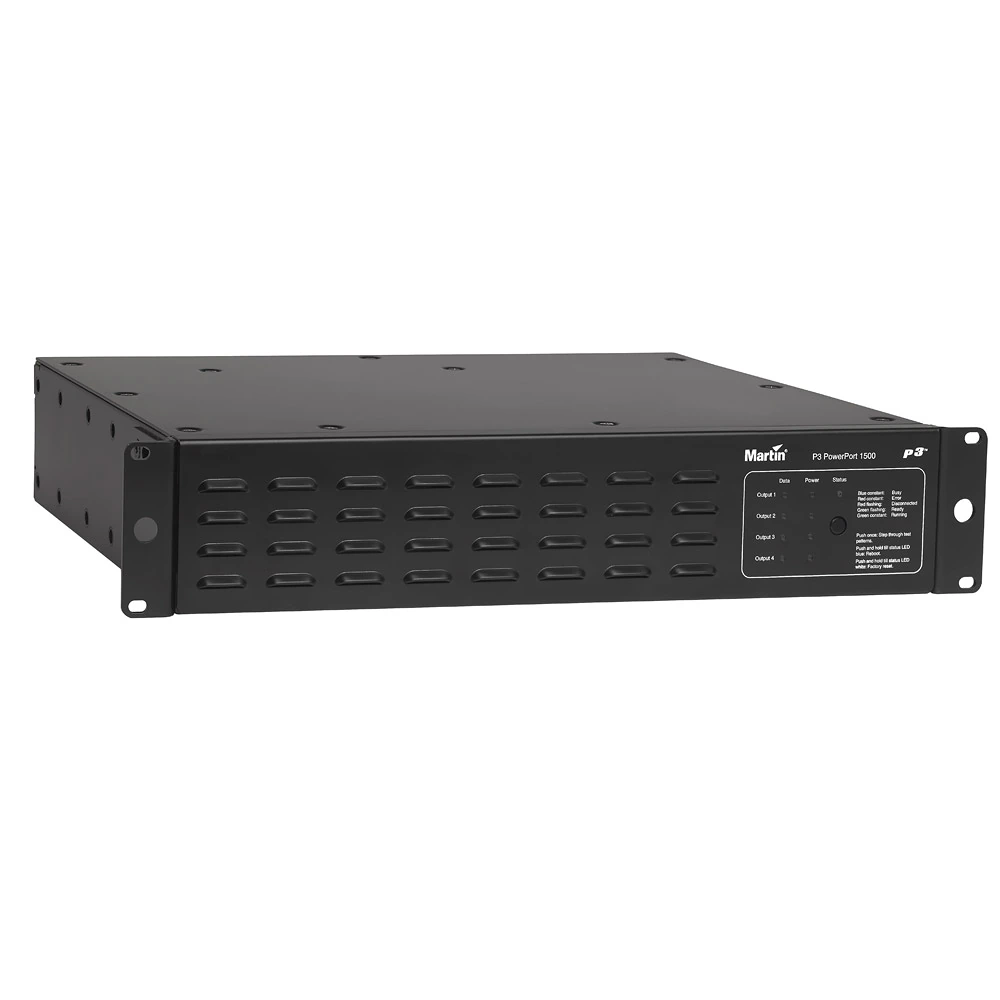

The P3 PowerPort 1500 is an integrated power supply and data processor for the Martin™ range of creative LED video products, including the VDO Sceptron™, Exterior PixLines™, VC-Grids™, VC-Strips™ and VC-Dots™. When driven by one of Martin’s award-winning P3™ System Controllers, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive.

  • Indoor power and data processor for all Martin™ creative LED video products
  • Flexible integration: can be located remotely from video display products
  • Easy cabling and configuration

Features

  • P3 image processing technology
  • Set-up and addressing via P3 System Controller family
  • P3 input and thru to allow daisy-chaining
  • 4 hybrid power/data output ports

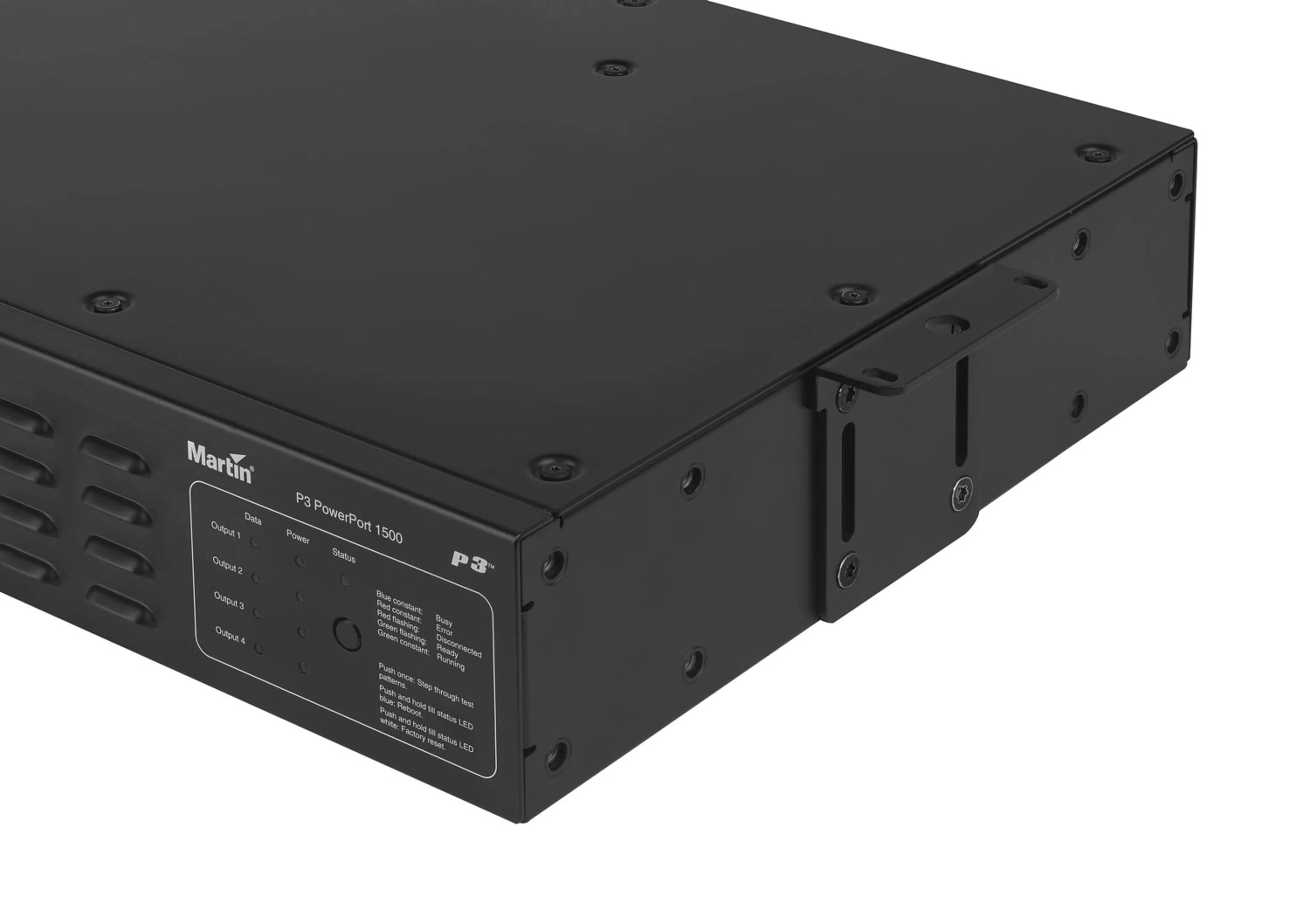

  • Wall-, truss- and rack-mountable
  • Can be located up to 50 m away from the creative LED video products

Tech Specs

PhysicalDepth: 335 mm (13.2 in.)Width: 482 mm (19.0 in.)Height (rackmount 2U): 88 mm (3.5 in.)Weight: 10 kg (22.1 lbs.)
Control and ProgrammingAddressing and status: Via P3 System ControllerMapping: Via P3 System ControllerFirmware update: Via P3 System Controller

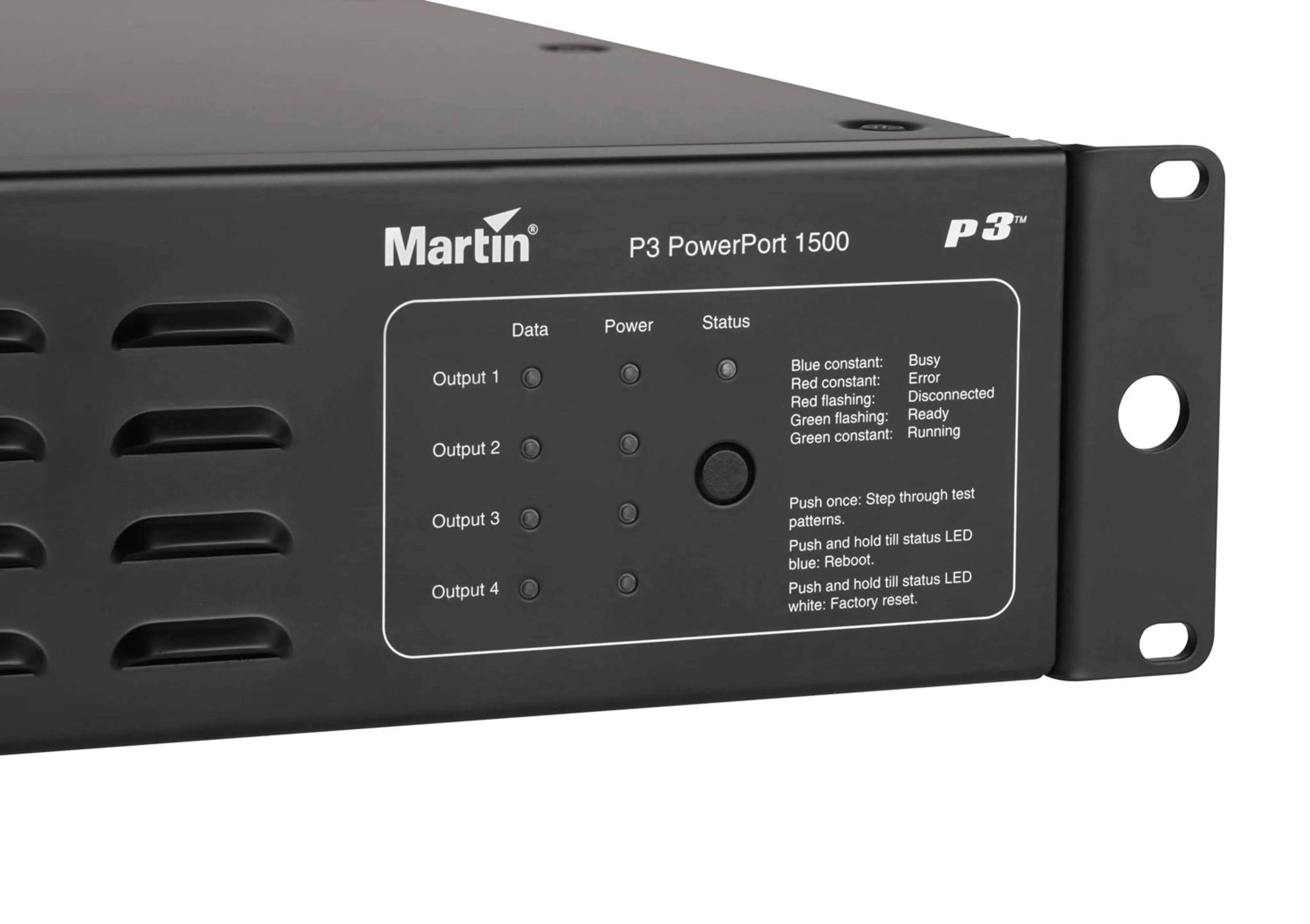

Control/User InterfaceDevice status: Multicolor status LEDPower output status: Four LEDsData output status: Four LEDsDevice test and reset: Pushbutton to call up local test patterns and reset device
P3 Signal ProtocolSignal type: Gigabit EthernetProtocol: Proprietary Martin P3Hot pluggable: Yes, electrically isolated at all connectionsCable type: Ethernet, CAT 5e or betterCable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
System integrationVC-Dot™ family via VC-Feeder™Exterior PixLine™ familyVDO Sceptron™ familyVC-Grid™ familyVC-Strip™ familyExterior Dot-HP™ family
ConstructionHousing: Steel and aluminumColor: Matt blackProtection rating: IP20
InstallationMounting: 19-inch rackmount, wall mount, flown from rigging clamps
ConnectionsPower input: Neutrik PowerConP3 data in/out: Two Neutrik Ethercon RJ-45 socketsCombined power & data out: Four 4-pin female XLR sockets (hybrid power & data cable)
ElectricalAC power: 100-240 V nominal, 50/60 HzPower supply units: Auto-ranging electronic switch-modeMain fuses: 10 AT (slow blow) x 4Typical total power consumption: 1540 W (including full load of connected display devices, all at full intensity)
ThermalCooling: Filtered forced air (temperature-regulated, low noise)Maximum ambient temperature (Ta max.): 45° CMinimum ambient temperature (Ta min.): -20° CTotal heat dissipation (calculated, +/- 10%): 530 BTU/hr. (not including display devices but with system at full load)
ApprovalsEU safety: EN 60950EU EMC: EN 55103-1, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3US safety: ANSI/UL 60950-1Canadian safety: CSA C22.2 No. 60950-1

Included ItemsMounting brackets incl. screwsSafety cable attachment eyeletPlease note that a power input cable is not supplied with the product and must be ordered separately (see Accessories)
AccessoriesAir Filters 60x60, Set of 10: P/N 50404543Power Cable, H07RN-F, PowerCON-to-PowerCON, 1.2 m (4.0 ft.): P/N 91611798Power Cable, H07RN-F, PowerCON-to-PowerCON, 2.5 m (8.2 ft.): P/N 91611799Power Cable, H07RN-F, PowerCON-to-bare ends, 1.5 m (5.0 ft.): P/N 91611800Power Cable, H07RN-F, PowerCON-to-bare ends, 5 m (16.4 ft.): P/N 91611801Power Connector, Neutrik PowerCON NAC3MCA, male, cable mount: P/N 91611795Power Connector, Neutrik PowerCON NAC3FCA, female, cable mount: P/N 91611794Rigging hardwareG-clamp: P/N 91602003Half-coupler clamp: P/N 91602005Quick trigger clamp: P/N 91602007
Related ItemsMartin P3-050™ System Controller: P/N 90721090Martin P3-100™ System Controller: P/N 90721010Martin P3-150™ System Controller: P/N 90721015Martin P3-200™ System Controller: P/N 90721020Martin P3-300™ System Controller: P/N 90721060Martin P3-PC™ System Controller: P/N 90721030
Ordering InformationMartin P3 PowerPort 1500™: P/N 90721040

Specifications

  • Physical Height: 88 mm (3.5 in.) rackmount 2U Weight: 10 kg (22.1 lbs.) Width: 482 mm (19.0 in.) Depth: 335 mm (13.2 in.) Control and Programming Addressing and status: Via P3 System Controller Mapping: Via P3 System Controller Firmware update: Via P3 System Controller Control/User Interface Device status: Multicolor status LED Power output status: Four LEDs Data output status: Four LEDs Device test and reset: Pushbutton to call up local test patterns and reset device P3 Signal Protocol Signal type: Gigabit Ethernet Protocol : Proprietary Martin P3 Hot pluggable: Yes, electrically isolated at all connections Cable type: Ethernet, CAT 5e or better Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch System integration

    VC-Dot™ family via VC-Feeder™
    Exterior PixLine™ family
    VDO Sceptron™ family
    VC-Grid™ family
    VC-Strip™ family
    Exterior Dot-HP™ family

    Construction Housing: Steel and aluminum Color: Matte black Protection rating: IP20 Installation Mounting: 19-inch rackmount, wall mount, flown from rigging clamps
  • Connections Power input: Neutrik PowerCon P3 data in/out: Two Neutrik Ethercon RJ-45 sockets Combined power & data out: Four 4-pin female XLR sockets (hybrid power & data cable) Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical total power consumption: 1540 W (including full load of connected display devices, all at full intensity) Main fuse: 10 AT (slow blow) x 4 Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Total heat dissipation (calculated, +/- 10%): 530 BTU/hr. (not including display devices but with system at full load) Approvals Approvals EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1 Included Items

    Mounting brackets incl. screws
    Safety cable attachment eyelet
    Please note that a power input cable is not supplied with the product and must be ordered separately (see Accessories)

    Accessories Air Filters 60x60, Set of 10: P/N 50404543 Power Cable, H07RN-F, PowerCON-to-PowerCON, 1.2 m (4.0 ft.): P/N 91611798 Power Cable, H07RN-F, PowerCON-to-PowerCON, 2.5 m (8.2 ft.): P/N 91611799 Power Cable, H07RN-F, PowerCON-to-bare ends, 1.5 m (5.0 ft.): P/N 91611800 Power Cable, H07RN-F, PowerCON-to-bare ends, 5 m (16.4 ft.): P/N 91611801 Power Connector, Neutrik PowerCON NAC3MCA, male, cable mount: P/N 91611795 Power Connector, Neutrik PowerCON NAC3FCA, female, cable mount: P/N 91611794 Rigging hardware:

    G-clamp: P/N 91602003
    Half-coupler clamp: P/N 91602005
    Quick trigger clamp: P/N 91602007

    Related Items Martin P3-050™ System Controller: P/N 90721090 Martin P3-100™ System Controller: P/N 90721010 Martin P3-150™ System Controller: P/N 90721015 Martin P3-200™ System Controller: P/N 90721020 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: P/N 90721030 Ordering Information Martin P3 PowerPort 1500™: P/N 90721040
