Martin P3 PowerPort 1500

Imágenes más grandes

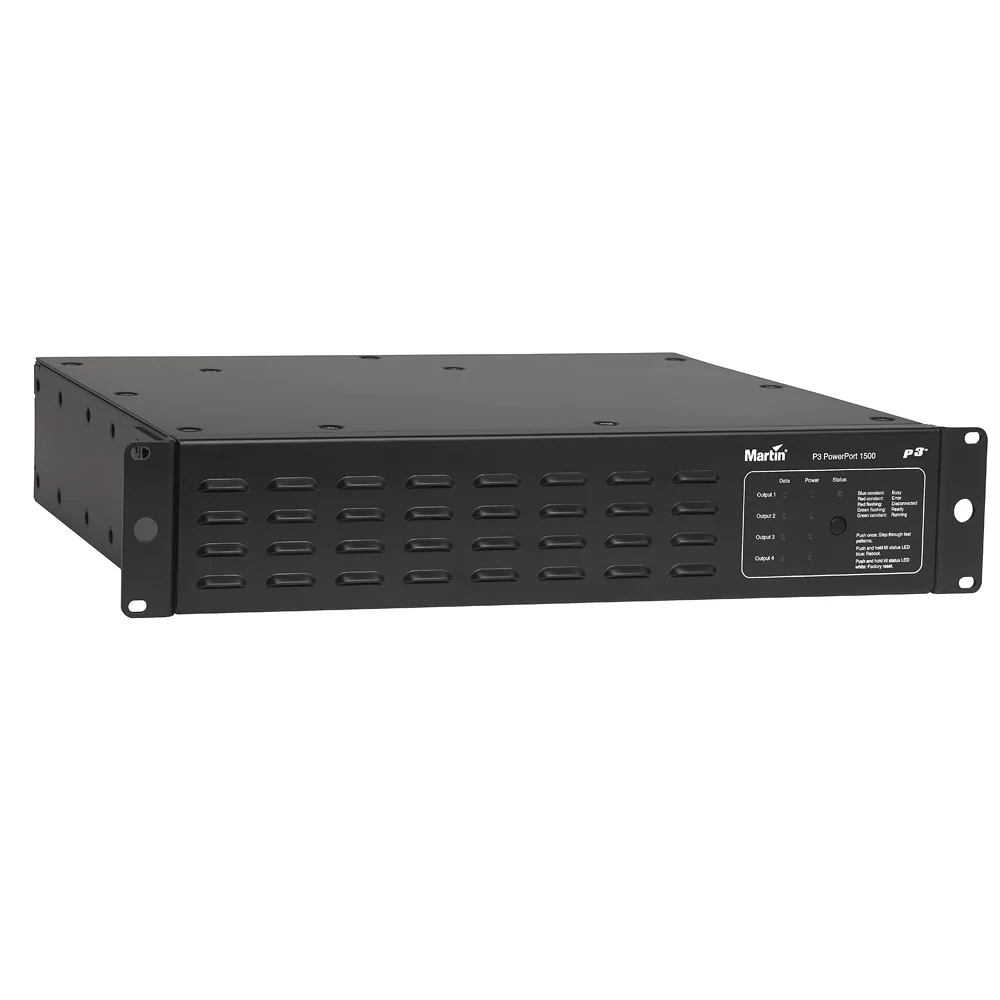

The P3 PowerPort 1500 is an integrated power supply and data processor for the Martin™ range of creative LED video products, including the VDO Sceptron™, Exterior PixLines™, VC-Grids™, VC-Strips™ and VC-Dots™. When driven by one of Martin’s award-winning P3™ System Controllers, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive.

Indoor power and data processor for all Martin™ creative LED video products
Flexible integration: can be located remotely from video display products
Easy cabling and configuration

Características

P3 image processing technology
Set-up and addressing via P3 System Controller family
P3 input and thru to allow daisy-chaining
4 hybrid power/data output ports
Wall-, truss- and rack-mountable
Can be located up to 50 m away from the creative LED video products

Especificaciones

Physical Ancho: 482 mm (19.0 in.) Altura: 88 mm (3.5 in.) rackmount 2U Profundidad: 335 mm (13.2 in.) PESO: 10 kg (22.1 lbs.)

Control and Programming Addressing and status: Via P3 System Controller Mapping: Via P3 System Controller Firmware update: Via P3 System Controller

Control/User Interface Device status: Multicolor status LED Power output status: Four LEDs Data output status: Four LEDs Device test and reset: Pushbutton to call up local test patterns and reset device

P3 Signal Protocol Signal type: Gigabit Ethernet Protocol : Proprietary Martin P3 Hot pluggable: Yes, electrically isolated at all connections Cable type: Ethernet, CAT 5e or better Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch

Construction Housing: Steel and aluminum Color: Matte black Protection rating: IP20

Installation MONTAJE: 19-inch rackmount, wall mount, flown from rigging clamps

Connections Power input: Neutrik PowerCon P3 data in/out: Two Neutrik Ethercon RJ-45 sockets Combined power & data out: Four 4-pin female XLR sockets (hybrid power & data cable)
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical total power consumption: 1540 W (including full load of connected display devices, all at full intensity) Main fuse: 10 AT (slow blow) x 4

Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Total heat dissipation (calculated, +/- 10%):
530 BTU/hr. (not including display devices but with system at full load)

Approvals EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1

Compatible Fixtures
VDO Sceptron 10
VDO Sceptron 20
VDO Sceptron 40
VDO Fatron 20
VDO Dotron
Exterior PixLine 10
Exterior PixLine 20
Exterior PixLine 40
Exterior Dot-HP RGB
Exterior Dot-HP CW
VC-Grid 15
VC-Grid 25
VC-Grid 30
VC-Grid 60
VC-Strip 15
VC-Strip 25
VC-Strip 30
VC-Strip 60
VC-Dot 1 (via VC-Feeder)
VC-Dot 4 (via VC-Feeder)
VC-Dot 9 (via VC-Feeder)

Included Items
Mounting brackets incl. screws
Safety cable attachment eyelet
Please note that a power input cable is not supplied with the product and must be ordered separately (see Accessories)

Related Items Martin P3-050™ System Controller: P/N 90721090 Martin P3-100™ System Controller: P/N 90721010 Martin P3-150™ System Controller: P/N 90721015 Martin P3-200™ System Controller: P/N 90721020 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com

Accessories Air Filters 60x60, Set of 10: P/N 50404543

Power Connector:
Power Connector PowerCON Female : P/N 91611794

Power Cables:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)

Rigging hardware:
G-clamp: P/N 91602003
Half-coupler clamp: P/N 91602005
Quick trigger clamp: P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information Martin P3 PowerPort 1500™: P/N 90721040
