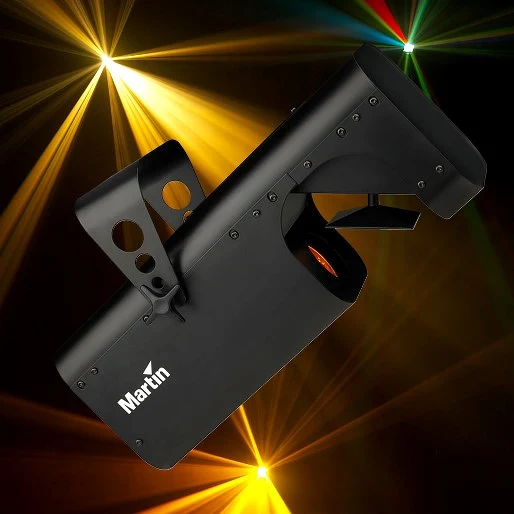

Martin T Rex

较大的图像

T-Rex 是一款 250 W 扫描灯，配备四向斜面镜，可营造极具冲击力的空中效果，同时搭载组合式色彩/图案轮，提供多种颜色选择和完整的 19 个图案库。

特点

250 W halogen lamp
1000 hour lamp included
Combined color and gobo wheel
19 gobos plus open
Faceted rotating parabolic reflector
Music triggered
Continuous operation - no cool down time needed
12 gobos
Safety approvals CE
Rigorously tested for total reliability

更多详情

Physical Length: 490 mm Width: 164 mm Height: 190 mm Weight: 7.5 kg

Dynamic Effects Color/gobo wheel: 19 pattern gobos (11 single color, 4 multi-color, 4 non-color) + open Motorized mirror: Quadruple angle, continuous rotation Motorized rotating parabolic mirror dish: Multi-facet, continuous rotation

Control and Programming Control: Music trig, automatic level sensitivity adjustment

Lamp Type: 250 W, 24 V ELC halogen Fitted as standard: Philips ELC 10H 250 W (1000 hrs.) Socket: GX 5.3 Approved alternative lamp(s): Osram ELC 24 V/250 W (50 hrs.), Osram ELC-7/X 24 V/250 W (700 hrs.)

Optics Manual focus: 2 m - 20 m

Construction Housing: Steel and aluminum

Installation Mounting points: Adjustable floorstand/mounting bracket Orientation: Any

Connections AC power input: 3-pin IEC male socket

Electrical AC power: 110-120 V, 50/60 Hz (US model) AC power: 230-240 V, 50/60 Hz (EU model) Main fuse: US model 5.0 AT, EU model 2.5 AT (both slow blow)

Typical Power and Current 110 V, 60 Hz: 270 W, 2.4 A 120 V, 60 Hz: 270 W, 2.2 A 230 V, 50 Hz: 270 W, 1.2 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 60° C Total heat dissipation (calculated, +/- 10%): 920 BTU/hr.

Approvals EU safety: EN 60598-2-17 EU EMC: EN 55 015, EN 55 103-1, EN 61 547

Included Items Philips ELC 10H 250 W 1000 hour lamp: 97000111 Adjustable floorstand/mounting bracket: 21020660 1.5 m power cable, 3-pin IEC: 11501501 User manual: 35000101

Accessories Philips ELC/5H, 24 V / 250 W, 500 hour halogen lamp: 97000107 Osram ELC, 24 V / 250 W, 50 hour halogen lamp: 97000104 Osram ELC-7/X, 24 V / 250 W, 700 hour halogen lamp: 97000108

Spare Parts Philips ELC 10H 250 W 1000 hour lamp: 97000111 2.5 AT main fuse: 05020010 5.0 AT main fuse: 05020018

Ordering Information T-Rex, US model: 90422510 T-Rex, EU model: 90422410
