T Rex (discontinued)

T Rex
Larger Images

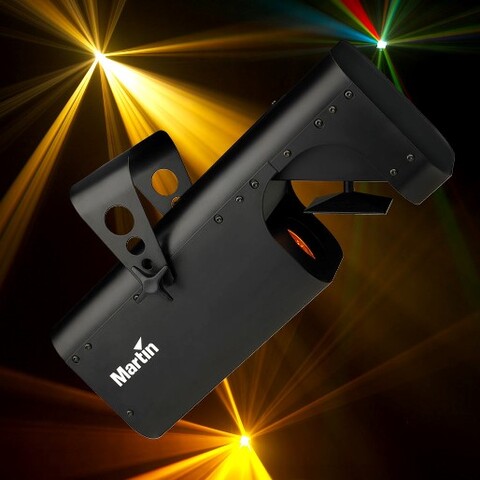

The T-Rex is a 250 W scanner featuring a quad angled mirror for aggressive mid-air effects and a combined color/gobo wheel offering multiple colors and a full array of 19 gobo patterns.

Features

  • 250 W halogen lamp
  • 1000 hour lamp included
  • Combined color and gobo wheel
  • 19 gobos plus open
  • Faceted rotating parabolic reflector
  • Music triggered
  • Continuous operation - no cool down time needed
  • 12 gobos
  • Safety approvals CE
  • Rigorously tested for total reliability

Specifications

Physical Length: 490 mm Width: 164 mm Height: 190 mm Weight: 7.5 kg
Dynamic Effects Color/gobo wheel: 19 pattern gobos (11 single color, 4 multi-color, 4 non-color) + open Motorized mirror: Quadruple angle, continuous rotation Motorized rotating parabolic mirror dish: Multi-facet, continuous rotation
Control and Programming Control: Music trig, automatic level sensitivity adjustment
Lamp Type: 250 W, 24 V ELC halogen Fitted as standard: Philips ELC 10H 250 W (1000 hrs.) Socket: GX 5.3 Approved alternative lamp(s): Osram ELC 24 V/250 W (50 hrs.), Osram ELC-7/X 24 V/250 W (700 hrs.)
Optics Manual focus: 2 m - 20 m
Construction Housing: Steel and aluminum
Installation Mounting points: Adjustable floorstand/mounting bracket Orientation: Any
Connections AC power input: 3-pin IEC male socket
Electrical AC power: 110-120 V, 50/60 Hz (US model) AC power: 230-240 V, 50/60 Hz (EU model) Main fuse: US model 5.0 AT, EU model 2.5 AT (both slow blow)
Typical Power and Current 110 V, 60 Hz: 270 W, 2.4 A 120 V, 60 Hz: 270 W, 2.2 A 230 V, 50 Hz: 270 W, 1.2 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Forced air Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 60° C Total heat dissipation (calculated, +/- 10%): 920 BTU/hr.
Approvals EU safety: EN 60598-2-17 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
Included Items Philips ELC 10H 250 W 1000 hour lamp: 97000111 Adjustable floorstand/mounting bracket: 21020660 1.5 m power cable, 3-pin IEC: 11501501 User manual: 35000101
Accessories Philips ELC/5H, 24 V / 250 W, 500 hour halogen lamp: 97000107 Osram ELC, 24 V / 250 W, 50 hour halogen lamp: 97000104 Osram ELC-7/X, 24 V / 250 W, 700 hour halogen lamp: 97000108
Spare Parts Philips ELC 10H 250 W 1000 hour lamp: 97000111 2.5 AT main fuse: 05020010 5.0 AT main fuse: 05020018
Ordering Information T-Rex, US model: 90422510 T-Rex, EU model: 90422410

Downloads

  Version Language Size Uploaded
Specifications
file type icon SP_TRex_EN_B
en version B, updated: May 2018
en  6.42 KB May 2018
Manuals
file type icon Manuel d'utilisation
fr version A, updated: May 2018
fr  168 KB May 2018
file type icon T Rex - User manual
en version B, updated: May 2018
en  579 KB May 2018
file type icon MAC Viper Profile- Bedienungsanleitung
de version A, updated: May 2018
de  564 KB May 2018
Illustrations
Color/gobo configuration
en version A, updated: May 2018
A   en    May 2018
file type icon Dimensions (DXF)
en version A, updated: May 2018
en  186 KB May 2018
file type icon Dimensions
en version A, updated: May 2018
en  233 KB May 2018
Compliances
file type icon ELP PAR - EU Declaration of Conformity
en version A, updated: Oct 2020
en  48.7 KB Oct 2020
Service Notes
1000 Hour Lamp
en version A, updated: May 2018
A   en    May 2018
Hints And Tips
Electrical safety test equipment
en version B, updated: May 2018
B   en    May 2018
