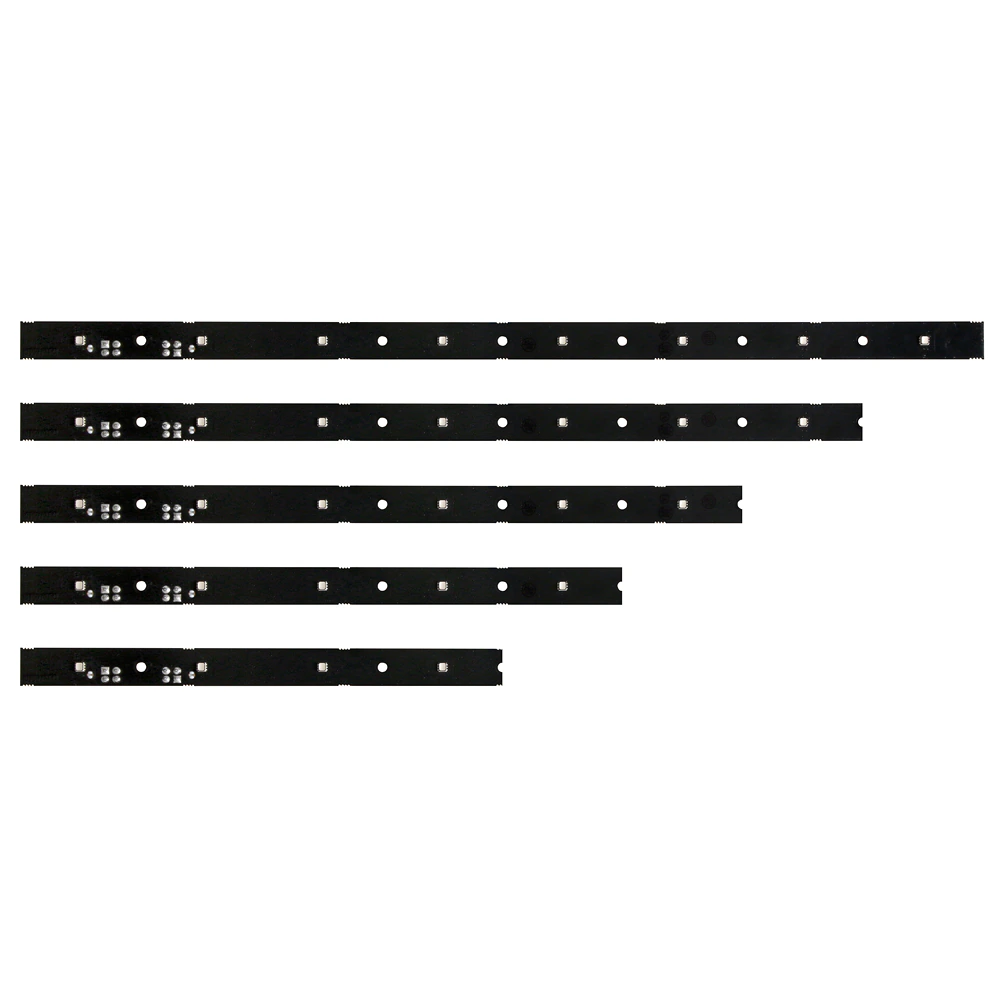

VC-Strip系列窄型LED视频条是将视频集成到舞台、布景设计、室内空间、定制布景元素等应用中的理想选择。VC-Strip在亮度和色彩方面进行了完整的像素级校准，确保最优的均匀性和质量，由Martin屡获殊荣的P3系统控制器系列驱动，提供流畅的播放效果，性能远超任何基于DMX的系统。VC-Strip提供多种长度规格，甚至可在现场根据需要进行裁剪。
- 多种像素间距可满足各类应用需求
- 布线、映射和配置简便易行
- 高亮度且完全校准，确保最优一致性
较大的图像
视频
特点
- 60 毫米像素间距
- 8/4 个可独立控制的像素
- DMX 控制
- P3 控制与视频映射
- 混合 DMX + P3 控制（通过 P3 Switch 通道在 DMX、像素映射和视频映射间实时切换）
- 750 尼特亮度
- 135 流明/米
- 高质量 16 位/色图像处理技术
- 像素级亮度和色彩校准，确保最佳图像质量并实现产品间的色彩匹配
- 通过 P3 System Controller 进行直观的映射和寻址
- 组合式电源/数据输入（单根电缆同时传输电源和数据）
- 组合式电源/数据级联输出（支持多个 VC-Strip 的菊花链连接）
- 由集成电源和数据处理器（P3 PowerPort 1500 或 DMX PowerPort 375）及简单布线系统支持
- VC-Strip 长度可在现场定制（简单切割）以满足集成需求
- 与 VC-Grid 60 兼容
性能
-
物理特性 VC-Strip 8x1 60™:
Length: 480 mm (18.9 in.) *
VC-Strip 4x1 60™:
Width: 19 mm (0.8 in.)
Height: 15 mm (0.6 in.)
Weight: 53 g (0.12 lbs.)Length: 240 mm (9.5 in.) *
*Including 1 mm board-to-board gap
Width: 19 mm (0.8 in.)
Height: 15 mm (0.6 in.)
Weight: 32 g (0.07 lbs.)Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control options: Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX Protocol detection: Automatic Setting and addressing: Martin P3™ System Controller or RDM-compliant controller Color and intensity calibration: Pixel-level DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Via Martin P3™ System ControllerControl modes, direct DMX control: Module and Pixel DMX channels, direct DMX control: 3/12/24 Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap DMX channels, DMX via P3: Wide range of options from 1 to 27
P3 Video ProcessingBrightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
SynchronizationControl/User Interface Device status: Multi-color visual indication Device test and reset: Pushbutton to call up local test patterns and reset deviceOptics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration *Figure obtained under manufacturer´s test conditionsPhotometric Data Color resolution: 16 bits per color (48 bits per pixel) Viewing angle: 120° x 120° (half-peak)Pitch (pixel center-to-center): 60.00 mm Total output, calibrated mode: 750 nits (fixtures placed in continuous surface) Luminous output, calibrated mode: 135 lumen per meter LED Array VC-Strip 60 8x1: 8 x 1 LED Array VC-Strip 60 4x1: 4 x 1
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Signal Protocol Martin P3 (via Martin P3™ PowerPort) or DMX (direct)Construction Base: Black FR4 circuit board Protection rating: IP20 RoHS compliant -
Installation 装配: Mounting holes in module Orientation: Any Maximum number of VC-Strip™ 8x1 60 modules per daisy-chain: 63 Maximum number of VC-Strip™ 4x1 60 modules per daisy-chain: 63Connections Power & data input: 4-pin Molex connector Power & data thru: 4-pin Molex connectorElectrical Nominal input voltage: 48 VDC +/- 4% Power supply options: Martin P3™ PowerPort 1500, DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU Maximum power consumption, all LEDs at full intensity, VC-Strip 60 8x1: 3.3 W Maximum power consumption, all LEDs at full intensity, VC-Strip 60 4x1: 1.7 WThermal 散热: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Maximum total heat dissipation, calculated, +/- 10%:
VC-Strip 60 8x1: 11 BTU/hr
VC-Strip 60 4x1: 6 BTU/hrEnvironmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: CompliantApprovals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.comAccessories Input cables:Power+Data Adapter, XLR4-to-PCB, 0.25 m (0.9 ft.): P/N 91616035
VC-Strip to VC-Strip link cables:
Power+Data Adapter, XLR5+Power-to-XLR4, 0.25 m (0.9 ft.): P/N 91616037
Power+Data Adapter, XLR5+XLR4-to-XLR4, 0.25 m (0.9 ft.): P/N 91616038
Power+Data Adapter, XLR5+Tripix-to-XLR4, 0.25 m (0.9 ft.): P/N 91616039Power+Data Cable, PCB-to-PCB, 200 mm (7.9 in.): P/N 91616025
Extension cables:
Power+Data Cable, PCB-to-PCB, 400 mm (15.8 in.): P/N 91616026
Power+Data Cable, PCB-to-PCB, 600 mm (23.7 in.): P/N 91616027
Power+Data Cable, PCB-to-PCB, 800 mm (31.5 in.): P/N 91616028
Power+Data Cable, PCB-to-PCB, 1000 mm (39.4 in.): P/N 91616029Power+Data Cable, XLR4-to-XLR4, 1 m (3.3 ft.): P/N 91616030
Output/throughput cables:
Power+Data Cable, XLR4-to-XLR4, 2.5 m (8.2 ft.): P/N 91616031
Power+Data Cable, XLR4-to-XLR4, 5 m (16.4 ft.): P/N 91616032
Power+Data Cable, XLR4-to-XLR4, 10 m (32.8 ft.): P/N 91616033
Power+Data Cable, XLR4-to-XLR4, 25 m (82.1 ft.): P/N 91616034Hybrid Output/Thru Cable, PCB-to-XLR4, 0.25 m (0.9 ft.): P/N 91616036
Cable without connectors:
Power+Data Adapter, XLR4-to-XLR5, 0.25 m (0.9 ft.): P/N 91616040Power+Data Cable, Rental, 100 m (328.1 ft.): P/N 91616045
Power+Data Cable, Install CMX, 100 m (328.1 ft.): P/N 91616060
Power+Data Cable, Install LSZH, 100 m (328.1 ft.): P/N 91616017Ordering Information VC-Strip™ 8x1 60 RGB: P/N 90357480 (to be ordered in multiples of 10) VC-Strip™ 4x1 60 RGB: P/N 90357490 (to be ordered in multiples of 20)
