VC-Strip 60

Larger Images

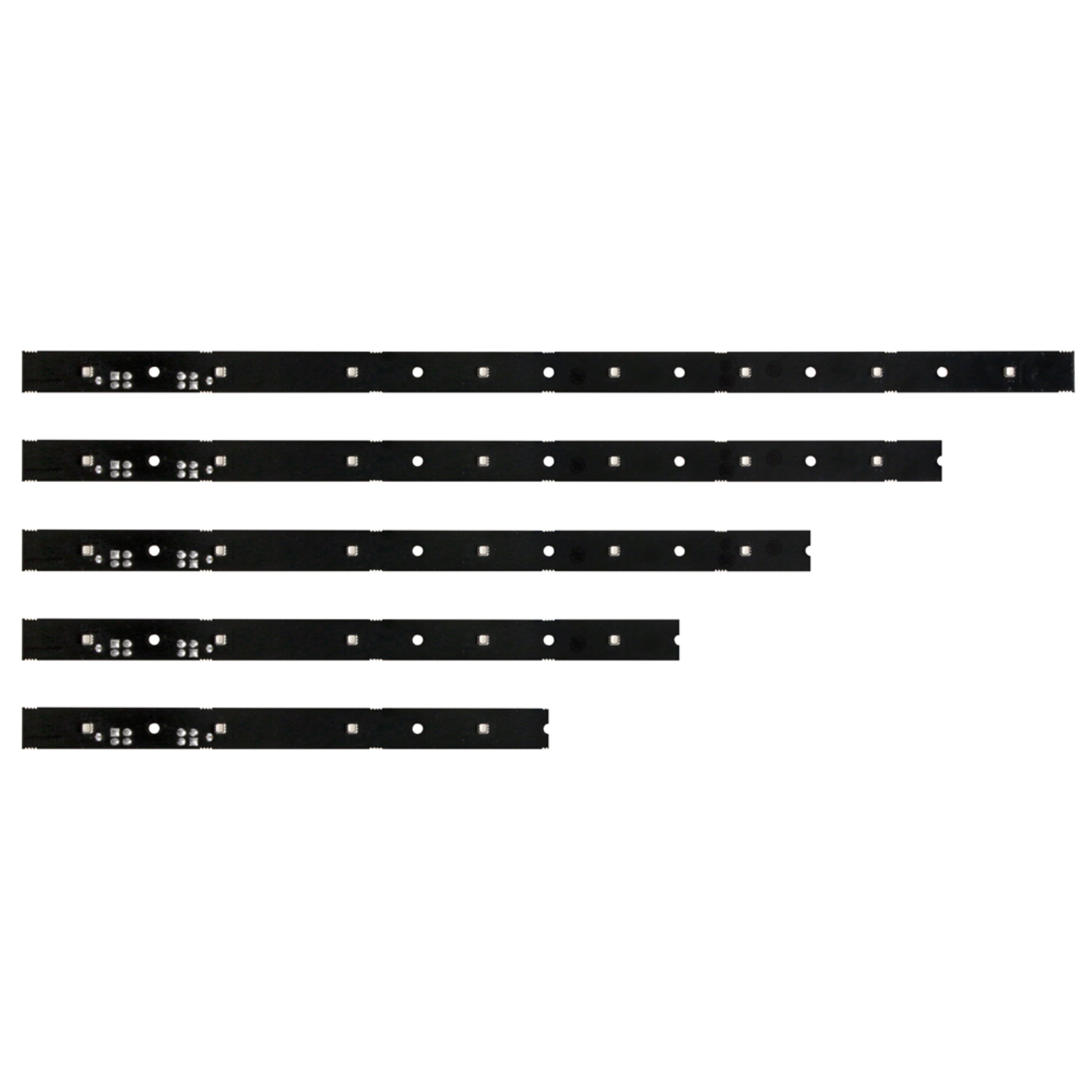

The VC-Strip family of narrow LED video strips is ideal for integration of video into stage and set designs, interiors, custom set elements and more. VC-Strips are fully pixel-level calibrated on brightness and colors for optimal uniformity and quality and are driven by Martin’s award-winning P3 System Controller family for smooth playback that outperforms any DMX-based system. VC-Strips are available in various lengths and can even be cut to required length on-site.

  • Wide range of pixel pitches to suit every application
  • Easy cabling, mapping and configuration
  • Bright and fully calibrated for optimal consistency

Videos

Perfect white light with Martin Creative LED solutions



Fast Deployment of Pre-Made Map on P3—P3 lifehack#2



P3 Live Preview and Flexible Video Mapping—P3 lifehack#3



P3 Directly from Green Hippo Media Server—P3 lifehack#5



Mixing P3 Video and DMX for Creative Control—P3 lifehack#6



Features

  • 8/4 individually controllable pixels
  • 60 mm pixel pitch
  • 750 nits of brightness
  • High-quality, 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality
  • P3/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Combined power/data thru (to daisy-chain up to 63 VC-Strip 60s)
  • Supported by integrated power and data processor (P3 PowerPort 1500) and simple cabling system
  • Length of VC-Strip can be customized on-site (simple cutting) to fit integration needs
  • Compatible with VC-Grid 60

Tech Specs

PhysicalVC-Strip 8x1 60™Length: 480 mm (18.9 in.) *Width: 19 mm (0.8 in.)Height: 15 mm (0.6 in.)Weight: 53 g (0.12 lbs.)VC-Strip 4x1 60™Length: 240 mm (9.5 in.) *Width: 19 mm (0.8 in.)Height: 15 mm (0.6 in.)Weight: 32 g (0.07 lbs.)*Including 1 mm board-to-board gap
Control and ProgrammingControl options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ and/or DMXProtocol detection: AutomaticControl modes: pixel and moduleDMX channels, 8x1 model: 24 (pixel mode) or 3 (module mode)DMX channels, 4x1 model: 12 (pixel mode) or 3 (module mode)Setting and addressing: P3 System Controller or RDM-compliant controllerControl resolution: 16-bit (P3) or 8-bit (DMX) control of each colorColor and intensity calibration: Pixel-levelDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Firmware update: Via P3 System Controller
Control/User InterfaceDevice status: Multi-color visual indicationDevice test and reset: Pushbutton to call up local test patterns and reset device
OpticsMinimum LED lifetime: 50 000 hours (to >70% luminous output)**Figure obtained under manufacturer's test conditions
Photometric DataPixels per module: 8/4Luminous intensity, calibrated mode: 750 NitViewing angle: 120° x 120°Preliminary data, figures are approximate
Video ProcessingBrightness controlGamma correction and controlColor temperature controlColor gamut controlCalibration processingSynchronization
ConstructionBase: Black FR4 circuit boardProtection rating: IP20RoHS compliant
InstallationOrientation: AnyMaximum number of VC-Strip™ 8x1 60 modules per daisy-chain: 63Maximum number of VC-Strip™ 4x1 60 modules per daisy-chain: 63Mounting: Mounting holes in module
ConnectionsPower & data input: 4-pin Molex connectorPower & data thru: 4-pin Molex connector
ElectricalNominal input voltage: 48 VDC from Martin P3 PowerPort 1500™ or external PSUPeak power consumption (at full intensity, full white): 8x1 model 4 W; 4x1 model 2 WTypical power consumption (with typical video content): 8x1 model 1.5 W; 4x1 model 0.7 WFigures for typical video content are indicative only and will varyPower consumption figures include cable and assume a 50 m chain
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 45° CMinimum ambient temperature (Ta min.): -20° CPeak heat dissipation (calculated, at full intensity, full white):8x1 model 14 BTU/hr.; 4x1 model 7 BTU/hr.Typical heat dissipation (calculated, with typical video content): 8x1 model 5.5 BTU/hr.; 4x1 model 2.5 BTU/hr.Figures for typical video content are indicative only and will vary
ApprovalsEU safety: EN 60950EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3US safety: ANSI/UL 60950-1Canadian safety: CSA C22.2 No. 60950-1

AccessoriesInput cablesPower+Data Adapter, XLR4-to-PCB, 0.25 m (0.9 ft.): P/N 91616035Power+Data Adapter, XLR5+Power-to-XLR4, 0.25 m (0.9 ft.):P/N 91616037Power+Data Adapter, XLR5+XLR4-to-XLR4, 0.25 m (0.9 ft.):P/N 91616038Power+Data Adapter, XLR5+Tripix-to-XLR4, 0.25 m (0.9 ft.):P/N 91616039VC-Strip to VC-Strip link cablesPower+Data Cable, PCB-to-PCB, 200 mm (7.9 in.): P/N 91616025Power+Data Cable, PCB-to-PCB, 400 mm (15.8 in.): P/N 91616026Power+Data Cable, PCB-to-PCB, 600 mm (23.7 in.): P/N 91616027Power+Data Cable, PCB-to-PCB, 800 mm (31.5 in.): P/N 91616028Power+Data Cable, PCB-to-PCB, 1000 mm (39.4 in.): P/N 91616029Extension cablesPower+Data Cable, XLR4-to-XLR4, 1 m (3.3 ft.): P/N 91616030Power+Data Cable, XLR4-to-XLR4, 2.5 m (8.2 ft.): P/N 91616031Power+Data Cable, XLR4-to-XLR4, 5 m (16.4 ft.): P/N 91616032Power+Data Cable, XLR4-to-XLR4, 10 m (32.8 ft.): P/N 91616033Power+Data Cable, XLR4-to-XLR4, 25 m (82.1 ft.): P/N 91616034Output/throughput cablesPower+Data Adapter, PCB-to-XLR4, 0.25 m (0.9 ft.): P/N 91616036Power+Data Adapter, XLR4-to-XLR5, 0.25 m (0.9 ft.): P/N 91616040Cable without connectorsPower+Data Cable, Rental, 100 m (328.1 ft.): P/N 91616045Power+Data Cable, Install CMX, 100 m (328.1 ft.): P/N 91616060Power+Data Cable, Install LSZH, 100 m (328.1 ft.): P/N 91616017
Related ItemsMartin P3 PowerPort 1500™: P/N 90721040Martin P3-050™ System Controller: P/N 90721090Martin P3-150™ System Controller: P/N 90721015Martin P3-300™ System Controller: P/N 90721060Martin P3-PC™ System Controller: P/N 90721030Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330
Ordering InformationVC-Strip™ 8x1 60 RGB: P/N 90357480VC-Strip™ 4x1 60 RGB: P/N 90357490
