VC-Dot 1
Udgået

Udendørsklassificerede LED-prikker baseret på streng - små

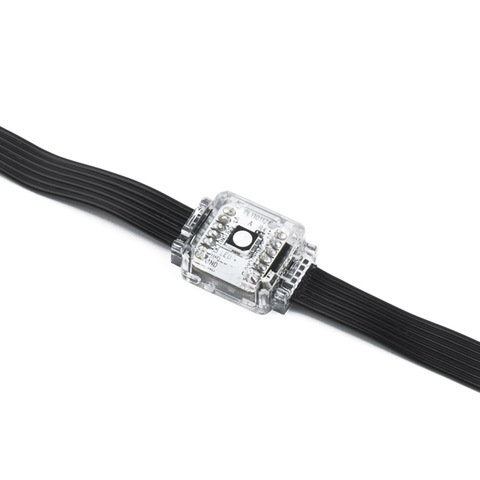

VC-Dot 1

VC-Dot 1 er en let LED-streng med individuelt kontrollerbare, kraftige Dots, der er nyttig til at skabe tilpassede LED-videoløsninger med maksimal kunstnerisk fleksibilitet og minimalt besvær. Fuldt tilpasselig og kontrollerbar via den prisbelønnede P3 System Controller™ familie og/eller DMX512, er det en perfekt løsning til at integrere LED-videoteknologi i facader, sceneopstillinger, lofter eller andre strukturer, inden- eller udendørs.

Mapping af video på VC-Dots foregår hurtigt og intuitivt via P3 System Controller. Ingen behov for komplekse opsætninger og tidskrævende adressering. VC-Dot 1 indeholder ét LED og fås i en RGB-farveblanding version.

Sådan fungerer behandling til LED-video

  • Kreativt LED-videoelement til bygnings- og sceneintegration
  • Tilpasselig pixel-pitch
  • Kraftig og fuldt kalibreret for optimal konsistens

  • Familie med ultimative kreative muligheder

    VC-dot-familien består af tre forskellige størelser, som opfylder projektets behov. Hvide og røgfarvede diffuse kuplinger er tilgængelige for yderligere kreative udtryk.

  • Nem infrastruktur

    VC-Dot-produkterne kan styres via Martin P3-protokollen for nem mapping og integration med andre Martin LED-videoproduker på samme kontrolsystem.
    Til små eller ren lysapplikationer accepterer VC-Dot også RDM/DMX, hvilket muliggør endnu mere alsidig brug.

  • Fleksibel installation

    Den fleksible stringløsning kan fuldt ud tilpasses med hensyn til pixelpitch, antal VC-dots, stringens samlede længde og indledende kabel. Dette giver mulighed for mange kreative designs i bygnings- eller sceneelementer.

  • Kalibreret farve og intensitet

    Hver VC-Dot er kalibreret for farve- og intensitetskonsistens på tværs af hele Martin creative LED-sortimentet

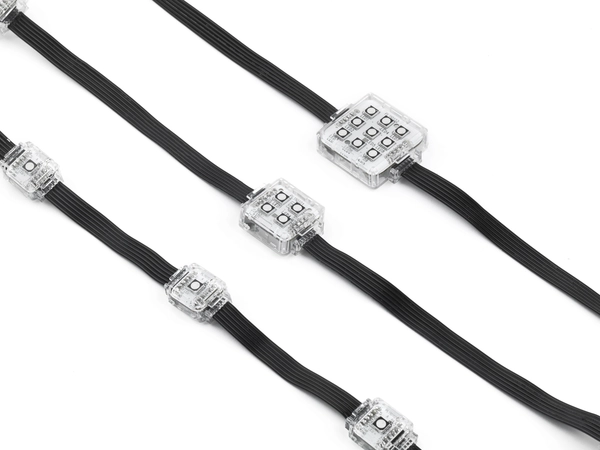

Familie med ultimative kreative muligheder

VC-dot-familien består af tre forskellige størelser, som opfylder projektets behov. Hvide og røgfarvede diffuse kuplinger er tilgængelige for yderligere kreative udtryk.

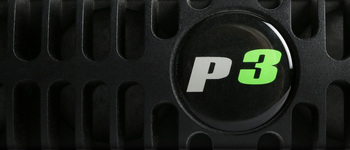

featured content

Nem infrastruktur

VC-Dot-produkterne kan styres via Martin P3-protokollen for nem mapping og integration med andre Martin LED-videoproduker på samme kontrolsystem.
Til små eller ren lysapplikationer accepterer VC-Dot også RDM/DMX, hvilket muliggør endnu mere alsidig brug.

Fleksibel installation

Den fleksible stringløsning kan fuldt ud tilpasses med hensyn til pixelpitch, antal VC-dots, stringens samlede længde og indledende kabel. Dette giver mulighed for mange kreative designs i bygnings- eller sceneelementer.

Kalibreret farve og intensitet

Hver VC-Dot er kalibreret for farve- og intensitetskonsistens på tværs af hele Martin creative LED-sortimentet

Videoer





Funktioner

  • Flexible string-based direct-view LED lighting
  • Perfect for façade or stage integration
  • Individually controllable VC-dots
  • Up to 100 VC-dots per string
  • Customizable VC-dot pixel pitch and string length
  • Calibrated brightness and colors for each VC-Dot
  • P3 and RDM/DMX controllable
  • Intuitive mapping and addressing via P3 System Controller family
  • Efficient and long-lasting
  • IP67 rated for permanent outdoor or indoor use
  • Simple infrastructure via VC-Feeder and P3 PowerPort
  • Great number of mounting options using clips, brackets or profiles

Specifikationer

  • Physical Pixel dimensions: 28 x 23 x 11 mm (1.1 x 0.9 x 0.5 in.) Pixel dimensions with dome: 28 mm x 23 mm x 20 mm (1.1 x 0.9 x 0.8 in.) Weight: 1.3 kg (2.9 lbs.) for 100 Dots, 100 mm (4.0 in.) spacing, with 2 m (6.6 ft.) lead-in cable and connector Maximum number of pixels per string: 100 Standard pixel spacing (pitch): 100 mm (4.0 in.) Minimum pixel spacing (pitch): 100 mm (4.0 in.) Maximum pixel spacing (pitch): 1000 mm (39.4 in.) Standard lead-in cable length: 2000 mm (78.8 in.) Maximum lead-in cable length: 5000 mm (196.9 in.) One pixel = one Dot
    Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control options: Martin™ P3 System controller and/or DMX Control modes: Calibrated and raw Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels: 3 per RGB Dot, string or group Color and intensity calibration: Dot-level DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20
    Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Cree Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration *Figure obtained under manufacturer´s test conditions.
    Photometric Data Light source : One RGB LED Viewing angle: 127° x 127° Viewing angle with dome: 180° x 180° Luminous intensity, RGB, calibrated mode: 2 cd Luminous intensity, RGB, raw mode: 2.5 cd Total output, RGB, calibrated mode: 5.4 lm Red output, RGB, calibrated mode: 1.5 lm Green output, RGB, calibrated mode: 3.6 lm Blue output, RGB, calibrated mode: 0.4 lm

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Dot: Clear polycarbonate, clear silicone filled Diffuser dome: White translucent polycarbonate Mounting clip: White polycarbonate Interconnecting cable: 6 x 20 AWG, black Minimum cable bend radius: 26 mm (1.1 in.) Protection rating: IP67 RoHS compliant
    Installation Orientation: Any
    Connections Power & data input to VC-Dot string from VC-Feeder™: Custom 8-pin connector, IP67-rated
  • Electrical Power and data converter: Martin VC-Feeder™ Peak power consumption (at full intensity, full white): 0.95 W per Dot Typical power consumption (with typical video content): 0.32 W per Dot Operating voltage: 15 VDC Figures for typical video content are indicative only and will vary.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 55° C Minimum operating temperature (Ta min): -20° C Peak heat dissipation (calculated, at full intensity, full white): 1.4 BTU/hr. Typical heat dissipation (calculated, with typical video content): 0.5 BTU/hr. Figures for typical video content are indicative only and will vary
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
    Approvals EU safety: EN 60950-1 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: UL 60950-1 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. 60950-1 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241 India: BIS
    Related Items Martin VC-Feeder™ with BBD connector: P/N 90357041 Martin P3™ PowerPort 1500: P/N 90721040 Martin P3™ PowerPort 1000 IP Installation: P/N 90721080 Martin P3™ PowerPort 1000 IP Rental: P/N 90721070 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
    Accessories

    VC-Dots ribbon cable extension, 10 m (32.8 ft.): P/N 90357230
    Quick splice connectors for VC-Dots ribbon cable extension, set of 15: P/N 90357240
    VC-Dots ribbon cable termination cap, set of 10: P/N 91611400
    VC-Dot 1 Diffuser Domes, set of 10: P/N 90357180
    VC-Dot 1 Diffuser Domes, Smoked, 10 pcs: P/N 91610110
    VC-Dot 1 Mounting Clips, set of 10: P/N 90357210
    VC-Dot 1 Truss Clips, set of 10: P/N 91611371
    VC-Dot 1 Mounting Bracket: P/N 91611301
    VC-Dot 1 Mounting Profile Cover, Black, 2 m (6.6 ft.): P/N 91611375
    VC-Dot 1 Mounting Profile End Caps, Black, set of 10: P/N 91611376
    VC-Dot 1 Mounting Profile Cable Entry End Caps, Black, set of 10: P/N 91611377
    VC-Dot 1 Aluminum Mounting Profile, Grey, 2 m (6.6 ft.): P/N 91611386
    VC-Dot 1 Mounting Profile Cover, Grey, 2 m (6.6 ft.): P/N 91611387
    VC-Dot 1 Mounting Profile End Caps, Grey, set of 10: P/N 91611388
    VC-Dot Mounting Profile Cable Entry End Caps, Grey, set of 10: P/N 91611389
    VC-Dot 1 Plastic Mounting Profile, Black, 1.2 m (4.0 ft.): P/N 91611410
    VC-Dot 1 Plastic Mounting Profile Cover, Black, 1.2 m (4.0 ft.): P/N 91611420
    VC-Dot 1 Plastic Mounting Profile, White, 1.2 m (4.0 ft.): P/N 91611430
    VC-Dot 1 Plastic Mounting Profile Cover, White, 1.2 m (4.0 ft.): P/N 91611440
    Ordering Information VC-Dot 1™ RGB, 100 mm (4.0 in.) pitch, 100 pcs., 2 m (6.6 ft.) lead-in: P/N 90357060HU Strings with custom Dot pitch and lead-in length can be manufactured to special order.
