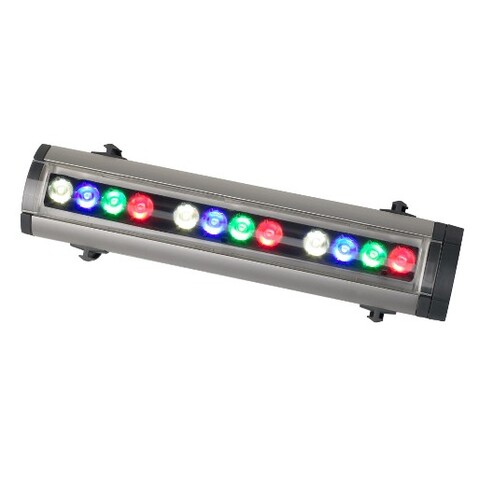

The Extube Series is a modular system of IP65-rated linear LED luminaires designed for the dynamic illumination of facades, bridges and structures. With RGBW color mixing and a choice of diffusers, Extube is ideal for floodlighting, wall-grazing or creating continuous, decorative lines of color, inside or outside.
Größere Bilder
Eigenschaften
- 12 or 48 LEDs in 4 colors: Red, Green, Blue and White
- RGBW color mixing
- Choice of optical diffuser films - narrow, medium, wide
- No need for any external power supply, it’s all built-in
- Choice of DMX control modes: RGB, RGBW, HSI, HSIC
- Auto-addressing during set-up
- Simple click-together system: cable-less loop-through of power and data
- Easy installation: slides onto DIN rail
- Tiltable for precise optical aiming
- Slim, inconspicuous design
- Available in two lengths: 300 mm (12 in.) / 1200 mm (47.2 in.)
- Weatherproof rating: IP65
Mehr Details
Physical
Length: 300 mm / 1200 mm, plus end cap 15 mm and connections cap 55 mm if installed
Width: 89 mm
Height: 90 mm including mounting bracket for DIN rail
Weight: 300mm model 1.5 kg, 1200mm model 5 kg
Dynamic Effects
Color mixing: RGBW
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%
White: 0 - 100%
Color temperature control: 2 000 - 10 000 K continuous mixing
Control and Programming
Color control modes: RGB, RGBW, HSI, HSIC
Control system: DMX
DMX channels: 3 or 4 on 300mm models, 3, 4, 12 or 16 on 1200mm models
Grouped pixel control options: 1 x 3 (all as one group) on 300mm models, 1 x 12 (all as one group) or 4 x 3 on 1200mm models
DMX address setting: Martin MUM application, cascading auto-addressing
26-bit control (internal): RGB, RGBW, HSI, HSIC
Protocol: USITT DMX512-A
Receiver: RS-485
Firmware update: Serial upload via DMX link
Optics
Light source: Luxeon Rebel high power emitters
White LED: Neutral white, 3500 - 4500 K, CRI 75
Total LED power: 300mm models approx. 25 W, 1200mm models approx. 100 W
Very Narrow (no diffuser), Narrow, Medium and Wide beam angles available:
Construction
Housing: Aluminum
Finish: Clear anodized, black or white
Front glass: UV-resistant clear polycarbonate
End covers: PA6 nylon
Mounting brackets: PA6 nylon
Protection rating: IP65
Installation
Orientation: Any
Aiming: +/- 90° in 25 steps of approx. 7°
Mounting: 35 mm DIN top-hat rail
Maximum interconnected length per power input: 26 m at 230-240 V, 22 m at 208 V, 13 m at 110-120 V, or 11 m at 100 V
Connections
Power connection: 1.8 m cable tail
Data connection: 1.8 m cable tail
Fixture-to-fixture: Quick IP65 plug-in system
Electrical
AC power: 100-120/200-240 V nominal, 50/60 Hz
Max. peak inrush current: 300mm models 250 mA; 1200mm models 1 A
Standby power: 300mm models 3 W; 1200mm models 12 W
Power supply unit: Integrated, auto-sensing multi-voltage
Typical Power and Current
100 V, 60 Hz: 300mm models 32 W, 0.4 A; 1200mm models 128 W, 1.4 A; PF 0.992
110 V, 60 Hz: 300mm models 32 W, 0.3 A; 1200mm models 128 W, 1.2 A; PF 0.992
120 V, 60 Hz: 300mm models 32 W, 0.3 A; 1200mm models 128 W, 1.2 A; PF 0.990
208 V, 60 Hz: 300mm models 32 W, 0.2 A; 1200mm models 128 W, 0.7 A; PF 0.980
230 V, 50 Hz: 300mm models 32 W, 0.2 A; 1200mm models 128 W, 0.6 A; PF 0.980
240 V, 50 Hz: 300mm models 32 W, 0.2 A; 1200mm models 128 W, 0.6 A; PF 0.980
Measurements made at nominal voltage at Ta 25° C. Allow for a deviation of +/- 10%.:
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -30° C, power must be maintained below 0° C
Maximum surface temperature, steady state, Ta=40° C: 90° C
Total heat dissipation (calculated, +/- 10%): 300mm models 110 BTU/hr.; 1200mm models 440 BTU/hr.
Approvals
EU safety: EN 60598-1, EN 60598-2-1
LED Safety: IEC 60825-1, 2001; IEC 62471, 2006
EU EMC: EN 55 015, EN 55 103, EN 61 000-3
US safety: UL 1598
Canadian safety: CAN/CSA C.22.2 No. 250
Included Items
Included with Extube 300::
2 x adjustable brackets for mounting on DIN rail:
2 x Extube locking clips:
300mm diffuser, Medium:
300mm diffuser, Wide:
Included with Extube 1200::
2 x adjustable brackets for mounting on DIN rail:
2 x Extube locking clips:
Four 300mm diffusers, Medium:
Four 300mm diffusers, Wide:
Included with Extube Power Connection Kits (EU and US models)::
Input cap with 1.8 m power and data cable tails:
End cap with integral DMX termination:
User manual:
4 x Extube locking clips:
Accessories
250 mm Extension Kit (output cap, cable and input cap), EU/US: 91610094
2000 mm Extension Kit (output cap, cable and input cap), EU/US: 91610095
300mm diffuser, Medium: 41600115
300mm diffuser, Wide: 41600116
Four 300mm diffusers, Narrow: 91610098
Four 300mm diffusers, Medium: 91610099
Four 300mm diffusers, Wide: 91610100
DIN rail set (ten 2 m lengths): 91602009
1200mm models use 4 x 300mm diffusers:
Related Items
Martin DABS1™ USB interface box incl. cables: 90758090
Martin Light Fox™ Controller: 90734540
Colorfox VX01 Controller: 90734500
Spare Parts
Adjustable bracket for mounting on DIN rail: 55545030
Locking Clip (Input and End Caps, Fixture Interconnection): 23402500
Ordering Information
Extube Power Connection Kit, EU type: 91610086
Extube Power Connection Kit, US type: 91610087
Extube 300mm, Aluminum, Narrow: 90352200
Extube 300mm, Black, Narrow: 90352201
Extube 300mm, White, Narrow: 90352202
Extube 1200mm, Aluminum, Narrow: 90352210
Extube 1200mm, Black, Narrow: 90352211
Extube 1200mm, White, Narrow: 90352212
NB: All models now include Narrow diffuser (installed) and Medium and Wide diffusers supplied separately:
