Extube (discontinued)

Larger Images

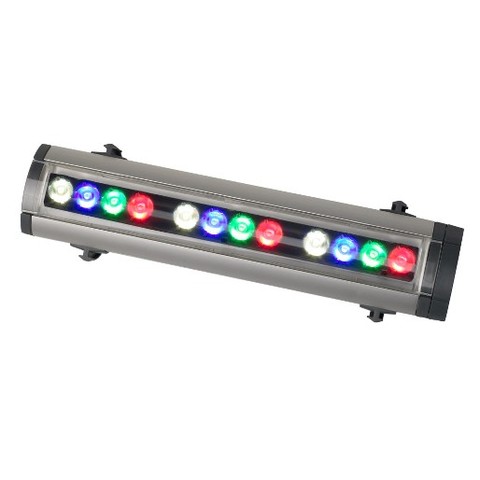

The Extube Series is a modular system of IP65-rated linear LED luminaires designed for the dynamic illumination of facades, bridges and structures. With RGBW color mixing and a choice of diffusers, Extube is ideal for floodlighting, wall-grazing or creating continuous, decorative lines of color, inside or outside.

Features

  • 12 or 48 LEDs in 4 colors: Red, Green, Blue and White
  • RGBW color mixing
  • Choice of optical diffuser films - narrow, medium, wide
  • No need for any external power supply, it’s all built-in
  • Choice of DMX control modes: RGB, RGBW, HSI, HSIC
  • Auto-addressing during set-up
  • Simple click-together system: cable-less loop-through of power and data
  • Easy installation: slides onto DIN rail
  • Tiltable for precise optical aiming
  • Slim, inconspicuous design
  • Available in two lengths: 300 mm (12 in.) / 1200 mm (47.2 in.)
  • Weatherproof rating: IP65

Specifications

Physical Length: 300 mm / 1200 mm, plus end cap 15 mm and connections cap 55 mm if installed Width: 89 mm Height: 90 mm including mounting bracket for DIN rail Weight: 300mm model 1.5 kg, 1200mm model 5 kg
Dynamic Effects Color mixing: RGBW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% White: 0 - 100% Color temperature control: 2 000 - 10 000 K continuous mixing
Control and Programming Color control modes: RGB, RGBW, HSI, HSIC Control system: DMX DMX channels: 3 or 4 on 300mm models, 3, 4, 12 or 16 on 1200mm models Grouped pixel control options: 1 x 3 (all as one group) on 300mm models, 1 x 12 (all as one group) or 4 x 3 on 1200mm models DMX address setting: Martin MUM application, cascading auto-addressing 26-bit control (internal): RGB, RGBW, HSI, HSIC Protocol: USITT DMX512-A Receiver: RS-485 Firmware update: Serial upload via DMX link
Optics Light source: Luxeon Rebel high power emitters White LED: Neutral white, 3500 - 4500 K, CRI 75 Total LED power: 300mm models approx. 25 W, 1200mm models approx. 100 W Very Narrow (no diffuser), Narrow, Medium and Wide beam angles available:
Construction Housing: Aluminum Finish: Clear anodized, black or white Front glass: UV-resistant clear polycarbonate End covers: PA6 nylon Mounting brackets: PA6 nylon Protection rating: IP65
Installation Orientation: Any Aiming: +/- 90° in 25 steps of approx. 7° Mounting: 35 mm DIN top-hat rail Maximum interconnected length per power input: 26 m at 230-240 V, 22 m at 208 V, 13 m at 110-120 V, or 11 m at 100 V
Connections Power connection: 1.8 m cable tail Data connection: 1.8 m cable tail Fixture-to-fixture: Quick IP65 plug-in system
Electrical AC power: 100-120/200-240 V nominal, 50/60 Hz Max. peak inrush current: 300mm models 250 mA; 1200mm models 1 A Standby power: 300mm models 3 W; 1200mm models 12 W Power supply unit: Integrated, auto-sensing multi-voltage
Typical Power and Current 100 V, 60 Hz: 300mm models 32 W, 0.4 A; 1200mm models 128 W, 1.4 A; PF 0.992 110 V, 60 Hz: 300mm models 32 W, 0.3 A; 1200mm models 128 W, 1.2 A; PF 0.992 120 V, 60 Hz: 300mm models 32 W, 0.3 A; 1200mm models 128 W, 1.2 A; PF 0.990 208 V, 60 Hz: 300mm models 32 W, 0.2 A; 1200mm models 128 W, 0.7 A; PF 0.980 230 V, 50 Hz: 300mm models 32 W, 0.2 A; 1200mm models 128 W, 0.6 A; PF 0.980 240 V, 50 Hz: 300mm models 32 W, 0.2 A; 1200mm models 128 W, 0.6 A; PF 0.980 Measurements made at nominal voltage at Ta 25° C. Allow for a deviation of +/- 10%.:
Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -30° C, power must be maintained below 0° C Maximum surface temperature, steady state, Ta=40° C: 90° C Total heat dissipation (calculated, +/- 10%): 300mm models 110 BTU/hr.; 1200mm models 440 BTU/hr.
Approvals EU safety: EN 60598-1, EN 60598-2-1 LED Safety: IEC 60825-1, 2001; IEC 62471, 2006 EU EMC: EN 55 015, EN 55 103, EN 61 000-3 US safety: UL 1598 Canadian safety: CAN/CSA C.22.2 No. 250
CE ETL C US Intertek
Included Items Included with Extube 300:: 2 x adjustable brackets for mounting on DIN rail: 2 x Extube locking clips: 300mm diffuser, Medium: 300mm diffuser, Wide: Included with Extube 1200:: 2 x adjustable brackets for mounting on DIN rail: 2 x Extube locking clips: Four 300mm diffusers, Medium: Four 300mm diffusers, Wide: Included with Extube Power Connection Kits (EU and US models):: Input cap with 1.8 m power and data cable tails: End cap with integral DMX termination: User manual: 4 x Extube locking clips:
Accessories 250 mm Extension Kit (output cap, cable and input cap), EU/US: 91610094 2000 mm Extension Kit (output cap, cable and input cap), EU/US: 91610095 300mm diffuser, Medium: 41600115 300mm diffuser, Wide: 41600116 Four 300mm diffusers, Narrow: 91610098 Four 300mm diffusers, Medium: 91610099 Four 300mm diffusers, Wide: 91610100 DIN rail set (ten 2 m lengths): 91602009 1200mm models use 4 x 300mm diffusers:
Related Items Martin DABS1™ USB interface box incl. cables: 90758090 Martin Light Fox™ Controller: 90734540 Colorfox VX01 Controller: 90734500
Spare Parts Adjustable bracket for mounting on DIN rail: 55545030 Locking Clip (Input and End Caps, Fixture Interconnection): 23402500
Ordering Information Extube Power Connection Kit, EU type: 91610086 Extube Power Connection Kit, US type: 91610087 Extube 300mm, Aluminum, Narrow: 90352200 Extube 300mm, Black, Narrow: 90352201 Extube 300mm, White, Narrow: 90352202 Extube 1200mm, Aluminum, Narrow: 90352210 Extube 1200mm, Black, Narrow: 90352211 Extube 1200mm, White, Narrow: 90352212 NB: All models now include Narrow diffuser (installed) and Medium and Wide diffusers supplied separately:
