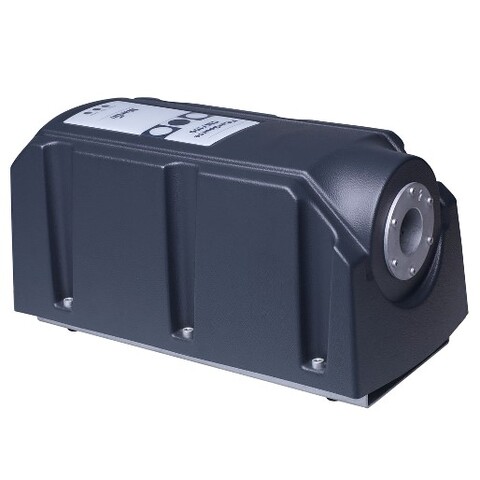

The FiberSource CMY150 is an automated 150 W color-changing luminaire for illuminating fiber optic cables in indoor and outdoor installations. It features seamless CMY color mixing and full-range continuous dimming.
Größere Bilder
Eigenschaften
- 150 W metal halide lamp
- CMY color mixing system
- 0-100% intensity control
- Up to 800 fiber cables (1 mm)
- DMX, stand-alone, real time clock activation
- Weatherproof rating: IP44
Mehr Details
Physical Length: 398 mm Width: 195 mm Height: 197 mm Weight: 8 kg
Dynamic Effects Color mixing: CMY Cyan: 0 - 100% Magenta: 0 - 100% Yellow: 0 - 100% Dimmer: 0 - 100%
Control and Programming Control options: DMX, stand-alone, synchronized (master/client) DMX channels: 7 Stand-alone trigger options: Internal timer and/or ambient light level Stand-alone memory: 20 scenes DMX address setting: Martin MUM™ application running on Windows PC Stand-alone and master/client programming: Martin MUM™ application running on Windows PC Protocol: USITT DMX512/1990 Receiver: RS-485
Lamp Type: 150 W metal halide Approved lamps: Philips CDM-SA/R 150 Socket: Separate connector for integral lamp wires Control: Automatic and/or remote on/off
Construction Housing: Plastic, ABS Color(s): Anthracite grey (RAL 7016) Protection rating: IP44
Installation Indoor orientation: Any Outdoor orientation: Horizontal Minimum distance to combustible materials: 0.1 m Minimum clearance around fan and air vents: 0.2 m
Connections Power connection: 1.8 m cable tail Data connection: 1.8 m cable tail with 3-pin XLR connectors
Electrical AC power: 100/120/210/230/250 V, 50/60 Hz Main fuse: 5 AT (slow blow)
Typical Power and Current 100 V, 50 Hz: 220 W, 2.4 A 100 V, 60 Hz: 210 W, 2.2 A 120 V, 60 Hz: 220 W, 1.8 A 208 V, 60 Hz: 200 W, 1.0 A 230 V, 50 Hz: 210 W, 1.0 A 250 V, 50 Hz: 220 W, 0.9 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 70° C Cooling: Filtered forced air cooling system Total heat dissipation (calculated, +/- 10%): 750 BTU/hr.
Approvals US safety: UL 1598 Canadian safety: CSA C22.2 No. 250.0-00 EU safety: EN 60598-2-17 + Corr. A2 EU EMC: EN 55 015, EN 55 103-1, EN 61 547
Included Items Philips CDM-SA/R 150 lamp: 97010113
Accessories Fiber adaptor, 350-800 pcs. (50 pcs. interval) Ø 1mm fiber, D= 38mm: 91611034 Fiber adaptor, 75-350 pcs. (25 pcs. interval) Ø 1 mm fiber, D= 30 mm: 91611035 10 m Light Fiber LF120HL, Ø 12 mm: 91611070 20 m Light Fiber LF120HL, Ø 12 mm: 91611071 60 m Light Fiber LF120HL, Ø 12 mm: 91611072
Related Items Martin DABS1™ USB interface box incl. cables: 90758090
Spare Parts Philips CDM-SA/R 150 lamp: 97010113 5.0 AT main fuse: 05020018 Air filter: 62400205
Ordering Information FiberSource CMY 150, 230 V, 50 Hz: 90523000 FiberSource CMY 150, 120 V, 60 Hz: 90523100
