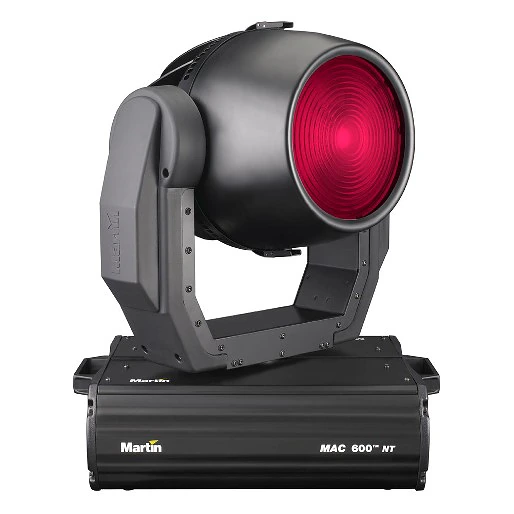

The MAC 600 E NT is a powerful wash light with a CMY color mixing system, variable CTC, frost effect for the zoom with a fast, smooth movement.
Μεγαλύτερες εικόνες
Βίντεο
Χαρακτηριστικά
- 575 W discharge lamp
- CMY color mixing system
- 4 position color wheel plus open
- Variable CTC
- Frost and indexable beamshaper
- Strobe effect up to 8 Hz, instant open and blackout
- 18°, 25° (standard), 65° and 80° lens options
- Mechanical dimming
- Pan and tilt range of 440°/306°
- Modular design for easy maintenance and servicing
- Electronic ballast and flicker free light
- Quiet operation
Περισσότερες λεπτομέρειες
Physical
Length: 356 mm
Width: 481 mm
Height: 652 mm, head straight up
Weight: 25.4 kg
Dynamic Effects
Color mixing: CMY, independently variable 0 - 100%
Color temperature control: 0 - 100%
Color wheel: 4 interchangeable filters (incl. UV transmitter), full and split colors, continuous rotation
Dimmer: 0 - 100%
Shutter: Strobe effect up to 8 Hz, instant open and blackout
Beamshaper: 0° - 180°
Diffuser: Variable frost filter
Pan: 440°
Tilt: 306°
Control and Programming
DMX channels: 11/13/15
Setting and addressing: Control panel with LED display
16-bit control: Pan & tilt
Protocol: USITT DMX512/1990
Receiver: RS-485
Firmware update: Serial upload via DMX link
Lamp
Type: 575 W discharge
Fitted as standard: Philips MSR 575/2
Color temperature: 7200 K
CRI (Color rendering index): 80
Average lifetime: 1000 hours
Hot restrike: No
Socket: GX 9.5
Ballast: Electronic on models currently available
Approved alternative lamp(s): Philips MSD 575, Osram HSR 575/72
Optics
Beam angle: Narrow lens 18°, standard lens 25° (65° with floodlight diffuser), super-wide lens 103°, 1/10 peak angles
Construction
Color(s): Black
Housing: Steel and aluminum with molded plastic covers
Finish: Electrostatic powder-coated
Reflector: Glass, cold light
Protection rating: IP20
Installation
Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible
Orientation: Any
Connections
AC power input: 3 m integral cable without power plug
DMX data in/out: 3-pin locking XLR
Electrical
AC power: 100/110/120/200/210/220/230/240 V, 50/60 Hz
Power supply unit: Auto-sensing ballast, user-configurable PSU mains voltage setting
Main fuse (100-120 V power): 10 AT (slow blow)
Main fuse (200-240 V power): 6.3 AT (slow blow)
Typical Power and Current
230 V, 50 Hz: 690 W, 3.2 A, PF 0.94
Thermal
Cooling: Filtered forced air (temperature-regulated)
Maximum ambient temperature (Ta max.): 40° C
Maximum surface temperature, steady state, at 40° C ambient: 140° C (284° F)
Total heat dissipation (calculated, +/- 10%): 2560 BTU/hr.
Approvals
EU safety: EN 60598-1, EN 60598-2-17
EU EMC: EN 50 081-1, EN 50 082-1
US safety: ANSI/UL 1573
Canadian safety: CSA C22.2 No. 166
Included Items
Philips MSR 575/2 lamp (installed): 97010201
6.3 AT fuse for use with 200 - 240 V power: 05020020
10 AT fuse for use with 100 - 120 V power: 05020025
Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001
User manual: 35000088
Accessories
Osram HSR 575/72 Lamp: 97010200
Philips MSD 575 Lamp: 97010202
Osram HSD 575/60 Lamp: 97010207
18° "long front" with Fresnel lens: 91610005
65° floodlight diffuser on standard front: 91610008
103° super wide front lens kit: 91610073
Omega bracket: 91602001
G-clamp: 91602003
Half-coupler clamp: 91602005
Quick trigger clamp: 91602007
Flightcase for 2 x MAC 500/600: 91510002
Outdoor Protection Dome: 90525010
Spare Parts
Philips MSR 575/2 lamp: 97010201
6.3 AT main fuse: 05020020
10 AT main fuse: 05020025
Fuse F601, 5 AT: 05020018
Fuse F602, 4 AT: 05020016
Fuse F603, 0.315 AT: 05020004
Ordering Information
MAC 600 E NT in cardboard box: 90210600
MAC 600 E NT in single flightcase: 90210601
