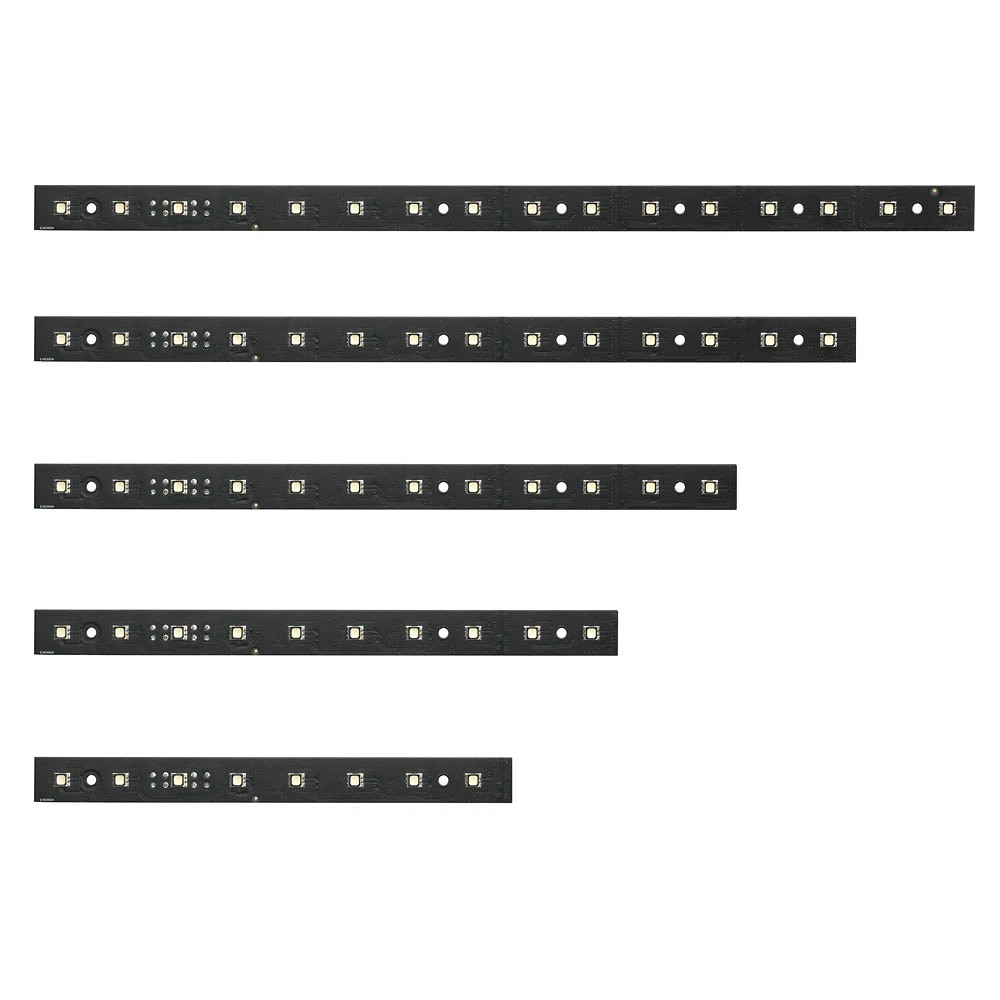

• Physical VC-Strip 16x1 25™:

  Length: 400 mm (15.8 in.) *
  Width: 20 mm (0.8 in.)
  Height: 18 mm (0.7 in.)
  Weight: 43 g (0.1 lbs.)

  VC-Strip 8x1 25™:

  Length: 200 mm (7.9 in.) *
  Width: 20 mm (0.8 in.)
  Height: 18 mm (0.7 in.)
  Weight: 26 g (0.06 lbs.)

  *Including 1 mm board-to-board gap
  Control and Programming Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control options: Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX Protocol detection: Automatic Setting and addressing: Martin P3™ System Controller or RDM-compliant controller Color and intensity calibration: Pixel-level DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Via Martin P3™ System Controller

  Control modes, direct DMX control: Module and Pixel DMX channels, direct DMX control: 3/24/48 Control modes, DMX via P3: P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap DMX channels, DMX via P3: Wide range of options from 1 to 51

  P3 Video Processing

  Brightness control
  Gamma correction and control
  Color temperature control
  Color space control
  Calibration processing
  Synchronization

  Control/User Interface Device status: Multi-color visual indication Device test and reset: Pushbutton to call up local test patterns and reset device
  Optics Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Binning: Tight color and flux binning Calibration: Full Gamut Pixel Calibration *Figure obtained under manufacturer´s test conditions
  Photometric Data Color resolution: 16 bits per color (48 bits per pixel) Viewing angle: 120° x 120° (half-peak)

  Pitch (pixel center-to-center): 25.00 mm Total output, calibrated mode: 4000 nits (fixtures placed in continuous surface) Luminous output, calibrated mode: 300 lumen per meter LED Array VC-Strip 25 16x1: 16 x 1 LED Array VC-Strip 25 8x1: 8 x 1

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Signal Protocol Martin P3 (via Martin P3™ PowerPort) or DMX (direct)
  Construction Base: Black FR4 circuit board Protection rating: IP20 RoHS compliant
• Installation Mounting: Mounting holes in module Orientation: Any Maximum number of VC-Strip™ 16x1 25 modules per daisy-chain: 45 Maximum number of VC-Strip™ 8x1 25 modules per daisy-chain: 63
  Connections Power & data input: 4-pin Molex connector Power & data thru: 4-pin Molex connector
  Electrical Nominal input voltage: 48 VDC +/- 4% Power supply options: Martin P3™ PowerPort 1500, DMX PowerPort 375, Martin™ IP66 PSU 240W or generic 48 VDC PSU Maximum power consumption, all LEDs at full intensity, VC-Strip 25 16x1: 6.7 W Maximum power consumption, all LEDs at full intensity, VC-Strip 25 8x1: 3.3 W
  Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 45° C Minimum ambient temperature (Ta min.): -20° C Maximum total heat dissipation, calculated, +/- 10%:

  VC-Strip 25 16x1: 23 BTU/hr
  VC-Strip 25 8x1: 11 BTU/hr

  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
  Approvals EU safety: EN 60950 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1
  Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin DMX PowerPort 375: P/N 90721094 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com
  Accessories VC-Grid™/Strip™ 25 Mounting Frames, set of 10: P/N 91611370 VC-Grid™/Strip™ 25 Lens Arrays, Narrow, set of 8: P/N 91611540 Input cables:

  Power+Data Adapter, XLR4-to-PCB, 0.25 m (0.9 ft.): P/N 91616035
  Power+Data Adapter, XLR5+Power-to-XLR4, 0.25 m (0.9 ft.): P/N 91616037
  Power+Data Adapter, XLR5+XLR4-to-XLR4, 0.25 m (0.9 ft.): P/N 91616038
  Power+Data Adapter, XLR5+Tripix-to-XLR4, 0.25 m (0.9 ft.): P/N 91616039

  VC-Strip to VC-Strip link cables:

  Power+Data Cable, PCB-to-PCB, 200 mm (7.9 in.): P/N 91616025
  Power+Data Cable, PCB-to-PCB, 400 mm (15.8 in.): P/N 91616026
  Power+Data Cable, PCB-to-PCB, 600 mm (23.7 in.): P/N 91616027
  Power+Data Cable, PCB-to-PCB, 800 mm (31.5 in.): P/N 91616028
  Power+Data Cable, PCB-to-PCB, 1000 mm (39.4 in.): P/N 91616029

  Extension cables:

  Power+Data Cable, XLR4-to-XLR4, 1 m (3.3 ft.): P/N 91616030
  Power+Data Cable, XLR4-to-XLR4, 2.5 m (8.2 ft.): P/N 91616031
  Power+Data Cable, XLR4-to-XLR4, 5 m (16.4 ft.): P/N 91616032
  Power+Data Cable, XLR4-to-XLR4, 10 m (32.8 ft.): P/N 91616033
  Power+Data Cable, XLR4-to-XLR4, 25 m (82.1 ft.): P/N 91616034

  Output/throughput cables:

  Hybrid Output/Thru Cable, PCB-to-XLR4, 0.25 m (0.9 ft.): P/N 91616036
  Power+Data Adapter, XLR4-to-XLR5, 0.25 m (0.9 ft.): P/N 91616040

  Cable without connectors:

  Power+Data Cable, Rental, 100 m (328.1 ft.): P/N 91616045
  Power+Data Cable, Install CMX, 100 m (328.1 ft.): P/N 91616060
  Power+Data Cable, Install LSZH, 100 m (328.1 ft.): P/N 91616017

  Ordering Information VC-Strip™ 16x1 25 RGB: P/N 90357290 (to be ordered in multiples of 6) VC-Strip™ 8x1 25 RGB: P/N 90357320 (to be ordered in multiples of 12)
