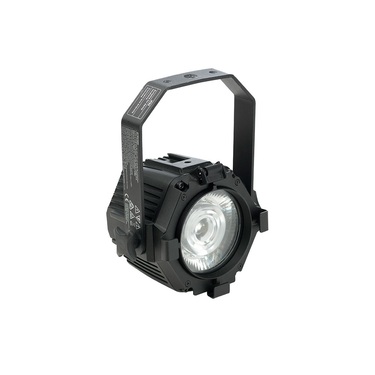

• Physical

  Width excluding hanging bracket: 130 mm (5.1 in.)
  Width including hanging bracket: 175 mm (6.9 in.)
  Height excluding hanging bracket: 134 mm (5.3 in.)
  Height including hanging bracket: 242 mm (9.5 in.)
  Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
  Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
  Depth: 146 mm (5.7 in.)
  Weight including hanging bracket: 2.2 kg (4.85 lbs.)
  Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)

  Dynamic Effects

  Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
  Beam Dimming options: Choice of four dimming curves
  Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
  Aura Dimming options: Choice of four dimming curves
  Aura Color mixing: RGB, independently variable 0 - 100%
  Aura Color temperature control: Variable 2000 - 11,000 K
  Aura Virtual Color wheel: 36 color presets, continuous rotation & random color
  Aura PixelMapping: individual RGB control of each Aura pixel
  Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both

  Control and Programming Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3 Protocol detection: Automatic Setting and addressing: RDM, RDM over Art-Net or P3 DMX Modes: 1-channel, 3-channel, 4-channel, Basic, Extended DMX channels: 1, 3, 4, 19, 64 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net sACN Compliance: ANSI E1.31 - 2016 Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer DMX/RDM Transceiver: RS-485 Ethernet Transceiver: 10/100Mbit Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
  P3 Video Processing Color Resolution: 16 bit per color (48 bit per pixel) (Aura) Color Temperature Control: 2000-11,000 K (Aura) Synchronization: System-wide Frame Rate: Up to 75 frames/sec Brightness Control: 0-100% (maintaining full color depth) Color Gamut Control: full spectrum control (Aura) Gamma Correction and Control: fully controllable (Aura)
  Control/User Interface Device status: Multi-color status LED Device test and reset: Pushbutton to call up local test patterns and reset device
  Optics and Photometric Data

  Lens Diameter: 95 mm
  Front Accessory Holder: PAR30 size

  Beam/Strobe LED
  LED Type: Cold White
  Max. total lumen output: 3350 lumens (boost/strobe mode)
  Max. total lumen output: 1600 lumens (continuous mode)
  Beam Angle: 11 Degrees (half peak)
  Field Angle: 22 Degrees (one-tenth peak)
  Binning: Tight color and flux binning
  Color Temperature: 5700 K
  CRI (Color Rendering Index): ≥ 80
  Resolution: 16-bit
  Minimum LED lifetime: 50,000 hours (to >70% luminous output)

  Aura Backlight LEDs
  LED Type: RGB
  LED Quantity: 16
  Binning: Tight color and flux binning
  Color Temperature: Variable (2000-11,000 K)
  Resolution: 16-bit per color per pixel
  Minimum LED lifetime: 50,000 hours (to >70% luminous output)

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Housing: Aluminum Color: Black Protection rating: IP65
  Installation Mounting options: hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism Location: indoor or temporary outdoor use Clamp attachment to hanging bracket: M12 Clamp attachment directly to fixture: M8 Maximum vertical column height: 16 fixtures Orientation: Any Minimum distance to combustible materials: 0.1 m Minimum distance to illuminated surfaces: 0.2 m

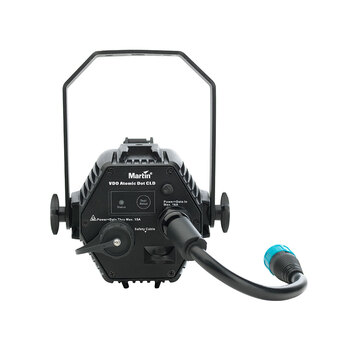

• Connections

  AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
  AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
  All connections hot plugging compatible

  Electrical

  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode
  Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.1 A
  Typical earth-leakage current: 0.25 mA
  Power Factor: 0.99 @ 100 V , 0.98 @ 120 V , 0.95 @ 208 V , 0.96 @ 230 V , 0.94 @ 240 V
  Max current draw: 0.6 A @ 100 V / 120 V , 0.3 A @ 208 V / 230 V / 240 V
  Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.2 A @ 208 V , 0.2 A @ 230 V , 0.2 A @ 240 V *
  Power Consumption
  Maximum: 55 W
  Typical: 50 W *
  Idle: 4 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: full output white.
  Idle: no output.

  Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 74.4 lm/W LWR*: 1,523 lm/kg (691 lm/lb)

  LWR = Lumen-to-Weight Ratio

  Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CRF Chapter 15 Class B Canadian safety: CSA 22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM United Kingdom: UKCA
  Related Items VDO Atomic Dot WRM in cardboard: P/N 90357702 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com Martin Companion Cable (for firmware update over DMX): P/N 91616091 Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
  Accessories

  Junction Boxes
  Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
  Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002

  Adapters Cables
  BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
  BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
  BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003

  Optical Accessories
  VDO Atomic Dot Diffuser 60 Degrees: P/N 91610002
  VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005

  Mechanical Accessories

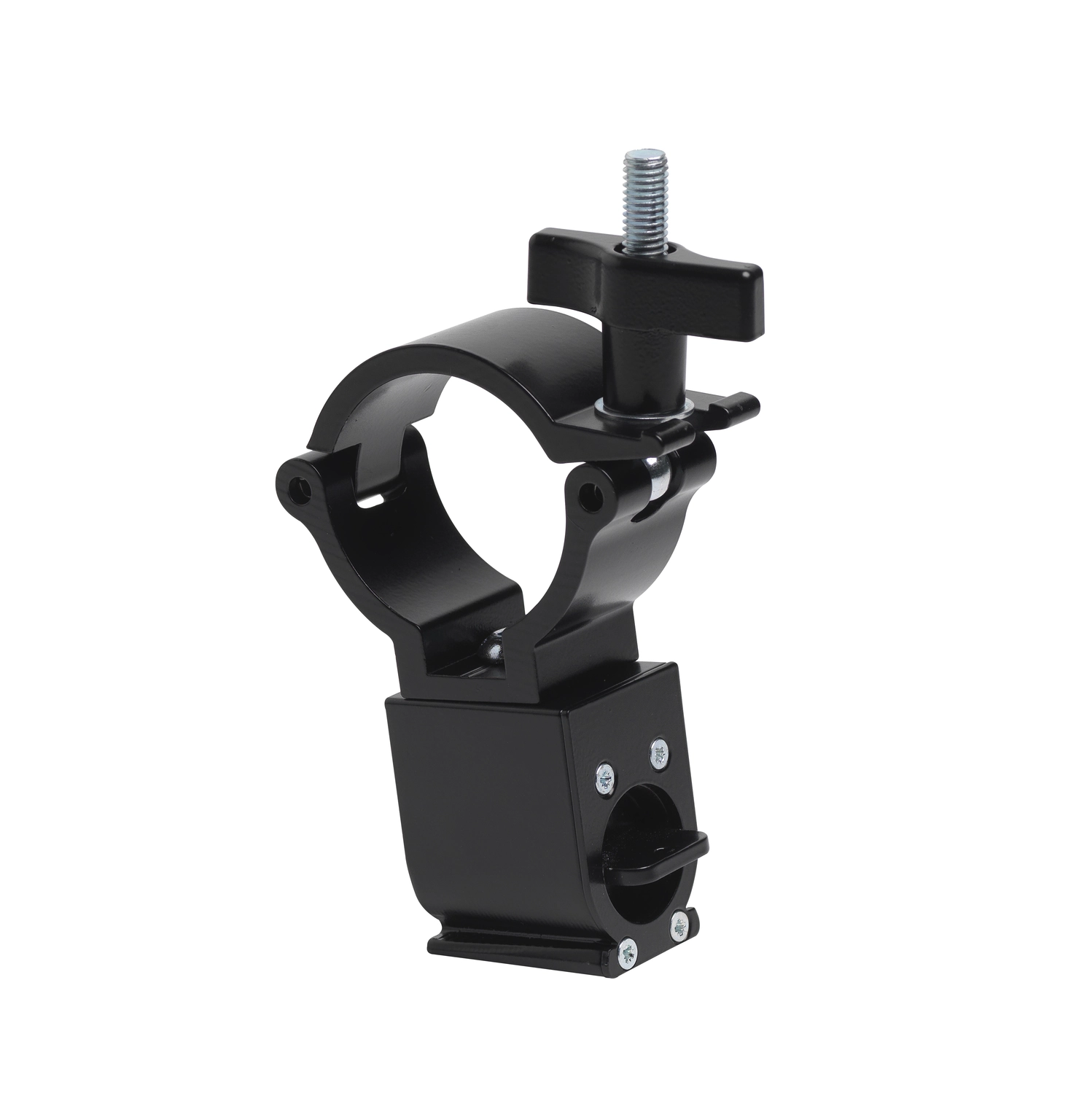

  Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
  G-clamp (vertical hanging installation only): P/N 91602003
  Half-coupler clamp: P/N 91602005
  Quick trigger clamp (vertical hanging installation only): P/N 91602007
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
  Set of 10 VDO Couplers: P/N MAR-91616129HU
  VDO Atomic Half Coupler: P/N 91610004
  VDO Atomic Interlock Adapter: P/N 91610006
  VDO Atomic Pivot Coupler: P/N 91610007
  VDO Atomic Dot Double Width Bracket: P/N 91616117
  VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118

  Pre-Assembled Hybrid PDE Cables
  Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
  Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002
  Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
  Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
  Power+Data Cable Rental PDE-PDE 25m: P/N 91616005

  Bulk Hybrid PDE Cable and Connectors
  Power+Data Connector PDE Male: P/N 91611701
  Power+Data Connector PDE Female: P/N 91611702
  Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006

  DemoKit
  VDO Atomic Dot Demo Kit: P/N 91311001

  Flightcase
  Flightcase for 15 x VDO Atomic Dot: P/N 91515053
  Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054

  Ordering Information VDO Atomic Dot CLD in cardboard : P/N 90357701

•
