VDO Atomic Dot CLD

Hybrid strobe / blinder / videopixel fixture

The Martin VDO Atomic Dot CLD hybrid lighting and video fixture, also available in a WRM color temperature variant, combines a compact strobe, small blinder, video-pixel and small spotlight.

By combining a video-controlled Aura backlight and a bright strobe/blinder dot in one fixture, lighting designers are empowered with greater creative potential to make a bigger impact with audiences than ever before. The fixtures’ compact design also gives designers the ability to place VDO Atomic Dots just about anywhere and deploy them in larger quantities. Integrated support for P3, DMX, Art-Net and sACN eliminates the need for additional interface boxes and onboard P3 eases pixel mapping and using the product as a video controlled strobe or blinder.

VDO Atomic Dots are ideal for rental customers and lighting designers working in concert/touring and TV show sets as well as supporting corporate and nightclub clients.

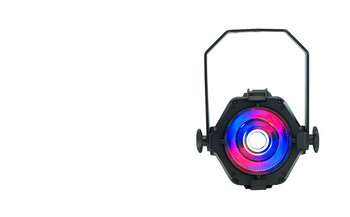

  • DUAL LAYER FIXTURE

    A high-power, cold white beam combined with a pixel-controllable RGB Aura backlight enables truly, unique effects. Both layers can be controlled individually via P3, DMX, Art-Net, sACN or a mix.

  • COMPACT AND LIGHTWEIGHT

    Packs a lot of punch from a very compact fixture that can be used and hidden in any application. Internal power supply and IP65-rated housing increase usability of this fixture in various applications.

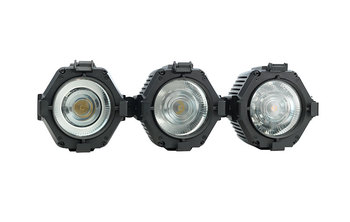

  • EASILY COMBINE MULTIPLE FIXTURES IN ARRAYS

    The smart interlocking mechanics allow fixtures to be combined into battens, arrays or creative shapes. Creative imagination is your only limit.

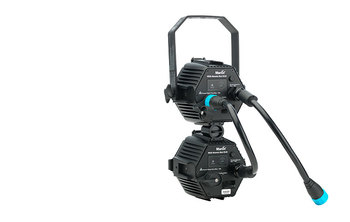

  • HYBRID DATA AND POWER CABLE

    The hybrid power and data cable carries all power and data for the fixtures, allowing them to be daisy-chained very easily in large quantities.

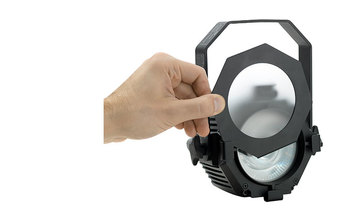

  • FRONT-ACCESSORY HOLDER

    The industry-standard PAR30-sized front-acessory holder can hold a diffuser to widen the beam-angle of the fixture. It also fits standard barndoors to give the fixture an artistic look on stage.

DUAL LAYER FIXTURE

A high-power, cold white beam combined with a pixel-controllable RGB Aura backlight enables truly, unique effects. Both layers can be controlled individually via P3, DMX, Art-Net, sACN or a mix.

COMPACT AND LIGHTWEIGHT

Packs a lot of punch from a very compact fixture that can be used and hidden in any application. Internal power supply and IP65-rated housing increase usability of this fixture in various applications.

EASILY COMBINE MULTIPLE FIXTURES IN ARRAYS

The smart interlocking mechanics allow fixtures to be combined into battens, arrays or creative shapes. Creative imagination is your only limit.

HYBRID DATA AND POWER CABLE

The hybrid power and data cable carries all power and data for the fixtures, allowing them to be daisy-chained very easily in large quantities.

FRONT-ACCESSORY HOLDER

The industry-standard PAR30-sized front-acessory holder can hold a diffuser to widen the beam-angle of the fixture. It also fits standard barndoors to give the fixture an artistic look on stage.

Videos









Features

  • High power cold white beam (5700K)
  • Beam angle of 11 degrees
  • Field angle of 22 degrees
  • Pixel-controllable RGB Aura backlight
  • Compact form-factor
  • Built-in power supply (100-240V)
  • Power and Data IN & THRU via hybrid cable (PDE System)
  • P3, DMX, Art-Net & sACN compatible
  • Built-in pixel-FX on backlight and beam
  • Front-accessory holder for barndoors and/or diffuser/lens
  • Detachable yoke-assembly
  • Smart interlocking mechanics to build battens, arrays and creative shapes
  • Passive cooling
  • IP65 rated

Specifications

  • Physical Width: 175 mm (6.9 in.) (incl. hanging bracket) (150 mm (5.9 in.) fixture center-to-center using interlock couplers) Height: 138 mm (5.4 in.) (150 mm (5.9 in.) fixture center-to-center using interlock couplers) Depth: 146 mm (5.7 in.) Weight: 2.2 kg (4.85 lbs.)
    Dynamic Effects

    Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
    Beam Dimming options: Choice of four dimming curves
    Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
    Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
    Aura Dimming options: Choice of four dimming curves
    Aura Color mixing: RGB, independently variable 0 - 100%
    Aura Color temperature control: Variable 2000 - 11000 K
    Aura Virtual Color wheel: 36 color presets, continuous rotation & random color
    Aura PixelMapping: individual RGB control of each Aura pixel
    Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
    Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both

    Control and Programming Control Protocols: DMX, RDM, Art-Net, sACN and P3 Protocol detection: Automatic Setting and addressing: RDM, RDM over Art-Net or P3 DMX Modes: 1-channel, 3-channel, 4-channel, Basic, Extended DMX channels: 1, 3, 4, 19, 64 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net sACN Compliance: ANSI E1.31 Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer DMX/RDM Transceiver: RS-485 Ethernet Transceiver: 10/100Mbit Firmware update: Via DMX using Martin Companion or via Ethernet using P3 System Controller
    Control/User Interface Device status: Multi-color status LED Device test and reset: Pushbutton to call up local test patterns and reset device
    Optics and Photometric Data

    Lens Diameter: 95 mm
    Front Accessory Holder: PAR30 size

    Beam/Strobe LED
    LED Type: Cold White
    Max. total lumen output: 3350 lumens
    Beam Angle: 11 Degrees (half peak)
    Field Angle: 22 Degrees (one-tenth peak)
    Color Temperature: 5700 K
    CRI (Color Rendering Index): >80
    Resolution: 16-bit
    Minimum LED lifetime: 50,000 hours (to >70% luminous output)

    Aura Backlight LEDs
    LED Type: RGB
    LED Quantity: 16
    Color Temperature: Variable (2000-11000 K)
    Resolution: 16-bit per color per pixel
    Minimum LED lifetime: 50,000 hours (to >70% luminous output)

    P3 Video Processing Color Resolution: 16 bit per color (48 bit per pixel) Color Temperature Control: 2000-11000 K (Aura) Synchronization: System-wide Frame Rate: Up to 75 frames/sec Brightness Control: 0-100% (maintaining full color depth) Gamma Correction: Fully controllable Gamma Control: Fully controllable Color Gamut Control: Full spectrum control (Aura)
    Construction Housing: Aluminum Color: Black Protection rating: IP65 RoHS: Compliant REACH: Compliant
    Installation Mounting options: Hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism Location: Indoor or temporary outdoor use Clamp attachment to hanging bracket: M12 Clamp attachment directly to fixture: M8 Maximum vertical column height: 16 fixtures Orientation: Any Minimum distance to combustible materials: 0.1 m Minimum distance to illuminated surfaces: 0.2 m

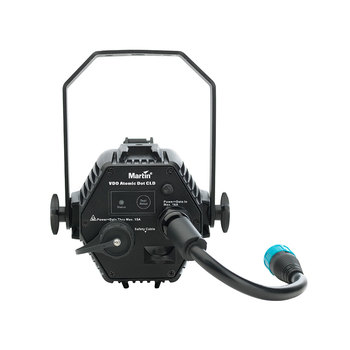

  • Connections

    AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
    AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
    All connections hot plugging compatible

    Electrical AC power: 100-240 V AC nominal, 50/60Hz Power supply unit: Auto-ranging electronic switch mode Typical half-cycle RMS inrush current: 1.12 A Maximum power consumption: 55 W Typical earth-leakage current: 0.25 mA
    Typical Power and Current 100 V, 60 Hz: 49.0 W, 0.49 A, PF 0.99 120 V, 60 Hz: 48.9 W, 0.41 A, PF 0.98 208 V, 60 Hz: 48.6 W, 0.24 A, PF 0.95 230 V, 50 Hz: 50.2 W, 0.23 A, PF 0.96 240 V, 50 Hz: 49.6 W, 0.22 A, PF 0.94 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.
    Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CRF §15 Class B Canadian safety: CSA 22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM
    Accessories

    PDE System Input
    Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
    BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
    BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001

    Optical Accessories
    VDO Atomic Dot Diffuser 60 Degrees: P/N 91610002
    VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005

    Mechanical Accessories
    Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
    G-clamp (vertical hanging installation only): P/N 91602003
    Half-coupler clamp: P/N 91602005
    Quick trigger clamp (vertical hanging installation only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Set of 10 VDO Atomic Couplers: P/N 91610003
    VDO Atomic Half Coupler: P/N 91610004
    VDO Atomic Interlock Adapter: P/N 91610006
    VDO Atomic Pivot Coupler: P/N 91610007
    VDO Atomic Dot Double Width Bracket: P/N 91616117
    VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118

    Pre-Assembled Hybrid PDE Cables
    Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
    Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002
    Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
    Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
    Power+Data Cable Rental PDE-PDE 25m: P/N 91616005

    Bulk Hybrid PDE Cable and Connectors
    Power+Data Connector PDE Male: P/N 91611701
    Power+Data Connector PDE Female: P/N 91611702
    Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006

    DemoKit
    VDO Atomic Dot Demo Kit: P/N 91311001

    Flightcase
    Flightcase for 15 x VDO Atomic Dot: P/N 91515053
    Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054

    Related Items VDO Atomic Dot WRM in cardboard: P/N 90357702 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: Free download from martin.com Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable (for firmware update over DMX): P/N 91616091
    Ordering Information VDO Atomic Dot CLD in cardboard : P/N 90357701
