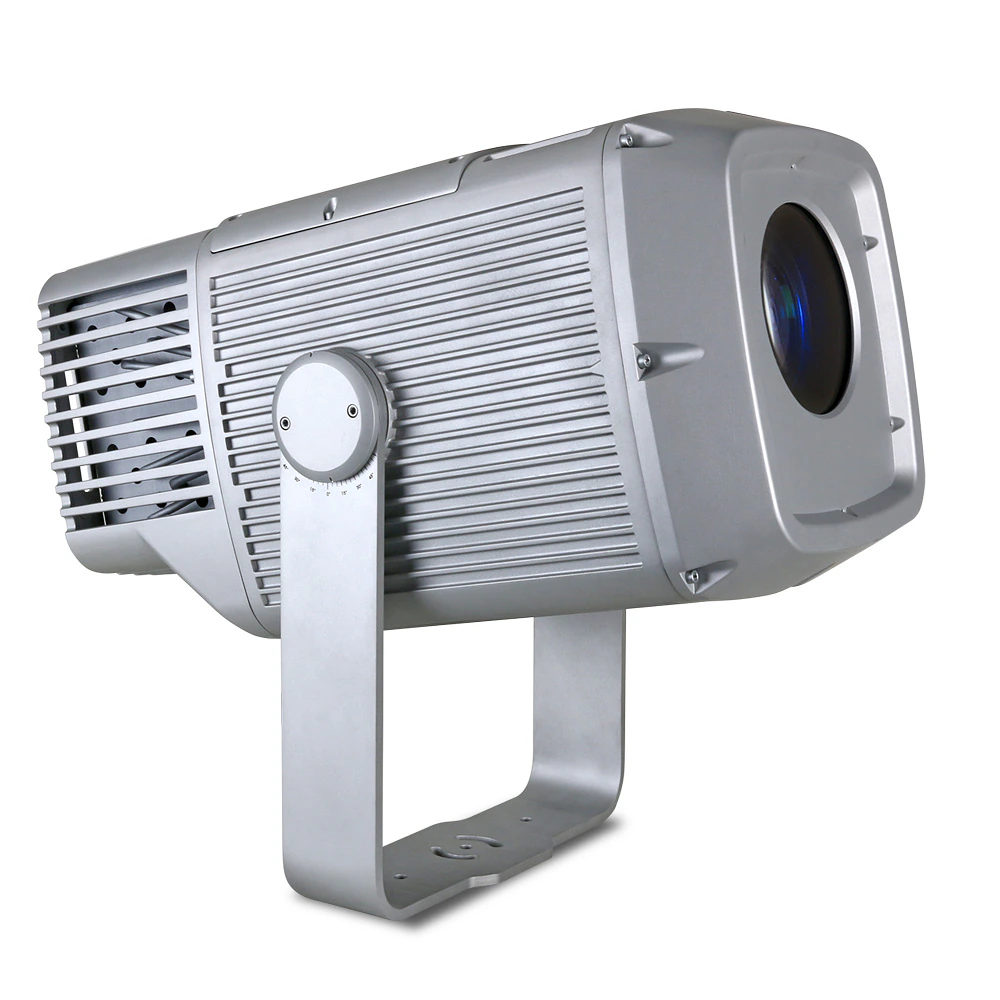

Length:
702 mm (27.7 in.)
Width:
417 mm (16.5 in.)
Height:
618 mm (24.4 in.)
Weight:
50 kg (110 lbs.)
All figures include mounting yoke
Color mixing:
CMY, independently variable 0 - 100%
Color wheel:
7 interchangeable colors + open
Gobo wheel:
7 rotating gobos plus open, indexing, variable rotation
Gobo animation wheel:
Indexing, continuous rotation with variable angle, speed and direction
Zoom:
10° - 44° (cut-off angles)
Prism:
Prism wheel with 2 interchangeable prisms, prism rotation and indexing
Frost filter:
Motorized, variable
Dimming:
0-100% electronic
Shutter:
Electronic, strobe and pulse effects, instant open and blackout
Focus:
Motorized, variable 3 m (9.8 ft.) to infinity
Stand-alone control:
Up to 20 scenes with global fade/hold times
Control options:
DMX, RDM, standalone
Configuration, addressing and status:
Onboard control panel with OLED display or via RDM
8-bit control:
CMY, color selection, gobo selection, prism, frost, animation
16-bit control:
Gobo indexing and rotation, zoom, focus and intensity
DMX channels:
20
DMX compliance:
USITT DMX512-A
RDM compliance:
ANSI/ESTA E1.20
Light source:
440 W white light LED engine
CRI (Color Rendering Index):
72
Color temperature:
6500 K (±250 K)
LED lifetime:
20,000 hours (to >70% luminous output)*
LED manufacturer:
Appotronics
Binning:
Tight color and flux binning
*Figure obtained under manufacturer's test conditions
Cut-off angle:
10° - 44°
Luminous intensity:
At 10° zoom: 11,500 lumens
At 16° zoom: 15,000 lumens
At 40° zoom: 16,800 lumens
Center Peak:
At 10° zoom: 731,000 cd
At 16° zoom: 311,000 cd
At 40° zoom: 42,000 cd
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Housing:
Cast aluminum
Finish:
Hard anodized, white or metallic grey lacquered
Front glass:
5 mm (0.2 in.) anti-reflection coated tempered glass
Ingress protection:
IP66
Impact resistance:
IK08 (with control panel display cover plate installed)
Corrosion resistance:
C5-M (very high corrosivity / marine, ISO 12944)
Vibration resistance:
1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64)
EPA (Effective Projected Area):
0.28m²
Suitable material:
Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F)
Gobo diameter:
30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)
Maximum image diameter:
26 mm (1.02 in.)
Gobo thickness, minimum:
1.1 mm ±0.1 mm (0.045 ±0.004 in.)
Gobo thickness, maximum:
3.0 mm ±0.3 mm (0.118 in. ± 0.012 in.)*
*Gobos thicker than 2.5 mm require a shorter spring in the goboholder
Mounting:
Adjustable yoke
Location:
Suitable for wet locations. Do not immerse in water.
Orientation:
Any (sides must be kept vertical)
Minimum distance to illuminated surfaces:
0.5 m (20 in.)
Power cable entry:
IP66 cable gland
Power connection:
1.8 m (5.9 ft.) cable tail with bare ends
Power cable type:
EU models: H07RN-F 450/700V, Ø10 mm
US models:
SJTW 14AWG, 300V, Ø9.3 mm
Data cable entry:
IP66 cable gland
Data connection:
1.8 m (5.9 ft.) combined input + output cable tail with bare ends
AC power:
100-120/200-277 V nominal, 50/60 Hz
Power Supply:
Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current:
15.5 A
Idle power (zero intensity, no effects applied):
75 W
Surge protection:
4 KV
120 V, 60 Hz:
645 W, 5.5 A, PF 0.98
230 V, 50 Hz:
635 W, 2.9 A, PF 0.95
277 V, 60 Hz:
635 W, 2.6 A, PF 0.90
Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Cooling:
Convection, internal forced air
Total heat dissipation (calculated):
2350 BTU/hr.
Maximum surface temperature:
85° C (185 ° F)
Maximum ambient temperature (Ta max.):
45° C (113° F)*
Minimum ambient temperature (Ta min.):
-30° C (-22° F)**
*Above this temperature, the fixture regulates output to protect from overheating.
** An integrated heat-element will heat-up internal components at ambient temperatures below 0° C (32° F) - For instant wake-up with no warm-up time, leave power applied constantly.
RoHS:
Compliant
REACH:
Compliant
WEEE:
Compliant
Proposition 65:
Compliant
Efficacy (max output):
26 lm/W
LWR*:
349 lm/kg (158 lm/lb)
LWR = Lumen-to-Weight Ratio
Global CB Certification/IECEE:
IEC 60598-2-5 (IEC 60598-1)
EU safety:
EN 60598-2-1, EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
EU EMC:
EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61547
US safety:
ANSI/UL 1598
US EMC:
CFR 47 Part 15 Class A
Canadian safety:
CSA C22.2 No 250.0
Australia/NZ:
RCM
Silica gel desiccant bag:
P/N 37220000
Two gobo retaining springs
Martin Companion Cable:
P/N 91616091
Martin Companion Software Suite (including firmware uploader)
Glare Shield, Exterior Projection 1000:
P/N 91611768
Projection Setup Gobo, Exterior Projection 1000:
P/N 91616075
Ring for gobo, OD30, set of 10 pcs:
P/N MAR-91611851
Silica gel desiccant bag in sealed foil pack:
P/N 37220000
Goboholder for EP1000 with magnet incl. washer & short spring:
P/N 50482185
Goboholder for EP1000 with magnet incl. washer & long spring:
P/N 50482186
EU models:
Exterior Projection 1000, EU, Aluminum: P/N 90512000
Exterior Projection 1000, EU, White: P/N 90512015
US Models:
Exterior Projection 1000, US, Aluminum: P/N 90512005
Exterior Projection 1000, US, White: P/N 90512010
