Exterior Projection 1000

Larger Images

The Exterior™ Projection 1000 is an unparalleled, powerful tool for permanent outdoor installations to integrate textures, patterns and graphics for limitless creative exterior lighting designs.

Sporting high impact and low maintenance, this advanced, IP66-rated LED projector offers sharp image quality, dynamic features and great reach over huge distances.

  • Flat-field, high-contrast image projection with wide zoom range
  • Fully weatherized with low maintenance and running
  • Full CMY color mixing for maximum creativity
  • Built to last

    It operates at temperatures from -30°C to 45°C and its robust, vandalism-proof IK08 and IP66-rated aluminum housing is surface treated to comply with the ISO12944/C5-M corrosion protection standard

  • Low total cost of ownership

    20 000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector.

  • Creative tool box

    Four effect layers—gobos, prisms, animation, variable frost—along with a full CMY color mixing system, an additional color wheel as well as zoom and focus offer unlimited creativity

  • Easy installation

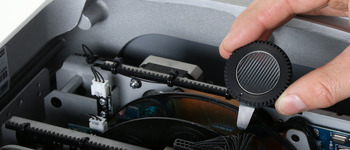

    Easy access to swift replacement of standard gobos with customized gobos, and a strong bracket offers quick mounting in any vertical position. Comes with bare-end power and DMX in/out cables for connection to a nearby junction box.

  • Easy control

    Remote controlled via 20-channel DMX protocol. RDM functionality for remote setting of address, reading of diagnostic information such as fixture running hours, LED running hours and temperature. Built-in OLED display to configure the fixture and program a standalone show with up to 20 scenes.

  • High precision optical system

    Flat field, high contrast image projection based on high power LED engine. The wide zoom range from 10° - 40° allows for exact projection on desired surface.



  • Flat field, high contrast image projection based on high power LED engine
  • 0-100% electronic dimming
  • Full CMY color mixing + additional color wheel with 7 interchangeable colors
  • 7 gobo slots for projecting graphic images (gobos included)
  • Animation system for creating animated lighting effects (horizontal and vertical)
  • Zoom range from 10° - 44° for exact projection on desired surface
  • Variable frost for creating morphing effects and hybrid function as wash light
  • 2 rotating prisms for creating abstract multi patterns

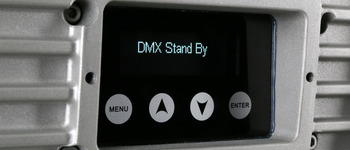

  • Intuitive setup, configuration and stand-alone programming via graphical OLED display
  • RDM and DMX control
  • Fully weatherized IP66 fixture for permanent outdoor installation

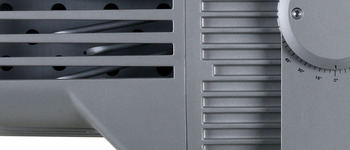

  • Fully convection cooling using heat pipes technology

Tech Specs

PhysicalLength: 702 mm (27.7 in.)Width: 417 mm (16.5 in.)Height: 618 mm (24.4 in.)Weight: 50 kg (110 lbs.)All figures include mounting yoke
Dynamic EffectsColor mixing: CMY, independently variable 0 - 100%Color wheel: 7 interchangeable colors + openGobo wheel: 7 rotating gobos plus open, indexing, variable rotationGobo animation wheel: Indexing, continuous rotation with variable angle, speed and directionPrism: Prism wheel with 2 interchangeable prisms, prism rotation and indexingFrost (wash effect): Motorized, variableZoom: 10° - 44° (cut-off angles)Focus: Motorized, variable 3 m (9.8 ft.) to infinityShutter: Electronic, strobe and pulse effects, instant open and blackoutDimming: Electronic, constantly variable 0-100%, 16-bit control
Control and ProgrammingControl options: DMX, RDM, standaloneDMX channels: 20Configuration, addressing and status: Onboard control panel with OLED display or via RDM8-bit control: CMY, color selection, gobo selection, prism, frost, animation16-bit control: .Gobo indexing and rotation, zoom, focus and intensityDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20
OpticsLight source: 440 W white light LED engineLED manufacturer: AppotronicsCRI (Color Rendering Index): 72Color temperature: 6500 K (±250 K)LED lifetime: 20 000 hours (to >70% luminous output)**Figure obtained under manufacturer's test conditions
Photometric DataCut-off angle: 10° - 44°Luminous intensityAt 10° zoom: 11 500 lumensAt 16° zoom: 15000 lumensAt 40° zoom: 16 800 lumens Center PeakAt 10° zoom: 731 000 cdAt 16° zoom: 311 000 cdAt 40° zoom: 42 000 cd
ConstructionHousing: Cast aluminumFinish: Hard anodized, white or metallic grey lacqueredFront glass: 5 mm (0.2 in.) anti-reflection coated tempered glassIngress protection: IP66Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)Impact resistance: IK08 (with control panel display cover plate installed)EPA (Effective Projected Area): 0.28m²RoHS compliant
GobosSuitable material: Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F)Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)Maximum image diameter: 26 mm (1.02 in.)Gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)Gobo thickness, maximum: 3.0 mm ±0.3 mm (0.118 in. ± 0.012 in.)**Gobos thicker than 2.5 mm require a shorter spring in the goboholder
InstallationOrientation: Any (sides must be kept vertical)Mounting: Adjustable yokeMinimum distance to illuminated surfaces: 0.5 m (20 in.)Location: Suitable for wet locations. Do not immerse in water.
ConnectionsPower cable entry: IP66 cable glandPower connection: 1.8 m (5.9 ft.) cable tail with bare ends Power cable type: EU models: H07RN-F 450/700V, Ø10 mm
US models: SJTW 14AWG, 300V, Ø9.3 mm
Data cable entry: IP66 cable glandData connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
ElectricalAC power: 100-120/200-277 V nominal, 50/60 HzPower supply: Auto-ranging electronic switch-modeTypical half-cycle RMS inrush current: 15.5 ASurge protection: 4 KVIdle power (zero intensity, no effects applied): 75 W
Typical Power and Current120 V, 60 Hz: 645 W, 5.5 A, PF 0.98230 V, 50 Hz: 635 W, 2.9 A, PF 0.95277 V, 60 Hz: 635 W, 2.6 A, PF 0.90Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
ThermalCooling: Convection, internal forced airMaximum ambient temperature (Ta max.): 45° C (113° F) *Minimum ambient temperature (Ta min.): -30° C (-22° F)***Above this temperature, the fixture regulates output to protect from overheating.**For instant wake-up with no warm-up mode, leave power applied constantly in ambient temperatures below 0° C (32° F)
ApprovalsEU safety: EN 60598-2-1, EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61547US safety: ANSI/UL 1598US EMC: CFR 47 Part 15 Class ACanadian safety: CSA C22.2 No 250.0Australia/NZ: RCM
Included ItemsSilica gel desiccant bag: P/N 37220000Two gobo retaining springs
AccessoriesGlare Shield, Exterior Projection 1000: P/N 91611768Projection Setup Gobo, Exterior Projection 1000: P/N 91616075
Related ItemsMartin™ RDM 5.5 Splitter: P/N 90758150
Spare PartsSilica gel desiccant bag in sealed foil pack: P/N 37220000Goboholder for EP1000 with magnet incl. washer & short spring:P/N 50482185Goboholder for EP1000 with magnet incl. washer & long spring:P/N 50482186
Ordering InformationEU modelsExterior Projection 1000, EU, Aluminum: P/N 90512000Exterior Projection 1000, EU, White: P/N 90512015US modelsExterior Projection 1000, US, Aluminum: P/N 90512005Exterior Projection 1000, US, White: P/N 90512010
