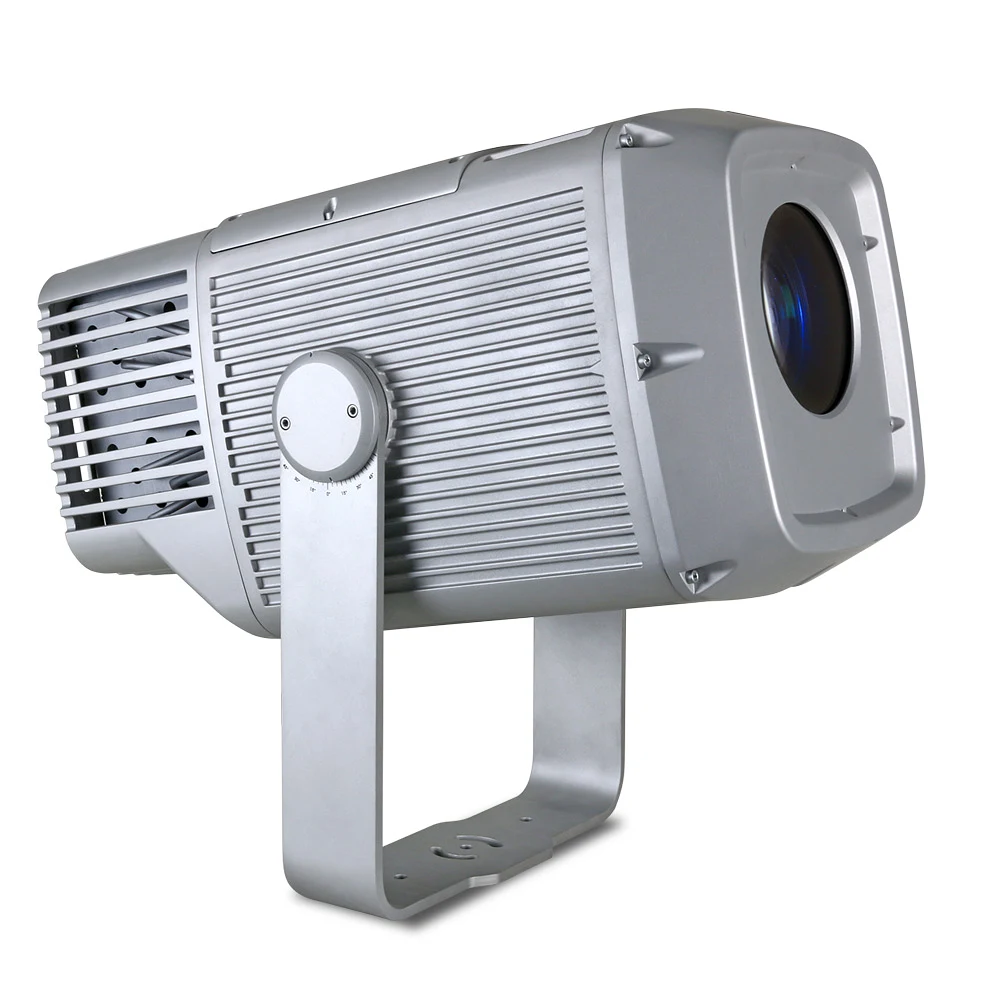

Exterior Projection 1000

Outdoor rated large scale image projector

Larger Images

The Exterior™ Projection 1000 is an unparalleled, powerful tool for permanent outdoor installations to integrate textures, patterns and graphics for limitless creative exterior lighting designs.

Sporting high impact and low maintenance, this advanced, IP66-rated LED projector offers sharp image quality, dynamic features and great reach over huge distances.

Creating custom gobos for building facades

  • Flat-field, high-contrast image projection with wide zoom range
  • Fully weatherized with low maintenance and running
  • Full CMY color mixing for maximum creativity
  • Built to last

    It operates at temperatures from -30°C to 45°C and its robust, vandalism-proof IK08 and IP66-rated aluminum housing is surface treated to comply with the ISO12944/C5-M corrosion protection standard

  • Low total cost of ownership

    20 000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector.

  • Creative tool box

    Four effect layers—gobos, prisms, animation, variable frost—along with a full CMY color mixing system, an additional color wheel as well as zoom and focus offer unlimited creativity

  • Easy installation

    Easy access to swift replacement of standard gobos with customized gobos, and a strong bracket offers quick mounting in any vertical position. Comes with bare-end power and DMX in/out cables for connection to a nearby junction box.

  • Easy control

    Remote controlled via 20-channel DMX protocol. RDM functionality for remote setting of address, reading of diagnostic information such as fixture running hours, LED running hours and temperature. Built-in OLED display to configure the fixture and program a standalone show with up to 20 scenes.

  • High precision optical system

    Flat field, high contrast image projection based on high power LED engine. The wide zoom range from 10° - 40° allows for exact projection on desired surface.

Built to last

It operates at temperatures from -30°C to 45°C and its robust, vandalism-proof IK08 and IP66-rated aluminum housing is surface treated to comply with the ISO12944/C5-M corrosion protection standard

Low total cost of ownership

20 000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector.

Creative tool box

Four effect layers—gobos, prisms, animation, variable frost—along with a full CMY color mixing system, an additional color wheel as well as zoom and focus offer unlimited creativity

Easy installation

Easy access to swift replacement of standard gobos with customized gobos, and a strong bracket offers quick mounting in any vertical position. Comes with bare-end power and DMX in/out cables for connection to a nearby junction box.

Easy control

Remote controlled via 20-channel DMX protocol. RDM functionality for remote setting of address, reading of diagnostic information such as fixture running hours, LED running hours and temperature. Built-in OLED display to configure the fixture and program a standalone show with up to 20 scenes.

High precision optical system

Flat field, high contrast image projection based on high power LED engine. The wide zoom range from 10° - 40° allows for exact projection on desired surface.

Videos

Martin Exterior Projection 1000 outdoor image projector



Martin Exterior Projection 1000 Now Available



Features

  • Flat field, high contrast image projection based on high power LED engine
  • 0-100% electronic dimming
  • Full CMY color mixing + additional color wheel with 7 interchangeable colors
  • 7 gobo slots for projecting graphic images (gobos included)
  • Animation system for creating animated lighting effects (horizontal and vertical)
  • Zoom range from 10° - 44° for exact projection on desired surface
  • Variable frost for creating morphing effects and hybrid function as wash light
  • 2 rotating prisms for creating abstract multi patterns
  • Intuitive setup, configuration and stand-alone programming via graphical OLED display
  • RDM and DMX control
  • Fully weatherized IP66 fixture for permanent outdoor installation
  • Fully convection cooling using heat pipes technology

Specifications

  • Physical Length: 702 mm (27.7 in.) Width: 417 mm (16.5 in.) Height: 618 mm (24.4 in.) Weight: 50 kg (110 lbs.) All figures include mounting yoke Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color wheel: 7 interchangeable colors + open Gobo wheel: 7 rotating gobos plus open, indexing, variable rotation Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing Frost filter: Motorized, variable Zoom: 10° - 44° (cut-off angles) Focus: Motorized, variable 3 m (9.8 ft.) to infinity Dimming: Electronic, constantly variable 0-100%, 16-bit control Shutter: Electronic, strobe and pulse effects, instant open and blackout Control and Programming Control options: DMX, RDM, standalone Configuration, addressing and status: Onboard control panel with OLED display or via RDM 8-bit control: CMY, color selection, gobo selection, prism, frost, animation 16-bit control: Gobo indexing and rotation, zoom, focus and intensity DMX channels: 20 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Optics Light source: 440 W white light LED engine CRI (Color Rendering Index): 72 Color temperature: 6500 K (±250 K) LED lifetime: 20,000 hours (to >70% luminous output)* LED manufacturer: Appotronics *Figure obtained under manufacturer's test conditions Photometric Data Cut-off angle: 10° - 44° Luminous intensity:

    At 10° zoom: 11,500 lumens
    At 16° zoom: 15,000 lumens
    At 40° zoom: 16,800 lumens

    Center Peak:

    At 10° zoom: 731,000 cd
    At 16° zoom: 311,000 cd
    At 40° zoom: 42,000 cd

    Construction Housing: Cast aluminum Finish: Hard anodized, white or metallic grey lacquered Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass Ingress protection: IP66 Impact resistance: IK08 (with control panel display cover plate installed) Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944) EPA (Effective Projected Area): 0.28m² Gobos Suitable material: Metal or borosilicate glass, coatings heat-resistant to 450°C (842° F) Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.) Maximum image diameter: 26 mm (1.02 in.) Gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.) Gobo thickness, maximum: 3.0 mm ±0.3 mm (0.118 in. ± 0.012 in.)* *Gobos thicker than 2.5 mm require a shorter spring in the goboholder Installation Mounting: Adjustable yoke Location: Suitable for wet locations. Do not immerse in water. Orientation: Any (sides must be kept vertical) Minimum distance to illuminated surfaces: 0.5 m (20 in.) Connections Power cable entry: IP66 cable gland Power connection: 1.8 m (5.9 ft.) cable tail with bare ends Power cable type: EU models: H07RN-F 450/700V, Ø10 mm US models: SJTW 14AWG, 300V, Ø9.3 mm Data cable entry: IP66 cable gland Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends
  • Electrical AC power: 100-120/200-277 V nominal, 50/60 Hz Power Supply: Auto-ranging electronic switch-mode Typical half-cycle RMS inrush current: 15.5 A Surge protection: 4 KV Idle power (zero intensity, no effects applied): 75 W Typical Power and Current 120 V, 60 Hz: 645 W, 5.5 A, PF 0.98 230 V, 50 Hz: 635 W, 2.9 A, PF 0.95 277 V, 60 Hz: 635 W, 2.6 A, PF 0.90 Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. Thermal Cooling: Convection, internal forced air Total heat dissipation (calculated): 2350 BTU/hr. Maximum surface temperature: 85° C (185 ° F) Maximum ambient temperature (Ta max.): 45° C (113° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F)**

    *Above this temperature, the fixture regulates output to protect from overheating.
    **For instant wake-up with no warm-up mode, leave power applied constantly in ambient temperatures below 0° C (32° F).

    Approvals EU safety: EN 60598-2-1, EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61547 US safety: ANSI/UL 1598 US EMC: CFR 47 Part 15 Class A Canadian safety: CSA C22.2 No 250.0 Australia/NZ: RCM Included Items Silica gel desiccant bag: P/N 37220000 Two gobo retaining springs Accessories Glare Shield, Exterior Projection 1000: P/N 91611768 Projection Setup Gobo, Exterior Projection 1000: P/N 91616075 Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Spare Parts Silica gel desiccant bag in sealed foil pack: P/N 37220000 Goboholder for EP1000 with magnet incl. washer & short spring: P/N 50482185 Goboholder for EP1000 with magnet incl. washer & long spring: P/N 50482186 Ordering Information EU models:

    Exterior Projection 1000, EU, Aluminum: P/N 90512000
    Exterior Projection 1000, EU, White: P/N 90512015

    US Models:

    Exterior Projection 1000, US, Aluminum: P/N 90512005
    Exterior Projection 1000, US, White: P/N 90512010

Downloads

  Version Language Size Uploaded
Specifications
Exterior Projection 1000 Spec Sheet en  1.22 MB Sep 19, 2018
Exterior Projection System Diagrams en  267 KB Jun 18, 2019
Manuals
Exterior Projection 1000 - User Manual en  4.68 MB May 18, 2018
Illustrations
Exterior Projection 1000 - 2D dimensions (DWG) en  15.2 MB Oct 08, 2018
Exterior Projection 1000 - 2D dimensions (PDF) en  1.27 MB Oct 08, 2018
Exterior Projection 1000 - Line it up gobo en  422 KB May 18, 2018
3D Symbols
Vectorworks Symbols 2.6  en  66.4 MB May 01, 2019
CAD Drawings
Exterior Projection 1000 - 3D dimensions (3DS) en  2.53 MB May 18, 2018
Exterior Projection 1000 - 3D dimensions (DWG) en  6.79 MB May 18, 2018
Compliances
Exterior Projection 1000 - EU Declaration of Conformity   95.9 KB May 18, 2018
Exterior Projection 1000 - ETL Listing Verification   261 KB May 18, 2018
Exterior Projection 1000 - Product verification and reliability report   472 KB May 18, 2018
Software
EXTERIOR PROJECTION 1000 Firmware 1.5.0    140 KB Jan 17, 2018
Service Notes
Exterior products - Performing a vacuum test - Tech note en  1.9 MB May 22, 2018
