M-Touch
Descontinuado

M-Touch
Imagens maiores

Effective 14 March, 2018, Elation Professional has acquired the M-Series range of lighting controllers and software from HARMAN Professional and will now be providing sales and product support. View the announcement from Elation Professional.

Martin M-Touch uses M-PC as software that will run on a Windows PC and can be downloaded here.

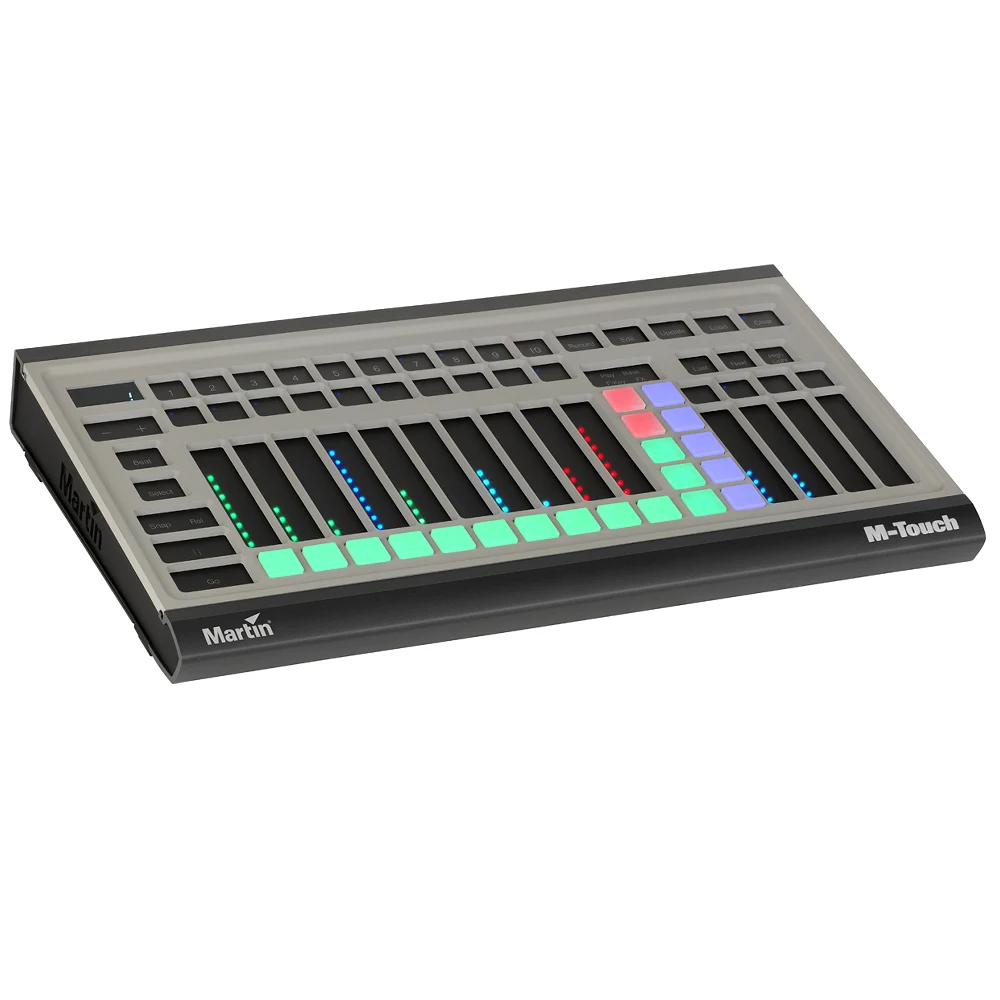

Martin M-Touch is a powerful yet simple control surface for the Martin M-Series controllers, the most affordable professional lighting solutions on the market. Fully compatible with all M-Series consoles and M-PC software, Martin M-Touch is a  plug-and-play solution with an  innovative control surface like no other lighting console.
14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the M-Touch control panel. Martin M-Touch comes with one DMX 512 Universe for direct control of any compatible DMX device.

  • Truly affordable console surface for both smaller applications and professional use
  • Rugged aluminum design for durability
  • The most powerful controller of its class with a full 512 DMX channels, expandable to 65,000 channels

Características

  • Truly affordable console surface for both smaller applications and professional use
  • Rugged aluminum design for durability
  • The most powerful controller of its class with a full 512 DMX channels, expandable to 65,000 channels

Mais detalhes

PhysicalLength: 394 mm (15.5 in.)Width: 218.5 mm (8.6 in.)Height: 46.5 mm (1.8 in.)Weight: 1.5 kg (3.3 lbs.)
Control/User InterfaceBank Navigation Up/Down with numerical displayMain Go section: Snap, Release, Pause and Go buttonsCommand Buttons: Record, Edit, Update, Load, ClearMultifunction Mode Select buttonFixture Selection buttons: Last, Next, Highlight4 x Parameter Select buttons4 x Parameter Adjust touch faders10 x Function velocity pads
Playback10 x Playback touch faders with 3 buttons(2 x touch pad, 1 x velocity pad)
System integrationUnlocks 1 x DMX universe when connected to M-PC™
ConstructionHousing: Aluminum, steel, plasticMounting: VESA 75x75, 100x100Security: K-Lock locking slotIP Rating: IP20
ConnectionsDMX data link: 1 x 5-pin locking XLRWindows PC: USB 2.0
ElectricalPower source: 5 VDC over USBMaximum current: 500 mA
ThermalOperating temperature: 0° – 50° C (32° – 122° F)
Included ItemsUSB cable 1.5m (4.9 ft.)
AccessoriesMartin™ M-Sync SMPTE USB: P/N 90703020M-PC 2U / M-DMX: P/N 90737070Martin One-Key with M-PC Pro-64 /LJ-4 License: P/N 70758460Rackmount bracket: P/N 91611690
Related ItemsM-Series Submaster Module: P/N 90732170M-Series Playback II Module: P/N 90732190Martin™ M-Play: P/N 90737030Martin™ M-PC Pro 64 / LightJockey 4 Controller Kit:P/N 90737060
Ordering InformationMartin M-Touch: P/N 90737040

Descarregamentos

Specifications
  Idioma Tamanho Carregado
file type icon M-Touch Spec Sheet-English
en atualizado: out 2020
en  2 MB out 2020
Manuals
  Versão Idioma Tamanho Carregado
file type icon M-Touch - Safety and Installation Guide
en versão C, atualizado: mai 2018
en  600 KB mai 2018
Compliances
  Versão Idioma Tamanho Carregado
file type icon M-Touch - Déclaration de Conformité Européenne
fr versão A, atualizado: mai 2018
fr  60 KB mai 2018
file type icon M-Touch - EU Declaration of Conformity
en versão A, atualizado: mai 2018
en  60 KB mai 2018
Software
  Versão Idioma Tamanho Carregado
file type icon Firmware Update Package
en versão C, atualizado: out 2020
en  400 MB out 2020
file type icon M-Series Software
versão 3.70.885, atualizado: jun 2018
3.70.885    jun 2018
Service Notes
  Versão Idioma Tamanho Carregado
file type icon Adding External Touchscreens
atualizado: dez 2017
    dez 2017
file type icon Firmware Installation Instructions
en versão A, atualizado: mai 2018
en  500 KB mai 2018
Hints and Tips
  Versão Idioma Tamanho Carregado
file type icon Decimal to ArtNet Universe Conversion Table
en versão A, atualizado: out 2020
en  80 KB out 2020
Adding External Touchscreens
en versão A, atualizado: mai 2018
A   en    mai 2018
Trainings
  Versão Idioma Tamanho Carregado
M-Series 01: The Interface
en versão A, atualizado: ago 2023
A   en    ago 2023
M-Series 02: Patch
en versão A, atualizado: ago 2023
A   en    ago 2023
M-Series 03: Fixtures and Groups
en versão A, atualizado: ago 2023
A   en    ago 2023
M-Series 05: FX
en versão A, atualizado: ago 2023
A   en    ago 2023
M-Series 06: Cues and cuelists
en versão A, atualizado: ago 2023
A   en    ago 2023
M-Series 07: Network
en versão A, atualizado: ago 2023
A   en    ago 2023
file type icon M-Series 01: The Interface
atualizado: dez 2017
    dez 2017
file type icon M-Series 02: Patch
atualizado: dez 2017
    dez 2017
file type icon M-Series 03: Fixtures and Groups
atualizado: dez 2017
    dez 2017
file type icon M-Series 05: FX
atualizado: dez 2017
    dez 2017
file type icon M-Series 06: Cues and cuelists
atualizado: dez 2017
    dez 2017
file type icon M-Series 07: Network
atualizado: dez 2017
    dez 2017
Firmware
  Tamanho Carregado
download icon for M-Series Firmware Update Program M-Series Firmware Update Program
publicado: jul 2020
400 MB jul 2020
