M-Touch (discontinued)

Larger Images

Effective 14 March, 2018, Elation Professional has acquired the M-Series range of lighting controllers and software from HARMAN Professional and will now be providing sales and product support. View the announcement from Elation Professional.

Martin M-Touch uses M-PC as software that will run on a Windows PC and can be downloaded here.

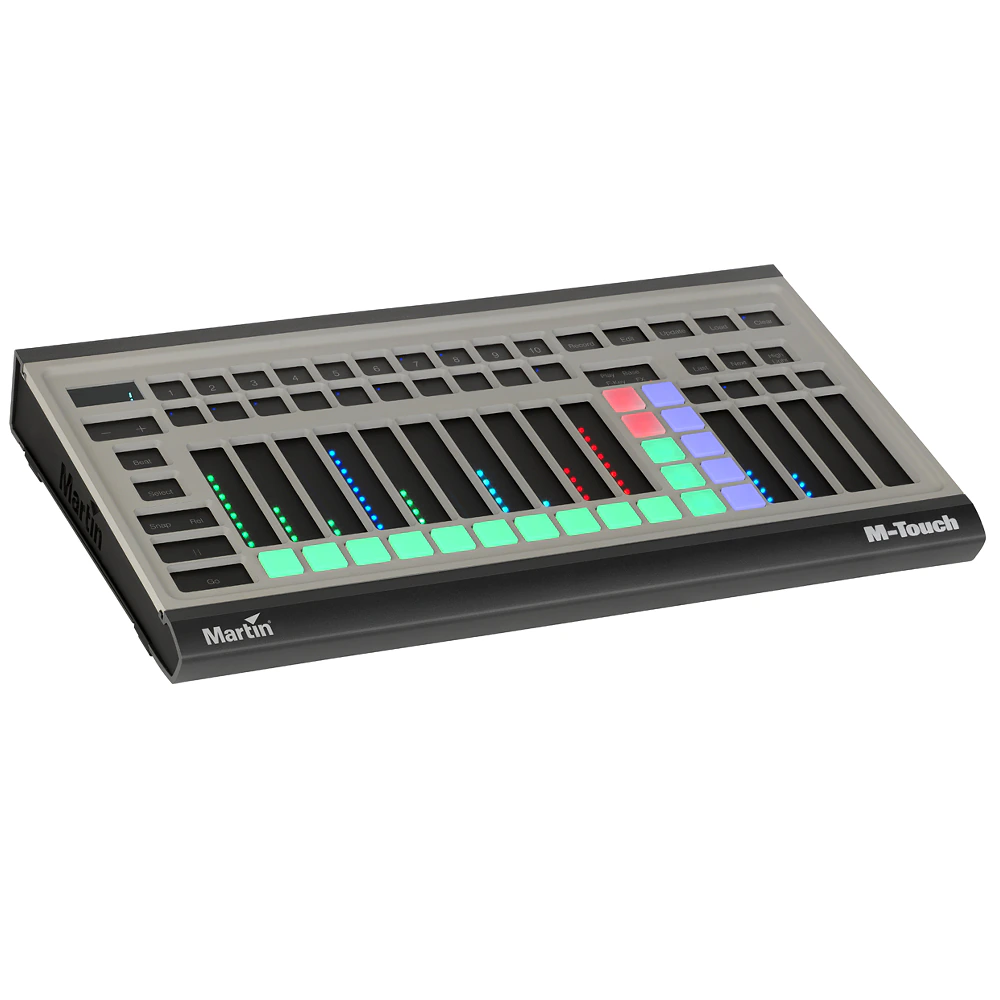

Martin M-Touch is a powerful yet simple control surface for the Martin M-Series controllers, the most affordable professional lighting solutions on the market. Fully compatible with all M-Series consoles and M-PC software, Martin M-Touch is a  plug-and-play solution with an  innovative control surface like no other lighting console.
14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the M-Touch control panel. Martin M-Touch comes with one DMX 512 Universe for direct control of any compatible DMX device.

  • Truly affordable console surface for both smaller applications and professional use
  • Rugged aluminum design for durability
  • The most powerful controller of its class with a full 512 DMX channels, expandable to 65,000 channels

Videos









Features

  • Truly affordable console surface for both smaller applications and professional use
  • Rugged aluminum design for durability
  • The most powerful controller of its class with a full 512 DMX channels, expandable to 65,000 channels

Specifications

PhysicalLength: 394 mm (15.5 in.)Width: 218.5 mm (8.6 in.)Height: 46.5 mm (1.8 in.)Weight: 1.5 kg (3.3 lbs.)
Control/User InterfaceBank Navigation Up/Down with numerical displayMain Go section: Snap, Release, Pause and Go buttonsCommand Buttons: Record, Edit, Update, Load, ClearMultifunction Mode Select buttonFixture Selection buttons: Last, Next, Highlight4 x Parameter Select buttons4 x Parameter Adjust touch faders10 x Function velocity pads
Playback10 x Playback touch faders with 3 buttons(2 x touch pad, 1 x velocity pad)
System integrationUnlocks 1 x DMX universe when connected to M-PC™
ConstructionHousing: Aluminum, steel, plasticMounting: VESA 75x75, 100x100Security: K-Lock locking slotIP Rating: IP20
ConnectionsDMX data link: 1 x 5-pin locking XLRWindows PC: USB 2.0
ElectricalPower source: 5 VDC over USBMaximum current: 500 mA
ThermalOperating temperature: 0° – 50° C (32° – 122° F)
Included ItemsUSB cable 1.5m (4.9 ft.)
AccessoriesMartin™ M-Sync SMPTE USB: P/N 90703020M-PC 2U / M-DMX: P/N 90737070Martin One-Key with M-PC Pro-64 /LJ-4 License: P/N 70758460Rackmount bracket: P/N 91611690
Related ItemsM-Series Submaster Module: P/N 90732170M-Series Playback II Module: P/N 90732190Martin™ M-Play: P/N 90737030Martin™ M-PC Pro 64 / LightJockey 4 Controller Kit:P/N 90737060
Ordering InformationMartin M-Touch: P/N 90737040

Downloads

  Version Language Size Uploaded
Specifications
M-Touch Spec Sheet-English
en updated: Jul 09, 2018
  en  1.66 MB Jul 09, 2018
Manuals
M-Touch - Safety and Installation Guide
en version C, updated: May 18, 2018
en  575 KB May 18, 2018
3D Symbols
Vectorworks Symbols
en version 2.8, updated: Mar 05, 2020
2.8  en  265 MB Mar 05, 2020
Compliances
M-Touch - Déclaration de Conformité Européenne
fr version A, updated: May 18, 2018
fr  60.9 KB May 18, 2018
M-Touch - EU Declaration of Conformity
en version A, updated: May 18, 2018
en  60.6 KB May 18, 2018
Software
Firmware Update Package
en version C, updated: May 11, 2018
en  369 MB May 11, 2018
M-Series Software
version 3.70.885, updated: Jun 14, 2018
3.70.885    Jun 14, 2018
Service Notes
Adding External Touchscreens
updated: Dec 11, 2017
    Dec 11, 2017
Firmware Installation Instructions
en version A, updated: May 18, 2018
en  530 KB May 18, 2018
Hints And Tips
Decimal to ArtNet Universe Conversion Table
en version A, updated: May 11, 2018
en  78.5 KB May 11, 2018
Adding External Touchscreens
en version A, updated: May 22, 2018
A   en    May 22, 2018
Trainings
M-Series 01: The Interface
en version A, updated: May 22, 2018
A   en    May 22, 2018
M-Series 02: Patch
en version A, updated: May 22, 2018
A   en    May 22, 2018
M-Series 03: Fixtures and Groups
en version A, updated: May 22, 2018
A   en    May 22, 2018
M-Series 05: FX
en version A, updated: May 22, 2018
A   en    May 22, 2018
M-Series 06: Cues and cuelists
en version A, updated: May 22, 2018
A   en    May 22, 2018
M-Series 07: Network
en version A, updated: May 22, 2018
A   en    May 22, 2018
M-Series 01: The Interface
updated: Dec 13, 2017
    Dec 13, 2017
M-Series 02: Patch
updated: Dec 13, 2017
    Dec 13, 2017
M-Series 03: Fixtures and Groups
updated: Dec 13, 2017
    Dec 13, 2017
M-Series 05: FX
updated: Dec 13, 2017
    Dec 13, 2017
M-Series 06: Cues and cuelists
updated: Dec 13, 2017
    Dec 13, 2017
M-Series 07: Network
updated: Dec 13, 2017
    Dec 13, 2017
Firmware
M-Series Firmware Update Program
updated: Jul 17, 2020
    369 MB Jul 17, 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
