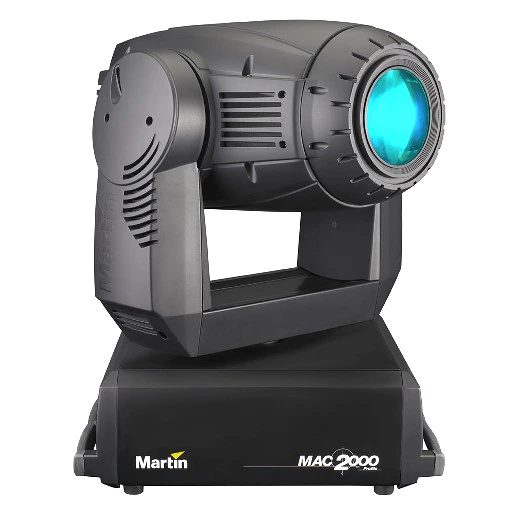

The MAC 2000 Profile is a high performance luminaire with a gobo animation system, full CMY mixing and a framing system, effect wheel and a combined color and gobo wheel.
Imagens maiores
Características
- 1200 W short arc discharge lamp
- CMY color mixing system
- Combined 7 position color/gobo wheel plus open
- Variable CTC
- 2 x 5 indexable rotating gobos plus open
- Variable frost, 3-facet prism and beamshaper
- Motorized iris
- Strobe effect 2 - 10 Hz, pulse effects, instant open and blackout
- Motorized zoom and focus
- Mechanical dimming
- Pan and tilt range of 540°/267°
- Modular design for easy maintenance and servicing
- Optional electronic ballast with hot lamp restrike and flicker free light
- Variable fan control for quieter operation
Mais detalhes
Physical Length: 408 mm Width: 490 mm Height: 743 mm, head straight up Weight: 38 kg, electronic ballast model Weight: 45 kg
Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: 0 - 178 mireds, continuously variable Color/gobo wheel: 4 interchangeable filters (incl. UV transmitter), 3 interchangeable glass gobos + open, full and split colors, continuous rotation Rotating gobos: 2 wheels, each with 5 interchangeable gobos + open, indexing, continuous gobo rotation, shake Beam effects: Effect wheel with variable frost, rotating beamshaper and rotating 3-facet prism Mechanical dimmer: 0 - 100% Shutter: Strobe effect 2 - 10 Hz, pulse effects, instant open and blackout Iris: 15 - 100% diameter, pulse effects Focus: 2 m to infinity Zoom: 10° - 28° Pan: 540° Tilt: 267°
Control and Programming DMX channels: 20/24 Setting and addressing: Control panel with LED display 16-bit control: Rotating gobos, pan & tilt Movement control options: Tracking and vector Protocol: USITT DMX512/1990 Receiver: Opto-isolated RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 1200 W short-arc discharge Fitted as standard: Philips MSR 1200 SA/DE Gold Color temperature: 6000 K CRI (Color rendering index): >85 Average lifetime: 750 hours Hot restrike: Yes on electronic ballast models Socket: Double-ended SFc 10-4 with key Ballast: Electronic (on E models) or magnetic Approved alternative lamp(s): Osram HTI 1200 D7/60 SharXS
Construction Color(s): Black Housing: UV-resistant fiber-reinforced composite Reflector: Glass, cold light Protection rating: IP20
Gobos Outside diameter: 37.5 mm +0/- 0.3 mm Maximum image diameter: 30 mm Maximum thickness: 7 mm (glass), 0.5 mm aluminum Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coating
Installation Mounting points: 4 pairs of 1/4-turn locks, 45° orientation possible Orientation: Any
Connections AC power input: 3 m integral cable without power plug DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-120/208-240 V nominal, 50/60 Hz (electronic ballast) AC power: 200-240 V nominal, 50/60 Hz (magnetic ballast) Power supply unit: Auto-ranging electronic switch-mode (electronic ballast models) Main fuse: 15 AT (x 2, for use with 208-240 V power) Main fuse: 20 AT (x 2, for use with 100-120 V power)
Typical Power and Current Electronic Ballast: 100 V, 50 Hz: 1590 W, 19.8 A 100 V, 60 Hz: 1560 W, 19.3 A 120 V, 50 Hz: 1560 W, 16.8 A 120 V, 60 Hz: 1540 W, 16.3 A 208 V, 50 Hz: 1470 W, 10.5 A 208 V, 60 Hz: 1470 W, 10.3 A 230 V, 50 Hz: 1480 W, 9.6 A 230 V, 60 Hz: 1470 W, 9.4 A 250 V, 50 Hz: 1480 W, 8.6 A 250 V, 60 Hz: 1480 W, 8.5 A Magnetic Ballast: 208 V, 50 Hz: 1520 W, 9.3 A 208 V, 60 Hz: 1410 W, 7.5 A 230 V, 50 Hz: 1470 W, 7.6 A 230 V, 60 Hz: 1450 W, 7 A 250 V, 50 Hz: 1480 W, 7.4 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated) Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 140° C Total heat dissipation (calculated, +/- 10% at 110 V, 60 Hz / 230 V, 50 Hz): 5290 / 5050 BTU/hr.
Approvals EU EMC: EN 50 081-1, EN 50 082-1 EU safety: EN 60598-1, EN 60598-2-17 Canadian safety: CSA C22.2 No. 166 US safety: ANSI/UL 1573
Included Items Philips MSR 1200 SA/DE Gold lamp (installed): 97010310 Two Omega clamp attachment brackets with 1/4-turn fasteners: 91602001 User manual: 35000090
Accessories Wide-angle lens kit (14° - 35°, mounts on effect wheel): 91610020 T-shaped omega bracket with quarter-turn fasteners: 91602008 G-clamp: 91602003 Half-coupler clamp: 91602005 Super Truss 20.5" mounting plate with half-couplers: 91602014 Swing-wing truss mounting plate with half-couplers: 91602010 Double flightcase (SIP) for MAC 2000 Series: 91510170
Spare Parts Philips MSR 1200 SA/DE Gold lamp: 97010310 15 AT main fuse: 05020039 20 AT main fuse: 05020040
Ordering Information MAC 2000 Profile II in cardboard box: 90205615 Two MAC 2000 Profile IIs in 2-unit flightcase: 90205600 MAC 2000 Profile II E in cardboard box: 90205815 MAC 2000 Profile II E in single flightcase: 90205810 Two MAC 2000 Profile II Es in 2-unit flightcase: 90205800
