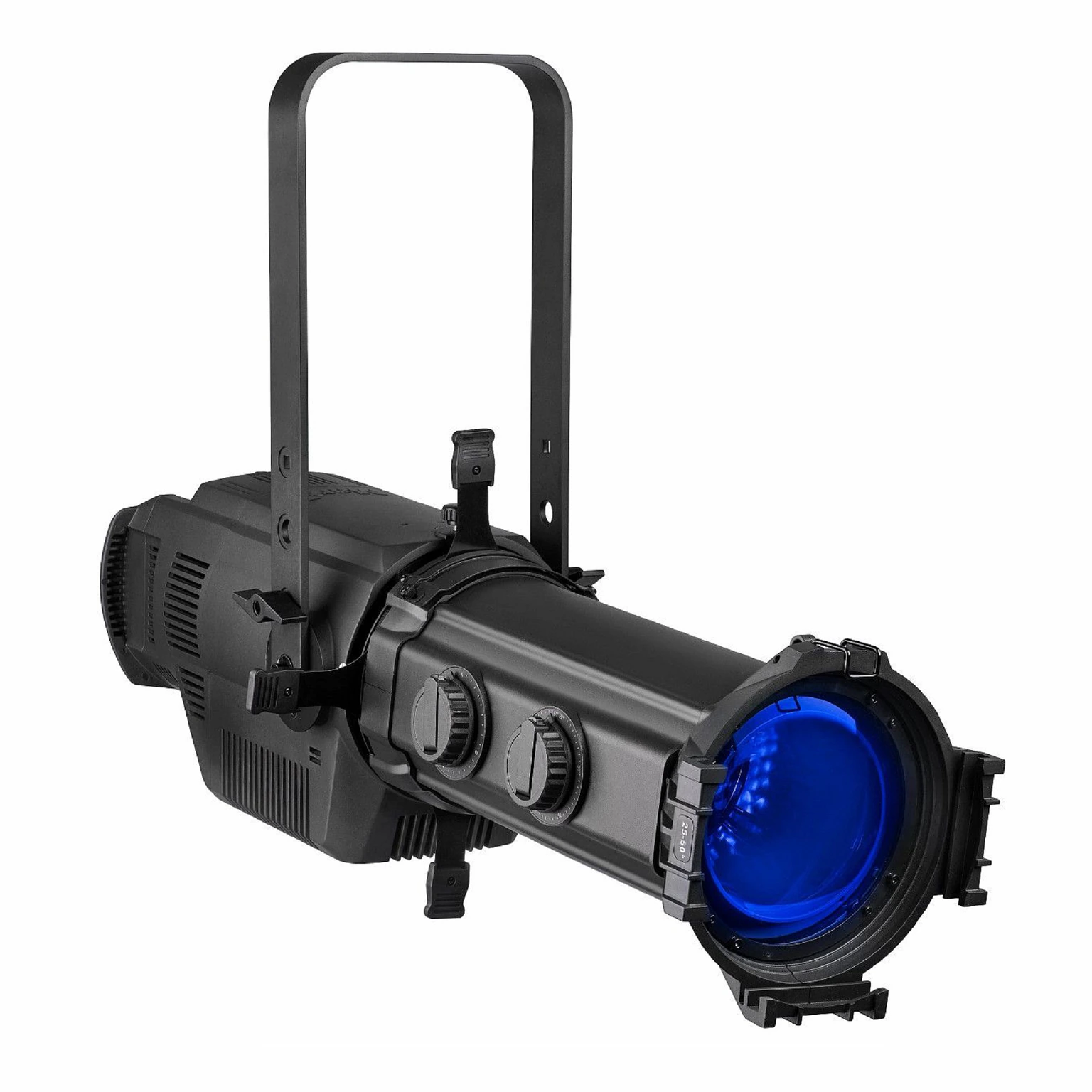

Martin ELP CL IP

Större bilder

Martin ELP LED ellipsoidala armaturer levererar den luminans, ljusstyrka och levande färgåtergivning som har varit synonymt med Martin-namnet i mer än 30 år. Martin ELP CL IP erbjuder samma rika mättade färger och klassletande prestanda som original Martin ELP CL men utökar dess mångsidighet till temporära utomhusapplikationer genom IP65-klassificering för fuktresistans och fullständigt dammskydd, tillsammans med C3-korrosionsbeständighet. ELP:s ergonomiska danska konstruktion erbjuder framsteg inom belysningsfunktionalitet som inkluderar den mycket effektiva kugghjulsbaserade Fine Focus—en branschpremiär; och Fast Focus som möjliggör fokusering av armaturen utan att data strömmar till den. ELP erbjuder även 16-bitars dimning med 4 valbar kurvor och 26 färgförinställningar som motsvarar industristandard färgfilter. ELP CL IP finns tillgänglig i svart och vit husvagn och kan konfigureras med en av fyra Martin statiska linsrör i 19, 26, 36 och 50-graders strålvinklar, eller ett val av två Martin zoomobjektiv med val av 15–30-graders och 25–50-graders intervall. ELP erbjuder också flexibilitet i belysningsdesign och lagerhantering genom kompatibilitet med linsrör från tredje part tillsammans med ett brett utbud av tillbehör inklusive gelramar och gobon. Överordnad prestanda, optik och färgåtergivning, kombinerat med robust skydd mot väder och vind, oöverträffad användarvänlighet och bekvämlighet, gör Martin ELP till den ledande LED ellipsoidala armaturen i sin klass.

Martin rekommenderar att du använder officiella Martin ELP-tillbehör för högsta möjliga prestanda. Även om vi strävar efter att säkerställa kompatibilitet med tillbehör från tredje part, kan vi inte garantera optimal prestanda och rekommenderar att användaren gör en utvärdering av sådant tillbehör innan köp.

Advanced Martin Optics Meet Cutting-Edge LED Technology
The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures. Halation color correction removes atypical blue and brown halos when using Martin lens tubes.

The ELP CL IP fixture offers an impressive 6,900 lumens and a CRI of 85 in High Output mode, and 5,900 lumens and 90 CRI in High Quality mode, with a color temperature of 6,000K (open white), and provides flicker-free operation for consistent light output on and off camera.
Classic Style With a Focus on Functionality
ELP CL IP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output without data running to the fixture.

Rugged enclosures are IP65 rated for water resistance and complete protection against dust and other particulates.
Expand Versatility With ELP Zoom Lenses
In addition to a choice of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles you can expand the versatility and range of ELP with Zoom Lenses in 15–30-degree and 25–50-degree ranges. The 6 lens optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens.
Invest in the Future, With a Minimal Financial Investment
It’s never been easier to transition your inventory to LED ellipsoids: The ELP line fits common lens tubes and accessories, which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.

Advanced Martin Optics Meet Cutting-Edge LED Technology
The ELP is designed to maximize efficiency and deliver a flat field of illumination for smoother blending and mixing between fixtures. Halation color correction removes atypical blue and brown halos when using Martin lens tubes.

The ELP CL IP fixture offers an impressive 6,900 lumens and a CRI of 85 in High Output mode, and 5,900 lumens and 90 CRI in High Quality mode, with a color temperature of 6,000K (open white), and provides flicker-free operation for consistent light output on and off camera.

Classic Style With a Focus on Functionality
ELP CL IP takes a classic light fixture to new performance levels with a suite of innovative features. Our gear-based Fine Focus adjustment—an industry first—lets you lock focus exactly where you want it, instantly. There’s no refocusing, no drifting and no slipping. Our innovative Fast Focus feature brings the fixture to full output without data running to the fixture.

Rugged enclosures are IP65 rated for water resistance and complete protection against dust and other particulates.

Expand Versatility With ELP Zoom Lenses
In addition to a choice of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles you can expand the versatility and range of ELP with Zoom Lenses in 15–30-degree and 25–50-degree ranges. The 6 lens optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens.

Invest in the Future, With a Minimal Financial Investment
It’s never been easier to transition your inventory to LED ellipsoids: The ELP line fits common lens tubes and accessories, which means you can save money by using your existing gel frames, gobo holders and rotators and lens tubes.

Funktioner

Legendary Martin quality in LED ellipsoidal light fixtures
Advanced optics engineered in Denmark
RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
Class-leading output of 6,900 lumens (in High Output mode)
Superior CRI rating of 90 (in high quality mode)
Fast focus feature for data free focusing
Revolutionary Fine Focus gear-driven focus-adjustment knob locks in placement the first time.
IP65 rated for water resistance and complete protection against dust and other particulates
26 color presets match industry-standard filters
16-bit dimming with 4 selectable dimming curves
Compatible with universal accessories such as gel frames and gobo holders and rotators
Options include 4 static lens tubes and 2 zoom lenses with compatibility for 3rd party accessories
Halation color correction removes atypical blue and brown halos when using Martin lens tubes.
Flicker-free operation
4-blade manual framing shutters
Center of gravity at yoke for ergonomic use
Regulated cooling for ultra-quiet operation
5-pin DMX/RDM and Neutrik True1 In/Thru connectivity

Specifikationer

Physical Length: 644 mm (25.4 in.) Width: 255 mm (10.1 in.) Height: 255 mm (10.1 in.), 527 mm (20.1 in.) with bracket Weight: 12.2 kg (26.9 lb.) body only

Dynamic Effects Color mixing: RGBLA Color Temperature Range: 2000–10000K Color selection: 26 color presets Electronic dimming: 0–100%, Four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout

Control and Programming Control options: DMX, stand-alone Setting and addressing: Control panel with OLED display or via RDM 16-bit control: Intensity, CTC, RGBLA DMX channels: 1/10/17 PWM: 600–2400 Hz DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Stand-alone programming: Control panel with OLED display

Optics Light source: 91 x RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber) Minimum LED lifetime: 30 000 hours (to >70% luminous output)* Color temperature: 2000–10000K Fixed Lens Tube Options: 19°, 26°, 36° and 50° Zoom Lens Tube Options: 15–30° and 25–50° Binning: Tight color and flux binning Calibration: White Point Color Calibration *Figure obtained under manufacturer's test conditions

Photometric Data
Light engine luminous output: 20,000 lumens High Output Mode Fixture luminous output: 6,900 lumens CRI (Color Rendering Index): >85 CQS (Color Quality Scale): >90 TM-30 Rf (IES TM-30-15 Fidelity Index): >84 TM-30 Rg (IES TM-30-15 Gamut Index): >111 TLCI (Television Lighting Consistency Index): >85 CCT: 5500 K (+/- 250 K) High Quality Mode Fixture luminous output: 5,900 lumens CRI (Color Rendering Index): >90 CQS (Color Quality Scale): >87 TM-30 Rf (IES TM-30-15 Fidelity Index): >84 TM-30 Rg (IES TM-30-15 Gamut Index): >106 TLCI (Television Lighting Consistency Index): >87 CCT: 6000 K (+/- 250 K)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction Housing: Die-cast aluminum Color: Black or white variant Protection rating: IP65

Gobos and Color Frame Gobo size :
A size, 100 mm OD, 75 mm image*
Gobo size: B size, 86 mm OD, 64.5 mm image*
Color frame size: 159 x 159 mm (6.25 in. x 6.25 in.)
*Gobo holder not included.

Installation Mounting: Adjustable bracket Location: Indoor, outdoor use, suitable for wet locations Orientation: Any Minimum distance to combustible materials: 0.2 m (0.7 ft.) Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
Connections AC power in, thru: IP65-rated Neutrik PowerCON TRUE1 TOP DMX & RDM data in/thru: IP65-rated 5-pin XLR

Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 18.0 A
Power Factor: 0.99 @ 110 V , 0.96 @ 208 V , 0.95 @ 230 V / 240 V
Typical current draw: 2.4 A @ 110 V , 1.3 A @ 208 V , 1.3 A @ 230 V , 1.1 A @ 240 V *
Power Consumption
Typical: 259 W *
Idle: 5 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.

Thermal Cooling: Forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1000 BTU/hr. Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)

Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 28 lm/W LWR*: 627 lm/kg (284 lm/lb)
LWR = Lumen-to-Weight Ratio

Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-3 (B)/NMB-3 (B); ICES-5 (B)/ NMB-5 (B) Australia/NZ: RCM

Included Items
Mounting bracket
User manual

Related Items Martin Companion Cable: P/N 91616091 Martin ELP Lens Tube 19°: P/N 9045107782 Martin ELP Lens Tube 19° White : P/N 9045115166 Martin ELP Lens Tube 26°: P/N 9045107783 Martin ELP Lens Tube 26° White : P/N 9045115167 Martin ELP Lens Tube 36°: P/N 9045107784 Martin ELP Lens Tube 36° White : P/N 9045115168 Martin ELP Lens Tube 50°: P/N 9045107785 Martin ELP Lens Tube 50° White : P/N 9045115170 Martin ELP Zoom Lens Tube 15–30°: P/N 9045121618 Martin ELP Zoom Lens Tube 15–30°, White: P/N 9045122108 Martin ELP Zoom Lens Tube 25–50°: P/N 9045121619 Martin ELP Zoom Lens Tube 25–50°, White: P/N 9045122109

Accessories
Power Input Cables (16 A)*
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Power Relay Cables*
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91611784
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91611785
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1-TRUE1 2.5 m (8.2 ft.): P/N 91611796

Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 2.5 m (8.2 ft.): P/N 91610172
Power Connectors*
Neutrik PowerCON TRUE1 NAC3MX-W (male): P/N 91611788HU
Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789HU
*All TRUE1 connectors are IP65-rated TOP type
Spare Parts
Pressure Relief Valve with Gore membrane, M12 x 1.5: P/N 5127883-00
Installation hardware
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information Martin ELP CL IP (Body Only): P/N 9045122814 Martin ELP CL IP (Body Only), White: P/N 9045122816
