ELP Zoom Lenses

อุปกรณ์เลนส์ซูมสำหรับไฟ Martin ELP LED Ellipsoidal

ELP Zoom Lenses
รูปภาพขนาดใหญ่

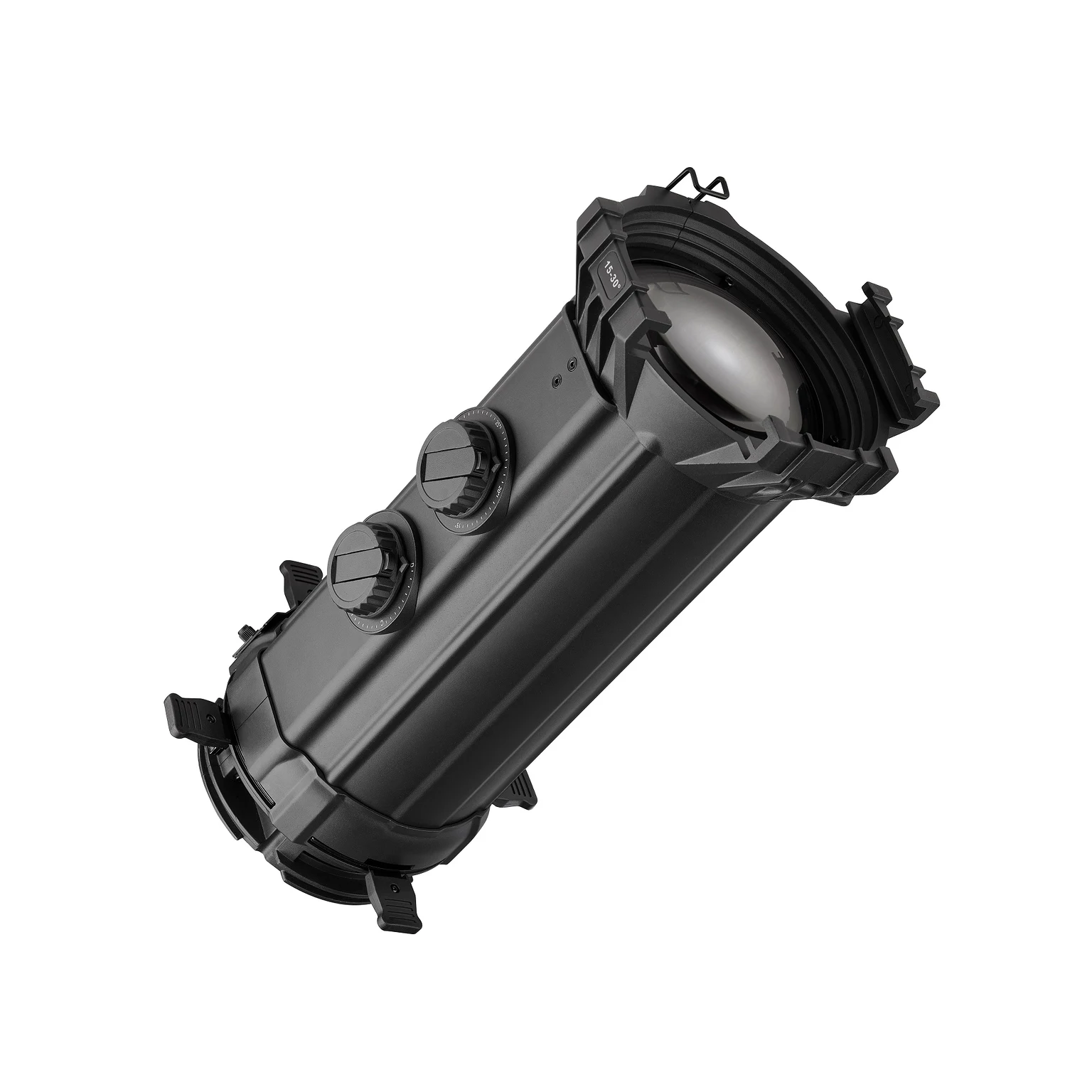

Martin ELP Zoom Lenses expand the versatility and range of ELP CL and WW LED ellipsoidal lights with two industry-standard beam ranges and two housing color variants: Lenses are available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.

An all-new 6-lens design optical design delivers unrivaled optical performance, providing the ultrabright output, unmatched flat projection and crisp focus of a static lens, with the speed and flexibility of a zoom lens. Innovations like independent zoom and focus controls, an anti-slip locking mechanism and a service hatch for easy maintenance and cleaning round out the lenses’ user-friendly features.

Bring new simplicity, flexibility and speed to lighting design with Martin ELP Zoom Lenses.

วิดีโอ





คุณสมบัติ

  • Zoom range: 15–30 degrees
  • Zoom range: 25–50 degrees
  • All-new 6-lens optical design
  • Flat projection across full zoom range
  • Sharp focus across full image area across full zoom range
  • Independent focus and zoom controls
  • All-in-one gobo/accessory gate and focus control
  • Service hatch allows easy lens cleaning and maintenance
  • Critical components exhibit C3 corrosion resistance
  • 4-blade framing system with sharp focus
  • Color gel frame included
  • Additional mechanical locking system prevents slipping when attached to the body
  • Both lens ranges available in black and white housing variants
  • Weight 6.0 kg (13.2 lbs)

ข้อมูลจำเพาะ

  • Related Items Martin ELP Zoom Lens Tube 15–30°: P/N 9045121618 Martin ELP Zoom Lens Tube 15–30°, White: P/N 9045122108 Martin ELP Zoom Lens Tube 25–50°: P/N 9045121619 Martin ELP Zoom Lens Tube 25–50°, White: P/N 9045122109
    Ordering Information Martin ELP WW (Body Only): P/N 9045107781 Martin ELP WW (Body Only), White: P/N 9045115165 Martin ELP WW IP (Body Only): P/N 9045122813 Martin ELP WW IP (Body Only), White: P/N 9045122815 Martin ELP CL (Body Only): P/N 9045107780 Martin ELP CL (Body Only), White: P/N 9045115164 Martin ELP CL IP (Body Only): P/N 9045122814 Martin ELP CL IP (Body Only), White: P/N 9045122816

การดาวน์โหลด

Specifications
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon ELP WW IP Spec Sheet
en เวอร์ชัน A, อัปเดต: ธ.ค. 2020
en  1010 กิโลไบต์ ธ.ค. 2020
file type icon ELP CL Spec Sheet
en เวอร์ชัน B, อัปเดต: มิ.ย. 2020
en  914 กิโลไบต์ มิ.ย. 2020
file type icon ELP WW Spec Sheet
en เวอร์ชัน B, อัปเดต: มิ.ย. 2020
en  877 กิโลไบต์ มิ.ย. 2020
Manuals
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon ELP Zoom Lens Installation and Safety Manual
fr เวอร์ชัน A, อัปเดต: มิ.ย. 2020
fr  277 กิโลไบต์ มิ.ย. 2020
file type icon ELP Zoom Lens Installation and Safety Manual
de เวอร์ชัน A, อัปเดต: มิ.ย. 2020
de  278 กิโลไบต์ มิ.ย. 2020
file type icon ELP Zoom Lens Installation and Safety Manual
en เวอร์ชัน A, อัปเดต: มิ.ย. 2020
en  276 กิโลไบต์ มิ.ย. 2020
Photometrics
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon ELP Zoom Lens Photometric Reports
en เวอร์ชัน A, อัปเดต: ต.ค. 2021
en  10.4 เมกะไบต์ ต.ค. 2021
Illustrations
  ขนาด อัปโหลดแล้ว
file type icon Martin ELP Zoom lens25-50D zoom lens 2D drawing
อัปเดต: เม.ย. 2020
210 กิโลไบต์ เม.ย. 2020
file type icon ELP Zoom Lens Gel Frame Dimensions
อัปเดต: ต.ค. 2020
123 กิโลไบต์ ต.ค. 2020
file type icon Martin ELP Zoom lens15-30D zoom lens 2D drawing
อัปเดต: เม.ย. 2020
186 กิโลไบต์ เม.ย. 2020
Symbols
  เวอร์ชัน ภาษา ขนาด อัปโหลดแล้ว
file type icon AutoCAD 3D Symbols
en เวอร์ชัน 2.8, อัปเดต: ม.ค. 2026
2.8  en  18.7 เมกะไบต์ ม.ค. 2026
file type icon AutoCAD 2D Symbols
en เวอร์ชัน 2.8, อัปเดต: ม.ค. 2026
2.8  en  4.42 เมกะไบต์ ม.ค. 2026
file type icon Vectorworks Symbols
en เวอร์ชัน 4.6, อัปเดต: ม.ค. 2026
4.6  en  249 เมกะไบต์ ม.ค. 2026
