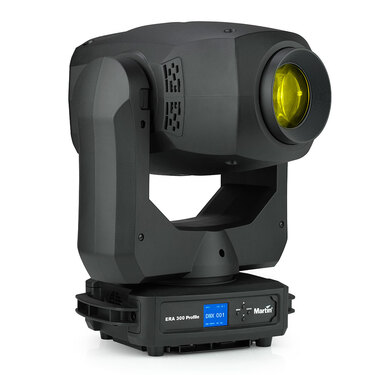

ERA 300 Profile

具有 CMY 色彩混合功能的紧凑型 LED 摇头图案灯

ERA 300 Profile
较大的图像

The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY color mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; color wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.

The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY color mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colors, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.

The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in color temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The ERA 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.

  • 强劲输出，紧凑型多功能设备

    这款灯具易于操控和架设，占用的运输空间少，输出9,500流明；配备电子调光和频闪功能；CMY色彩混合；色轮；双层图案盘（包括旋转图案盘）；光圈；变焦；焦点调整；旋转棱镜；以及平移和倾斜功能。

  • 260 瓦 LED 光源

    凭借高效的 260 瓦光源，ERA 300 的输出亮度超过同等尺寸的灯具。全电子调光确保极快的频闪速度、即时强度控制，以及低至 0% 仍可保持均匀一致的平滑光场。

  • CMY 色彩混合

    可呈现从柔和的粉彩色调到鲜艳浓烈的色彩，并具备快速转换与平滑渐变能力。色轮可实现出色的双色分割效果、快速的色彩跳变，并进一步扩展整体色域与亮度。此外还配备 CTO 滤光片，可获得 3000K 钨丝灯色温。

  • 1:2 ZOOM

    ERA 300 Profile 具有 13 至 28 度的变焦范围，可适应各种安装高度，28 度的广角为小型舞台提供充分的覆盖范围。变焦快速精准，在整个范围内保持高输出。

  • 低维护成本与良好投资回报

    稳定可靠的 LED 光源消除了灯泡老化、输出衰减、色温偏移以及风扇将灰尘吸入光学通路等问题。此外，模块化设计使光学部件的拆装与更换安全、快捷、简便——模块更换可在一分钟内完成。

featured content

强劲输出，紧凑型多功能设备

这款灯具易于操控和架设，占用的运输空间少，输出9,500流明；配备电子调光和频闪功能；CMY色彩混合；色轮；双层图案盘（包括旋转图案盘）；光圈；变焦；焦点调整；旋转棱镜；以及平移和倾斜功能。

featured content

260 瓦 LED 光源

凭借高效的 260 瓦光源，ERA 300 的输出亮度超过同等尺寸的灯具。全电子调光确保极快的频闪速度、即时强度控制，以及低至 0% 仍可保持均匀一致的平滑光场。

featured content

CMY 色彩混合

可呈现从柔和的粉彩色调到鲜艳浓烈的色彩，并具备快速转换与平滑渐变能力。色轮可实现出色的双色分割效果、快速的色彩跳变，并进一步扩展整体色域与亮度。此外还配备 CTO 滤光片，可获得 3000K 钨丝灯色温。

featured content

1:2 ZOOM

ERA 300 Profile 具有 13 至 28 度的变焦范围，可适应各种安装高度，28 度的广角为小型舞台提供充分的覆盖范围。变焦快速精准，在整个范围内保持高输出。

featured content

低维护成本与良好投资回报

稳定可靠的 LED 光源消除了灯泡老化、输出衰减、色温偏移以及风扇将灰尘吸入光学通路等问题。此外，模块化设计使光学部件的拆装与更换安全、快捷、简便——模块更换可在一分钟内完成。

视频





特点

  • 260 瓦 / 6,500K LED 光源
  • 9,500 流明输出
  • 功能齐全，包括 CMY 色彩混合和 1:2 变焦
  • 光学系统清晰锐利，具备平场效果
  • 结构极为紧凑，重量轻巧

性能

  • 物理特性 长度: 375 mm (14.8 in.) 宽: 217 mm (8.5 in.) 高: 564 mm (22.2 in.) 重量: 17kg (38.0 lbs)
    Dynamic Effects Color mixing: CMY, independently variable 0-100% Color wheel: 9 color filters plus open Beam effects: Rotating three-facet prism Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Zoom: Motorized Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
    Control and Programming Control options: DMX Setting and addressing: Control panel with backlit LCD display 16-bit control: Dimming, pan and tilt DMX channels: 21 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
    Optics Zoom range: 13° - 28° Light source: 260W LED engine Minimum LED lifetime: 20,000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Manufacturer´s figure obtained under manufacturer´s test conditions.
    Photometric Data Light engine luminous output: 20,000 lumens Fixture luminous output: 9,500 lumens CRI (Color Rendering Index) : >70 Color Temperature: 6,500 K LED refresh rate : 1200 Hz

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Construction Housing: High-impact flame-retardant thermoplastic 颜色: Black/White Protection rating: IP20
    Gobos Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.) Maximum image diameter: 19.0 mm (0.75 in.) Gobo thickness, maximum: 1.1mm borosilicate glass
    Installation Mounting points: Two quarter-turn brackets for rigging clamps Orientation: Any
  • Connections AC power in, thru: Neutrik powerCON TRUE1 DMX data in/out: 3-pin & 5-pin locking XLR
    Electrical

    AC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Power Factor: 0.99 @ 120 V / 230 V
    Typical current draw:  3.1 A @ 120 V , 1.6 A @ 230 V *
    Power Consumption
    Typical: 374 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Thermal 散热: Forced air (temperature regulated, low noise) Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz): 1300 BTU/hr Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 30.3 lm/W LWR*: 559 lm/kg (250 lm/lb)

    LWR = Lumen-to-Weight Ratio
    Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM
    Included Items

    Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
    Omega brackets for rigging clamp attachment
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
    Accessories Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

     Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

     接头:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

     Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Ordering Information Martin ERA 300 Profile in cardboard box: P/N 9025109547 Martin ERA 300 Profile White in cardboard box: P/N 9025109886
