• Physical Length: 375 mm (14.8 in.) Width: 217 mm (8.5 in.) Height: 564 mm (22.2 in.) Weight: 17kg (38.0 lbs)
  Dynamic Effects Color mixing: CMY, independently variable 0-100% Color wheel: 9 color filters plus open Beam effects: Rotating three-facet prism Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake Iris: 0-100% Zoom: Motorized Electronic dimming: 0 - 100%, four dimming curve options Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 540°, coarse & fine control and speed Tilt: 260°, coarse & fine control and speed Focus: Motorized
  Control and Programming Control options: DMX Setting and addressing: Control panel with backlit LCD display 16-bit control: Dimming, pan and tilt DMX channels: 21 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485
  Optics Zoom range: 13° - 28° Light source: 260W LED engine Minimum LED lifetime: 20,000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Manufacturer´s figure obtained under manufacturer´s test conditions.
  Photometric Data Light engine luminous output: 20,000 lumens Fixture luminous output: 9,500 lumens CRI (Color Rendering Index) : >70 Color Temperature: 6,500 K LED refresh rate : 1200 Hz

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Housing: High-impact flame-retardant thermoplastic Color: Black/White Protection rating: IP20
  Gobos Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.) Maximum image diameter: 19.0 mm (0.75 in.) Gobo thickness, maximum: 1.1mm borosilicate glass
  Installation Mounting points: Two quarter-turn brackets for rigging clamps Orientation: Any
• Connections AC power in, thru: Neutrik powerCON TRUE1 DMX data in/out: 3-pin & 5-pin locking XLR
  Electrical

  AC power: 100-240 V AC nominal, 50/60 Hz
  Power supply unit: Auto-ranging electronic switch mode
  Power Factor: 0.99 @ 120 V / 230 V
  Typical current draw:  3.1 A @ 120 V , 1.6 A @ 230 V *
  Power Consumption
  Typical: 374 W *
  * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  Typical: full output white, no effects moving, regulated fan speed.



  Thermal Cooling: Forced air (temperature regulated, low noise) Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz): 1300 BTU/hr Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 0° C
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 30.3 lm/W LWR*: 559 lm/kg (250 lm/lb)

  LWR = Lumen-to-Weight Ratio

  Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class B, ICES-005 Class B Australia/NZ: RCM
  Included Items

  Power cable, 1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
  Omega brackets for rigging clamp attachment

  Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
  Accessories Cables, 16 A, for connection to power in chains:

  Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
  Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
  Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
  Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

  Cables, 16 A, for relaying power in chains:

  Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611786
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

  Connectors:

  Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
  Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

  Installation hardware:

  G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  Half-coupler Clamp: P/N 91602005
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

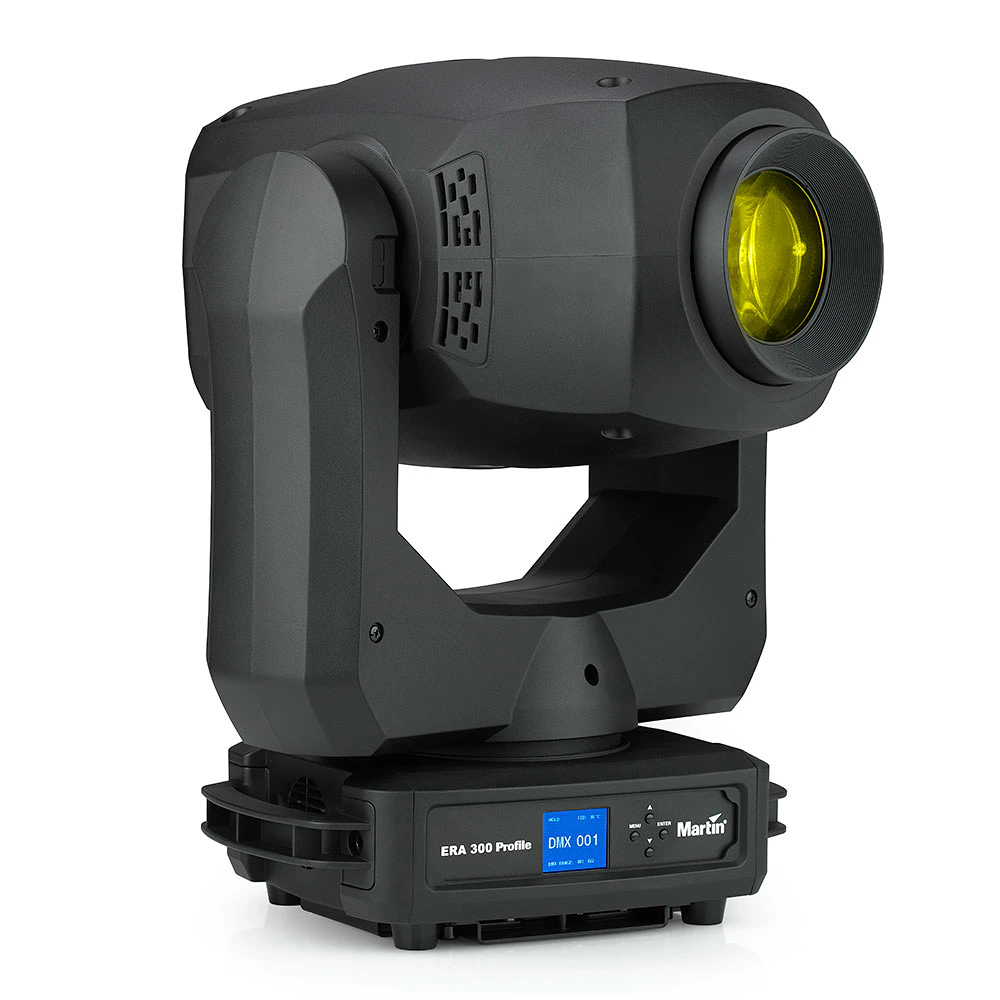

  Ordering Information Martin ERA 300 Profile in cardboard box: P/N 9025109547 Martin ERA 300 Profile White in cardboard box: P/N 9025109886

•
