RUSH MH 11 Beam
停产

高输出放电光源光束摇头灯

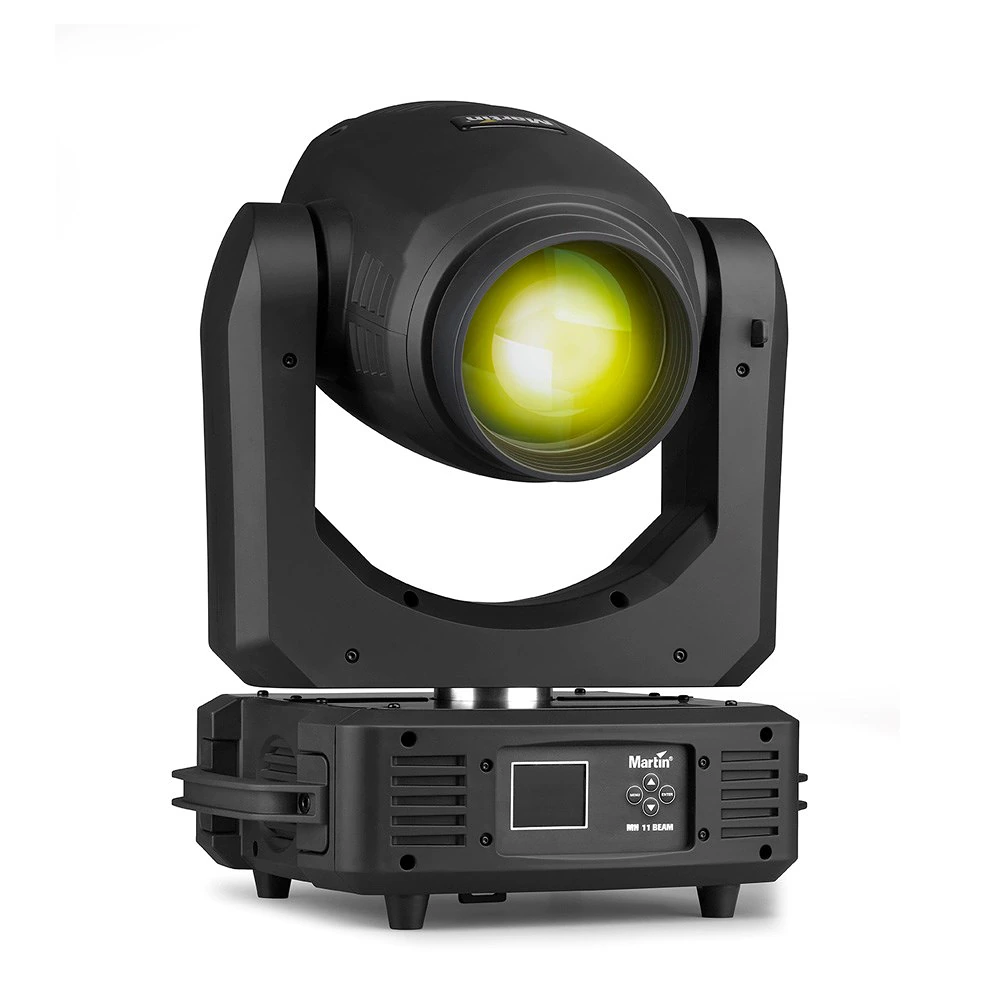

较大的图像

Martin RUSH MH 11 Beam 是一款高强度光束摇头灯,专为高端安装和租赁应用而设计。RUSH MH 11 Beam 采用与 Martin RUSH MH 7 Hybrid 相同的 250W Platinum 11R 灯泡,但配备了经过优化的光束光学系统,能在纯光束灯具中提供出色的光强度和锐利的空中效果。它还与 RUSH MH 7 和 MAC Axiom 共享相同的色温与色彩组合,为经济高效的纯光束灯具提供出色的色彩匹配。

MH 11 的高强度灯泡与业界领先的光学系统相结合,使灯具能够以超紧凑的 2.6 度光束角实现锐利、高输出的光束效果。该灯具可借助 8 个旋转与定位图案片以及 8 面棱镜,营造一系列复杂而精确的空中效果。灯具提供 13 种可选颜色、柔光功能和电动调焦。

该灯具完美适用于高端演艺场馆安装,如夜间娱乐场所、宗教场所和邮轮。它还具有坚固的工业化设计,适合在采用 Martin RUSH MH 7 和 MAC Axiom 灯具的巡演应用中使用。

  • 业界领先的光学系统,投射距离更远、效果更显著
  • 功能丰富,效果众多
  • 坚固设计,为巡演而生

特点

  • 功率强劲的 250 W 飞利浦白金 11R 灯泡
  • 超窄 2.6° 光束角
  • 8 个旋转与定位图案片
  • 超锐利、窄长投光束
  • 空中特效
  • 10 种可选颜色 + CTO、CTB、UV
  • 柔光效果
  • 8 面圆形棱镜
  • 电动调焦
  • 3 芯 + 5 芯 XLR DMX 连接
  • Neutrik TRUE 1 输入与直通插座
  • 紧凑尺寸—长:364 x 宽:305 x 高:581 mm / 长:14.3 x 宽:12.0 x 高:22.9  英寸
  • 重量轻—19.5 kg/43 磅



性能

  • 物理特性 长度: 364 mm (14.4 in.) 宽: 305 mm (12.0 in.) 高: 581 mm (22.9 in.) 重量: 19.5 kg (43 lbs.)
    Dynamic Effects Color wheel: 13 colors (incl. CTO and UV) + open, rotation with variable direction and speed Rotating gobo wheel: 8 gobos + open, wheel rotation, gobo indexing, rotation and shake Prism: 8-facet circular, indexing, rotation with variable direction and speed Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 660° Tilt: 250° Pan and tilt speed: Adjustable via onboard control panel and DMX 调光参数: 0-100%, coarse and fine control Focus: Motorized, 16-bit coarse and fine control Frost
    Control and Programming Control options: DMX, stand-alone, RDM Setting and addressing: Control panel with backlit LCD display DMX channels: 18 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI E1.20
    Optics Cutoff beam angle: 2.6°
    Lamp Color temperature : 6800 K +/- 250 K CRI (Color rendering index): 81 Average lifetime: 2000 hours* Approved lamp: Philips MSD Platinum 11R 250 W *Under manufacturer's test conditions.
    Construction Housing: High-impact flame-retardant thermoplastic 颜色: Black Protection rating: IP20
    Gobos Interchangeable rotating gobos:

    Permitted material: Steel or aluminum
    Diameter: 14 mm +/-0.2 mm (0.55 in. +/-0.008 in.)
    Maximum image diameter: 13 mm (0.51 in.)
    Gobo thickness: 0.8 mm (0.031–0.032 in.)

    Installation Mounting points: Two quarter-turn omega brackets for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 200 mm (8 in.) Minimum distance to illuminated surfaces: 10 m (33 ft.) Minimum clearance around fan and air vents: 200 mm (8 in.)
  • Connections AC power in, thru: Neutrik TRUE1 DMX data in, thru: 3-pin and 5-pin locking XLR
    Electrical AC power: 100-120 / 200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode
    Typical Power and Current 120 V, 60 Hz: 380 W, 3.5 A, PF 0.9 230 V, 50 Hz: 370 W, 1.7 A, PF 0.9 Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
    Thermal 散热: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 1300 BTU/hr. (at full intensity, full white)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM (pending)
    Included Items

    Philips MSD Platinum 11R 250 W lamp (installed)
    Power cable, 1.5 m (4.9 ft.), without mains plug
    Two Omega clamp attachment brackets with 1/4-turn fasteners

    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
    Accessories Philips MSD Platinum 11R 250 W lamp: P/N 50481205 Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

    Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    接头:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 9162007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information RUSH® MH 11 Beam in cardboard box: P/N 90280130
