RUSH MH 11 Beam
ยกเลิกการผลิต

หัวโปรเจคเตอร์แบบลำแสงปล่อยประจุกำลังสูง

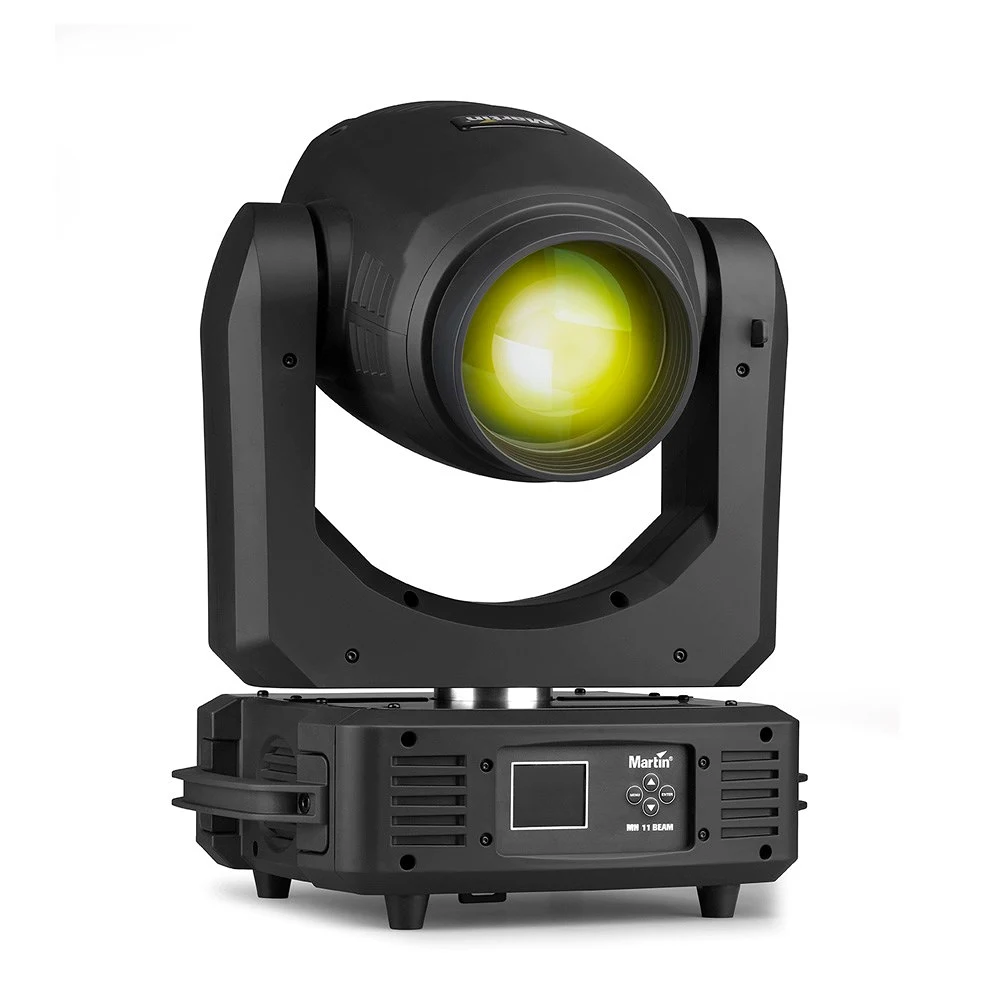

RUSH MH 11 Beam
รูปภาพขนาดใหญ่

Martin RUSH MH 11 Beam เป็นหัวเคลื่อนที่แบบลำแสงเข้มสูง ออกแบบมาสำหรับการติดตั้งระดับสูงสุดและการให้เช่า RUSH MH 11 Beam ใช้หลอดไฟ Platinum 11R ขนาด 250W เดียวกันกับที่ใช้ใน Martin RUSH MH 7 Hybrid พร้อมด้วยออปติกส์ลำแสงที่ปรับปรุงแล้ว ซึ่งให้ความเข้มสูงและเอฟเฟกต์ในอากาศที่คมชัดในฟิกซ์เจอร์ลำแสงเท่านั้น นอกจากนี้ยังใช้อุณหภูมิสีและพาเลตเดียวกันกับ RUSH MH 7 และ MAC Axiom เพื่อให้การจับคู่สีที่ดีเยี่ยมในฟิกซ์เจอร์ลำแสงที่คุ้มค่า

หลอดไฟเข้มสูงรวมกับออปติกส์ระดับอุตสาหกรรมชั้นนำของ MH 11 ช่วยให้ฟิกซ์เจอร์สามารถสร้างเอฟเฟกต์ลำแสงที่คมชัดและมีเอาต์พุตสูงพร้อมมุมลำแสงที่แคบมากขนาด 2.6 องศา ฟิกซ์เจอร์สามารถสร้างลุคในอากาศที่ซับซ้อนและแม่นยำได้หลากหลาย โดยใช้โกโบ 8 ตัวที่หมุนได้และปรับดัชนีได้ และปริซึม 8 เหลี่ยม ฟิกซ์เจอร์มีสีที่เลือกได้ 13 สี พร้อมฟรอสต์และโฟกัสที่ขับเคลื่อนด้วยมอเตอร์

ฟิกซ์เจอร์นี้เหมาะสำหรับการติดตั้งสถานที่แสดงสดระดับสูง เช่น สถานที่ที่เยี่ยมคืนกลางคืน สถานที่นมัสการ และเรือสำราญ นอกจากนี้ยังมีการออกแบบแบบอุตสาหกรรมที่แข็งแกร่งสำหรับใช้ในการท่องของชุด Martin RUSH MH 7 และ MAC Axiom

  • ออปติกส์ชั้นนำเพื่อการเข้าถึงที่ไกลขึ้นและผลกระทบที่มากขึ้น
  • บรรจุคุณสมบัติมากมายด้วยเอฟเฟกต์หลากหลาย
  • การออกแบบที่แข็งแกร่งสำหรับการท่องเที่ยว

คุณสมบัติ

  • หลอด Philips Platinum 11R ขนาด 250 W อันทรงพลัง
  • มุมลำแสงแคบมาก 2.6°
  • โกโบ 8 แบบหมุนและเคลื่อนตำแหน่ง
  • ลำแสงยาวแคบคมชัดพิเศษ
  • เอฟเฟกต์กลางอากาศ
  • สี 10 แบบเลือกได้ + CTO, CTB, UV
  • เอฟเฟกต์ Frost
  • ปริซึมวงกลม 8 หน้า
  • โฟกัสแบบมอเตอร์
  • การเชื่อมต่อ DMX XLR 3 pin + 5 pin
  • ซ็อกเก็ต Neutrik TRUE 1 อินพุตและผ่านอุปกรณ์
  • ขนาดกะทัดรัด—ยาว: 364 x กว้าง: 305 x สูง: 581 มม. / ยาว: 14.3 x กว้าง: 12.0 x สูง: 22.9 นิ้ว
  • น้ำหนักเบา—19.5 กก./43 ปอนด์



ข้อมูลจำเพาะ

  • Physical Length: 364 mm (14.4 in.) Width: 305 mm (12.0 in.) Height: 581 mm (22.9 in.) Weight: 19.5 kg (43 lbs.)
    Dynamic Effects Color wheel: 13 colors (incl. CTO and UV) + open, rotation with variable direction and speed Rotating gobo wheel: 8 gobos + open, wheel rotation, gobo indexing, rotation and shake Prism: 8-facet circular, indexing, rotation with variable direction and speed Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout Pan: 660° Tilt: 250° Pan and tilt speed: Adjustable via onboard control panel and DMX Dimming: 0-100%, coarse and fine control Focus: Motorized, 16-bit coarse and fine control Frost
    Control and Programming Control options: DMX, stand-alone, RDM Setting and addressing: Control panel with backlit LCD display DMX channels: 18 DMX compliance: USITT DMX512/1990 RDM compliance: ANSI E1.20
    Optics Cutoff beam angle: 2.6°
    Lamp Color temperature : 6800 K +/- 250 K CRI (Color rendering index): 81 Average lifetime: 2000 hours* Approved lamp: Philips MSD Platinum 11R 250 W *Under manufacturer's test conditions.
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
    Gobos Interchangeable rotating gobos:

    Permitted material: Steel or aluminum
    Diameter: 14 mm +/-0.2 mm (0.55 in. +/-0.008 in.)
    Maximum image diameter: 13 mm (0.51 in.)
    Gobo thickness: 0.8 mm (0.031–0.032 in.)

    Installation Mounting points: Two quarter-turn omega brackets for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 200 mm (8 in.) Minimum distance to illuminated surfaces: 10 m (33 ft.) Minimum clearance around fan and air vents: 200 mm (8 in.)
  • Connections AC power in, thru: Neutrik TRUE1 DMX data in, thru: 3-pin and 5-pin locking XLR
    Electrical AC power: 100-120 / 200-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode
    Typical Power and Current 120 V, 60 Hz: 380 W, 3.5 A, PF 0.9 230 V, 50 Hz: 370 W, 1.7 A, PF 0.9 Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 1300 BTU/hr. (at full intensity, full white)
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM (pending)
    Included Items

    Philips MSD Platinum 11R 250 W lamp (installed)
    Power cable, 1.5 m (4.9 ft.), without mains plug
    Two Omega clamp attachment brackets with 1/4-turn fasteners

    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
    Accessories Philips MSD Platinum 11R 250 W lamp: P/N 50481205 Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

    Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Connectors:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 9162007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Ordering Information RUSH® MH 11 Beam in cardboard box: P/N 90280130
