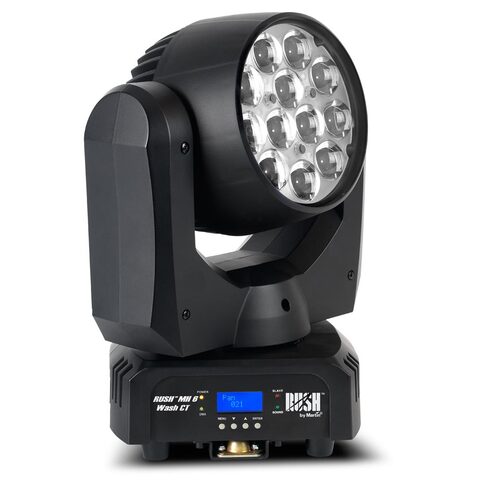

Martin RUSH MH 6 Wash CT

较大的图像

RUSH MH 6 Wash CT 专为礼拜场所、表演艺术和现场舞台环境中的关键照明应用而设计。在这些应用中，白光色温控制至关重要，同时对较小型应用也需要提供紧凑轻巧的设计。

RUSH MH 6 WASH CT 是一款高亮度单透镜LED移动头灯，配备完全预混合白色色温。搭载12颗10W WW/CW（暖白和冷白）LED，以及10°至60°电动变焦，提供完全电子调光和可变频闪效果，可通过DMX控制。

预混合白光，色温范围2,700K至7,800K
10°至60°变焦系统
紧凑轻巧的设计

特点

2,700K to 7,800K Color Temp Range
Allows key lighting to be matched for multiple sources from Tungsten to Metal Halide
10-60 Degree Zoom System
Compact and lightweight design
Can be used as a Mid effect with a tight beam look to washing a stage for key lighting applications
Ideal for applications that have limited ceiling height or weight restrictions.

性能

物理特性长度: 290 mm (11.4 in.) 宽: 189 mm (7.4 in.) 高: 360 mm (14.2 in.) 重量: 7.1 kg (15.7 lbs.)

Dynamic Effects Zoom: Motorized Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout Pan: 540° Tilt: 200°

Control and Programming Control options: DMX 16-bit fine control: Dimming, pan and tilt DMX address setting: Control panel with LCD display DMX channels: 14 DMX compliance: USITT DMX512/1990

Optics Zoom range: 10° - 60° Light source: 12 x 10W OSRAM OSTAR WW/CW LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* Binning: Tight color and flux binning *Figure obtained under manufacturer's test conditions.

Construction Housing: High-impact flame-retardant thermoplastic 颜色: Black Ingress protection rating: IP20

Installation Mounting points: One quarter‐turn bracket for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm (4 in.) Minimum distance to illuminated surfaces: 200 mm (8 in.) Minimum clearance around fan and air vents: 100 mm (4 in.)

Connections AC power in, thru: Neutrik PowerCon DMX data in, thru: 3-pin and 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode 保险丝: T 3.15 A Typical half-cycle RMS inrush current: 11.3 A (at 240 VAC) Recommended Miniature Circuit Breaker: Type D*
*Per IEC 60898/UL489/CSA C22.2 No. 5
Power consumption figures are typical, not maximum. Allow for +/-10% variation.

Typical Power and Current 120 V, 60 Hz: 1.3 A, 150 W, PF 0.99 230 V, 50 Hz: 0.7 A, 150 W, PF 0.94 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal 散热: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)

Approvals EU safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573, UL 8750 US EMC: CFR Title 47 Part 15 Canadian safety: CSA C22.2 No. 166 Australia/NZ: C-TICK N4241 / RCM

Included Items
Power input cable, 6 A, 18 AWG, UL, 0.75 mm2, H05VV-F, 1.5 m (4.9 ft.), without mains plug
Omega bracket for rigging clamp attachment

Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com

Accessories Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Cables, 16 A, for relaying power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Ordering Information RUSH MH 6 Wash™ CT in cardboard box: P/N 90280090

下载

Specifications

	语言	大小	上传日期
RUSH MH 6 Wash CT Spec Sheet-English 更新: 7月 2018		1.4 MB	7月 2018

Manuals

	版本	语言	大小	上传日期
RUSH MH 6 Wash CT - Manuel d'utilisation 版本 B, 更新: 5月 2018	B		1.1 MB	5月 2018
RUSH MH 6 Wash CT - User Manual 版本 C, 更新: 5月 2018	C		625.9 KB	5月 2018
RUSH MH 6 Wash CT - Bedienungsanleitung 版本 B, 更新: 5月 2018	B		957.5 KB	5月 2018

Photometrics

	版本	语言	大小	上传日期
RUSH MH 6 Wash CT - Photometric Files 版本 A, 更新: 3月 2024	A		264.5 KB	3月 2024

Illustrations

	版本	语言	大小	上传日期
RUSH MH 6 Wash - 2D (PDF) 版本 A, 更新: 5月 2018	A		637.3 KB	5月 2018
RUSH MH 6 Wash - 2D (DWG) 版本 A, 更新: 5月 2018	A		528.0 KB	5月 2018

Symbols

	版本	语言	大小	上传日期
Vectorworks Symbols 版本 4.7, 更新: 8月 2026	4.7		286.4 MB	8月 2026

CAD Drawings

	版本	语言	大小	上传日期
Rush MH 6 Wash - 3D (DWG) 版本 A, 更新: 5月 2018	A		4.9 MB	5月 2018

Compliances

	版本	语言	大小	上传日期
RUSH MH 6 Wash - ETL Listing Verification 版本 A, 更新: 5月 2018	A		381.0 KB	5月 2018
RUSH MH 6 Wash - EU Declaration of Conformity 版本 A, 更新: 5月 2018	A		41.9 KB	5月 2018
