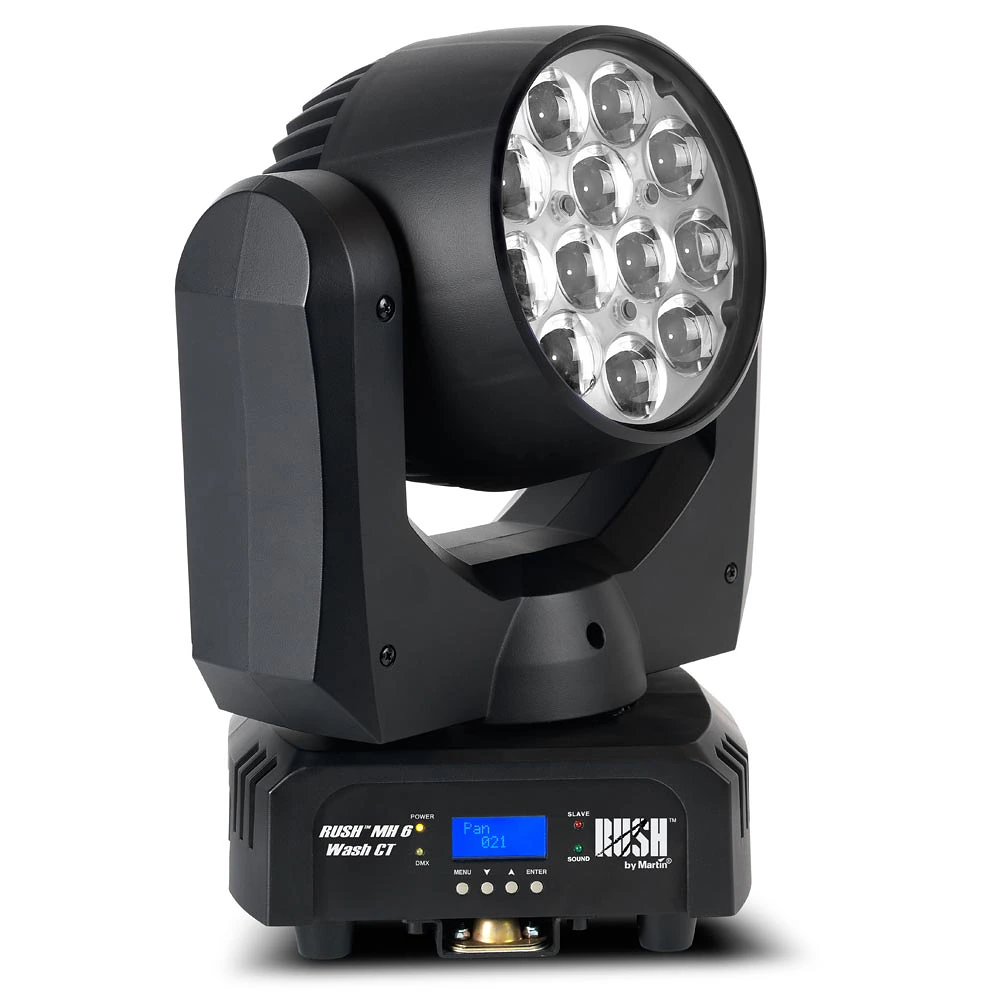

RUSH MH 6 Wash CT

Compact single lens wash light with tunable white control

Larger Images

The RUSH MH 6 Wash CT is designed for key lighting applications within the House of Worship, Performing Arts and Live Stage environments where color temperature control of white light is critical but also a compact and light weight design is desired for smaller applications

The RUSH MH 6 WASH CT is a bright single-lens LED moving head with fully premixed white color temperatures. With twelve 10W WW/CW (warm white and cold white) LEDs and a 10° to 60° motorized zoom, it offers full electronic dimming and variable strobe effects controlled via DMX.

  • Pre mixed white light ranging from 2,700K to 7,800K
  • 10-60 Degree Zoom System
  • Compact and Lightweight Design

Features

  • 2,700K to 7,800K Color Temp Range
  • Allows key lighting to be matched for multiple sources from Tungsten to Metal Halide
  • 10-60 Degree Zoom System
  • Compact and lightweight design
  • Can be used as a Mid effect with a tight beam look to washing a stage for key lighting applications
  • Ideal for applications that have limited ceiling height or weight restrictions.

Specifications

  • Physical Length: 290 mm (11.4 in.) Width: 189 mm (7.4 in.) Height: 360 mm (14.2 in.) Weight: 7.1 kg (15.7 lbs.)
    Dynamic Effects Electronic shutter effect: Instant open and blackout Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Color mixing: RGBW Color presets: 36 color presets plus full white, ‘color wheel’ effects Zoom: Motorized Pan: 540° Tilt: 200°
    Control and Programming Control options: DMX 16-bit fine control: Dimming, pan and tilt White balance control: RGB adjustment DMX channels: 14 DMX address setting: Control panel with LCD display DMX compliance: USITT DMX512/1990
    Optics Zoom range: 10° - 60° Light source: 12 x 10W OSRAM OSTAR WW/CW LEDs Minimum LED lifetime: 50,000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions.
    Construction Housing: High-impact flame-retardant thermoplastic Color: Black Ingress protection rating: IP20
    Installation Minimum clearance around fan and air vents: 100 mm (4 in.) Mounting points: One quarter‐turn bracket for rigging clamp Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 100 mm (4 in.) Minimum distance to illuminated surfaces: 200 mm (8 in.)
    Connections AC power in, thru: Neutrik PowerCon DMX data in, thru: 3-pin and 5-pin locking XLR
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Fuse: T 3.15 A Typical half-cycle RMS inrush current: 11.3 A (at 240 VAC) Recommended Miniature Circuit Breaker: Type D*

    *Per IEC 60898/UL489/CSA C22.2 No. 5
    Power consumption figures are typical, not maximum. Allow for +/-10% variation.

    Typical Power and Current 120 V, 60 Hz: 1.3 A, 150 W, PF 0.99 230 V, 50 Hz: 0.7 A, 150 W, PF 0.94 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F)
    Approvals EU safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573, UL 8750 US EMC: CFR Title 47 Part 15 Canadian safety: CSA C22.2 No. 166 Australia/NZ: C-TICK N4241 / RCM
    Included Items

    Power input cable, 6 A, 18 AWG, UL, 0.75 mm2, H05VV-F, 1.5 m (4.9 ft.), without mains plug
    Omega bracket for rigging clamp attachment

    Accessories Power connectors:

    Power Connector PowerCON Male: P/N 91611795
    Power Connector PowerCON Female : P/N 91611794

    Cables, 16 A, for relaying power in chains:

    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
    Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
    Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

    Cables, 16 A, for power input:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Ordering Information RUSH MH 6 Wash™ CT in cardboard box: P/N 90280090
