• Physical Length: 301 mm (11.9 in.) Width: 408 mm (16.1 in.) Height: 644 mm (25.4 in.) Weight: 24 kg (52.9 lbs.)
  Dynamic Effects Color wheel: 13 colors incl. CTO, CTB, UV and open Rotating gobo wheel: 8 gobos plus open, 16-bit indexing, rotation and shake Static gobo wheel: 12 gobos plus open, wheel rotation and shake Zoom: Motorized, 16-bit coarse and fine control Prism 1: 4-facet linear, 16-bit indexing, variable rotation direction and speed Prism 2: 8-facet radial, 16-bit indexing, variable rotation direction and speed Pan: 540° Tilt: 250° Dimming: 0-100%, coarse and fine control Shutter: Strobe effect, pulse effects, instant open and blackout Focus: Motorized, 16-bit coarse and fine control
  Control and Programming Control systems: DMX Setting and addressing: Control panel with backlit LCD display DMX channels: 21 DMX compliance: USITT DMX512/1990
  Optics Cutoff angle, Beam Mode: 2.2° - 24° Cutoff angle, Spot Mode: 2.5° - 24° One-tenth peak angle, Wash Mode: 15° - 45°
  Photometric Data

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Lamp Color temperature : 7800 K Average lifetime: 2000 hours* Approved lamp: Philips MSD Platinum 11R 250 W *Under manufacturer's test conditions.
  Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20
  Gobos Interchangeable rotating gobos:

  Permitted material: Stainless steel or borosilicate glass with 450° C high temp. coating
  Diameter: 14 mm +0/-0.2 mm (0.55 in. +0/-0.008 in.)
  Max. image diameter, glass: 8 mm (0.31 in.)
  Max. image diameter, metal: 9.5 mm (0.37 in.)
  Thickness, glass: 1.1 mm +0/-0.05 mm (0.045 in. +0/-0.002 in.)
  Thickness, metal: 0.2 mm (0.008 in) nominal

  Installation Mounting points: Two quarter-turn brackets for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 20 cm (8 in.) Minimum distance to illuminated surfaces: 10 m (33 ft.) Minimum clearance around fan and air vents: 50 cm (20 in.)
• Connections AC Power, EU: 100-240 V nominal, 50/60 Hz AC power in, thru: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR
  Electrical Power supply unit: Auto-ranging electronic switch mode Primary fuse: 5T, 250 V, 8.0 A
  Typical Power and Current 120 V, 60 Hz: 377 W, 3.1 A, PF 0.985 230 V, 50 Hz: 372 W, 1.7 A, PF 0.978 Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
  Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 1430 BTU/hr. (at full intensity, full white)
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
  Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55103-1, -2; EN 61000-3-2,-3; EN 61000-4-2, -4, -5; EN 61547 US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM (pending)
  Included Items

  Philips MSD Platinum 11R 250 W lamp (installed)
  Power cable, 1.5 m (4.9 ft.), without mains plug
  Omega bracket for rigging clamp attachment

  Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
  Accessories Power connectors:

  Power Connector PowerCON Male: P/N 91611795
  Power Connector PowerCON Female : P/N 91611794

  Philips MSD Platinum 11R 250 W lamp: P/N 50481205 Cables, 16 A, for connection to power in chains:

  Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
  Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
  Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
  Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176

  Cables, 16 A, for power input:

  Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
  Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
  Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
  Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
  (H07RN-F are European approved cables, SJOOW are US approved cables)

  Installation hardware:

  G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  Half-coupler clamp: P/N 91602005
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

  Flightcase for 2 x RUSH MH 7 Hybrid: P/N 91515039

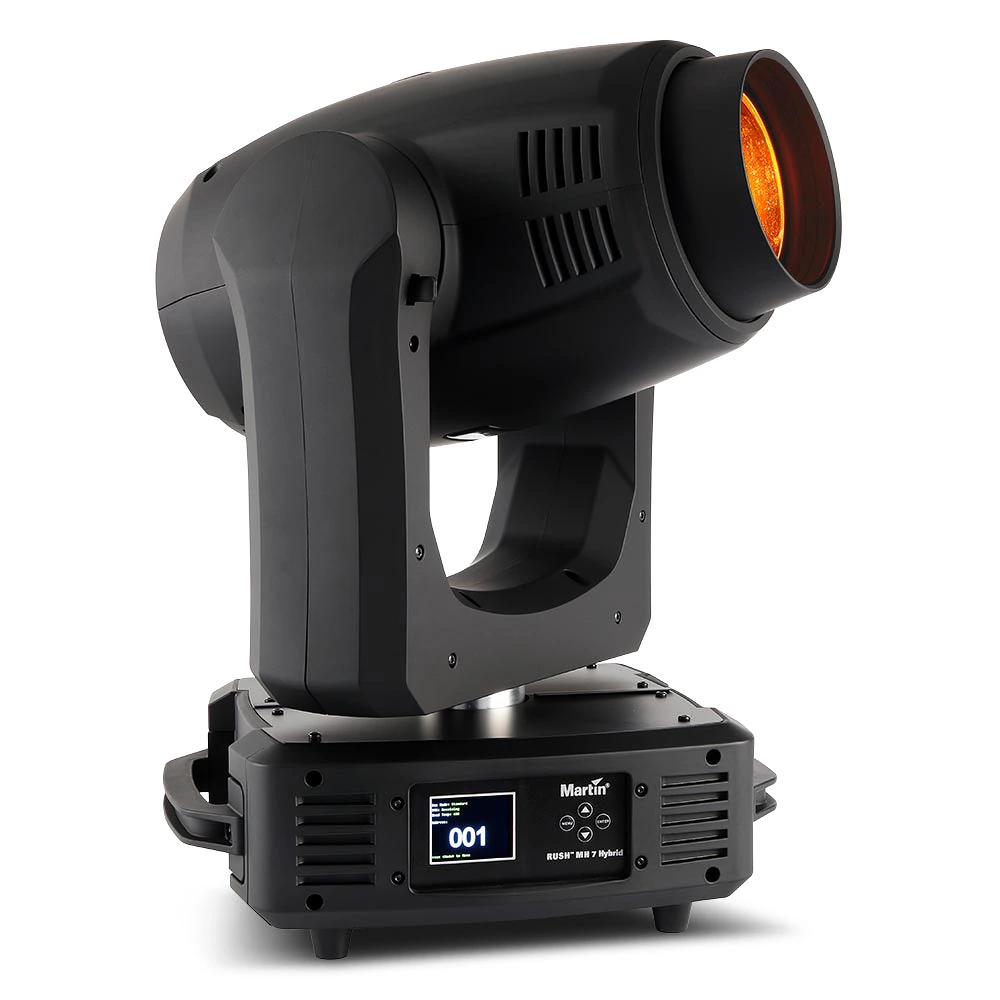

  Ordering Information RUSH MH 7 Hybrid™ in cardboard box: P/N 90280100

•
