Length:
301 mm (11.9 in.)
Width:
408 mm (16.1 in.)
Height:
644 mm (25.4 in.)
Weight:
24 kg (52.9 lbs.)
Color wheel:
13 colors incl. CTO, CTB, UV and open
Rotating gobo wheel:
8 gobos plus open, 16-bit indexing, rotation and shake
Static gobo wheel:
12 gobos plus open, wheel rotation and shake
Zoom:
Motorized, 16-bit coarse and fine control
Prism 1:
4-facet linear, 16-bit indexing, variable rotation direction and speed
Prism 2:
8-facet radial, 16-bit indexing, variable rotation direction and speed
Pan:
540°
Tilt:
250°
Dimming:
0-100%, coarse and fine control
Shutter:
Strobe effect, pulse effects, instant open and blackout
Focus:
Motorized, 16-bit coarse and fine control
Control systems:
DMX
Setting and addressing:
Control panel with backlit LCD display
DMX channels:
21
DMX compliance:
USITT DMX512/1990
Cutoff angle, Beam Mode:
2.2° - 24°
Cutoff angle, Spot Mode:
2.5° - 24°
One-tenth peak angle, Wash Mode:
15° - 45°
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Color temperature :
7800 K
Average lifetime:
2000 hours*
Approved lamp:
Philips MSD Platinum 11R 250 W
*Under manufacturer's test conditions.
Housing:
High-impact flame-retardant thermoplastic
Color:
Black
Protection rating:
IP20
Interchangeable rotating gobos:
Permitted material: Stainless steel or borosilicate glass with 450° C high temp. coating
Diameter: 14 mm +0/-0.2 mm (0.55 in. +0/-0.008 in.)
Max. image diameter, glass: 8 mm (0.31 in.)
Max. image diameter, metal: 9.5 mm (0.37 in.)
Thickness, glass: 1.1 mm +0/-0.05 mm (0.045 in. +0/-0.002 in.)
Thickness, metal: 0.2 mm (0.008 in) nominal
Mounting points:
Two quarter-turn brackets for rigging clamps
Location:
Indoor use only, must be fastened to surface or structure
Orientation:
Any
Minimum distance to combustible materials:
20 cm (8 in.)
Minimum distance to illuminated surfaces:
10 m (33 ft.)
Minimum clearance around fan and air vents:
50 cm (20 in.)
AC Power, EU:
100-240 V nominal, 50/60 Hz
AC power in, thru:
Neutrik PowerCon
DMX data in/out:
3-pin and 5-pin locking XLR
Power supply unit:
Auto-ranging electronic switch mode
Primary fuse:
5T, 250 V, 8.0 A
120 V, 60 Hz:
377 W, 3.1 A, PF 0.985
230 V, 50 Hz:
372 W, 1.7 A, PF 0.978
Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
Cooling:
Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.):
40° C (104° F)
Minimum ambient temperature (Ta min.):
0° C (32° F)
Total heat dissipation (calculated, +/- 10%):
1430 BTU/hr. (at full intensity, full white)
RoHS:
Compliant
REACH:
Compliant
WEEE:
Compliant
Proposition 65:
Compliant
EU safety:
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC:
EN 55015; EN 55032; EN 55103-1, -2; EN 61000-3-2,-3; EN 61000-4-2, -4, -5; EN 61547
US safety:
UL 1573
US EMC:
CFR Title 47 Part 15 Class A
Canadian safety:
CSA C22.2 No. 166
Canadian EMC:
ICES-003 Class A
Australia/NZ:
RCM (pending)
Philips MSD Platinum 11R 250 W lamp (installed)
Power cable, 1.5 m (4.9 ft.), without mains plug
Omega bracket for rigging clamp attachment
Martin Companion Cable:
P/N 91616091
Martin Companion Software Suite (including firmware uploader):
Free download from www.martin.com
Power connectors:
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Philips MSD Platinum 11R 250 W lamp:
P/N 50481205
Cables, 16 A, for connection to power in chains:
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 1.2 m (3.9 ft.): P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 1.2m (3.9 ft.): P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG, SJOOW POWCON-POWCON 2.5m (8.2 ft.): P/N 91610176
Cables, 16 A, for power input:
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Installation hardware:
G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Flightcase for 2 x RUSH MH 7 Hybrid:
P/N 91515039

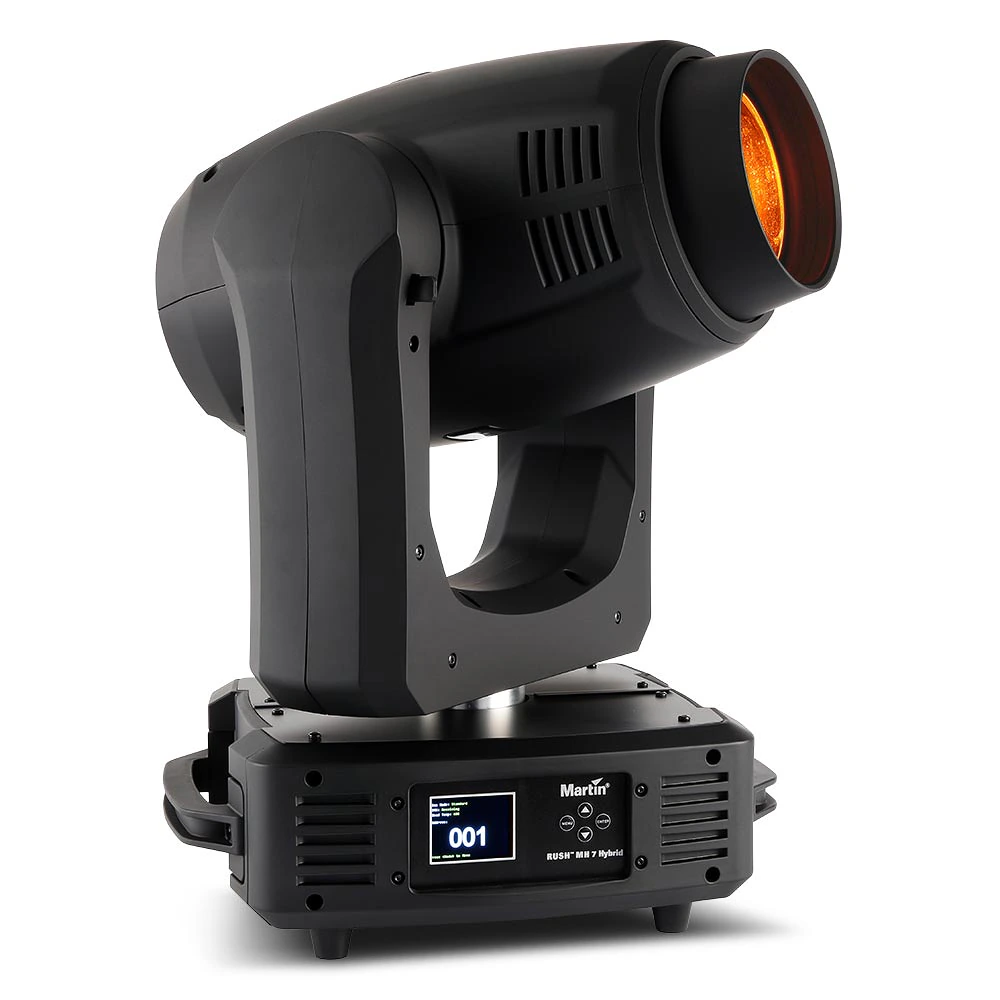

RUSH MH 7 Hybrid™ in cardboard box:
P/N 90280100
