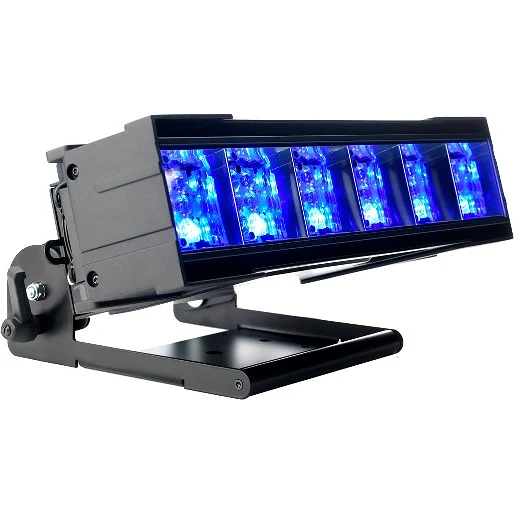

The new Stagebar 54 is a compact, powerful LED luminaire with a comprehensive color range, all-in-one simplicity and a tough temperament for the touring market. It functions as a pixel bar for displaying imagery and video or as a wash luminaire for floodlighting surfaces and stages.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- 54 LEDS in 5 colors - Red, Green, Blue, Amber and White
- Consistent color with factory-calibrated pixels
- Choice of lens options: 29° (standard) or opaque diffuser
- Auto sensing SMPS for worldwide compatibility
- Battery powered control menu for off-site set-up without power
- Choice of DMX control modes: RGB, RGBAW, HSI, HSIC
- All-in-one system with direct power & DMX inputs
- Loop-through wiring of power and data to reduce cabling
- Automatic heat management for optimum performance
Περισσότερες λεπτομέρειες
Physical
Length: 420 mm, Stagebar 54S
Length: 630 mm, Stagebar 54L
Width: 190 mm
Height: 105 mm
Weight: 5.5 kg without bracket, Stagebar 54S
Weight: 7.3 kg without bracket, Stagebar 54L
Dynamic Effects
Color mixing: RGBAW
Red: 0 - 100%
Green: 0 - 100%
Blue: 0 - 100%
Amber: 0 - 100%
White: 0 - 100%
Control and Programming
Color control modes: RGBAW, RGB, HSI, HSIC
DMX channels: 3 - 30
Grouped pixel control options: 6 x 1 (individual), 3 x 2, 2 x 3 or 1 x 6 (all as one group) pixels
DMX address setting: Manual, auto addressing and auto address copy
Fixture setup: Onboard control panel with display
Display: Battery-powered backlit LCD, 2 x 16 characters
16-bit control (internal): RGBAW, RGB, HSI, HSIC
Protocol: USITT DMX512-A
Receiver: RS-485
Firmware update: Serial upload via DMX link
Photometric Data
Light source: Luxeon K2 high power emitters
LED power per pixel: 2 x 1.2 W red, 2 x 2.9 W green, 2 x 2.9 W royal blue, 2 x 1.2 W amber, 1 x 2.9 W white
Total LED power per bar: 116 W
Even pitch across adjacent fixtures: Horizontal/vertical (Stagebar 54L), horizontal (Stagebar 54S)
Total output (max.): 1900 lm
Construction
Color: Black
Housing: Steel and aluminum
Finish: Electrostatic powder-coated
Protection rating: IP20
Installation
Mounting points: Adjustable mounting bracket, 1/4-turn locks, four M6 threaded holes
Orientation: Any
Connections
Power in/out: Neutrik PowerCon
Data in/out: RJ-45
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Integrated, auto-sensing multi-voltage
Power output fuse: 15 AT (slow blow)
Main fuse: 4 AT (slow blow)
Typical Power and Current
100 V, 50 Hz: 238 W. 2.5 A, PF 0.998
100 V, 60 Hz: 240 W, 2.5 A, PF 0.998
110 V, 60 Hz: 237 W, 2.3 A, PF 0.997
120 V, 60 Hz: 233 W, 2.1 A, PF 0.996
208 V, 60 Hz: 228 W, 1.2 A, PF 0.986
220 V, 50 Hz: 227 W, 1.1 A, PF 0.986
220 V, 60 Hz: 244 W, 1.3 A, PF 0.984
230 V, 50 Hz: 225 W, 1.1 A, PF 0.986
240 V, 50 Hz: 224 W, 1.0 A, PF 0.984
Figures apply to both S and L models with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal
Cooling: Filtered forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 5° C
Maximum surface temperature, steady state, Ta=40° C: 75° C
Total heat dissipation (calculated, +/- 10%): 860 BTU/hr.
Acoustic
Noise level: <40 dBA at 1 m, steady state, Ta 25° C
Licensing
Available under license from Color Kinetics Incorporated:
Approvals
EU safety: EN 60598-1, EN 60598-2-17, IEC/EN 60825-1
EU EMC: EN 55 015, EN 55 103-1, EN 55 103-2
US safety: ANSI/UL 1573
Canadian safety: CAN/CSA E 60598-2-17
Included Items
Diffuser front (54S models): 41704080
Diffuser front (54L models): 41704060
Adjustable floorstand/mounting bracket: 71606007
3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: 11541503
5-pin male XLR to male RJ-45 adapter (both cable connectors Neutrik in locking housing): 11840114
User manual: 35000195
Accessories
Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804
Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: 05342805
PowerCon daisy-chain power cable, 1.4 m: 11850099
PowerCon daisy-chain power cable, 2.25 m: 11850100
PowerCon daisy-chain power cable, 3.25 m: 11850101
RJ-45 patch cable, 250 mm: 11840088
RJ-45 patch cable, 600 mm: 11840105
5-pin male XLR to male RJ-45 adapter (both cable connectors Neutrik in locking housing): 11840114
5-pin female XLR to male RJ-45 adapter: 11840112
3-pin male XLR to male RJ-45 adapter: 11840087
3-pin female XLR to male RJ-45 adapter: 11840086
DMX termination plug, RJ-45: 91613028
Spare Parts
3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: 11541503
Diffuser front, 54S models: 41704080
Diffuser front, 54L models: 41704060
Lens array sheet with magnetic mounting (fits magnetic-type mounting posts only): 41350030
Adjustable floorstand/mounting bracket: 71606007
15 AT power output fuse: 05020050
4 AT main fuse: 05020016
Ordering Information
Stagebar 54S: 90352000
Stagebar 54L: 90352010
