Stagebar 54 (discontinued)

Stagebar 54
Larger Images

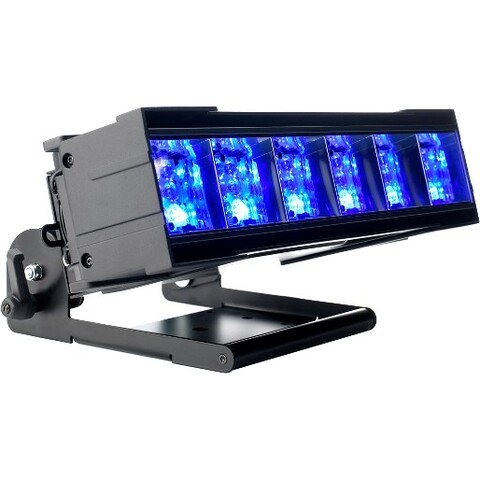

The new Stagebar 54 is a compact, powerful LED luminaire with a comprehensive color range, all-in-one simplicity and a tough temperament for the touring market. It functions as a pixel bar for displaying imagery and video or as a wash luminaire for floodlighting surfaces and stages.

Features

  • 54 LEDS in 5 colors - Red, Green, Blue, Amber and White
  • Consistent color with factory-calibrated pixels
  • Choice of lens options: 29° (standard) or opaque diffuser
  • Auto sensing SMPS for worldwide compatibility
  • Battery powered control menu for off-site set-up without power
  • Choice of DMX control modes: RGB, RGBAW, HSI, HSIC
  • All-in-one system with direct power & DMX inputs
  • Loop-through wiring of power and data to reduce cabling
  • Automatic heat management for optimum performance

Specifications

Physical Length: 420 mm, Stagebar 54S Length: 630 mm, Stagebar 54L Width: 190 mm Height: 105 mm Weight: 5.5 kg without bracket, Stagebar 54S Weight: 7.3 kg without bracket, Stagebar 54L
Dynamic Effects Color mixing: RGBAW Red: 0 - 100% Green: 0 - 100% Blue: 0 - 100% Amber: 0 - 100% White: 0 - 100%
Control and Programming Color control modes: RGBAW, RGB, HSI, HSIC DMX channels: 3 - 30 Grouped pixel control options: 6 x 1 (individual), 3 x 2, 2 x 3 or 1 x 6 (all as one group) pixels DMX address setting: Manual, auto addressing and auto address copy Fixture setup: Onboard control panel with display Display: Battery-powered backlit LCD, 2 x 16 characters 16-bit control (internal): RGBAW, RGB, HSI, HSIC Protocol: USITT DMX512-A Receiver: RS-485 Firmware update: Serial upload via DMX link
Photometric Data Light source: Luxeon K2 high power emitters LED power per pixel: 2 x 1.2 W red, 2 x 2.9 W green, 2 x 2.9 W royal blue, 2 x 1.2 W amber, 1 x 2.9 W white Total LED power per bar: 116 W Even pitch across adjacent fixtures: Horizontal/vertical (Stagebar 54L), horizontal (Stagebar 54S) Total output (max.): 1900 lm
Construction Color: Black Housing: Steel and aluminum Finish: Electrostatic powder-coated Protection rating: IP20
Installation Mounting points: Adjustable mounting bracket, 1/4-turn locks, four M6 threaded holes Orientation: Any
Connections Power in/out: Neutrik PowerCon Data in/out: RJ-45
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Integrated, auto-sensing multi-voltage Power output fuse: 15 AT (slow blow) Main fuse: 4 AT (slow blow)
Typical Power and Current 100 V, 50 Hz: 238 W. 2.5 A, PF 0.998 100 V, 60 Hz: 240 W, 2.5 A, PF 0.998 110 V, 60 Hz: 237 W, 2.3 A, PF 0.997 120 V, 60 Hz: 233 W, 2.1 A, PF 0.996 208 V, 60 Hz: 228 W, 1.2 A, PF 0.986 220 V, 50 Hz: 227 W, 1.1 A, PF 0.986 220 V, 60 Hz: 244 W, 1.3 A, PF 0.984 230 V, 50 Hz: 225 W, 1.1 A, PF 0.986 240 V, 50 Hz: 224 W, 1.0 A, PF 0.984 Figures apply to both S and L models with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C Minimum ambient temperature (Ta min.): 5° C Maximum surface temperature, steady state, Ta=40° C: 75° C Total heat dissipation (calculated, +/- 10%): 860 BTU/hr.
Acoustic Noise level: <40 dBA at 1 m, steady state, Ta 25° C
Licensing Available under license from Color Kinetics Incorporated:
Approvals EU safety: EN 60598-1, EN 60598-2-17, IEC/EN 60825-1 EU EMC: EN 55 015, EN 55 103-1, EN 55 103-2 US safety: ANSI/UL 1573 Canadian safety: CAN/CSA E 60598-2-17
CE ETL C US Intertek
Included Items Diffuser front (54S models): 41704080 Diffuser front (54L models): 41704060 Adjustable floorstand/mounting bracket: 71606007 3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: 11541503 5-pin male XLR to male RJ-45 adapter (both cable connectors Neutrik in locking housing): 11840114 User manual: 35000195
Accessories Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: 05342804 Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: 05342805 PowerCon daisy-chain power cable, 1.4 m: 11850099 PowerCon daisy-chain power cable, 2.25 m: 11850100 PowerCon daisy-chain power cable, 3.25 m: 11850101 RJ-45 patch cable, 250 mm: 11840088 RJ-45 patch cable, 600 mm: 11840105 5-pin male XLR to male RJ-45 adapter (both cable connectors Neutrik in locking housing): 11840114 5-pin female XLR to male RJ-45 adapter: 11840112 3-pin male XLR to male RJ-45 adapter: 11840087 3-pin female XLR to male RJ-45 adapter: 11840086 DMX termination plug, RJ-45: 91613028
Spare Parts 3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: 11541503 Diffuser front, 54S models: 41704080 Diffuser front, 54L models: 41704060 Lens array sheet with magnetic mounting (fits magnetic-type mounting posts only): 41350030 Adjustable floorstand/mounting bracket: 71606007 15 AT power output fuse: 05020050 4 AT main fuse: 05020016
Ordering Information Stagebar 54S: 90352000 Stagebar 54L: 90352010
