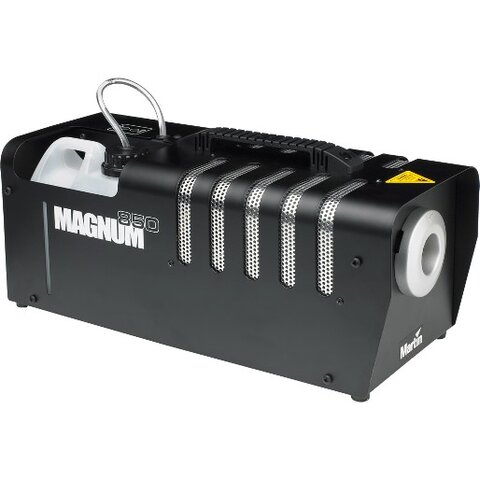

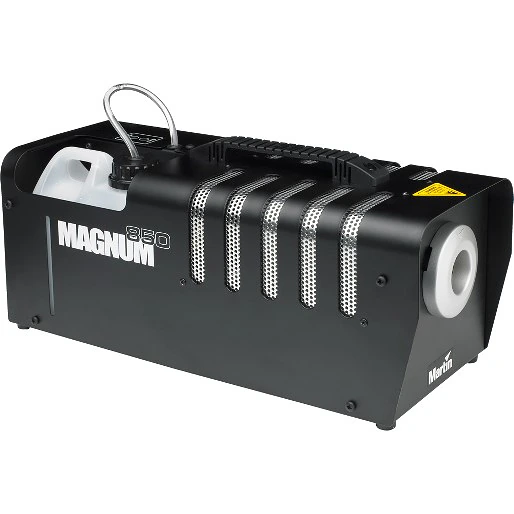

The Magnum 850 is the perfect fog machine for small nightclubs, mobile DJs and bands. Compact and lightweight, it offers substantial cost and maintenance benefits over a long operational life.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- Hand-held remote control
- Timer remote control (optional)
- Continuous output
- 200 m³/min fog output
- Housing: Steel and aluminum
- Linkable - up to 4 units can be operated at the same time with one remote
- 750 W heat exchanger
- 8 minute heat-up time
- 1 liter fluid capacity
- Different fluid options for different applications
Περισσότερες λεπτομέρειες
Physical
Length: 409 mm
Width: 165 mm
Height: 186 mm
Dry weight: 9.9 kg
Performance
Max. fog output (approx.): 200 m3 per minute
Max. operating time at full output (approx.): 80 minutes
Operating time: Continuous, automatic level adjustment
Warm-up time (approx.): 8 minutes
Control and Programming
Control options: Remote control (supplied)
Remote control features: Manual switch
Construction
Housing: Steel & aluminum
Heat exchanger: 750 W, direct thermal protection
Fluid System
Fluid pump: Oscillating piston, high pressure
Onboard fluid capacity: 1 l
Fluid consumption at peak output: 35 ml per minute
Installation
Orientation: Floor
Connections
Remote control: RJ-45
Power connection: 3-pin IEC male socket
Electrical
AC power (EU models): 220-240 V nominal, 50 Hz
AC power (US models): 110-120 V nominal, 60 Hz
Main fuse (220-240 V power): 6.3 AT (slow blow)
Main fuse (110-120 V power): 10 AT (slow blow)
Typical Power and Current
US model:
120 V, 60 Hz: 790 W, 6.6 A
EU model:
240 V, 50 Hz: 790 W, 3.4 A
Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal
Maximum ambient temperature (Ta max.): 40° C
Exterior surface temperature, steady state: 40° C
Max. nozzle temperature: 200° C
Approvals
EU safety: EN 50 081-1, EN 50 082-1
EU safety: EN 60 335-1 (1995)
US safety: UL Std. 60335-1
ETL US ONLY
ETL US ONLY Included Items
User manual: 35010029
Remote control: 92765030
Power cable 1.5 m IEC w/o end plug: 11501012
Container 1 l: 34300001
Accessories
Pro Smoke Super (ZR Mix) fluid:
Regular DJ (DJ mix) fluid:
Timer Remote (Mag 850): 92765032
Ordering Information
Martin Magnum 850, 110 V: 92229110
Martin Magnum 850, 240 V: 92229111
