Magnum 850 (discontinued)

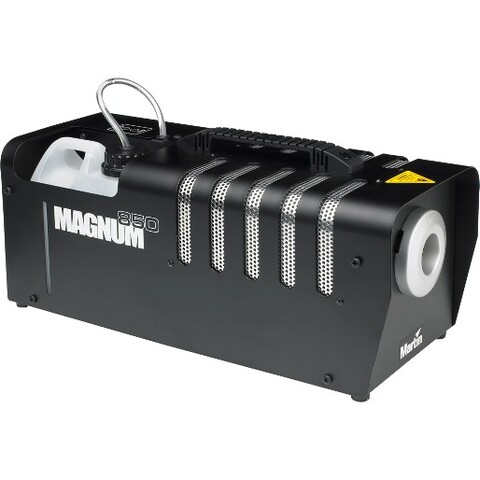

Magnum 850
Larger Images

The Magnum 850 is the perfect fog machine for small nightclubs, mobile DJs and bands. Compact and lightweight, it offers substantial cost and maintenance benefits over a long operational life.


  • Hand-held remote control
  • Timer remote control (optional)
  • Continuous output
  • 200 m³/min fog output
  • Housing: Steel and aluminum
  • Linkable - up to 4 units can be operated at the same time with one remote
  • 750 W heat exchanger
  • 8 minute heat-up time
  • 1 liter fluid capacity
  • Different fluid options for different applications


Physical Length: 409 mm Width: 165 mm Height: 186 mm Dry weight: 9.9 kg
Performance Max. fog output (approx.): 200 m3 per minute Max. operating time at full output (approx.): 80 minutes Operating time: Continuous, automatic level adjustment Warm-up time (approx.): 8 minutes
Control and Programming Control options: Remote control (supplied) Remote control features: Manual switch
Construction Housing: Steel & aluminum Heat exchanger: 750 W, direct thermal protection
Fluid System Fluid pump: Oscillating piston, high pressure Onboard fluid capacity: 1 l Fluid consumption at peak output: 35 ml per minute
Installation Orientation: Floor
Connections Remote control: RJ-45 Power connection: 3-pin IEC male socket
Electrical AC power (EU models): 220-240 V nominal, 50 Hz AC power (US models): 110-120 V nominal, 60 Hz Main fuse (220-240 V power): 6.3 AT (slow blow) Main fuse (110-120 V power): 10 AT (slow blow)
Typical Power and Current US model: 120 V, 60 Hz: 790 W, 6.6 A EU model: 240 V, 50 Hz: 790 W, 3.4 A Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C Exterior surface temperature, steady state: 40° C Max. nozzle temperature: 200° C
Approvals EU safety: EN 50 081-1, EN 50 082-1 EU safety: EN 60 335-1 (1995) US safety: UL Std. 60335-1
Included Items User manual: 35010029 Remote control: 92765030 Power cable 1.5 m IEC w/o end plug: 11501012 Container 1 l: 34300001
Accessories Pro Smoke Super (ZR Mix) fluid: Regular DJ (DJ mix) fluid: Timer Remote (Mag 850): 92765032
Ordering Information Martin Magnum 850, 110 V: 92229110 Martin Magnum 850, 240 V: 92229111


  Version Language Size Uploaded
file type icon User Manual (650 & 850)
en version G, updated: Oct 2020
en  916 KB Oct 2020
file type icon Manuel d´utilisation (650 & 850)
fr version G, updated: Oct 2020
fr  886 KB Oct 2020
file type icon Dimensions - PDF
en version A, updated: Oct 2020
en  115 KB Oct 2020
file type icon Dimensions - DXF
en version A, updated: Oct 2020
en  5 MB Oct 2020
file type icon CE Compliance Magnum 850
en version A, updated: Oct 2020
en  69.6 KB Oct 2020
file type icon Martin Heat Exchange Part Numbers
en version B, updated: Oct 2020
en  116 KB Oct 2020
Service Procedures
Temperature calibration methods
en version A, updated: May 2018
A   en    May 2018
Service Notes
Power cable replacement for customers in Canada
en version A, updated: May 2018
A   en    May 2018
