MAC Viper Profile

Luminaria de perfil de descarga de alto rendimiento con mezcla de color CMY

MAC Viper Profile
Imágenes más grandes

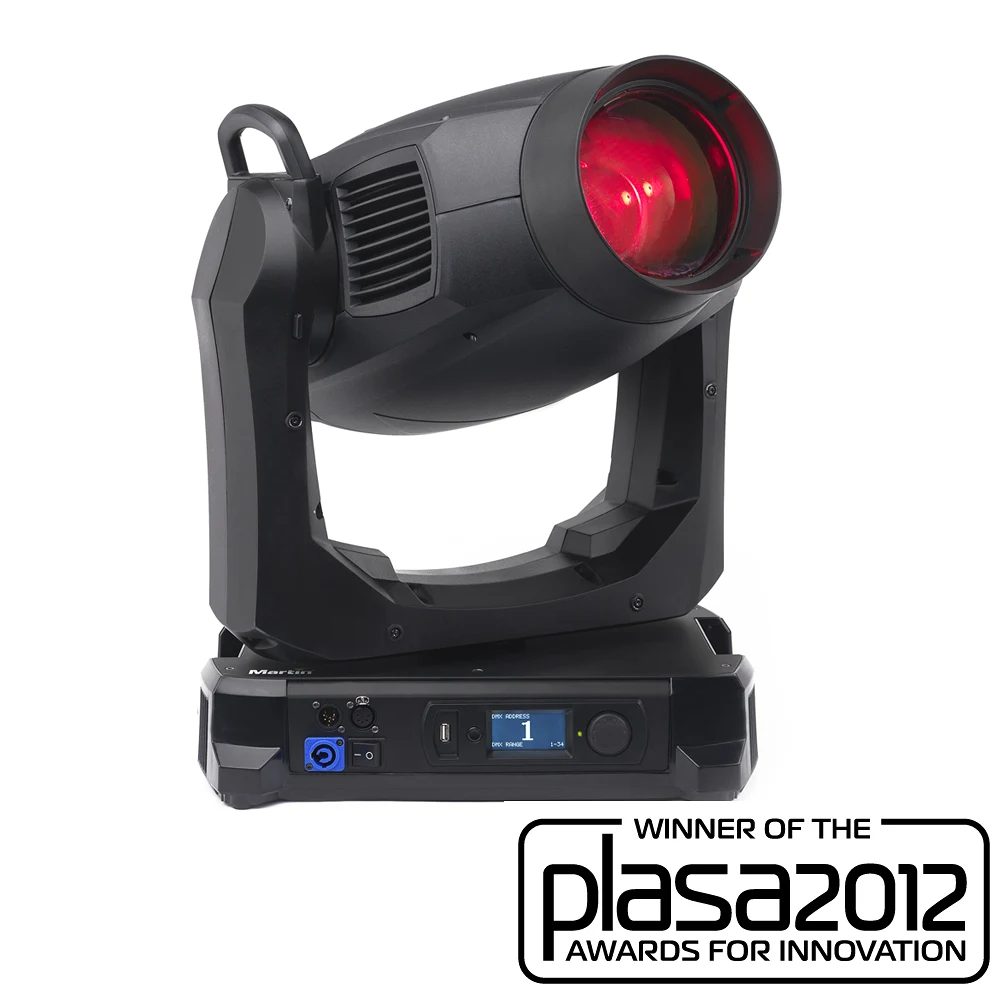

El MAC Viper Profile es una nueva generación de luminaria profile de alto rendimiento con un conjunto excepcional de características, una calidad de luz superior y un sistema óptico altamente eficiente. Supera a todos los perfiles líderes del mercado en el rango de 1200 vatios e incluso es una alternativa a las luminarias de 1500 vatios. El Viper Profile no solo es más brillante, sino también una solución más rápida y compacta. Con su fuente HID de 1000 vatios, el Viper consume menos potencia, lo que lo hace más del 50% más eficiente que sus rivales de 1200 vatios.

  • 26000 Lúmenes – Excelente calidad de luz con un campo muy plano y uniforme y una temperatura de color de 6000K
  • Zoom 1:4 – Zoom rápido con enfoque vinculado automáticamente
  • Lente frontal de gran apertura – La lente frontal de 140 mm supera el tamaño de cualquier otra luminaria en este segmento para obtener justo el efecto de haz ancho deseado

Videos





Características

  • 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
  • 1:4 zoom – Fast zoom with auto-linked focus
  • Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look
  • 2 x 5-slot rotating gobo wheels - All glass gobos with optimal focal separation for superior morphing effects
  • FX wheel – Patent-pending FX wheel provides an additional 4 fixed gobos and 135° animation effect
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • 8-slot color wheel – Static colors and correction filters for added color choice and bump effects
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – Fast and tight iris with adjustable dynamic effects
  • Strobe – Diverse strobe effects using mechanical or electronic control or in combination
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring option
  • 4-facet prism – Real beam separation with rotation and index control for dynamic effects and accurate tiling

Especificaciones

  • Physical Length: 566 mm (22.3 in.) head Ancho:

    472 mm (18.6 in.)
    335 mm (13.2 in.) base

     Altura:

    731 mm (28.8 in.) head straight up
    748 mm (29.5 in.) maximum

     PESO: 37.2 kg (82.0 lbs.)
    Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color wheel: 8 interchangeable dichroic filters + open, indexing, continuous rotation, random color Aerial wheel: 5 interchangeable aerial effects + open, indexing, continuous rotation and shake Breakup wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake FX wheel: Interchangeable static gobo and gobo animation effects Iris: 0 - 100%, pulse effects Zoom: Motorized Color temperature control: CTO, variable 6000 - 3200 K Prism: Interchangeable 4-facet rotating prism Frost: Frost filter Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Dimming options: Choice of four dimming curves Zoom-focus linking system: 3-zone Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.)
    Control and Programming Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX 16-bit control: Aerial, breakup and texture effect rotation and indexing, focus, zoom, pan and tilt DMX channels: 26/34 Receiver: Opto-isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
    Optics Zoom range: 10-44° (1:4) Color temperature: 6000 K Output: 26,000 lm
    Photometric Data Color Temperature: 3,200 - 6,000 K

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Lamp Type: 1000 W short-arc discharge CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20
    Gobos Size: E27 (Size E, max. image diameter 27 mm) Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved) Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.) Maximum image diameter: 27 mm (1.1 in.) Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)
    Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
  • Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
    Electrical

    AC power: 120-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 A
    Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V
    Typical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V *
    Power Consumption
    Typical: 1225 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 22 lm/w LWR*:

    LWR = Lumen-to-Weight Ratio
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items Lamp (installed): P/N 97010346 Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001 Safety and installation manual: P/N 35000258
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power Input Cables:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Power connectors: Power Connector PowerCON Female : P/N 91611794
    Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001
    T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008
    Half-coupler (tube) clamp: P/N 91602005
    G-clamp (suspension with yoke vertically downwards only): P/N 91602003
    Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Flightcase for 2 x MAC Viper: P/N 91510180


    Spare Parts Osram HTI 1000/PS Lok-it lamp: P/N 97010346 Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
    Ordering Information MAC Viper™ Profile in cardboard box: P/N 90233000 MAC Viper™ Profile in double flightcase: P/N 90233010
    Shipping Information In cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 41 kg (90.4 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 350 kg (771.7 lbs.)

Descargas

Specifications
  Versión Idioma Tamaño Subido
file type icon MAC Viper Profile - Acoustic Test Report
en versión A, actualizado: oct 2021
A  en  591 KB oct 2021
file type icon MAC Viper Family - Flightcase Spec Sheet
en versión A, actualizado: oct 2021
A  en  417 KB oct 2021
file type icon MAC Viper Profile - Spec Sheet
en versión A, actualizado: oct 2021
A  en  407 KB oct 2021
Manuals
  Versión Idioma Tamaño Subido
file type icon MAC Viper Profile- Sicherheits- und Installationshinweise
de actualizado: dic 2023
  de  17,6 MB dic 2023
file type icon MAC Viper Profile- Manuel D’Installation et Securite
fr actualizado: dic 2023
  fr  7,07 MB dic 2023
file type icon MAC Viper Profile- Safety and Installation Manual
en actualizado: dic 2023
  en  17,6 MB dic 2023
file type icon MAC Viper Profile- User Guide
en versión D, actualizado: may 2018
D  en  12,2 MB may 2018
file type icon MAC Viper Profile- Bedienungsanleitung
de versión D, actualizado: dic 2023
D  de  10,4 MB dic 2023
Brochures
  Tamaño Subido
file type icon Tour Audio & Lighting Brochure
actualizado: sep 2017
23,9 MB sep 2017
Photometrics
  Versión Idioma Tamaño Subido
file type icon MAC Viper Profile - Photometric Files
en versión A, actualizado: mar 2024
A  en  217 KB mar 2024
Illustrations
  Versión Idioma Tamaño Subido
file type icon MAC Viper Profile & Performance - Dimensions (2D DXF)
en versión A, actualizado: may 2018
A  en  1,59 MB may 2018
file type icon MAC Viper Profile and Performance - Dimensions (2D PDF)
en versión A, actualizado: may 2018
A  en  906 KB may 2018
Symbols
  Versión Idioma Tamaño Subido
file type icon Vectorworks Symbols
en versión 4.6, actualizado: ene 2026
4.6  en  249 MB ene 2026
file type icon AutoCAD 3D Symbols
en versión 2.8, actualizado: ene 2026
2.8  en  18,7 MB ene 2026
file type icon AutoCAD 2D Symbols
en versión 2.8, actualizado: ene 2026
2.8  en  4,42 MB ene 2026
file type icon Martin Professional GDTF Library
en versión A, actualizado: oct 2023
A  en  203 Bytes oct 2023
CAD Drawings
  Versión Idioma Tamaño Subido
file type icon Clamps - Omega Bracket (3D DWG)
en versión A, actualizado: oct 2020
A  en  366 KB oct 2020
file type icon MAC Viper Profile & Performance - Vertical (3D DWG)
en versión A, actualizado: may 2018
A  en  5,07 MB may 2018
file type icon MAC Viper Profile - Head Vertical (3DS)
en versión A, actualizado: may 2018
A  en  3,5 MB may 2018
file type icon MAC Viper Profile - Head Horizontal (3DS)
en versión A, actualizado: may 2018
A  en  3,11 MB may 2018
file type icon MAC Viper Profile & Performance - Horizontal (3D DWG)
en versión A, actualizado: may 2018
A  en  5,28 MB may 2018
file type icon MAC Viper Profile - Horizontal (3D Step)
en versión A, actualizado: may 2018
A  en  29,2 MB may 2018
file type icon Clamps - Half Coupler (3D DWG)
en versión A, actualizado: oct 2020
A  en  448 KB oct 2020
Compliances
  Versión Idioma Tamaño Subido
file type icon Safety Document (SDS) for Batteries
en versión D, actualizado: ene 2026
D  en  332 KB ene 2026
file type icon MAC Viper Series - EU Declaration of Conformity
en versión D, actualizado: mar 2019
D  en  729 KB mar 2019
file type icon MAC Viper Series - ETL Listing Verification
en versión C, actualizado: oct 2020
C  en  398 KB oct 2020
Parts
  Versión Idioma Tamaño Subido
MAC Viper - New part number for yoke handle
en versión A, actualizado: may 2018
A   en    may 2018
MAC Viper Series - Alternative Lamp Approved
en versión A, actualizado: may 2018
A   en    may 2018
Service Procedures
  Versión Idioma Tamaño Subido
file type icon MAC Viper Profile - Maintenance Schedule (End-User)
en versión 2.0.0, actualizado: may 2018
2.0.0  en  24,9 KB may 2018
Service Notes
  Versión Idioma Tamaño Subido
MAC Viper Series - Correct lamp socket is PGJX36
en versión A, actualizado: may 2018
A   en    may 2018
MAC Viper Series - Air Filter Options
en versión A, actualizado: may 2018
A   en    may 2018
MAC Viper Profile - Live heat sink in base
en versión A, actualizado: may 2018
A   en    may 2018
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
versión 4, actualizado: oct 2020
4    743 KB oct 2020
file type icon Mac Viper Profile IP
actualizado: sep 2017
    sep 2017
file type icon Mac Viper Series - Head Air Filter Replacement
en versión B, actualizado: may 2018
B  en  403 KB may 2018
file type icon MAC Viper Series - Lamp orientation from mid-2013
en versión A, actualizado: oct 2020
A  en  1,79 MB oct 2020
Tech Notes
  Tamaño Subido
file type icon Service mode used as follow spot mode
actualizado: sep 2017
sep 2017
file type icon Discharge Lighting Shutdown Guidelines
actualizado: sep 2017
sep 2017
file type icon MAC Viper Air Filter Options
actualizado: sep 2017
sep 2017
file type icon MAC Viper Service Notes
actualizado: sep 2017
sep 2017
file type icon MAC Viper Parts
actualizado: sep 2017
sep 2017
file type icon Avoiding damage from sunlight and other light sources
actualizado: sep 2017
sep 2017
Hints and Tips
  Versión Idioma Tamaño Subido
MAC Viper Series - Service mode used as follow spot mode
en versión A, actualizado: may 2018
A   en    may 2018
Discharge Lighting Shutdown Guidelines
en versión A, actualizado: may 2018
A   en    may 2018
Avoiding damage from sunlight and other light sources
en versión B, actualizado: may 2018
B   en    may 2018
IPRs
  Versión Idioma Tamaño Subido
MAC Viper Profile - Intellectual Property Rights (IPR)
en versión A, actualizado: may 2018
A   en    may 2018
Firmware
  Versión Tamaño Subido
download icon for MAC Viper Profile - Firmware MAC Viper Profile - Firmware
versión 2.3.0B, actualizado: jun 2026
2.3.0B   jun 2026

Si alguno de los enlaces anteriores muestra caracteres extraños en su navegador, haga clic con el botón derecho en el archivo para guardarlo en su computadora.

Noticias

HARMAN Pro Insights

How to Program a Festival Lighting Rig feature

How to Program a Festival Lighting Rig

Music festivals have come a long way since Woodstock defined a generation more than 50 years ago. Weekend-long events like Coachella, Glastonbury, Primavera and Bonnaroo are cultural events that regularly draw hundreds of thousands of fans to see many of their favorite music artists in

CONTINUE READING

Sound Image Amps Up Heart’s “Love Alive Tour” with JBL Pro Audio and Martin Lighting feature

Sound Image Amps Up Heart’s “Love Alive Tour” with JBL Pro Audio and Martin Lighting

One of the most beloved classic rock acts of the 1970s, Heart continues to draw massive crowds of die hard fans for their spectacular live shows. On the band’s “Love Alive Tour”, they played alongside a roster of all-star supporting acts, including Joan Jett &

CONTINUE READING

Breaking Benjamin Delivers Sensational Tour Lighting with Martin by HARMAN feature

Breaking Benjamin Delivers Sensational Tour Lighting with Martin by HARMAN

Breaking Benjamin is one of the most beloved hard rock bands of the last two decades. Known for hits like “The Diary of Jane,” “I Will Not Bow,” “So Cold” and “Breath,” Breaking Benjamin has sold more than seven million albums in the United States

CONTINUE READING

Soporte/FAQs

HARMAN Professional Solutions:
ffind_dealer
hhave_question
cSoporte para Consultores

MAC Viper Profile

Luminaria de perfil de descarga de alto rendimiento con mezcla de color CMY

HARMAN Professional Solutions:
ffind_dealer
hhave_question
cSoporte para Consultores
