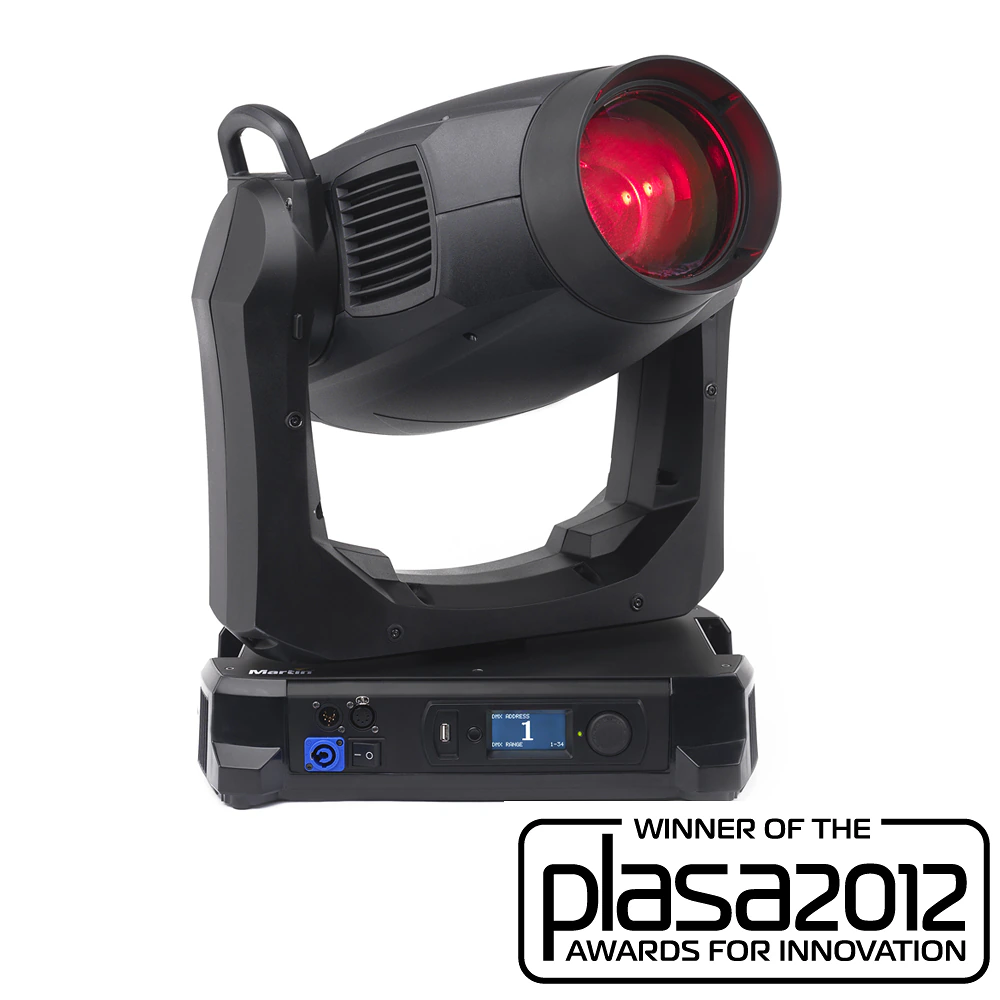

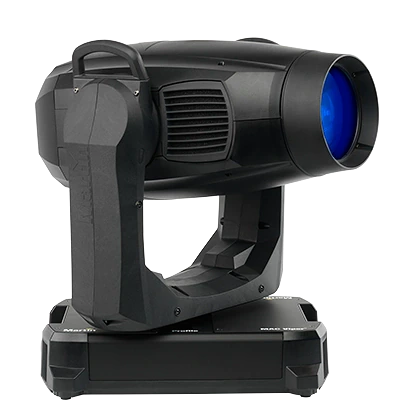

MAC Viper Profile

High output discharge-based profile luminare with CMY color mixing

Larger Images

The MAC Viper Profile is a new breed of high-output profile luminaire with an exceptional feature set, superior light quality and a highly efficient optical system. It outperforms all market-leading profiles in the 1200-watt range and is even an alternative to 1500-watt fixtures. The Viper Profile is not only brighter, it is also a faster and more compact solution. With its 1000-watt HID source, the Viper consumes less power, making it over 50% more efficient than its 1200-watt rivals.

  • 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
  • 1:4 zoom – Fast zoom with auto-linked focus
  • Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look

Videos

MAC Viper Profile™



Features

  • 26000 Lumens – Excellent light quality with a very flat and uniform field and 6000K color temperature
  • 1:4 zoom – Fast zoom with auto-linked focus
  • Large aperture front lens – The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look
  • 2 x 5-slot rotating gobo wheels - All glass gobos with optimal focal separation for superior morphing effects
  • FX wheel – Patent-pending FX wheel provides an additional 4 fixed gobos and 135° animation effect
  • CMY – Vibrant color mixing with a superior palette of colors including true reds, rich ambers, primary green and deep blues
  • 8-slot color wheel – Static colors and correction filters for added color choice and bump effects
  • Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
  • Dimmer and shutter - Combined dimmer/shutter system with intensity effects, instant blackout/open and smooth fades
  • Iris – Fast and tight iris with adjustable dynamic effects
  • Strobe – Diverse strobe effects using mechanical or electronic control or in combination
  • Soft frost – A light frost leaves gobo artwork visible with a beautiful soft edge. Includes a linear focus blurring option
  • 4-facet prism – Real beam separation with rotation and index control for dynamic effects and accurate tiling

Specifications

  • Physical Length: 566 mm (22.3 in.) head Width:

    472 mm (18.6 in.)
    335 mm (13.2 in.) base

    Height:

    731 mm (28.8 in.) head straight up
    748 mm (29.5 in.) maximum

    Weight: 37.2 kg (82.0 lbs.)
    Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color temperature control: CTO, variable 6000 - 3200 K Color wheel: 8 interchangeable dichroic filters + open, indexing, continuous rotation, random color Aerial wheel: 5 interchangeable aerial effects + open, indexing, continuous rotation and shake Breakup wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake FX wheel: Interchangeable static gobo and gobo animation effects Iris: 0 - 100%, pulse effects Zoom: Motorized Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.) Prism: Interchangeable 4-facet rotating prism Frost: Frost filter Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Dimming options: Choice of four dimming curves Zoom-focus linking system: 3-zone Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring
    Control and Programming 16-bit control: Aerial, breakup and texture effect rotation and indexing, focus, zoom, pan and tilt Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX DMX channels: 26/34 Receiver: Opto-isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
    Optics Zoom range: 10-44° (1:4) Color temperature: 6000 K Output: 26,000 lumens
    Lamp Type: 1000 W short-arc discharge CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20
    Gobos Size: E27 (Size E, max. image diameter 27 mm) Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved) Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.) Maximum image diameter: 27 mm (1.1 in.) Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)
    Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
    Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
  • Electrical AC power: 120-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical half-cycle RMS inrush current: 16.2 A
    Typical Power and Current 120 V, 60 Hz: 1225 W, 10.3 A, PF 0.999 208 V, 60 Hz: 1190 W, 5.8 A, PF 0.996 230 V, 50 Hz: 1186 W, 5.2 A, PF 0.994 240 V, 50 Hz: 1194 W, 5.0 A, PF 0.993 Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.
    Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F) Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items Lamp (installed): P/N 97010346 Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001 Safety and installation manual: P/N 35000258
    Accessories Power Input Cables:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Power connectors: Power Connector PowerCON Female : P/N 91611794
    Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001
    T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008
    Half-coupler (tube) clamp: P/N 91602005
    G-clamp (suspension with yoke vertically downwards only): P/N 91602003
    Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Flightcase for 2 x MAC Viper: P/N 91510180



    Related Items Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Spare Parts Osram HTI 1000/PS Lok-it lamp: P/N 97010346 Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
    Ordering Information MAC Viper™ Profile in cardboard box: P/N 90233000 MAC Viper™ Profile in double flightcase: P/N 90233010
    Shipping Information In cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 41 kg (90.4 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 350 kg (771.7 lbs.)

Downloads

  Version Language Size Uploaded
Specifications
MAC Viper Profile Spec Sheet-English
en updated: Jul 09, 2018
  en  407 KB Jul 09, 2018
MAC Viper Profile - Acoustic Report
en version A, updated: May 18, 2018
en  591 KB May 18, 2018
Manuals
Manuel d´utilisation
fr version D, updated: May 18, 2018
fr  7.49 MB May 18, 2018
User guide, Safety and installation manual
en version E, updated: May 18, 2018
en  18.5 MB May 18, 2018
Bedienungsanleitung
de version D, updated: May 18, 2018
de  10.4 MB May 18, 2018
Brochures
Tour Audio & Lighting Brochure
updated: Sep 20, 2017
    23.9 MB Sep 20, 2017
Illustrations
MAC Viper Profile & Performance - Dimensions (2D DXF)
en version A, updated: May 18, 2018
en  1.59 MB May 18, 2018
MAC Viper Profile and Performance - Dimensions (2D PDF)
en version A, updated: May 18, 2018
en  906 KB May 18, 2018
3D Symbols
Vectorworks Symbols
en version 2.7, updated: Oct 08, 2019
2.7  en  251 MB Oct 08, 2019
CAD Drawings
Clamps - Omega Bracket (3D DWG)
en version A, updated: May 11, 2018
en  366 KB May 11, 2018
MAC Viper Profile & Performance - Vertical (3D DWG)
en version A, updated: May 18, 2018
en  5.07 MB May 18, 2018
MAC Viper Profile - Head Vertical (3DS)
en version A, updated: May 18, 2018
en  3.5 MB May 18, 2018
MAC Viper Profile - Head Horizontal (3DS)
en version A, updated: May 18, 2018
en  3.11 MB May 18, 2018
MAC Viper Profile & Performance - Horizontal (3D DWG)
en version A, updated: May 18, 2018
en  5.28 MB May 18, 2018
MAC Viper Profile - Horizontal (3D Step)
en version A, updated: May 18, 2018
en  29.2 MB May 18, 2018
Clamps - Half Coupler (3D DWG)
en version A, updated: May 11, 2018
en  448 KB May 11, 2018
Compliances
MAC Viper Series - ETL Listing Verification
en version C, updated: May 18, 2018
en  398 KB May 18, 2018
MAC Viper Series - EU Declaration of Conformity
en version D, updated: Mar 04, 2019
en  729 KB Mar 04, 2019
Software
MAC Viper Profile Software
version 2.3.0B, updated: Sep 26, 2017
2.3.0B    5.1 MB Sep 26, 2017
Parts
MAC Viper - New part number for yoke handle
en version A, updated: May 22, 2018
en    May 22, 2018
MAC Viper Series - Alternative Lamp Approved
en version A, updated: May 23, 2018
en    May 23, 2018
Service Procedures
MAC Viper Profile - Service Procedures (User)
en version A, updated: May 22, 2018
en    May 22, 2018
MAC Viper Profile - Maintenance Schedule (End-User)
en version 2.0.0, updated: May 18, 2018
2.0.0  en  24.9 KB May 18, 2018
Service Notes
MAC Viper Profile - Live heat sink in base
en version A, updated: May 22, 2018
en    May 22, 2018
MAC Viper Series - Air Filter Options
en version A, updated: May 22, 2018
en    May 22, 2018
MAC Viper Series - Correct lamp socket is PGJX36
en version A, updated: May 22, 2018
en    May 22, 2018
3D Partsfinder - Opening using Solid Works Composer Player
version 3, updated: Oct 01, 2019
  814 KB Oct 01, 2019
Mac Viper Series - Head Air Filter Replacement
en version B, updated: May 18, 2018
en  403 KB May 18, 2018
Mac Viper Profile IP
updated: Sep 22, 2017
    Sep 22, 2017
MAC Viper Series - Lamp orientation from mid-2013
en version A, updated: May 19, 2018
en  1.79 MB May 19, 2018
Tech Notes
Service mode used as follow spot mode
updated: Sep 22, 2017
    Sep 22, 2017
Discharge Lighting Shutdown Guidelines
updated: Sep 22, 2017
    Sep 22, 2017
MAC Viper Air Filter Options
updated: Sep 26, 2017
    Sep 26, 2017
MAC Viper Service Notes
updated: Sep 26, 2017
    Sep 26, 2017
MAC Viper Parts
updated: Sep 26, 2017
    Sep 26, 2017
Avoiding damage from sunlight and other light sources
updated: Sep 22, 2017
    Sep 22, 2017
Hints And Tips
Discharge Lighting Shutdown Guidelines
en version A, updated: May 22, 2018
en    May 22, 2018
Avoiding damage from sunlight and other light sources
en version B, updated: May 22, 2018
en    May 22, 2018
MAC Viper Series - Service mode used as follow spot mode
en version A, updated: May 22, 2018
en    May 22, 2018
Iprs
MAC Viper Profile - Intellectual Property Rights (IPR)
en version A, updated: May 22, 2018
en    May 22, 2018
