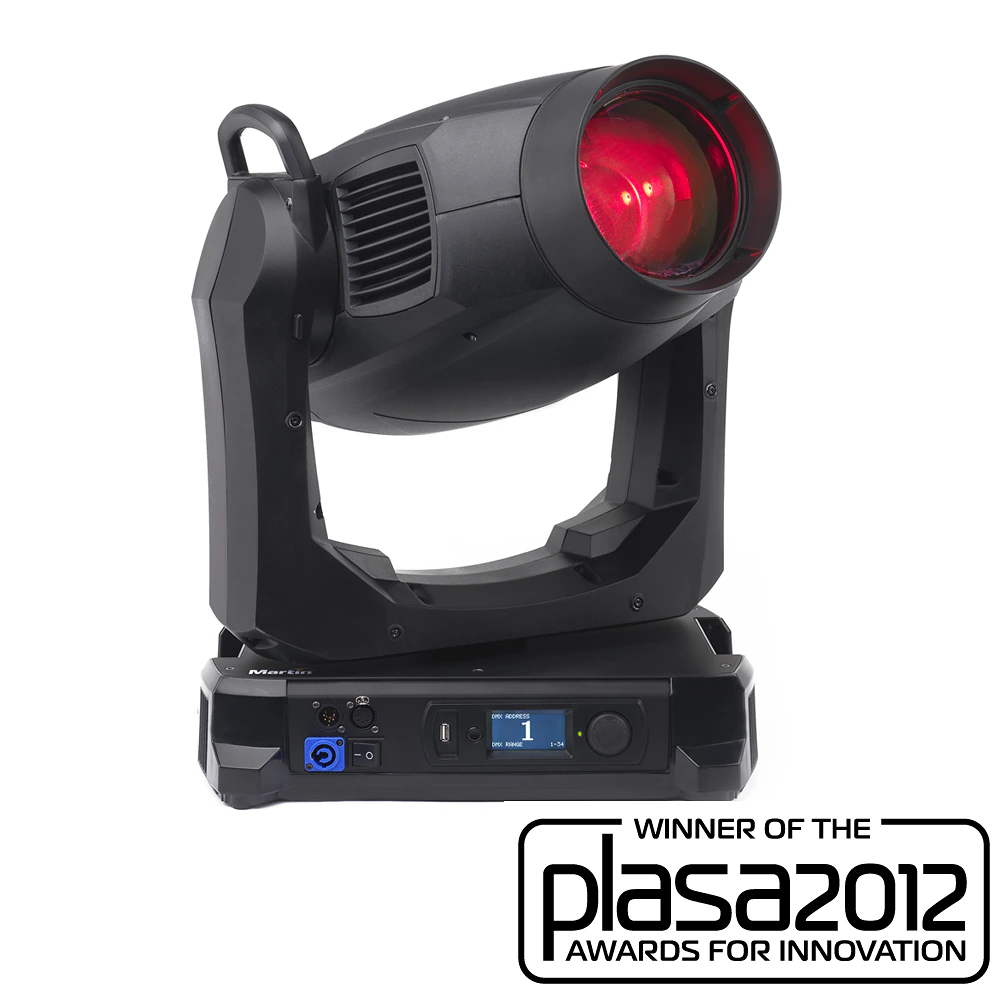

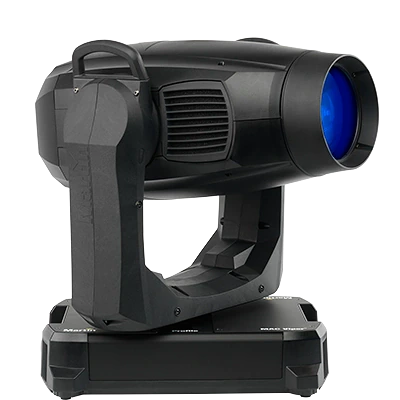

MAC Viper Profile

Högeffektiv urladdningsbaserad profilarmatur med CMY-färgblandning

MAC Viper Profile
Större bilder

MAC Viper Profile är en ny typ av högeffektiv profileljusmaskine med ett exceptionellt funktionsutbud, överlegsen ljuskvalitet och ett mycket effektivt optiksystem. Den överträffar alla marknedledande profiler i 1200-watts-klassen och är även ett alternativ till 1500-watts-armaturer. Viper Profile är inte bara ljusare, den är också en snabbare och mer kompakt lösning. Med sin 1000-watts HID-källa förbrukar Viper mindre kraft, vilket gör den över 50% mer effektiv än dess 1200-watts-konkurrenter.

  • 26000 Lumens – Utmärkt ljuskvalitet med ett mycket jämnt och uniformt ljusfält och 6000K färgtemperatur
  • 1:4 zoom – Snabb zoom med automatiskt länkad fokus
  • Stor frontlinsmunning – Frontlinsen på 140 mm överträffar storleken på alla andra armaturer i detta segment för helt rätt fet strålkaraktär

Videor





Funktioner

  • 26000 Lumen – Utmärkt ljuskvalitet med mycket jämn och enhetlig fältfördelning och färgtemperatur på 6000K
  • 1:4 zoom – Snabb zoom med automatiskt länkad fokus
  • Stort främre lins – Det 140 mm stora främre linsen överträffar storleken på alla andra armaturer i detta segment för precis rätt tjock strålkaraktär
  • 2 x 5-spåriga roterande gobohjul - Alla glaskobos med optimal fokalseparation för överlägsna morphing-effekter
  • FX-hjul – Patenthängande FX-hjul erbjuder 4 ytterligare fasta gobos och 135° animationseffekt
  • CMY – Vibrerande färgblandning med en överlägsen färgpalett inklusive rena röda, rika bernsteinfärger, primär grön och djupa blå
  • 8-spårigt färghjul – Statiska färger och korrektionsfilter för utökat färgurval och bump-effekter
  • Linjär CTO – Dagsljus till volfram-CCT-kontroll och utökning av CMY-paletten
  • Dimmer och slutare - Kombinerat dimmer-/slutarsystem med intensitetseffekter, omedelbar mörkläggning/öppning och smidiga övergångar
  • Iris – Snabb och precis iris med justerbara dynamiska effekter
  • Strobe – Olika stroboeffekter med mekanisk eller elektronisk kontroll eller i kombination
  • Mjuk frost – En lätt frost håller gobo-motivet synligt med en vacker mjuk kant. Inkluderar ett linjärt fokusoskärningsalternativ
  • 4-fasettat prisma – Verklig strålseparation med rotations- och indexkontroll för dynamiska effekter och exakt tessellering

Specifikationer

  • Physical Length: 566 mm (22.3 in.) head Width:

    472 mm (18.6 in.)
    335 mm (13.2 in.) base

    Height:

    731 mm (28.8 in.) head straight up
    748 mm (29.5 in.) maximum

    Weight: 37.2 kg (82.0 lbs.)
    Dynamic Effects Color mixing: CMY, independently variable 0 - 100% Color wheel: 8 interchangeable dichroic filters + open, indexing, continuous rotation, random color Aerial wheel: 5 interchangeable aerial effects + open, indexing, continuous rotation and shake Breakup wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake FX wheel: Interchangeable static gobo and gobo animation effects Iris: 0 - 100%, pulse effects Zoom: Motorized Color temperature control: CTO, variable 6000 - 3200 K Prism: Interchangeable 4-facet rotating prism Frost: Frost filter Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Dimming options: Choice of four dimming curves Zoom-focus linking system: 3-zone Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.)
    Control and Programming Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX 16-bit control: Aerial, breakup and texture effect rotation and indexing, focus, zoom, pan and tilt DMX channels: 26/34 Receiver: Opto-isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: USB memory device or USB/DMX hardware interface over DMX link
    Optics Zoom range: 10-44° (1:4) Color temperature: 6000 K Output: 26,000 lm
    Photometric Data Color Temperature: 3,200 - 6,000 K

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

    Lamp Type: 1000 W short-arc discharge CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips MSR Gold MiniFastFit 1000W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20
    Gobos Size: E27 (Size E, max. image diameter 27 mm) Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved) Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.) Maximum image diameter: 27 mm (1.1 in.) Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.)
    Installation Mounting points: Eight quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.)
  • Connections AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
    Electrical

    AC power: 120-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 16.2 A
    Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V
    Typical current draw: 10.3 A @ 120 V , 5.8 A @ 208 V , 5.2 A @ 230 V , 5.0 A @ 240 V *
    Power Consumption
    Typical: 1225 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.

    Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 22 lm/w LWR*:

    LWR = Lumen-to-Weight Ratio

    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class A Canadian safety: CSA E598-2-17 (CSA E60598-1) Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241
    Included Items Lamp (installed): P/N 97010346 Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001 Safety and installation manual: P/N 35000258
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Power Input Cables:

    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
    Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
    Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
    (H07RN-F are European approved cables, SJOOW are US approved cables)

    Power connectors: Power Connector PowerCON Female : P/N 91611794
    Omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602001
    T-shaped omega clamp attachment bracket with 1/4-turn fasteners: P/N 91602008
    Half-coupler (tube) clamp: P/N 91602005
    G-clamp (suspension with yoke vertically downwards only): P/N 91602003
    Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
    Flightcase for 2 x MAC Viper: P/N 91510180



    Spare Parts Osram HTI 1000/PS Lok-it lamp: P/N 97010346 Air filter, head, MAC Viper (sold in multiples of 12): P/N 20800270
    Ordering Information MAC Viper™ Profile in cardboard box: P/N 90233000 MAC Viper™ Profile in double flightcase: P/N 90233010
    Shipping Information In cardboard carton:

    Shipping dimensions (LxWxH): 580 x 450 x 870 mm (22.9 x 17.8 x 34.3 in.)
    Shipping weight: 41 kg (90.4 lbs.)
    Quantity on pallet: 8 fixtures
    Pallet dimensions (LxWxH): 1200 x 1000 x 1860 mm (47.3 x 39.4 x 73.3 in.)
    Pallet weight (incl. pallet): 350 kg (771.7 lbs.)
