• Physical Length: 385 mm (15.2 in.) Width: 410 mm (16.2 in.) across yoke Height:

  609 mm (24.0 in.) maximum
  603 mm (23.8 in.) head straight up

  Weight: 17.6 kg (38.8 lbs.) Minimum center-to-center distance in side-by-side installation: 510 mm (20.1 in.)
  Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: RGB(W), independently variable 0 - 100% Color wheel: Virtual, multiple colors, split colors and open, indexing, continuous rotation, random color Beam shaping: Rotating and Indexing Zoom: Motorized Color temperature control: Variable 2000 - 8000 K Dimmer/shutter: 0 - 100% continuous electronic dimming, regular and random strobe and pulse effects, instant open and blackout Dimming options: Choice of four dimming curves Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
  Control and Programming Setting and addressing: Control panel with backlit graphic display and 4 buttons or via DMX 16-bit control: Dimming, color, rotating gobos, zoom, focus, pan and tilt DMX channels: 28/64 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Fixture software update: USB memory device or over DMX link
  Optics Zoom range: 12° - 36° one-tenth peak (1:3) Light source: 7 x 60W RGBW LEDs Minimum LED lifetime: 50,000 hours (to >80% luminous output)* Total LED engine power: ~420 W *Figure obtained under manufacturer's test conditions
  Photometric Data Light engine luminous output: 14,000 lumens Fixture luminous output: 6,000 lumens Calibrated default white: 6500K CRI (Color Rendering Index) : >80 CQS (Color Quality Scale): 88 TM-30 Rf (IES TM-30-15 Fidelity Index): 82 TM-30 Rg (IES TM-30-15 Gamut Index): 109 TLCI (Television Lighting Consistency Index): 82

  * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

  Construction Housing: High-impact flame-retardant thermo¬plastic Color: Black (white housing option available, made to order) Protection rating: IP20
  Installation Mounting Parts: 2 pairs of 1/4-turn locks Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 1.0 m (3.3 ft.)

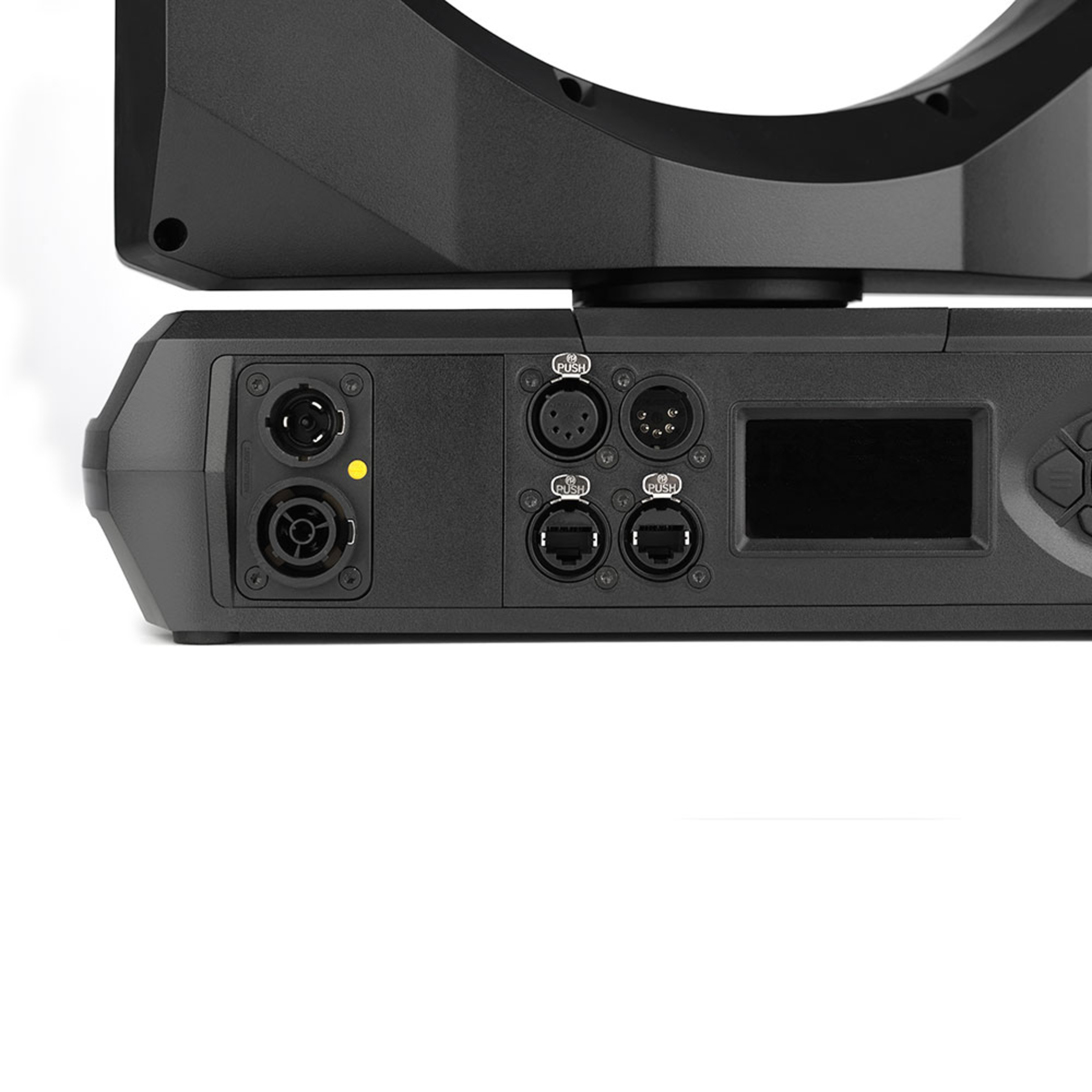

  Connections AC power input/output: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) / Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-M connector) DMX and RDM data in/out: 5-pin locking XLR Ethernet data: Neutrik EtherCon in/out
• Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Power Consumption: 73 W (all effects static, zero light output) Half-cycle RMS inrush current at 230 V, 50 Hz: 16.6 A
  Typical Power and Current Typical power data, extended color mode, all LEDs at 100% intensity:

  100 V, 60 Hz: 4.8 A, 480 W, PF 0.99
  120 V, 60 Hz: 4.0 A, 480 W, PF 0.99
  208 V, 60 Hz: 2.4 A, 480 W, PF 0.97
  230 V, 50 Hz: 2.1 A, 480 W, PF 0.97
  240 V, 50 Hz: 2.0 A, 480 W, PF 0.97

  Typical power data, calibrated mode, full intensity at 6500 K:

  100 V, 60 Hz: 3.7 A, 370 W, PF 0.99
  120 V, 60 Hz: 3.1 A, 370 W, PF 0.99
  208 V, 60 Hz: 1.9 A, 370 W, PF 0.96
  230 V, 50 Hz: 1.7 A, 370 W, PF 0.96
  240 V, 50 Hz: 1.6 A, 370 W, PF 0.95

  Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
  PF = power factor.

  Thermal Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
  Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant
  Approvals Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1) EU safety: EN 60598-2-17, EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. E598-2-17 Canadian EMC: CAN ICES-003(B)/NMB-003(B); CAN ICES-005 (B) / NMB-005 (B) Australia/NZ: RCM
  Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
  Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
  Accessories SIP Packaging MAC Allure™: P/N 91611860 Three-unit flight case for MAC Allure™:

  P/N 91515052
  (*Please order SIP variant fixtures to obtain the required SIP foam flight case inserts)

  Cables, 16 A, for connection to power in chains:

  Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
  Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
  Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
  Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

  Cables, 16 A, for relaying power in chains:

  Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

  Connectors:

  Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
  Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

  Installation hardware:

  G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
  Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
  Half-coupler Clamp: P/N 91602005
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

  Models MAC Allure™ Wash PC EPS (in cardboard box, polystyrene packaging): P/N 90250020HU MAC Allure™ Wash PC SIP (in cardboard box with SIP foam flight case insert): P/N 90250025HU MAC Allure™ Wash PC, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90250015HU

•
