MAC Allure Wash PC

First P3 enabled color mixing wash

Larger Images

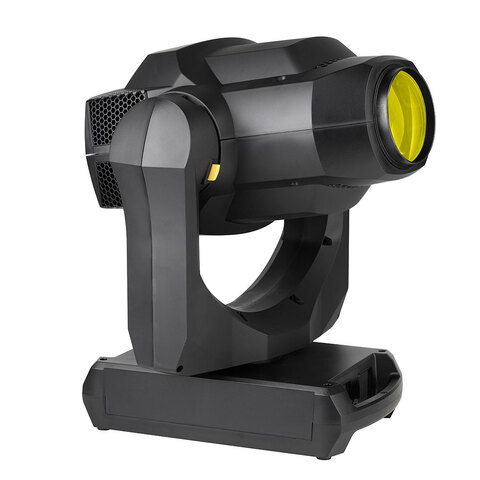

The Martin MAC Allure Wash PC is a washlight variant within the Martin MAC Allure family, featuring a novel RGBW light engine with unique 7-segmented beam control. With instant color control and pixelated beam, the MAC Allure Wash PC enables dynamic diffused projection and mid-air effects, previously not possible. The proprietary light engine sets new standards in compactness and efficiency.

To ease programming and content creation, this is also the first washlight to incorporate Martin’s own P3 control that works in addition to industry standard controls such as DMX, Art-Net and sACN. The MAC Allure Wash PC´s LED drivers run the light engine at high and precise refresh rates securing that there is no flicker or banding on any broadcast application. This fixture also features a compact 17.6 kg (39 lbs.) design that fits nicely into smaller sets and spaces, reducing truss loading constraint concerns and fits into three unit flight cases.

Despite its very innovative feature set, enabling many new and creative possibilities, the MAC Allure Wash PC is designed to not overload the user with unnecessary parameters or features. This makes the MAC Allure Wash PC a simple-to-use, every day light that is ideal for concert/touring, TV, corporate, houses of worship, concert venues, nightclubs, and cruise ships.

  • NEW BREED OF PIXELATED WASH LIGHT

    The light and color engine are divided into seven full color pixels. Pixels can be focused on projection or in the beam for aerial effects. You have full color and intensity control over each pixel via DMX or create effects via the fixture’s effects engine.


  • P3 INCORPORATED

    On top of DMX, Art-Net and sACN, MAC Allure fixtures can be controlled via P3. This allows a rig of multiple fixtures to deliver cohesive content that blends with video content on panels or creative LED products. Via a single data feed, switch between normal lighting & P3 control and cross fade between the two.


  • BUILT FOR PIXEL MAPPING

    With an all solid state color mixing system, instant color and intensity response, 7-pixel beam technology, & P3 control, MAC Allure products are built for pixel mapping. The color palette can also be set to fully match the color space of any other P3-driven product in the rig, allowing MAC Allure products to fit in seamlessly.

  • BRIGHT VIBRANT COLORS

    The RGBW system delivers vibrant colors with a brightness only expected from much bigger fixtures. The color calibrated system excels on subtle pastels and white tones making any MAC Allure fixture in the rig match the color point when they must.



  • BROADCAST SAFE

    MAC Allure LED drivers run the light engines at high and precise refresh rates ensuring there is no flicker or banding on any broadcast application.





  • DISCRETE LENS LOOK

    Unlike most LED Wash Lights, the MAC Allure Wash PC incorporates a true single lens design with a less aggressive look and without any horizontal light spill.




NEW BREED OF PIXELATED WASH LIGHT

The light and color engine are divided into seven full color pixels. Pixels can be focused on projection or in the beam for aerial effects. You have full color and intensity control over each pixel via DMX or create effects via the fixture’s effects engine.


P3 INCORPORATED

On top of DMX, Art-Net and sACN, MAC Allure fixtures can be controlled via P3. This allows a rig of multiple fixtures to deliver cohesive content that blends with video content on panels or creative LED products. Via a single data feed, switch between normal lighting & P3 control and cross fade between the two.


BUILT FOR PIXEL MAPPING

With an all solid state color mixing system, instant color and intensity response, 7-pixel beam technology, & P3 control, MAC Allure products are built for pixel mapping. The color palette can also be set to fully match the color space of any other P3-driven product in the rig, allowing MAC Allure products to fit in seamlessly.

BRIGHT VIBRANT COLORS

The RGBW system delivers vibrant colors with a brightness only expected from much bigger fixtures. The color calibrated system excels on subtle pastels and white tones making any MAC Allure fixture in the rig match the color point when they must.



BROADCAST SAFE

MAC Allure LED drivers run the light engines at high and precise refresh rates ensuring there is no flicker or banding on any broadcast application.





DISCRETE LENS LOOK

Unlike most LED Wash Lights, the MAC Allure Wash PC incorporates a true single lens design with a less aggressive look and without any horizontal light spill.




Features

  • Compact LED wash light with light and color engine divided into seven full color pixels
  • Truly sustainable workhorse moving head
  • Integrated Martin P3 visual control as well as DMX, Art-Net and sACN incorporated onboard
  • Built for pixel mapping with an all solid state color mixing system, instant color and intensity response, and seven pixel beam technology
  • High and precise refresh rates ensure no flicker or banding on any broadcast application
  • Color calibrated system excels on subtle pastels and white tones to ensure consistent colors across fixtures
  • Discrete single lens look without horizontal light spill
  • Rotating and indexing Beamshaper for dynamic positioning of the output

Specifications

  • Physical Length: 385 mm (15.2 in.) Width: 410 mm (16.2 in.) across yoke Height:

    609 mm (24.0 in.) maximum
    603 mm (23.8 in.) head straight up

    Weight: 17.6 kg (38.8 lbs.) Minimum center-to-center distance in side-by-side installation: 510 mm (20.1 in.) Dynamic Effects Pre-programmed effects: Two ranges of FX, independent or synchronized/combined Color mixing: RGB(W), independently variable 0 - 100% Color temperature control: Variable 2000 - 8000 K Color wheel: Virtual, multiple colors, split colors and open, indexing, continuous rotation, random color Beam shaping: Rotating and Indexing Dimmer/shutter: 0 - 100% continuous electronic dimming, regular and random strobe and pulse effects, instant open and blackout Dimming options: Choice of four dimming curves Zoom: Motorized Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Control and Programming 16-bit control: Dimming, color, rotating gobos, zoom, focus, pan and tilt Setting and addressing: Control panel with backlit graphic display and 4 buttons or via DMX DMX channels: 28/64 Fixture Identification: User-settable ID number DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485 Fixture software update: USB memory device or over DMX link Optics Zoom range: 12° - 36° one-tenth peak (1:3) Light source: 7 x 60W RGBW LEDs Total LED engine power: ~420 W Minimum LED lifetime: 50,000 hours (to >80% luminous output)* *Figure obtained under manufacturer's test conditions Photometric Data Light engine luminous output: 14,000 lumens Fixture luminous output: 6,000 lumens Calibrated default white: 6500K CRI (Color Rendering Index) : >80 CQS (Color Quality Scale): 88 TM-30 Rf (IES TM-30-15 Fidelity Index): 82 TM-30 Rg (IES TM-30-15 Gamut Index): 109 TLCI (Television Lighting Consistency Index): 82 Construction Housing: High-impact flame-retardant thermo¬plastic Color: Black (white housing option available, made to order) Protection rating: IP20 Installation Mounting Parts: 2 pairs of 1/4-turn locks Location: Dry location only, must be fastened to surface or structure Orientation: Any Minimum distance to combustible materials: 0.2 m (8 in.) Minimum distance to illuminated surfaces: 1.0 m (3.3 ft.) Connections AC power input/output: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector) / Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-M connector) DMX and RDM data in/out: 5-pin locking XLR Ethernet data: Neutrik EtherCon in/out
  • Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Power Consumption: 73 W (all effects static, zero light output) Half-cycle RMS inrush current at 230 V, 50 Hz: 16.6 A Typical Power and Current Typical power data, extended color mode, all LEDs at 100% intensity:

    100 V, 60 Hz: 4.8 A, 480 W, PF 0.99
    120 V, 60 Hz: 4.0 A, 480 W, PF 0.99
    208 V, 60 Hz: 2.4 A, 480 W, PF 0.97
    230 V, 50 Hz: 2.1 A, 480 W, PF 0.97
    240 V, 50 Hz: 2.0 A, 480 W, PF 0.97

    Typical power data, calibrated mode, full intensity at 6500 K:

    100 V, 60 Hz: 3.7 A, 370 W, PF 0.99
    120 V, 60 Hz: 3.1 A, 370 W, PF 0.99
    208 V, 60 Hz: 1.9 A, 370 W, PF 0.96
    230 V, 50 Hz: 1.7 A, 370 W, PF 0.96
    240 V, 50 Hz: 1.6 A, 370 W, PF 0.95

    Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
    PF = power factor.

    Thermal Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F) Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr. Approvals EU safety: EN 60598-2-17, EN 62471, EN62493 EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. E598-2-17 Canadian EMC: CAN ICES-003(B)/NMB-003(B); CAN ICES-005 (B) / NMB-005 (B) Australia/NZ: RCM Included Items Two omega brackets with 1/4 turn fasteners for rigging clamp attachment Accessories SIP Packaging MAC Allure™: P/N 91611860 Three-unit flight case for MAC Allure™:

    P/N 91515052
    (*Please order SIP variant fixtures to obtain the required SIP foam flight case inserts)

    Cables, 16 A, for connection to power in chains:

    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
    Power input cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
    Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174

    Cables, 16 A, for relaying power in chains:

    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Connectors:

    Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
    Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788

    Installation hardware:

    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Related Items Martin Companion Cable: P/N 91616091 Martin™ RDM 5.5 Splitter: P/N 90758150 Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com Models MAC Allure™ Wash PC EPS (in cardboard box, polystyrene packaging): P/N 90250020HU MAC Allure™ Wash PC SIP (in cardboard box with SIP foam flight case insert): P/N 90250025HU MAC Allure™ Wash PC, white finish, EPS (in cardboard box, polystyrene packaging): P/N 90250015HU
