Length:
Available in 320 mm (12.6 in.) and 1280 mm (50.4 in.) length versions
Width:
27 mm (1.1 in.)
Height:
with flat diffuser / clear front: 32 mm (1.3 in.)
with flat diffuser / clear front in mounting profile: 74 mm (3.0 in.)
with graze (asymmetric wallwasher) lens: 42 mm (1.7 in.)
with asymmetric wallwasher lens in mounting profile: 84 mm (3.4 in.)
with round diffuser: 42 mm (1.7 in.)
with round diffuser in mounting profile: 84 mm (3.4 in.)
Weight:
1.2 kg / m (0.9 lbs. per foot)
NB:
To allow for thermal expansion, fixtures are 10 mm shorter than the nominal lengths given above
*Fixtures must be installed with a 10 mm gap to allow for thermal expansion
Control resolution:
16-bit (P3) or 8-bit (DMX) control of each color
Control options:
Martin P3™ System Controller via Martin P3™ PowerPort 1500 / Martin P3™ PowerPort 1000 IP, and/or DMX
Control modes:
RGB, basic, segment and pixel-level
Protocol detection:
Automatic
Setting and addressing:
Martin P3™ System Controller or RDM-compliant controller
DMX channels:
3/10/13/31/55/199
Color and intensity calibration:
Pixel-level
DMX compliance:
USITT DMX512-A
RDM compliance:
ANSI/ESTA E1.20
Firmware update:
Via Martin P3™ System Controller
Device status:
Multi-color visual indication
Device test and reset:
Magnetic switch to call up local test patterns and reset device
Minimum LED lifetime:
50,000 hours (to >70% luminous output)*

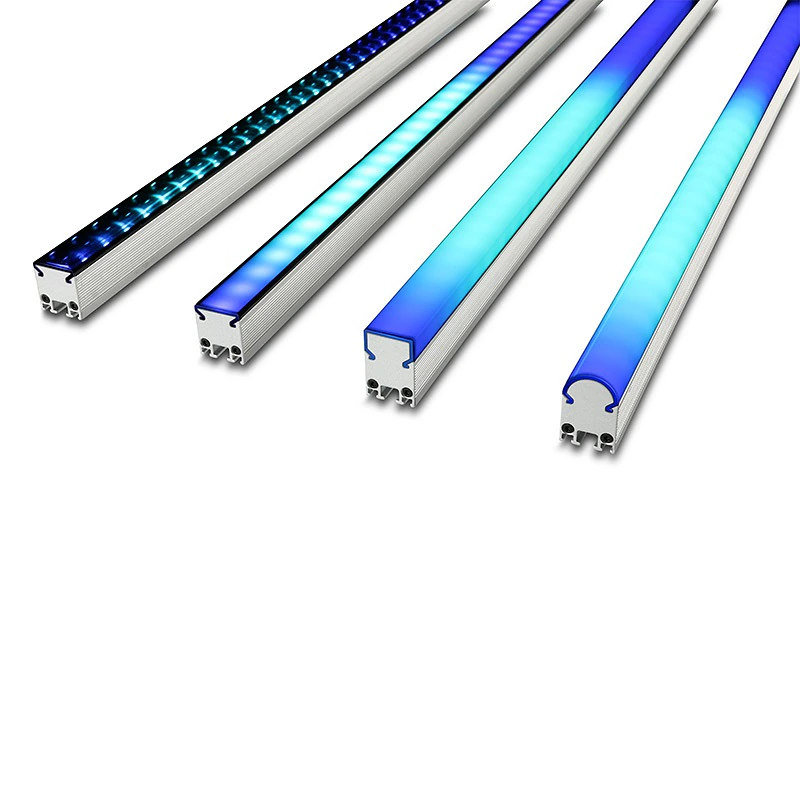

Options:
Clear Front: Viewing angle 110°
Flat Diffuser: Viewing angle 160°
Round Diffuser: Viewing angle 260°
Square Diffuser: Viewing angle 300°
Asymmetric graze Lens: Beam angle 25° X 85°
LED manufacturer:
Osram
Binning:
Tight color and flux binning
Calibration:
Full Gamut Pixel Calibration
*Figure obtained under manufacturer’s test conditions
Color resolution:
16 bits per color (48 bit per pixel)
Pixels:
50 per meter
Pitch (pixel center-to-center):
20.00 mm
Luminous intensity:
125 cd per meter (calibrated mode)
Total output, calibrated mode:
250 lumens per meter (4,166 nits (modules spaced 30 mm center-to-center))
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
P3 (via Martin P3™ PowerPort) or DMX
Color:
Clear anodized (customized colors available on project basis)
Base:
Extruded aluminum profile
Protection rating:
IP66
Impact resistance:
IK05
Corrosion resistance:
C5-M (very high corrosivity/marine, ISO 2944)
Vibration resistance:
1.0g, Sinusoidal (IEC 60068-2-6)
0,7g RMS Random (IEC 60068-2-64)
RoHS compliant
Mounting:
Slot for locking nuts on back of profile (M6) and/or installation mounting profile
Orientation:
Any
Power and data input:
6-pin custom (BBD) IP66-rated
Power and data thru:
6-pin custom (BBD) IP66-rated
Hot plugging compatible
Nominal input voltage:
48V DC +/- 4%
Power supply options:
Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin IP66 PSU or generic 48 VDC PSU
Maximum total power consumption:
17 W per meter (at max. intensity, full white)
Surge protection:
4 KV
Cooling:
Convection
Maximum ambient temperature (Ta max.):
55° C (131° F)*
Minimum ambient temperature (Ta min.):
-30° C (-22° F)
Total heat dissipation (calculated, +/- 10%):
55 BTU/hr per meter
*Above this temperature, the fixture regulates output to protect from overheating (P3 thermal throttling)
RoHS:
Compliant
REACH:
Compliant
WEEE:
Compliant
Proposition 65:
Compliant
Efficacy (max output):
15 lm/W
LWR*:
208 lm/kg (89 lm/lb)
*LWR = Lumen-to-Weight Ratio
EU safety:
EN 60950-1, EN 60950-22
EU EMC:
EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety:
UL 60950-1, UL 60950-22
US EMC:
FCC Part 15 Class A
Canadian safety:
CSA C22.2 No. 60950-1, No. 60950-22
Canadian EMC:
ICES-003 Class A
Australia/NZ:
RCM
India:
BIS
Martin P3™ PowerPort 1500:
P/N 90721040
Martin P3™ PowerPort 1000 IP Installation:
P/N 90721080
Martin DMX PowerPort 375:
P/N 90721094
Martin™ IP66 PSU 240 W external power supply unit:
P/N 90760330
Martin P3-050™ System Controller:
P/N 90721090
Martin P3-150™ System Controller:
P/N 90721015
Martin P3-300™ System Controller:
P/N 90721060
Martin P3-PC™ System Controller:
Free download from martin.com
Magnetic Test Tool, set of 10:
P/N 91610139
Mounting hardware:
Exterior PixLine™ 20 Mounting Profile, 310 mm (12.2 in.), aluminum: P/N 91611700
Exterior PixLine™ 20 Mounting Profile, 1270 mm (50.0 in.), aluminum: P/N 91611710
Exterior PixLine™ Mounting Profile Locks, set of 10: P/N 91611725
Input Adapter Cables:
Power + Data Input Adapter, 4-pin male XLR (for P3 PowerPort 1500) to female BBD, 0.25 m (0.9 ft.): P/N 91616046
Power + Data Input Adapter, 5-pin male XLR + wire tails (for PSU) to female BBD, 0.25 m (0.9 ft.): P/N 91616048
Power + Data Input Adapter, 5-pin male XLR + male Martin™ IP66 PSU to fem. BBD, 0.25 m (0.9 ft.): P/N 91616050
Power + Data Input Adapter, 5-pin male XLR + 4-pin male XLR to female BBD, 0.25 m (0.9 ft.): P/N 91616049
Output Adapter Cables:
Power + Data Output Adapter male BBD to 4-pin female XLR, 0.25 m (0.9 ft.): P/N 91616047
DMX Output Adapter, male BBD to 5-pin female XLR, 0.25 m (0.9 ft.): P/N 91616051
Extension Cables, CMX Type:
Power + Data Extension Cable, Installation type CMX, BBD-BBD 1 m (3.3 ft.): P/N 91616055
Power + Data Extension Cable, Installation type CMX, BBD-BBD, 2.5 m (8.2 ft.): P/N 91616056
Power + Data Extension Cable, Installation type CMX, BBD-BBD, 5 m (16.4 ft.): P/N 91616057
Power + Data Extension Cable, Installation type CMX, BBD-BBD, 10 m (32.9 ft.): P/N 91616058
Power + Data Extension Cable, Installation type CMX, BBD-BBD, 25 m (82.1 ft.): P/N 91616059
Power + Data Extension Cable, Installation type CMX, without connectors, 100 m (328.1 ft.): P/N 91616060
Extension Cables, Low Smoke Zero Halogen Type:
Power + Data Extension Cable, Installation type LSZH, BBD-BBD 1 m (3.2 ft.): P/N 91616012
Power + Data Extension Cable, Installation type LSZH, BBD-BBD 2.5 m (8.2 ft.): P/N 91616013
Power + Data Extension Cable, Installation type LSZH, BBD-BBD 5 m (16.4 ft.): P/N 91616014
Power + Data Extension Cable, Installation type LSZH, BBD-BBD 10 m (32.8 ft.): P/N 91616015
Power + Data Extension Cable, Installation type LSZH, BBD-BBD 25 m (82 ft.): P/N 91616016
Power + Data Extension Cable, Installation type LSZH, without connectors, 100 m (328.1 ft.): P/N 91616017
Loose Connectors:
Power + Data Cable Connector, BBD, male: P/N 91611750
Power + Data Cable Connector, BBD, female: P/N 91611751
Blanking caps for unused female BBD connectors, set of 10: P/N 91616052
Exterior PixLine™ 20 RGB, 310 mm, Clear Front, Aluminum:
P/N 90356835
Exterior PixLine™ 20 RGB, 1270 mm, Clear Front, Aluminum:
P/N 90356830
Exterior PixLine™ 20 RGB, 310 mm, Diffuser Front, Aluminum:
P/N 90356825
Exterior PixLine™ 20 RGB, 1270 mm, Diffuser Front, Aluminum:
P/N 90356820
Exterior PixLine™ 20 RGB, 310 mm, Round Diffuser Front, Aluminum:
P/N 90356815
Exterior PixLine™ 20 RGB, 1270 mm, Round Diffuser Front, Aluminum:
P/N 90356810
Exterior PixLine™ 20 RGB, 310 mm, Square Diffuser Front, Aluminum:
P/N 90356805
Exterior PixLine™ 20 RGB, 1270 mm, Square Diffuser Front, Aluminum:
P/N 90356800
Exterior PixLine™ 20 RGB, 310 mm, Graze (Asymmetric Lens), Left, Aluminum:
P/N 90356795
Exterior PixLine™ 20 RGB, 1270 mm, Graze (Asymmetric Lens), Left, Aluminum:
P/N 90356790
Exterior PixLine™ 20 RGB, 310 mm, Graze (Asymmetric Lens), Right, Aluminum:
P/N 90356785
Exterior PixLine™ 20 RGB, 1270 mm, Graze (Asymmetric Lens), Right, Aluminum:
P/N 90356780
For graze models, Left or Right = direction of light output when looking from male to female connector
