Exterior PixLine 20

Larger Images

The Exterior PixLine 20 is a  linear LED video fixture for media facades and creative installations. The Exterior PixLine 20 can be combined with a wide variety of lenses and diffusers for the right look for every application. The Exterior PixLine 20 is driven by the Martin P3 System Controller family for easy setup and video display, and it is also backwards compatible with DMX for smaller setups. The fixtures can be fully customized in terms of length and color to match every installation requirement, while the power source is hidden.

How processing works for LED video

  • Wide range of pixel pitch, lens and diffuser options for flexibility of look
  •  Fully outdoor-rated and customizable in terms of length and color
  •  Easy setup and cabling for clean installation

  • Family of ultimate creative possibilities

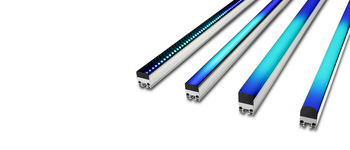

    The Exterior PixLine family consists of linear LED Video sticks with 10, 20 and 40 mm pixel pitch for easy design of any application. The Exterior PixLine comes in custom length (from 300 mm to 2000 mm) and custom color.

  • Variety of diffusers for different looks

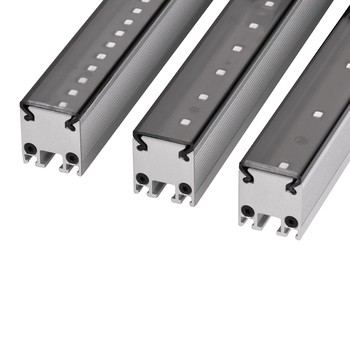

    All Exterior PixLines are available with 4 different diffusers allowing for selecting the right look for the right application: Flat clear front, Flat diffused front, Square diffused front and Round diffused front.

  • Dedicated graze version

    A dedicated graze version has been designed to achieve an effective graze light and wall wash distribution. The lens provides a beam angle of 25° X 85° with the light tilted 5° towards the wall.

  • Easy infrastructure

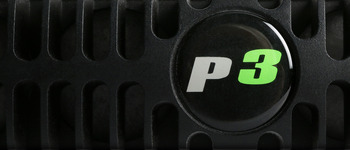

    The Exterior PixLine products can be controlled via the Martin P3 protocol for easy mapping and integration with other Martin LED Video products onto the same control system.
    For small or pure lighting applications, the Exterior PixLine also accepts RDM/DMX, enabling even more versatile use.

  • Easy daisy-chaining

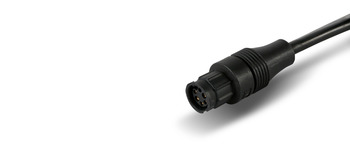

    All Exterior PixLines products feature a single connector for data and power. This enables easy daisy-chaining in long runs without requiring power or data re-feeds halfway, greatly simplifying system setup.

  • Easy mounting

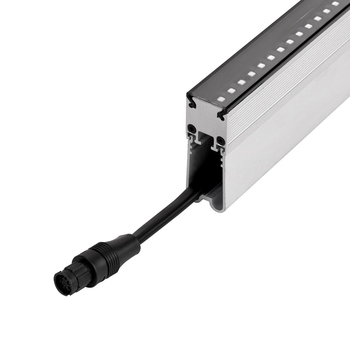

    The Exterior PixLine can easily be installed in the optional mounting profile, which also conceals the cables. The Exterior PixLine also includes an M6 bolt track for direct mounting on a surface or structure.

Family of ultimate creative possibilities

The Exterior PixLine family consists of linear LED Video sticks with 10, 20 and 40 mm pixel pitch for easy design of any application. The Exterior PixLine comes in custom length (from 300 mm to 2000 mm) and custom color.

Variety of diffusers for different looks

All Exterior PixLines are available with 4 different diffusers allowing for selecting the right look for the right application: Flat clear front, Flat diffused front, Square diffused front and Round diffused front.

Dedicated graze version

A dedicated graze version has been designed to achieve an effective graze light and wall wash distribution. The lens provides a beam angle of 25° X 85° with the light tilted 5° towards the wall.

Easy infrastructure

The Exterior PixLine products can be controlled via the Martin P3 protocol for easy mapping and integration with other Martin LED Video products onto the same control system.
For small or pure lighting applications, the Exterior PixLine also accepts RDM/DMX, enabling even more versatile use.

Easy daisy-chaining

All Exterior PixLines products feature a single connector for data and power. This enables easy daisy-chaining in long runs without requiring power or data re-feeds halfway, greatly simplifying system setup.

Easy mounting

The Exterior PixLine can easily be installed in the optional mounting profile, which also conceals the cables. The Exterior PixLine also includes an M6 bolt track for direct mounting on a surface or structure.

Videos

Martin Pixline Series



Martin Exterior PixLine Graze



THE RABBIT HOLE



Fast Deployment of Pre-Made Map on P3—P3 lifehack#2



P3 Live Preview and Flexible Video Mapping—P3 lifehack#3



P3 Directly from Green Hippo Media Server—P3 lifehack#5



Mixing P3 Video and DMX for Creative Control—P3 lifehack#6



Features

  • 20 mm pixel pitch
  • 125 cd per meter calibrated
  • 80 lumen per foot calibrated
  • High-quality 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality
  • P3/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
  • Available in standard length of 1280 mm and 320 mm (customized lengths also available)

Tech Specs

PhysicalLength: Available in 310 mm and 1270 mm length versions**Fixtures must be installed with a 10 mm gap to allow for thermal expansionCustom lengths are available to special order on project basis as follows:Minimum custom length: 300 mm (11.9 in.)Maximum custom length: 2000 mm (78.8 in.)Custom length increments: 20 mm (0.8 in.)NB: To allow for thermal expansion, fixtures are 10 mm shorter than the nominal lengths given aboveWidth: 27 mm (1.1 in.)Height with flat diffuser / clear front: 32 mm (1.3 in.)Height with flat diffuser / clear front in mounting profile: 74 mm (3.0 in.)Height with graze (asymmetric wallwasher) lens: 42 mm (1.7 in.)Height with asymmetric wallwasher lens in mounting profile:84 mm (3.4 in.)Height with round diffuser: 42 mm (1.7 in.)Height with round diffuser in mounting profile: 84 mm (3.4 in.)Weight: 1.2 kg / m (0.9 lbs. per foot)
Control and ProgrammingControl options: Martin P3™ System Controller via Martin P3™ PowerPort 1500 / Martin P3™ PowerPort 1000 IP, and/or DMXProtocol detection: AutomaticControl modes: RGB, basic, segment and pixel-levelDMX channels: 3/10/13/31/55/199Setting and addressing: Martin P3™ System Controller or RDM-compliant controllerControl resolution: 16-bit (P3) or 8-bit (DMX) control of each colorColor and intensity calibration: Pixel-levelDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Firmware update: Via Martin P3™ System Controller
Control/User InterfaceDevice status: Multi-color visual indicationDevice test and reset: Magnetic switch to call up local test patterns and reset device
OpticsOptionsClear Front: Viewing angle 110°Flat diffuser: Viewing angle 160°Round Diffuser: Viewing angle 260°Square Diffuser: Viewing angle 300°Asymmetric Graze Lens: Beam angle 25° X 85°Minimum LED lifetime: 50 000 hours (to >70% luminous output)*LED manufacturer: Osram*Figure obtained under manufacturer’s test conditions
Photometric DataColor resolution: 16 bits per color (48 bit per pixel)Pixels per meter: 50Pitch (pixel center-to-center): 20.00 mmLuminous intensity, calibrated mode: 125 cd per meterTotal output, calibrated mode: 250 lumens per meterTotal output, calibrated mode: 4 166 nits (modules spaced 30 mm center-to-center)
Video ProcessingBrightness controlGamma correction and controlColor temperature controlColor space controlCalibration processingSynchronization
Signal ProtocolP3 (via Martin P3™ PowerPort) or DMX
ConstructionBase: Extruded aluminum profileColor: Clear anodized (customized colors available on project basis)Protection rating: IP66Impact resistance: IK05Corrosion resistance: C5-M (very high corrosivity/marine, ISO 2944)RoHS compliant
InstallationOrientation: AnyMounting: Slot for locking nuts on back of profile (M6) and/or installation mounting profile
ConnectionsPower and data input: 6-pin custom (BBD) IP66-ratedPower and data thru: 6-pin custom (BBD) IP66-ratedHot plugging compatible
ElectricalNominal input voltage: 48V DC +/- 4%Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin IP66 PSU or generic 48 VDC PSUMax. total power consumption: 17 W per meter (at max. intensity, full white)Surge protection: 4 KV
ThermalCooling: ConvectionMaximum ambient temperature (Ta max.): 55° C (131° F)*Minimum ambient temperature (Ta min.): -30° C (-22° F)Total heat dissipation (calculated, +/- 10%): 55 BTU/hr per meter *Above this temperature, the fixture regulates output to protect from overheating (P3 thermal throttling)
ApprovalsEU safety: EN 60950-1, EN 60950-22EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3US safety: UL 60950-1, UL 60950-22US EMC: FCC Part 15 Class ACanadian safety: CSA C22.2 No. 60950-1, No. 60950-22Canadian EMC: ICES-003 Class AAustralia/NZ: RCM

AccessoriesMagnetic Test Tool, set of 10: P/N 91610139Mounting hardwareExterior PixLine™ 20 Mounting Profile, 310 mm (12.2 in.), aluminum: P/N 91611700Exterior PixLine™ 20 Mounting Profile, 1270 mm (50.0 in.), aluminum: P/N 91611710Exterior PixLine™ Mounting Profile Locks, set of 10: P/N 91611725 Input Adapter Cables Power + Data Input Adapter, 4-pin male XLR (for P3 PowerPort 1500) to female BBD, 0.25 m (0.9 ft.): P/N 91616046 Power + Data Input Adapter, 5-pin male XLR + wire tails (for PSU) to female BBD, 0.25 m (0.9 ft.): P/N 91616048 Power + Data Input Adapter, 5-pin male XLR + male Martin™ IP66 PSU to fem. BBD, 0.25 m (0.9 ft.): P/N 91616050 Power + Data Input Adapter, 5-pin male XLR + 4-pin male XLR to female BBD, 0.25 m (0.9 ft.): P/N 91616049 Output Adapter Cables Power + Data Output Adapter male BBD to 4-pin female XLR, 0.25 m (0.9 ft.): P/N 91616047 DMX Output Adapter, male BBD to 5-pin female XLR, 0.25 m (0.9 ft.): P/N 91616051 Extension Cables, CMX Type Power + Data Extension Cable, Installation type CMX, BBD-BBD 1 m (3.3 ft.): P/N 91616055 Power + Data Extension Cable, Installation type CMX, BBD-BBD, 2.5 m (8.2 ft.): P/N 91616056 Power + Data Extension Cable, Installation type CMX, BBD-BBD, 5 m (16.4 ft.): P/N 91616057 Power + Data Extension Cable, Installation type CMX, BBD-BBD, 10 m (32.9 ft.): P/N 91616058 Power + Data Extension Cable, Installation type CMX, BBD-BBD, 25 m (82.1 ft.): P/N 91616059 Power + Data Extension Cable, Installation type CMX, without connectors, 100 m (328.1 ft.): P/N 91616060 Extension Cables, Low Smoke Zero Halogen Type Power + Data Extension Cable, Installation type LSZH, BBD-BBD 1 m (3.2 ft.): P/N 91616012 Power + Data Extension Cable, Installation type LSZH, BBD-BBD 2.5 m (8.2 ft.): P/N 91616013 Power + Data Extension Cable, Installation type LSZH, BBD-BBD 5 m (16.4 ft.): P/N 91616014 Power + Data Extension Cable, Installation type LSZH, BBD-BBD 10 m (32.8 ft.): P/N 91616015 Power + Data Extension Cable, Installation type LSZH, BBD-BBD 25 m (82 ft.): P/N 91616016 Power + Data Extension Cable, Installation type LSZH, without connectors, 100 m (328.1 ft.): P/N 91616017 Loose Connectors Power + Data Cable Connector, BBD, male: P/N 91611750 Power + Data Cable Connector, BBD, female: P/N 91611751 Blanking caps for unused female BBD connectors, set of 10: P/N 91616052
Related ItemsMartin P3™ PowerPort 1500: P/N 90721040Martin P3™ PowerPort 1000 IP Installation: P/N 90721080Martin™ IP66 PSU 240P/N 90760330Martin P3-050™ System Controller: P/N 90721090Martin P3-150™ System Controller: P/N 90721015Martin P3-300™ System Controller: P/N 90721060Martin P3-PC™ System Controller: P/N 90721030
Ordering InformationExterior PixLine™ 20 RGB, 310 mm, Clear Front, Aluminum:P/N 90356835Exterior PixLine™ 20 RGB, 1270 mm, Clear Front, Aluminum:P/N 90356830Exterior PixLine™ 20 RGB, 310 mm, Diffuser Front, Aluminum:P/N 90356825Exterior PixLine™ 20 RGB, 1270 mm, Diffuser Front, Aluminum: P/N 90356820Exterior PixLine™ 20 RGB, 310 mm, Round Diffuser Front, Aluminum: P/N 90356815Exterior PixLine™ 20 RGB, 1270 mm, Round Diffuser Front, Aluminum: P/N 90356810Exterior PixLine™ 20 RGB, 310 mm, Square Diffuser Front, Aluminum: P/N 90356805Exterior PixLine™ 20 RGB, 1270 mm, Square Diffuser Front, Aluminum: P/N 90356800Exterior PixLine™ 20 RGB, 310 mm, Graze (Asymmetric Lens), Left, Aluminum: P/N 90356795Exterior PixLine™ 20 RGB, 1270 mm, Graze (Asymmetric Lens), Left, Aluminum: P/N 90356790Exterior PixLine™ 20 RGB, 310 mm, Graze (Asymmetric Lens), Right, Aluminum: P/N 90356785Exterior PixLine™ 20 RGB, 1270 mm, Graze (Asymmetric Lens), Right, Aluminum: P/N 90356780For graze models, Left or Right = direction of light output when looking from male to female connector

Specifications

  • Physical Height:

    with flat diffuser / clear front: 32 mm (1.3 in.)
    with flat diffuser / clear front in mounting profile: 74 mm (3.0 in.)
    with graze (asymmetric wallwasher) lens: 42 mm (1.7 in.)
    with asymmetric wallwasher lens in mounting profile: 84 mm (3.4 in.)
    with round diffuser: 42 mm (1.7 in.)
    with round diffuser in mounting profile: 84 mm (3.4 in.)

     Length: Available in 320 mm (12.6 in.) and 1280 mm (50.4 in.) length versions Weight: 1.2 kg / m (0.9 lbs. per foot) Custom lengths are available to special order on project basis as follows:

    Minimum custom length: 300 mm (11.9 in.)
    Maximum custom length: 2000 mm (78.8 in.)
    Custom length increments: 20 mm (0.8 in.)

     NB: To allow for thermal expansion, fixtures are 10 mm shorter than the nominal lengths given above Width: 27 mm (1.1 in.) *Fixtures must be installed with a 10 mm gap to allow for thermal expansion Control and Programming Control options: Martin P3™ System Controller via Martin P3™ PowerPort 1500 / Martin P3™ PowerPort 1000 IP, and/or DMX Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Control modes: RGB, basic, segment and pixel-level Protocol detection: Automatic Setting and addressing: Martin P3™ System Controller or RDM-compliant controller DMX channels: 3/10/13/31/55/199 Color and intensity calibration: Pixel-level Firmware update: Via Martin P3™ System Controller DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Control/User Interface Device status: Multi-color visual indication Device test and reset: Magnetic switch to call up local test patterns and reset device Optics Options:

    Clear Front: Viewing angle 110°
    Flat Diffuser: Viewing angle 160°
    Round Diffuser: Viewing angle 260°
    Square Diffuser: Viewing angle 300°
    Asymmetric graze Lens: Beam angle 25° X 85°

     Minimum LED lifetime: 50,000 hours (to >70% luminous output)* LED manufacturer: Osram *Figure obtained under manufacturer’s test conditions Photometric Data Color resolution: 16 bits per color (48 bit per pixel) Pixels: 50 per meter Pitch (pixel center-to-center): 20.00 mm Luminous intensity: 125 cd per meter (calibrated mode) Total output, calibrated mode: 250 lumens per meter (4,166 nits (modules spaced 30 mm center-to-center)) Video Processing

    Brightness control
    Gamma correction and control
    Color temperature control
    Color space control
    Calibration processing
    Synchronization

     Signal Protocol P3 (via Martin P3™ PowerPort) or DMX Construction Color: Clear anodized (customized colors available on project basis) Base: Extruded aluminum profile Protection rating: IP66 Impact resistance: IK05 Corrosion resistance: C5-M (very high corrosivity/marine, ISO 2944) RoHS compliant
  • Installation Mounting: Slot for locking nuts on back of profile (M6) and/or installation mounting profile Orientation: Any Connections Power and data input: 6-pin custom (BBD) IP66-rated Power and data thru: 6-pin custom (BBD) IP66-rated Hot plugging compatible Electrical Nominal input voltage: 48V DC +/- 4% Power supply options: Martin P3™ PowerPort 1500, Martin P3™ PowerPort 1000 IP, Martin IP66 PSU or generic 48 VDC PSU Maximum total power consumption: 17 W per meter (at max. intensity, full white) Surge protection: 4 KV Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 55° C (131° F)* Minimum ambient temperature (Ta min.): -30° C (-22° F) Total heat dissipation (calculated, +/- 10%): 55 BTU/hr per meter *Above this temperature, the fixture regulates output to protect from overheating (P3 thermal throttling) Approvals EU safety: EN 60950-1, EN 60950-22 EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: UL 60950-1, UL 60950-22 US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. 60950-1, No. 60950-22 Canadian EMC: ICES-003 Class A Australia/NZ: RCM Accessories Magnetic Test Tool, set of 10: P/N 91610139 Mounting hardware:

    Exterior PixLine™ 20 Mounting Profile, 310 mm (12.2 in.), aluminum: P/N 91611700
    Exterior PixLine™ 20 Mounting Profile, 1270 mm (50.0 in.), aluminum: P/N 91611710
    Exterior PixLine™ Mounting Profile Locks, set of 10: P/N 91611725

     Input Adapter Cables:

    Power + Data Input Adapter, 4-pin male XLR (for P3 PowerPort 1500) to female BBD, 0.25 m (0.9 ft.): P/N 91616046
    Power + Data Input Adapter, 5-pin male XLR + wire tails (for PSU) to female BBD, 0.25 m (0.9 ft.): P/N 91616048
    Power + Data Input Adapter, 5-pin male XLR + male Martin™ IP66 PSU to fem. BBD, 0.25 m (0.9 ft.): P/N 91616050
    Power + Data Input Adapter, 5-pin male XLR + 4-pin male XLR to female BBD, 0.25 m (0.9 ft.): P/N 91616049

     Output Adapter Cables:

    Power + Data Output Adapter male BBD to 4-pin female XLR, 0.25 m (0.9 ft.): P/N 91616047
    DMX Output Adapter, male BBD to 5-pin female XLR, 0.25 m (0.9 ft.): P/N 91616051

     Extension Cables, CMX Type:

    Power + Data Extension Cable, Installation type CMX, BBD-BBD 1 m (3.3 ft.): P/N 91616055
    Power + Data Extension Cable, Installation type CMX, BBD-BBD, 2.5 m (8.2 ft.): P/N 91616056
    Power + Data Extension Cable, Installation type CMX, BBD-BBD, 5 m (16.4 ft.): P/N 91616057
    Power + Data Extension Cable, Installation type CMX, BBD-BBD, 10 m (32.9 ft.): P/N 91616058
    Power + Data Extension Cable, Installation type CMX, BBD-BBD, 25 m (82.1 ft.): P/N 91616059
    Power + Data Extension Cable, Installation type CMX, without connectors, 100 m (328.1 ft.): P/N 91616060

     Extension Cables, Low Smoke Zero Halogen Type:

    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 1 m (3.2 ft.): P/N 91616012
    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 2.5 m (8.2 ft.): P/N 91616013
    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 5 m (16.4 ft.): P/N 91616014
    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 10 m (32.8 ft.): P/N 91616015
    Power + Data Extension Cable, Installation type LSZH, BBD-BBD 25 m (82 ft.): P/N 91616016
    Power + Data Extension Cable, Installation type LSZH, without connectors, 100 m (328.1 ft.): P/N 91616017

     Loose Connectors:

    Power + Data Cable Connector, BBD, male: P/N 91611750
    Power + Data Cable Connector, BBD, female: P/N 91611751
    Blanking caps for unused female BBD connectors, set of 10: P/N 91616052

     Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin P3™ PowerPort 1000 IP Installation: P/N 90721080 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-150™ System Controller: P/N 90721015 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: P/N 90721030 Ordering Information Exterior PixLine™ 20 RGB, 310 mm, Clear Front, Aluminum: P/N 90356835 Exterior PixLine™ 20 RGB, 1270 mm, Clear Front, Aluminum: P/N 90356830 Exterior PixLine™ 20 RGB, 310 mm, Diffuser Front, Aluminum: P/N 90356825 Exterior PixLine™ 20 RGB, 1270 mm, Diffuser Front, Aluminum: P/N 90356820 Exterior PixLine™ 20 RGB, 310 mm, Round Diffuser Front, Aluminum: P/N 90356815 Exterior PixLine™ 20 RGB, 1270 mm, Round Diffuser Front, Aluminum: P/N 90356810 Exterior PixLine™ 20 RGB, 310 mm, Square Diffuser Front, Aluminum: P/N 90356805 Exterior PixLine™ 20 RGB, 1270 mm, Square Diffuser Front, Aluminum: P/N 90356800 Exterior PixLine™ 20 RGB, 310 mm, Graze (Asymmetric Lens), Left, Aluminum: P/N 90356795 Exterior PixLine™ 20 RGB, 1270 mm, Graze (Asymmetric Lens), Left, Aluminum: P/N 90356790 Exterior PixLine™ 20 RGB, 310 mm, Graze (Asymmetric Lens), Right, Aluminum: P/N 90356785 Exterior PixLine™ 20 RGB, 1270 mm, Graze (Asymmetric Lens), Right, Aluminum: P/N 90356780 For graze models, Left or Right = direction of light output when looking from male to female connector
