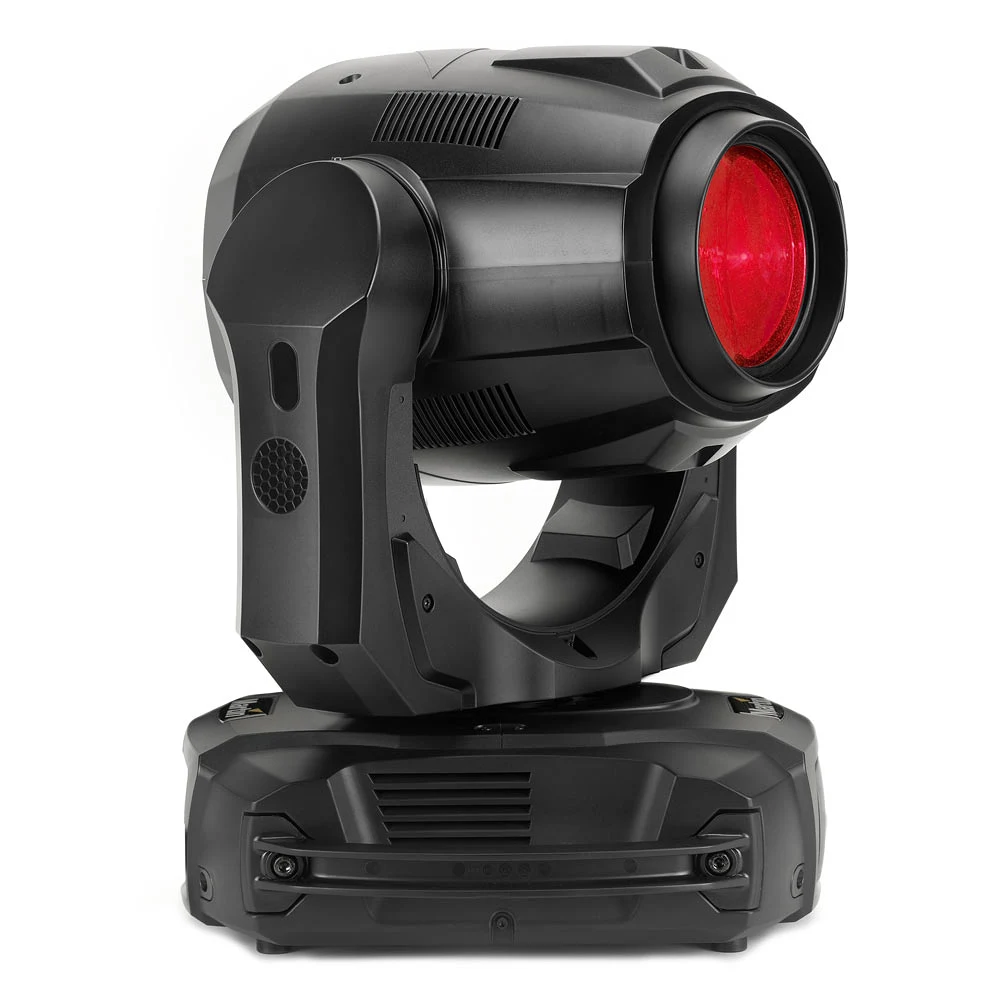

MAC Axiom Hybrid
Större bilder

MAC Axiom™ Hybrid är en sann allt-i-ett-produkt som kombinerar beam och spot i en kompakt enhet med diffus wash-funktionalitet. Det högprecisions optiska systemet erbjuder exceptionell kontrast, både i luften och vid projektion, samt ett överraskande plant bildfeld som vanligtvis inte ses med denna korta båglampsteknik. Implementeringen av MAC Viper CMY-färgpaletten ger designers fördelarna av obegränsade färgval från subtila pastell-nyanser till djupa och mättade färger. Allt detta i en liten fotavtryck och lätt produkt som levererar överlägsen prestanda med marknadens bästa förhållande mellan funktioner kontra storlek och vikt.

  • Allt-i-ett-produkt – fullproppad med effekter
  • Snäv och smal beam – fantastisk intensitet
  • MAC Viper-färgpaletten – överlägsen CMY-färgblandning

Videor









Funktioner

  • Zoom: 2-44° (kontinuerlig, ingen Beam/Spot-lägen)
  • 16 000 lumen vid / 14 000 lumen smal
  • 31 000 000 cd högintensiv smal stråle
  • Låg vikt: 24,8 kg / 54,7 lbs.
  • Mycket kompakt
  • Verklig CMYC-färgblandning (MAC Viper-färgpalett)
  • Oberoende 16-spår färghjul
  • Två gobo-hjul (9 rot. & 16 stat.) med superskarp projektion och högt kontrast på ytor och i luften
  • Animationseffekter integrerade i fast gobo-hjul
  • Oberoende 3- och 8-facettprismer med unikt patenterat dynamiskt "prism lineator"-zoomeffekt
  • Beamsmoother (för plan fältprojektion)
  • Frost (för tvätteffekt)
  • Bakbelyst LCD-display ombord med automatisk vändning
  • PowerCon TRUE1 nätkontakt
  • 5-polig XLR DMX-kontakt
  • RDM-funktionalitet
  • 100-240 V drift, 600 W total strömförbrukning

Specifikationer

  • Physical Length: 399 mm (15.8 ins.) base Width: 414 mm (16.3 ins.) across yoke Height:

    616 mm (24.3 ins.) head straight up
    630 mm (24.9 ins.) maximum

     Weight: 24.8 kg (54.7 lbs.)
    Dynamic Effects Color mixing: CMYC (MAC Viper color palette), independently variable 0 - 100% Color wheel: 16 dichroic filters + open, indexing, continuous rotation, random color Rotating gobo wheel: 9 interchangeable rotating gobos + open, gobo indexing, continuous rotation and shake Zoom: 2° - 44° continuous (no Beam or Spot modes) Prism: 3-facet rotating prism with dynamic prism zoom effect (”prism lineator”) Fixed gobo wheel: 16 static gobos + open, gobo animation effect Prism 2: 8-facet rotating prism with dynamic prism zoom effect (”prism lineator”) Frost filter: Wash effect Beam smoother: Flat field projection Mechanical dimmer/shutter: 0 - 100% dimming, strobe effect 2 - 10 Hz, pulse effects, instant open and blackout Pan: 540° Tilt: 260° Position correction system: Absolute position monitoring Focus: 2 m (6.6 ft.) to infinity
    Control and Programming Control platform: DMX and RDM Configuration and addressing: Onboard control panel or via DMX 16-bit control: Focus, pan and tilt Onboard display panel: Backlit LCD with auto-flip DMX channels: 23 Receiver: Isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: Windows PC and USB-DMX hardware interface
    Optics Color temperature: 7000 K
    Photometric Data

    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
    Lamp Type: 440 W short-arc discharge CRI (Color rendering index): >80 Average lifetime: 1500 hours Approved lamps: Osram Sirius HRI 440 W
    Service Utilities Fixture identification: User-settable fixture ID number
    Construction Housing: Alloy, steel, UV-resistant fiber-reinforced composite Color: Black Reflector: Glass, cold light Protection rating: IP20
    Installation Mounting points: Four quarter-turn locking points Orientation: Any Minimum distance to combustible materials: 0.2 m (0.7 ft.) Minimum distance to illuminated surfaces: 15 m (49.3 ft.)
  • Connections AC power input: Neutrik PowerCon TRUE1 DMX and RDM data in/out: 5-pin locking XLR
    Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Typical power consumption: 600 W
    Typical Power and Current 110 V, 60 Hz: 5.5 A, 600 W, PF > 0.9 typical 230 V, 50 Hz: 2.7 A, 600 W, PF > 0.9 typical
    Thermal Cooling: Filtered forced air (temperature-regulated, low noise) Total heat dissipation (calculated, +/- 10% at 230 V, 50 Hz): 2050 BTU/hr Maximum ambient temperature (Ta max.): 40° C (104° F) Maximum surface temperature, steady state, at 40° C ambient: 90° C (194° F)
    Environmental RoHS: Compliant REACH: Compliant WEEE: Compliant Proposition 65: Compliant Efficacy (max output): 28 lm/w LWR*: 625 lm/kg (283 lm/lb)

    LWR = Lumen-to-Weight Ratio
    Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015; EN 55032; EN 55103-1,-2; EN 61000-3-2,-3; EN 61000-4-2, -4, -5; EN 61547 US safety: UL 1573 US EMC: CFR 47 Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM (pending)
    Included Items

    Two mounting brackets with quarter-turn fasteners
    SIP foam flight case inlay
    Related Items Martin Companion Cable: P/N 91616091 Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
    Accessories Flightcase (air) for 2 x MAC Axiom Hybrid:

    P/N 91515037
    Flightcase (wood) for 2 x MAC Axiom Hybrid: P/N 91515042

    Power Input Cables:
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174

    Power connectors:
    Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789

    Installation hardware:
    Half-coupler clamp: P/N 91602005
    G-clamp (suspension with yoke vertically downwards only):P/N 91602003
    Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007

    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

Nedladdningar

Specifications
  Version Språk Storlek Uppladdat
file type icon MAC Axiom Hybrid - Spec Sheet
en version A, uppdaterad: maj 2021
A  en  1,36 MB maj 2021
file type icon MAC Axiom Hybrid - SiP Data Sheet
en version A, uppdaterad: maj 2021
A  en  2,04 MB maj 2021
file type icon MAC Axiom Hybrid - Flightcase Spec Sheet
en version A, uppdaterad: maj 2021
A  en  1,22 MB maj 2021
Manuals
  Version Språk Storlek Uppladdat
file type icon MAC Axiom Hybrid - Bedienungsanleitung
de version D, uppdaterad: maj 2021
D  de  2,81 MB maj 2021
file type icon MAC Axiom Hybrid - User Manual
en version E, uppdaterad: jul 2020
E  en  8,59 MB jul 2020
file type icon MAC Axiom Hybrid - Manuel d'Utilisation
fr version D, uppdaterad: jul 2020
D  fr  1,62 MB jul 2020
Brochures
  Storlek Uppladdat
file type icon Tour Audio & Lighting Brochure
uppdaterad: sep 2017
23,9 MB sep 2017
Photometrics
  Version Språk Storlek Uppladdat
file type icon MAC Axiom Hybrid - Photometric Files
en version A, uppdaterad: mar 2024
A  en  311 KB mar 2024
Illustrations
  Version Språk Storlek Uppladdat
file type icon MAC Axiom Hybrid - 2D dimensions (DWG)
en version A, uppdaterad: jun 2018
A  en  2,39 MB jun 2018
file type icon MAC AXIOM Hybrid - Dimensions (2D PDF)
en version A, uppdaterad: maj 2018
A  en  399 KB maj 2018
file type icon MAC AXIOM Hybrid - Dimensions (2D DXF)
en version A, uppdaterad: maj 2018
A  en  1,35 MB maj 2018
Symbols
  Version Språk Storlek Uppladdat
file type icon Martin Professional GDTF Library
en version A, uppdaterad: okt 2023
A  en  203 Bytes okt 2023
file type icon AutoCAD 2D Symbols
en version 2.8, uppdaterad: jan 2026
2.8  en  4,42 MB jan 2026
file type icon AutoCAD 3D Symbols
en version 2.8, uppdaterad: jan 2026
2.8  en  18,7 MB jan 2026
file type icon Vectorworks Symbols
en version 4.6, uppdaterad: jan 2026
4.6  en  249 MB jan 2026
CAD Drawings
  Version Språk Storlek Uppladdat
file type icon MAC AXIOM Hybrid - Dimensions (3DS)
en version A, uppdaterad: maj 2018
A  en  7,34 MB maj 2018
file type icon MAC AXIOM Hybrid - Dimensions (3D DWG)
en version A, uppdaterad: maj 2018
A  en  6,98 MB maj 2018
Compliances
  Version Storlek Uppladdat
file type icon MAC Axiom Hybrid – EU Conformity / Conformité
version A, uppdaterad: maj 2018
A  141 KB maj 2018
file type icon MAC Axiom Hybrid - ETL Listing Verification
version A, uppdaterad: maj 2018
A  86,4 KB maj 2018
Service Notes
  Version Språk Storlek Uppladdat
file type icon 3D Partsfinder - Opening using Solid Works Composer Player
version 4, uppdaterad: okt 2020
4    743 KB okt 2020
Tech Notes
  Språk Storlek Uppladdat
file type icon Avoiding damage from sunlight and other light sources
uppdaterad: sep 2017
  sep 2017
Hints and Tips
  Version Språk Storlek Uppladdat
file type icon MAC Axiom Hybrid Color Mix Options
en version A, uppdaterad: maj 2018
A  en  119 KB maj 2018
Avoiding damage from sunlight and other light sources
en version B, uppdaterad: maj 2018
B   en    maj 2018
Firmware
  Version Storlek Uppladdat
download icon for MAC Axiom Hybrid - Firmware MAC Axiom Hybrid - Firmware
version 1.2.0, uppdaterad: jul 2026
1.2.0   jul 2026
