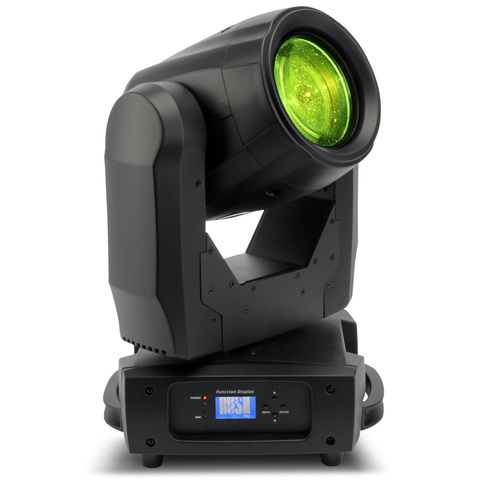

This compact beam moving head for smaller venues blasts an intense and narrow beam for spectacular mid-air looks and effects. It houses a fixed gobo wheel and color wheel with a multitude of effects possible from a dimmer and strobe, 6-facet prism and focus.
Större bilder
Videor
Funktioner
- Powerful beam moving head
- Sharp, narrow long-throw beam
- Powerful mid-air effects
- Fixed gobo wheel
- Color wheel
- Mechanical dimming and strobe
- 6-facet prism
- Motorized focus
- 3 & 5 pin XLR
Specifikationer
-
Physical Length: 319 mm (12.6 in.) Width: 255 mm (10.1 in.) Height: 481 mm (19.0 in.) Weight: 14 kg (30.9 lbs.)Dynamic Effects Color wheel: 14 colors plus open, continuous and stepped scrolling, rotation with variable direction and speed Static gobo wheel: 17 gobos plus open, continuous and stepped scrolling, rotation with variable direction and speed Prism: 6-facet, indexing and rotation with variable direction and speed Pan: 540° Tilt: 270° Pan and tilt speed: Adjustable via onboard control panel and DMX Position correction system: Available for pan and tilt Dimming: 0 - 100% continuous dimming Shutter: Strobe effect, pulse effects, instant open and blackout Focus: MotorizedControl and Programming Control systems: DMX Setting and addressing: Control panel with LCD display 16-bit control: Dimming, pan and tilt DMX channels: 13 DMX compliance: USITT DMX512/1990Optics Beam angle: 3°Lamp Osram HRI 132 W lamp models:
Approved lamp: Osram Sirius HRI 132 W
Color temperature: 8800 K
CRI (Color rendering index): 62
Average lifetime: 6000 hours*
*Manufacturer's figureConstruction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20Installation Mounting points: Two quarter-turn brackets for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any Minimum distance to illuminated surfaces: 6.5 m (21 ft. 4 in.)Connections AC power input: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR -
Electrical AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: 234 W Power consumption figures are typical, not maximum. Allow for +/-10% variation.Typical Power and Current 110 V, 60 Hz: 2.2 A, 234 W, PF 0.996 230 V, 50 Hz: 1.1 A, 231 W, PF 0.996Thermal Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 800 BTU/hr.Approvals EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: 47 CFR Part 15 Class A Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: C-TICK N4241Included Items
Power cable, 1.5 m, without mains plug
Two Omega clamp attachment brackets with 1/4-turn fastenersRelated Items RUSH® Software Uploader 1: P/N 91611399Accessories Power connectors:Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
Cables, 16 A, for connection to power in chains:
Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805Power input cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3 m (9 ft. 11 in.): P/N 11541508
Installation hardware:
Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 1.4 m (4 ft. 8 in.): P/N 11541509
Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 2.25 m (7 ft. 5 in.): P/N 11541510
Power relay cable, 14 AWG, UL, SJT, 1.5 mm2, H05VV-F, with PowerCon input connector, 3.25 m (10 ft. 8 in.): P/N 11541511Half-coupler clamp: P/N 91602005
G-clamp (suspension with yoke vertically downwards only): P/N 91602003
Quick-trigger clamp (suspension with yoke vertically downwards only): P/N 91602007Ordering Information RUSH MH 4 Beam™ in cardboard box: P/N 90280030
