Length: 300 mm (11.9 in.)Width: 540 mm (21.3 in.)Height: 99 mm (3.9 in.)Weight: 4.6 kg (10.2 lbs.)
Protocol: DMX512A (RDM), Art-Net2, sACN64 x DMX universes, expandable to 12832768 x channels, expandable to 65536No limit to number of DMX channels per fixtureExtensive fixture library for all known manufacturers2D Plan visualizer for fixture selection65000 x presets for each group of functions (P/T, color, gobo, etc.)Effect generator for automated programming of complex effectsCustomizable highlight and lowlight function to identify individual fixturesRelative or absolute programmingFan function for all channels (including timing parameters)On-the-fly global timing changesVirtual cuelistsMacrosWait, follow and link cuesHTP, LTP, chase, timecode, submaster and inhibitive playback functionalityIndividual parameter timingsIntuitive patch featureFixture type cloningAll channels with 16-bit resolution

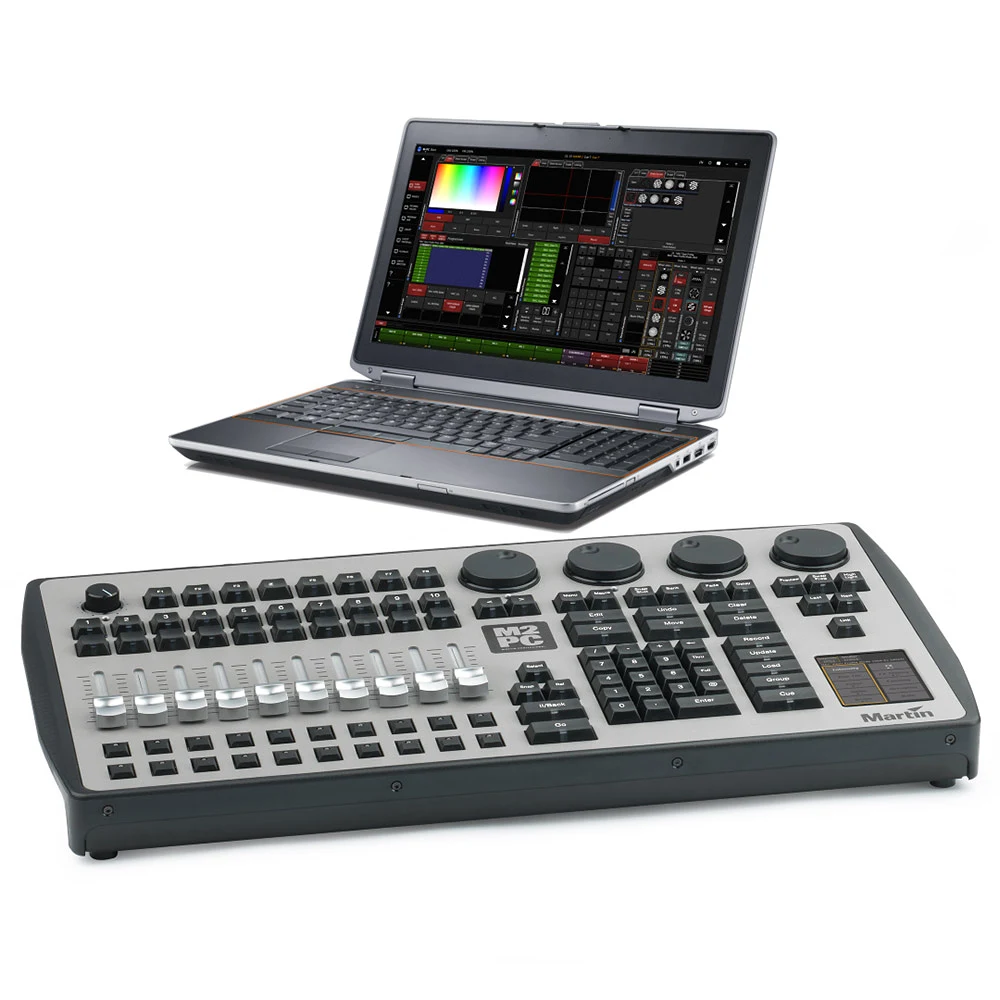

Main playback interface: 10 x 60 mm playback faders, each with 4 x function- assignable buttons8 x customizable multi-function keysPlayback Select buttonMaster Go section with Go, Pause, Snap and Release4 x digital rotary encoders with push function and status LED for fixture parameter control3.5” touchscreen for parameter groups, effect parameters, fanning and global timingsGrand master rotary fader and buttonBlind/preview buttonCustomizable highlight/lowlight functionCustomizable parameter defaultsNext/last fixtures/groupsLarge command keys
Assign a cue, cuelist or effect to any playback fader500 x playback banks, each containing 10 playbacks100 x pages of 100 x playbacks activated by touchscreen buttonNo limit to cues per cuelistFull 16-bit fading for high-resolution fixturesIndividual fade in/fade out times for all playbacksManual override available at all timesLive 0-1000% override of global cue timingsLive programmer timing (“Sneak”)Cuelists can be executed in tracking or non-tracking mode
Windows 7, 8.1 or 10Dual-core processor, 2.0 GHz (Intel i5 or better recommended)4 GB RAM2 GB available disk space (SSD recommended)Widescreen monitor, minimum 1280x800 (capacitive touchscreen recommended)USB 2.0 port for Martin One Key™ and Martin USB Duo™ DMX Interface Box10/100 Ethernet port for Art-Net DMX output100/1000 Ethernet port for MAXNET and Remote operationFull administrator rights on PC
4 x DMX universe outputs: 5-pin locking XLRReady to receive internal MIDI module and SMPTE timecode moduleInternal MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): OptionalInternal SMPTE Timecode In/Out: 3-pin XLR (optional)12 VDC power supply input: 4-pin XLRDesk lamp: XLR
AC mains power to 12 VDC external PSU (included):100-240 V nominal, 50/60 HzMaximum current: 1.4 A12 VDC output: 5 A, 60 W max.
1.5 m power cable, EU (Schuko), 3-pin IEC1.5 m power cable, US, 3-pin IECMW 12 VDC 5 A external PSUMartin One-Key™ with Martin ShowDesigner 6 Lite™ one-year license and Martin™ M-PC 64 universes licenseUser documentationConsole lid
Martin M-Sync™ SMPTE USB Interface Box: P/N 90703020Martin™ SMPTE USB Internal Module for M2GO/M2PC:P/N 90703040USB-MIDI Port Internal Module: P/N 91613038Replacement 12 VDC external PSU: P/N 91613100LED Desklamp, Angular XLR, 13”: P/N 91613090Martin™ One-Key with Martin™ M-PC Pro-64 /LightJockey4 License: P/N 70758460Martin™ M2GO/M2PC USB-DMX internal PCB with 2 x DMX ports: P/N 90703030Martin M-DMX Interface Box / Martin M-PC 2U package: P/N 90737070
M-Series Submaster Module: P/N 90732170M-Series Playback II Module: P/N 90732190Martin™ M-Touch: P/N 90737040Martin™ M-Play: P/N 90737030Martin™ M-PC Pro-64 / LJ-4 Controller kit: P/N 90737060
M2PC™ Console: P/N 90737010
