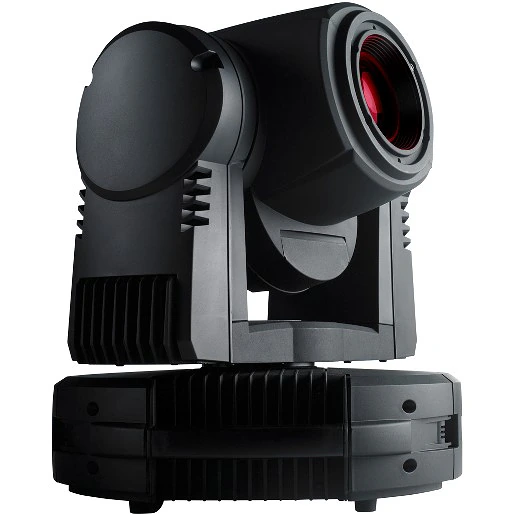

The smartMAC is a 150 W moving head profile that outperforms many of its 250 W rivals and offers unprecedented reliability, longer service intervals, total silence and smaller power bills.
Μεγαλύτερες εικόνες
Χαρακτηριστικά
- 150 W discharge lamp
- Total output up to 4600 lumens
- 8 interchangeable color filters plus open
- Fadeable, strobe effect up to 9 Hz, pulse effects, instant open and blackout
- Motorized focus
- Pan and tilt range of 540°/257°
- Synchronized stand-alone with onboard programming
- No fan - silent operation
- Mounting points are 2 pairs of 1/4 turn locks
- 6 indexable rotating gobos plus open
Περισσότερες λεπτομέρειες
Physical Length: 387 mm including handles Width: 352 mm Height: 454 mm, head horizontal Height: 448 mm, head straight up Weight: 21 kg
Dynamic Effects Color wheel: 8 interchangeable dichroic filters + open, full and split colors, music trig, continuous rotation, random color Rotating gobo wheel: 6 interchangeable gobos + open, indexing, continuous gobo rotation & scrolling, shake Shutter: Fadeable, strobe effect up to 9 Hz, pulse effects, instant open and blackout Focus: 2 m to infinity Pan: 600° Tilt: 257°
Control and Programming Control options: DMX, stand-alone, synchronized (host/client) DMX channels: 12/15 Setting and addressing: Control panel with LED display Macro programs: 10 pan/tilt and 10 effects macros, all with staggered start/chase feature Macro selection: DMX or onboard control panel Movement control options: Tracking and vector 16-bit control: Rotating gobo indexing, pan & tilt Protocol: USITT DMX512/1990 Stand-alone and host/client programming: Control panel with LED display Stand-alone memory: 100 scenes Receiver: RS-485 Firmware update: Serial upload via DMX link
Lamp Type: 150 W discharge Fitted as standard: Philips MSD 150/2 Color temperature: 8500 K CRI (Color rendering index): 70 Average lifetime: 3000 hours (9000 hours with CDM SA/T lamp) Hot restrike: No Socket: G12 Ballast: Magnetic Approved alternative lamp(s): Philips CDM-SA/T 150
Optics Beam angle: Standard lens with diffuser 25° (24° without diffuser), cut-off angles
Construction Color(s): Black or white Housing: UV-resistant fiber-reinforced composite and die-cast aluminum Reflector: Glass, cold light Protection rating: IP20
Gobos Outside diameter: 27.9 mm +0/- 0.3 mm Maximum image diameter: 23 mm Maximum thickness: 1.8 mm Recommended glass: High-temperature Borofloat or better with dichroic or enhanced aluminum coating Recommended metal: Aluminum (steel for temporary use only)
Installation Mounting points: Quick release mounting bracket or 2 pairs of 1/4-turn locks Orientation: Any Minimum distance to illuminated surfaces: 250 mm Minimum distance to combustible materials: 100 mm from head, no minimum distance from base
Connections AC power input: 3-pin IEC DMX data in/out: 3-pin and 5-pin locking XLR
Electrical AC power: 100-240 V nominal, 50/60 Hz Power supply unit: User-reconfigurable voltage and frequency settings Main fuse: 4 AT (slow blow)
Typical Power and Current 100 V, 50 Hz: 229 W, 2.4 A, PF 0.967 100 V, 60 Hz: 226 W, 2.3 A, PF 0.980 120 V, 60 Hz: 230 W, 2.2 A, PF 0.897 208 V, 60 Hz: 209 W, 1.1 A, PF 0.947 230 V, 50 Hz: 216 W, 1.0 A, PF 0.951 240 V, 50 Hz: 215 W, 1.0 A, PF 0.937 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 40° C Maximum surface temperature, steady state, Ta=40° C: 120° C Total heat dissipation (calculated, +/- 10%): 785 BTU/hr.
Acoustic Sound power level: 27.5 dBA, steady state, lamp on, effects static, Ta=20°C, test conditions ISO 3743-2:1994
Approvals EU safety: EN 60598-1, EN 60598-2-17 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 1573 Canadian safety: CAN/CSA E 60598-2-17
Included Items Philips MSD 150/2 lamp (installed): 97010117 Diffusion filter (installed): 41600062 Quick release mounting bracket, smartMAC: 62406107 3 m power cable, 3-pin angled IEC: 11501029 User manual: 35000208
Accessories Philips CDM-SA/T 150 W lamp: 97010111 Wash lens kit, black: 91610034 Wash lens kit, white: 91610035 G-clamp: 91602003 Half-coupler clamp: 91602005 Quick trigger clamp: 91602007 Omega bracket: 91602001 T-shaped omega bracket with quarter-turn fasteners: 91602008 Safety cable, safe working load 50 kg: 91604003
Spare Parts Philips MSD 150/2 lamp: 97010117 4 AT main fuse: 05020014 Diffusion filter: 41600062 Quick release mounting bracket, smartMAC: 62406107
Ordering Information smartMAC, black, in cardboard box, includes quick-release mounting bracket: 90231040 smartMAC, white, in cardboard box, includes quick-release mounting bracket: 90231041
